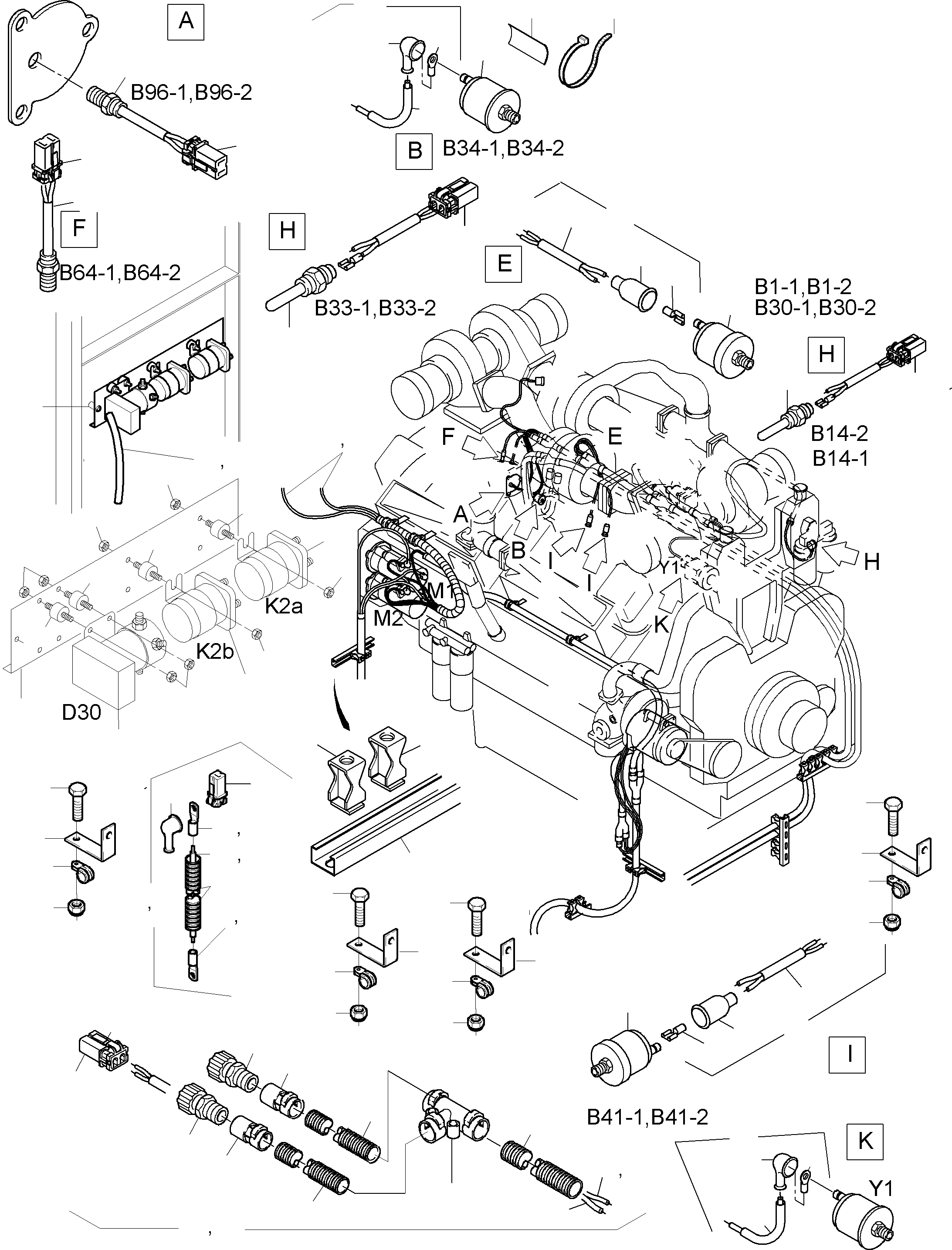

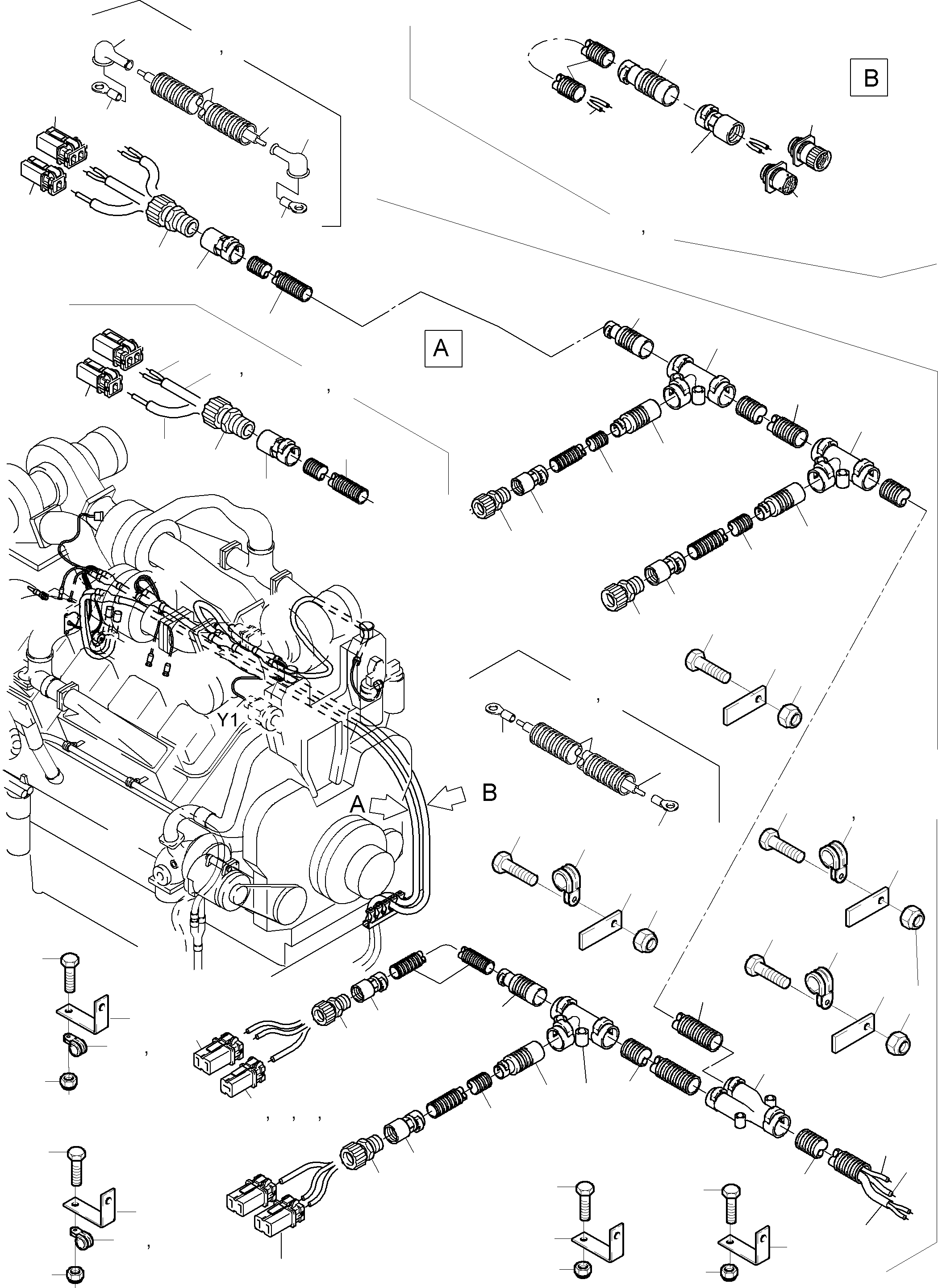

Diagram image 1 of 2

PC5500-6 S/N 15024

01 02 03 04 05 07 07 08 09 10 104 104 104 104 105 11 112 112 112 112 113 113 113 113 115 115 12 13 14 15 16 16 16 16 17 17 17 17 17 17 18 18 18 19 20 21 23 23 24 25 26 29 30 30 33 33 35 35 42 44 44 45 46 47 57 68 68 69 69 70 70 71 71 72 72 73 74 76 76 77 77 77 78 78 79 80 81 82 83 94 94 94 95 95 95 96 96 97 97 98 99

PC5500-6 S/N 15024

100 101 102 103 105 105 106 107 108 109 110 110 111 111 112 112 112 112 112 112 113 113 113 113 113 114 18 18 19 19 19 19 22 23 23 25 25 27 28 28 29 29 29 31 32 32 32 32 32 33 33 34 34 34 35 36 36 37 38 39 40 41 41 42 43 43 44 48 48 48 49 49 50 50 51 51 52 52 53 53 54 54 54 54 55 56 57 57 58 59 60 61 62 63 64 65 65 66 66 67 71 73 73 73 74 74 75 84 85 86 87 88

#	Part Number	Partname	Quantity
01	896 579 40	Sensor	2
02	906 754 40	Pressure switch - engine-oil pressure	2
03	907 462 40	Pressure switch - engine-oil pressure	2
04	906 078 40	Pressure transmitter	2
05	414 899 40	Rpm-sensor	2
07	659 892 40	Starter relay assy.	4
08	792 585 73	Time lag relay	2
09	906 756 40	Pressure switch (cooling water)	2
10	317 319 40	Threaded block	4
11	461 350 40	Revolution sensor	-2
12	431 169 40	Temperature transmitter	-2
13	923 153 40	Harness - engine 2, front	1
14	923 147 40	Harness - engine 1, front	1
15	635 965 40	Relay	2
16	655 642 40	Circular bearing	12
17	507 025 98	Nut	12
18	655 649 40	Protecting hose DN 10 Bulk ware, state length required	-2
19	655 650 40	Protecting hose DN 12 Bulk ware, state length required	-2
20	655 628 40	T-distributor	2
21	891 051 40	Plug assy. 2-pole	2
22	891 084 40	Plug assy.	4
23	655 805 40	Fitting PG 9	8
24	377 750 99	Bolt	4
25	655 798 40	Cable union PG 9	6
26	655 799 40	Cable union PG 9	2
27	655 627 40	Connector distributor DN 23/17	2
28	655 652 40	Protecting hose DN 23 Bulk ware, state length required	-2
29	515 213 40	Cable 1,0 qmm Bulk ware, state length required	-2
30	515 214 40	Cable 2,5 qmm Bulk ware, state length required	-2
31	592 600 40	Cable 2x0,75 qmm Bulk ware, state length required	-2
32	655 651 40	Protecting hose DN 17 Bulk ware, state length required	-2
33	916 640 40	Angle	10
34	655 629 40	T-distributor	6
35	916 641 40	Angle	10
36	655 632 40	Pipe adapter DN 17/10	4
37	621 547 40	Plug	2
38	621 548 40	Socket	2
39	621 698 40	Contact plug 1-2 qmm	18
40	621 699 40	Female contact 1-2 qmm	18
41	634 404 40	Strain relief	4
42	006 339 98	Clamp	4
43	145 831 40	Clamp	4
44	006 302 98	Clamp	10
45	551 474 40	Rail Bulk ware, state length required	-2
46	358 273 40	Series clamping	-2
47	358 274 40	Series clamping	-2
48	655 633 40	Pipe adapter DN 17/12	6
49	655 806 40	Fitting PG 11	4
50	655 807 40	Fitting PG 13,5	4
51	534 092 99	Clamp	6
52	655 800 40	Cable union PG 11	4
53	655 803 40	Cable union PG 13,5	4
54	891 031 40	Plug with bushings assy.	10
55	896 489 40	Cable union DN 16	2
56	655 808 40	Fitting DN 16	2
57	896 520 40	End pin	26
58	635 677 40	Cable 4x1 Bulk ware, state length required	-2
59	923 145 40	Harness engine 1, rear 1	1
60	923 148 40	Harness engine 2, rear 1	1
61	923 146 40	Harness engine 1, rear 2	1
62	923 149 40	Harness engine 2, rear 2	1
63	917 320 40	Cable - starter 3M2-1-GND	1
64	917 321 40	Cable - starter 3M2-2-GND	1
65	056 076 40	Protection cap	4
66	906 154 40	Cable lug 120/12	4
67	906 658 40	Cable 1x120 Bulk ware, state length required	-2
68	910 057 40	Rubber capsule assy. 1-pole	4
69	910 055 40	Protection cap assy. 2-pole	6
70	323 961 40	Sleeve 6,3x0,8	-2
71	455 756 99	Insulating tube B 6x0,6 Bulk ware, state length required	-2
72	906 922 40	Protection cap	-2
73	056 070 40	Cable sleeve 1,0-1,5	52
74	055 130 40	Tab	16
75	055 100 40	Cable lug, red	-2
76	455 890 99	Insulating tube B 3x0,4 Bulk ware, state length required	-2
77	255 745 40	Rubber capsule	-2
78	055 104 40	Cable lug 1,5	-2
79	896 521 40	End pin	4
80	056 071 40	Cable sleeve 2,5	-2
81	891 140 40	Plate	1
82	256 514 40	Name plate	-2
83	056 292 40	Cable strap	-2
84	923 550 40	Cable generator G5-1 ground	1
85	923 552 40	Cable generator G5-2 ground	1
86	654 421 40	Cable lug 35	2
87	655 690 40	Cable lug 35	2
88	655 689 40	Cable 35 qmm Bulk ware, state length required	-2
94	923 548 40	Harness - starter - relay 1	1
95	923 549 40	Harness - starter - relay 2	1
96	055 108 40	Cable lug blue 2,5	18
97	055 109 40	Cable lug yellow 4-6	12
98	455 754 99	Insulating tube B4x0,5 Bulk ware, state length required	-2
99	891 050 40	Plug with pins assy.	2
100	923 557 40	Harness - oil management system engine 1	1
101	923 558 40	Harness - oil management system engine 2	1
102	455 755 99	Insulating tube B5x0,6 Bulk ware, state length required	-2
103	891 032 40	Plug with pins assy.	2
104	891 039 40	Plug with bushings assy.	10
105	006 303 98	Clamp	8
106	916 642 40	Angle	2
107	916 643 40	Plate	2
108	916 644 40	Plate	4
109	916 645 40	Plate	2
110	307 671 99	Bolt	8
111	332 442 99	Nut	8
112	307 736 99	Bolt	32
113	332 331 99	Nut	32
114	923 554 40	Plate	2
115	907 535 40	Seal	6

Komatsu PC5500-6 S/N 15024 parts catalog PDF

CABLES - ENGINE AND TRANSMITTER (515-2148i) in PC5500-6 S/N 15024. Diagram image and parts list.
