HYDR. PUMP | PC5500-6 S/N 15024 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

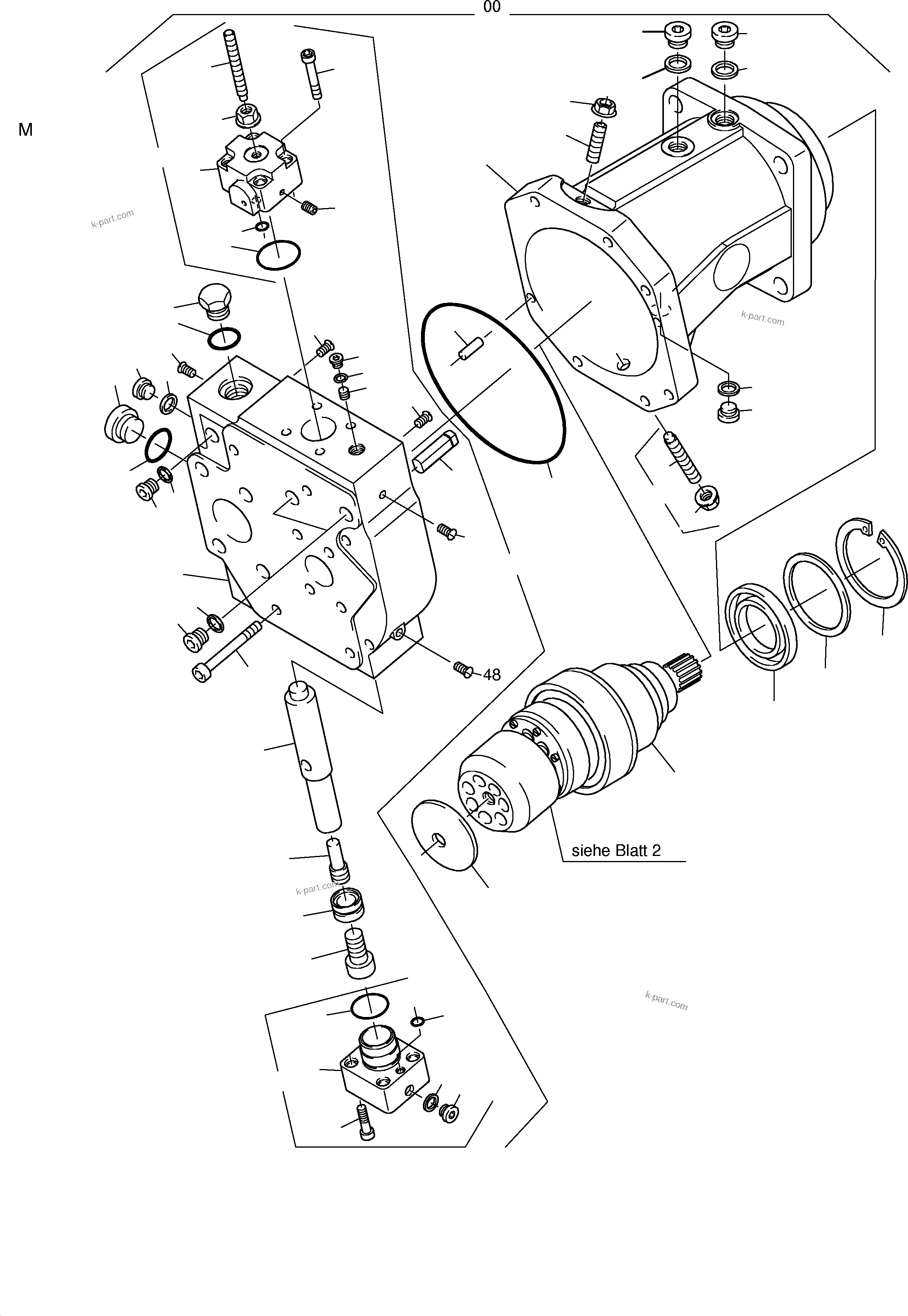

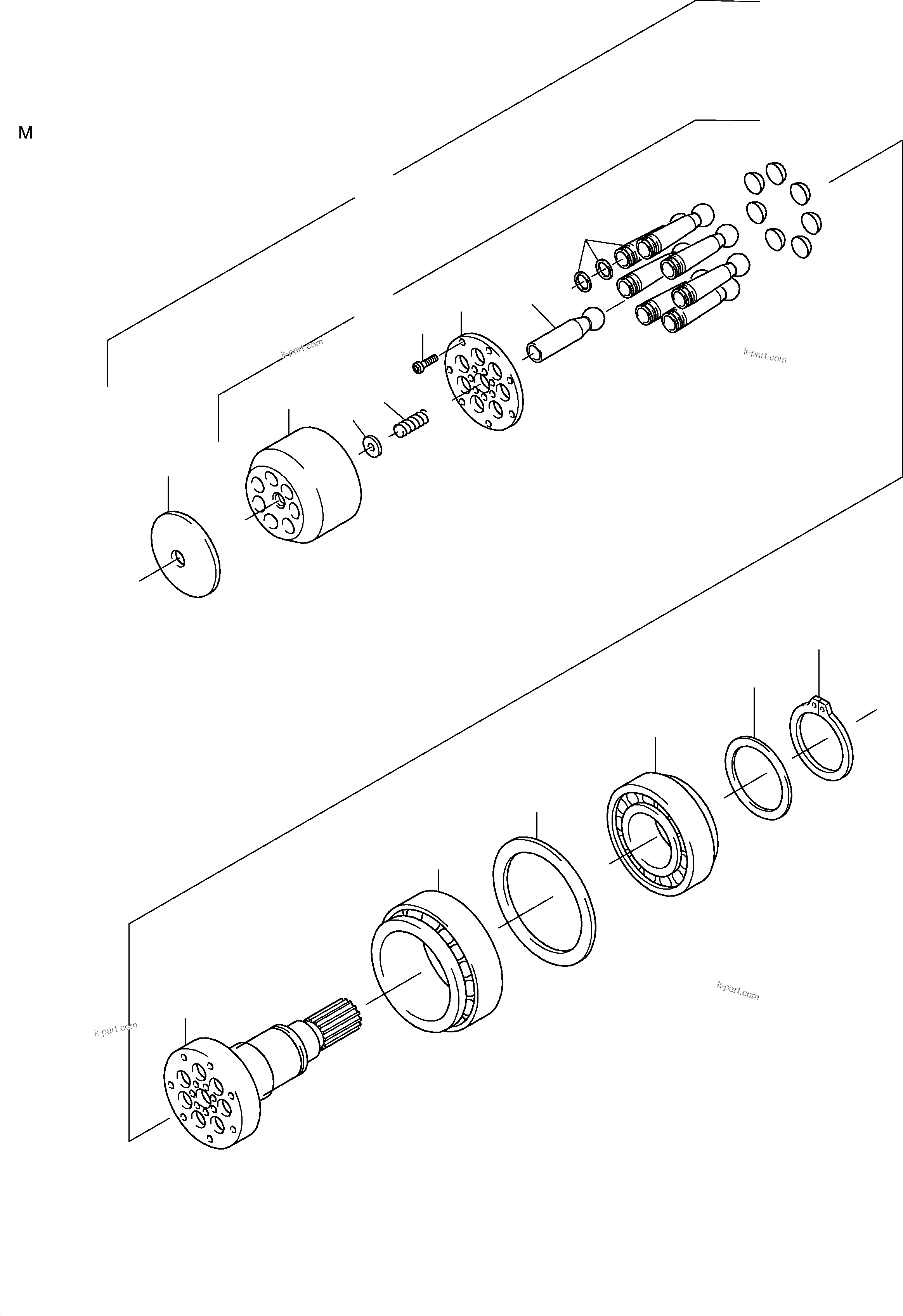

Diagram image 1 of 2

PC5500-6 S/N 15024

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15024

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	896 443 40	Variable displacement pump	1
?	766 794 73	Transmission assy.	1
?	766 795 73	Adjustment assy.	1
?	766 796 73	Control lense, clockwise rotation	1
?	766 797 73	Housing	1
?	270 996 40	Plug	1
?	693 227	Seal ring to fig-no. 05	1
?	342 661 99	Circlip	1
?	757 911 73	Shaft seal	1
?	341 464 99	Supporting disc	1
?	511 878 98	O-ring	1
?	270 996 40	Plug	1
?	693 227	Seal ring to fig-no. 11	1
?	512 267 98	Thread pin	2
?	511 848 98	Thread pin	1
?	964 767	Flanged nut	2
?	766 798 73	Transmission, hydr. part assy.	1
?	766 799 73	Drive shaft	1
?	766 800 73	Shim ring	1
?	766 801 73	Supporting disc	1
?	342 552 99	Circlip	1
?	753 685	Taper roller bearing	1
?	766 802 73	Cylinder	1
?	766 803 73	Trunnion	1
?	766 804 73	Piston with ring	7
?	766 805 73	Adjusting disc	1
?	766 806 73	Compression spring	1
?	964 750	Withdrawal plate	1
?	757 409 73	Bolt	14
?	766 807 73	Cover preassembly	1
?	766 808 73	Cover assy.	1
?	766 785 73	Plug	1
?	766 809 73	Cover plate, clockwise rotation	1
?	766 810 73	Piston	1
?	757 551 73	Piston	1
?	307 192 99	Bolt	1
?	805 036 73	Regulation journal	1
?	766 811 73	Thread pin	1
?	766 789 73	Plug	1
?	313 395 99	Plug	1
?	202 970 40	Plug	2
?	696 126 73	Seal ring to fig-no. 40	2
?	992 655	Plug	1
?	767 425 73	Seal ring to fig-no. 42	1
?	171 260 40	Plug	2
?	693 229	Seal ring to fig-no. 44	2
?	318 811 99	Bolt	6
?	766 812 73	Parallel pin	2
?	765 465 73	Breaking plug	8
?	313 455 99	Plug	1
?	511 352 98	O-ring	2
?	766 790 73	O-ring	1
?	766 813 73	Cover	1
?	502 400 98	O-ring	1
?	504 260 98	O-ring	1
?	319 157 99	Bolt	4
?	766 814 73	Cover	1
?	319 421 99	Screw	4
?	501 358 98	O-ring	1
?	504 844 98	O-ring	2
?	998 603	Flanged nut	1
?	515 477 98	Threaded pin	1
?	765 466 73	Breaking plug	1
?	506 464 99	Taper roller bearing	1
?	766 815 73	Seal kit fig-nos. 06-10,12, 20,41,43,45,50,51,53,54,58,59	1
