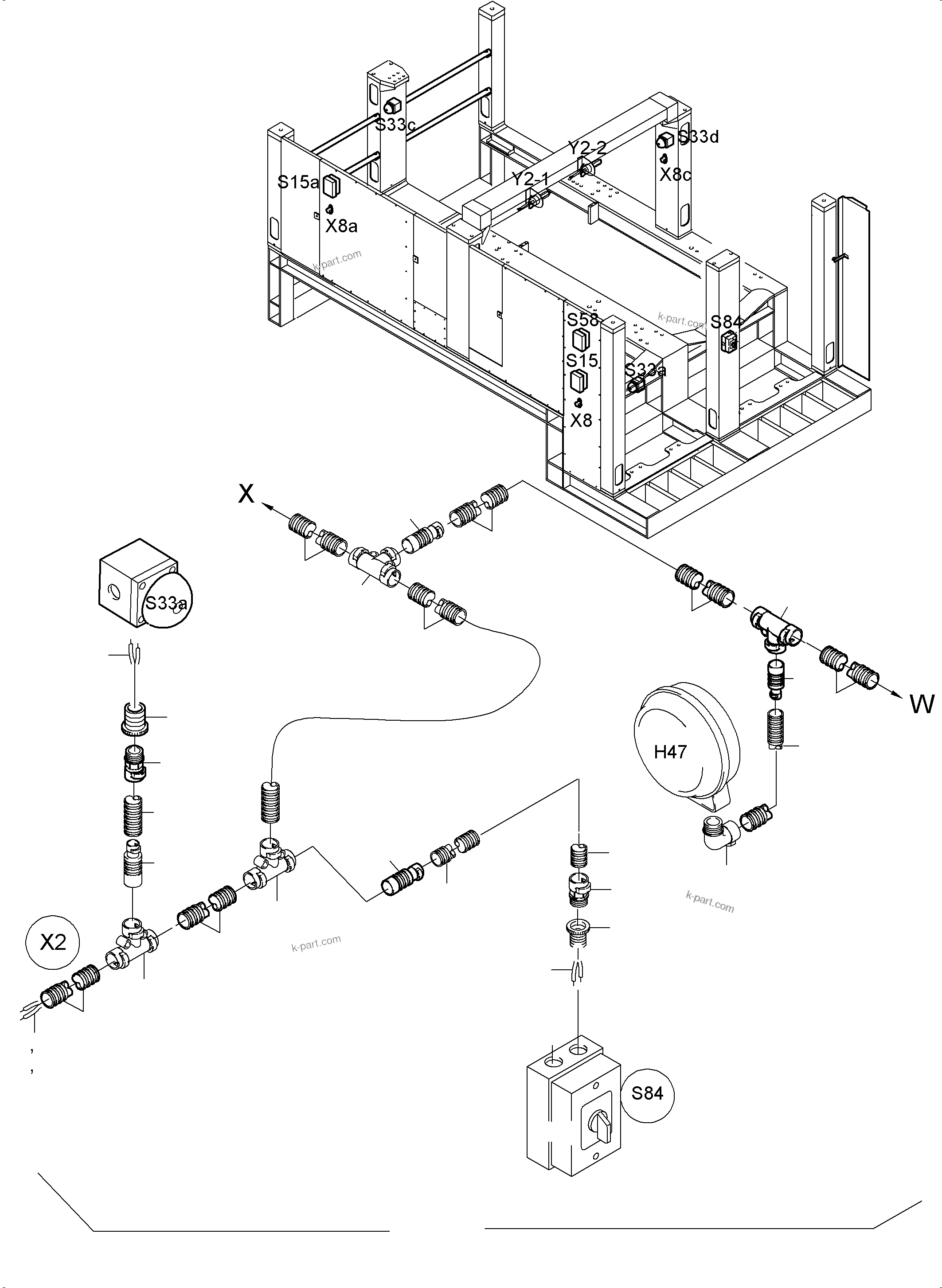

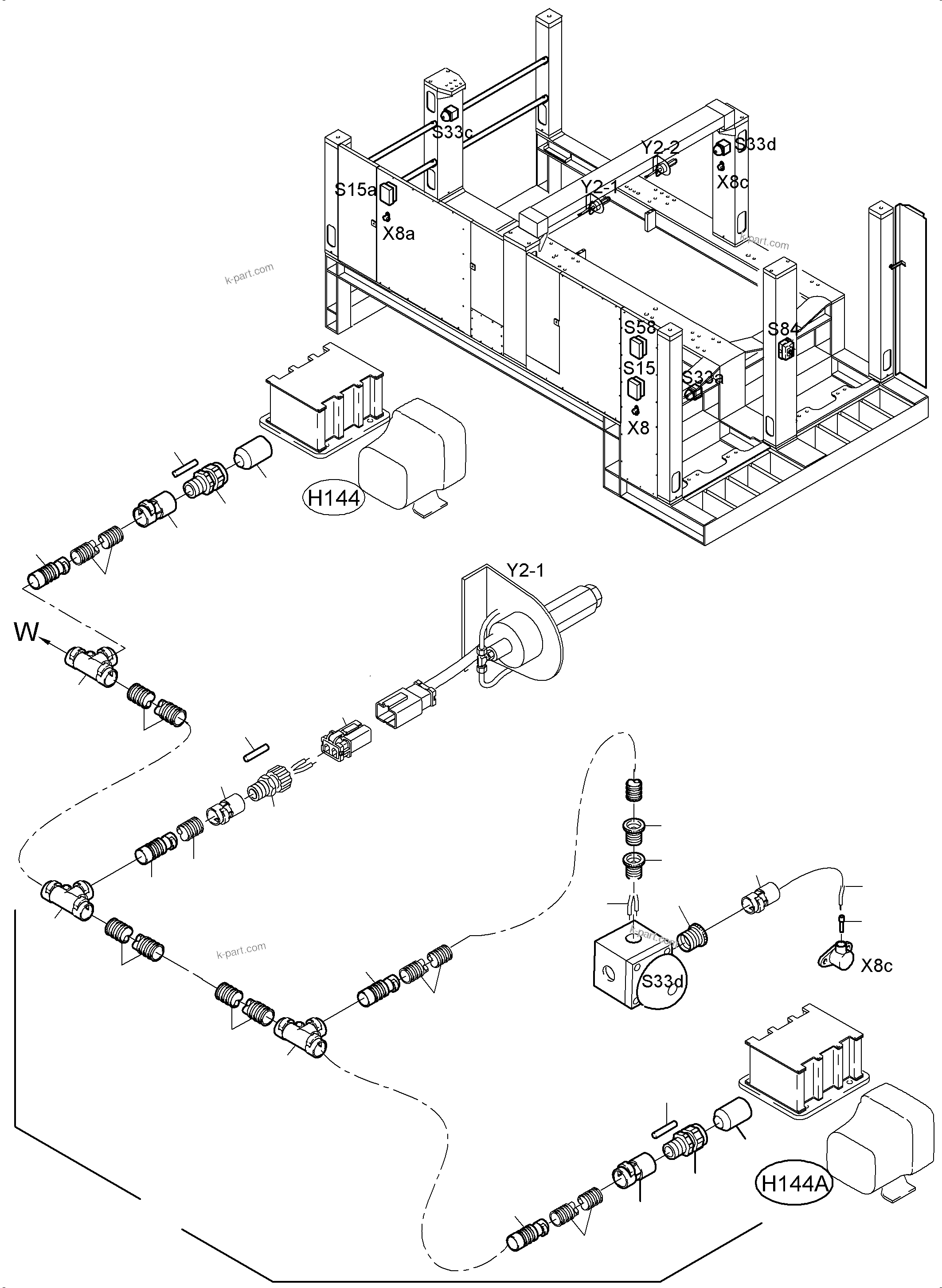

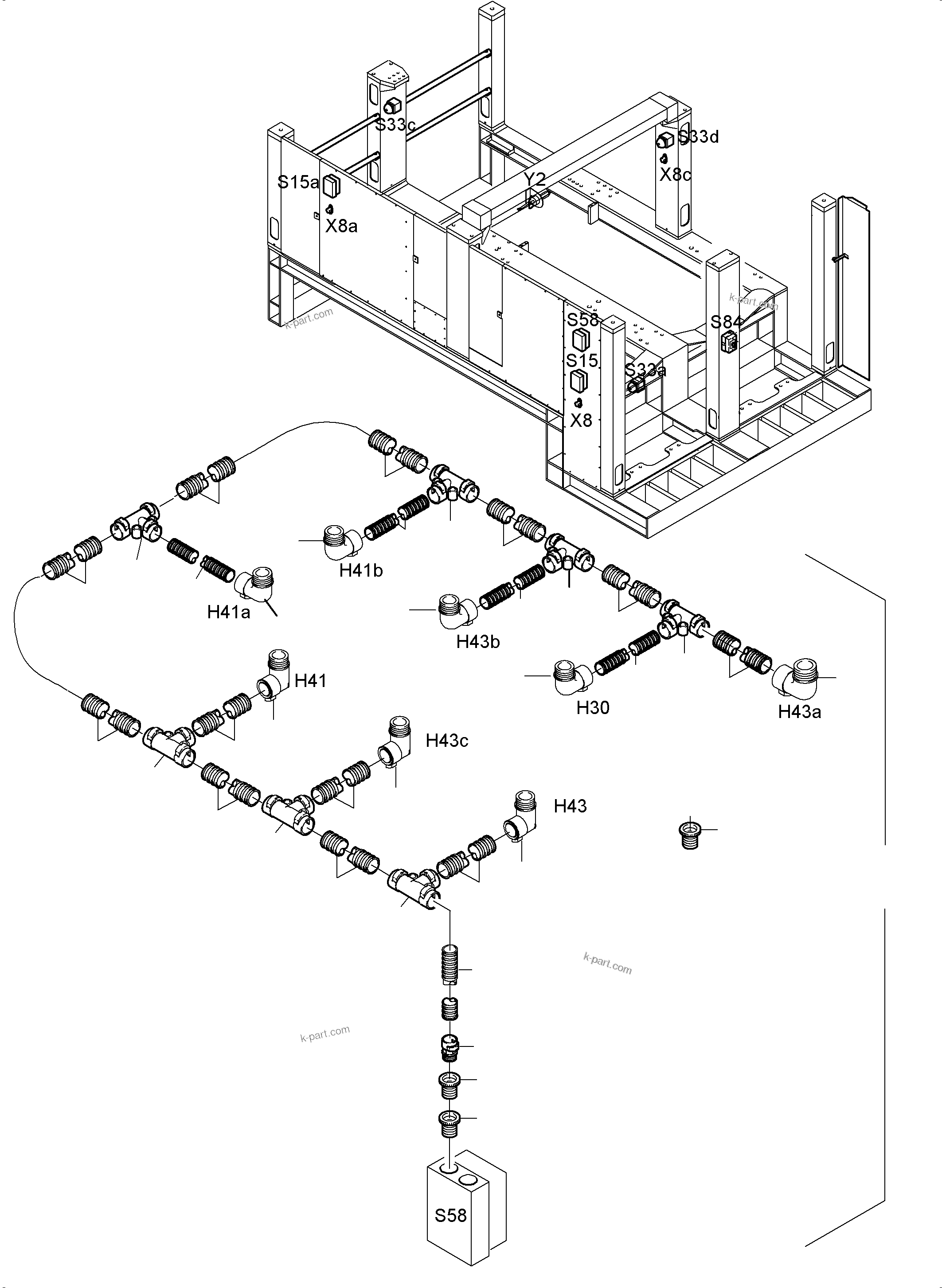

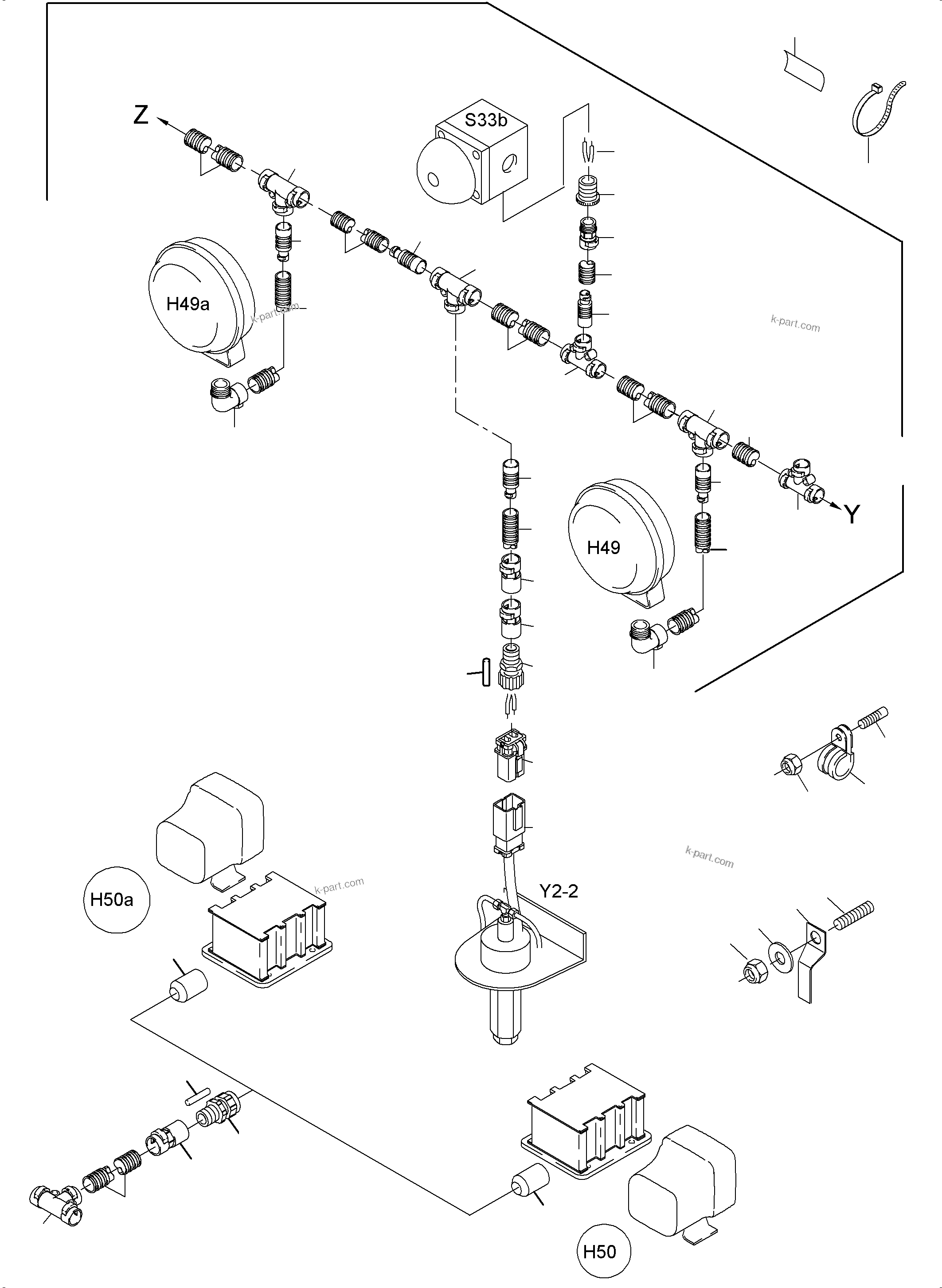

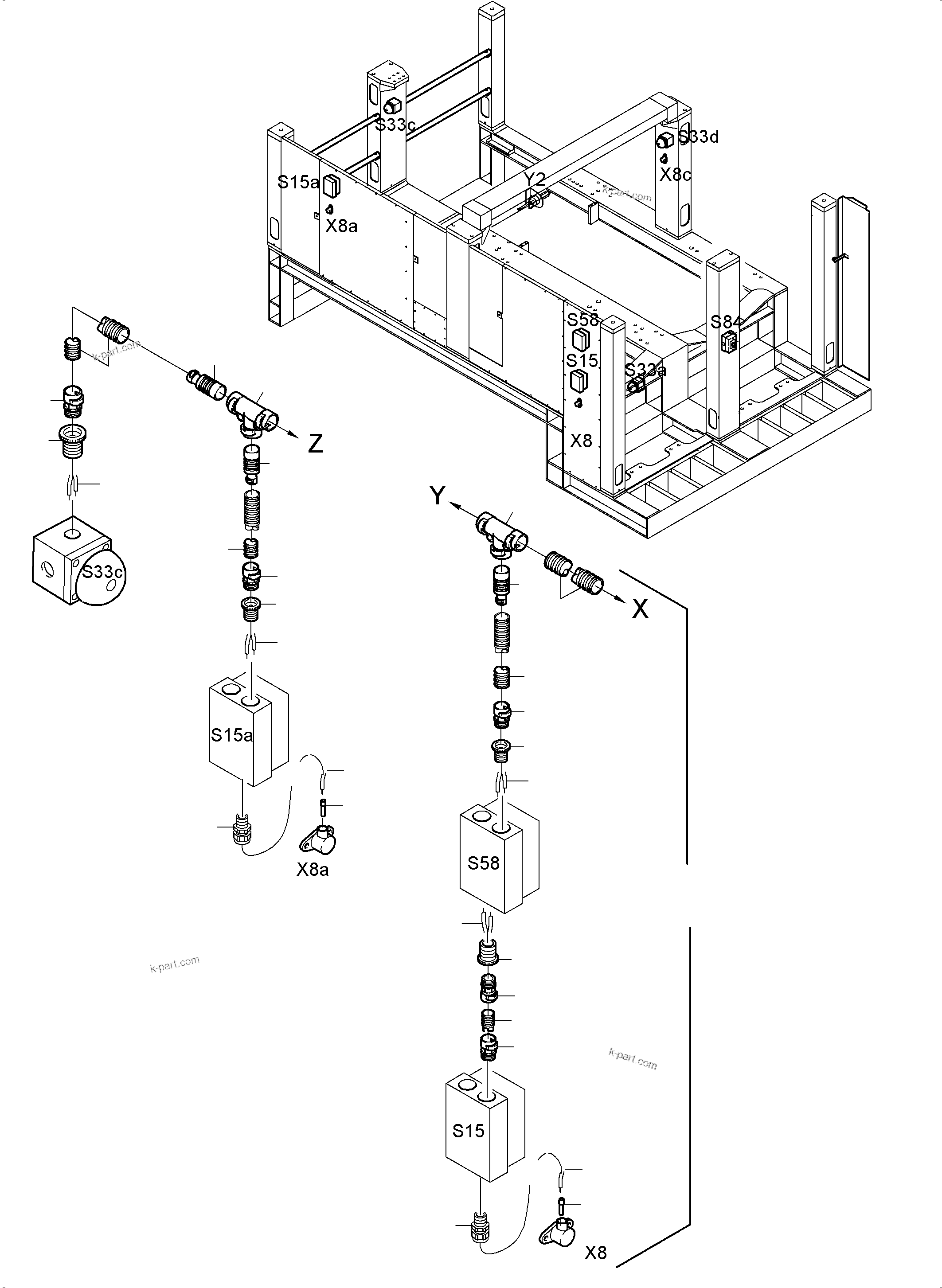

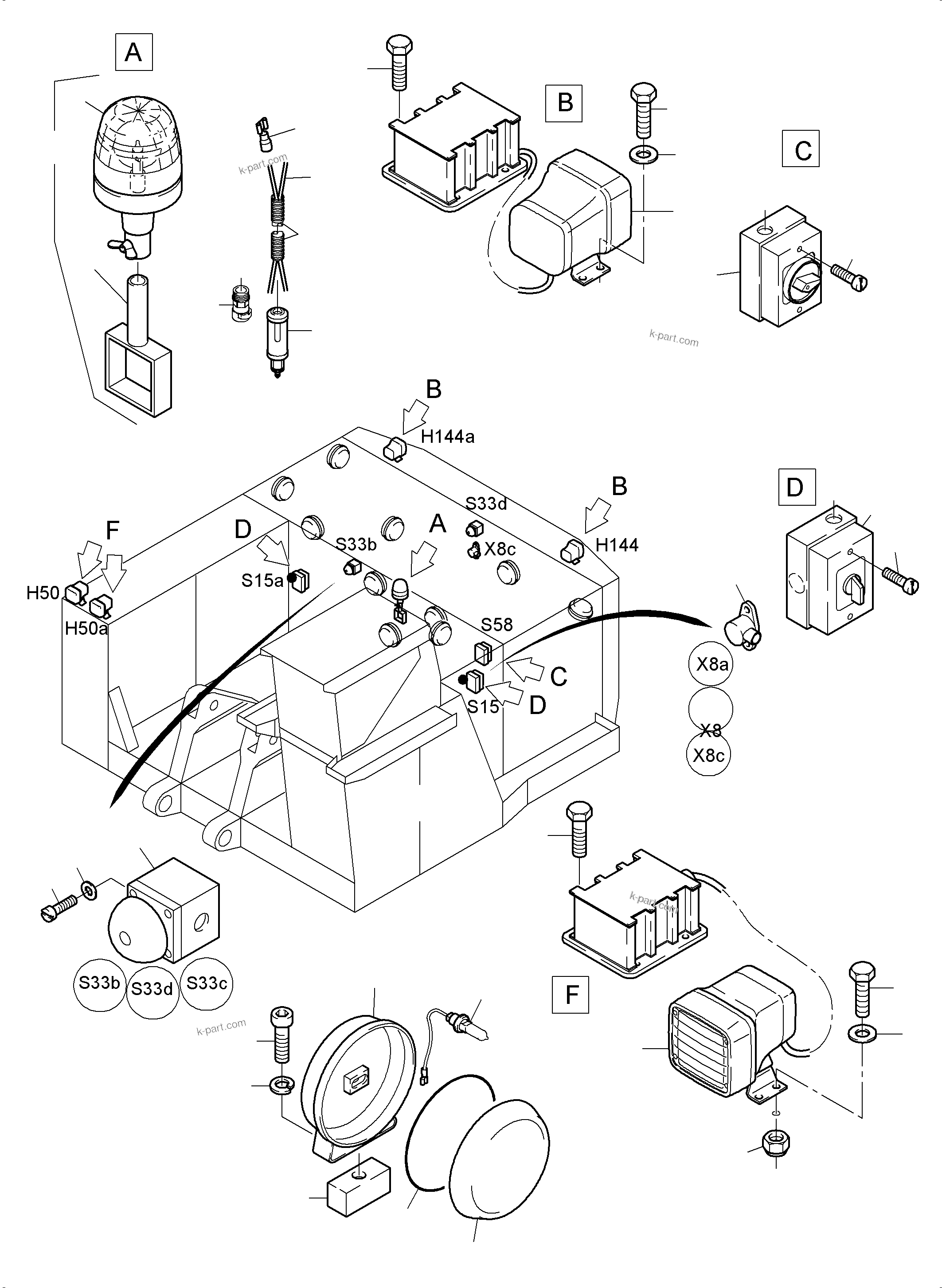

Diagram image 1 of 6

PC5500-6 S/N 15049

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15049

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15049

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15049

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15049

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15049

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options	Reference
?		Spread beam headlamp	4	InternBDB: Hella 1 GA 998 534-011 896 745 40 \| InternKon: 923 576 40 / 4	991-0377
?	340 461 99	Washer	32	InternBDB: 5,3 /125 \| InternKon: 923 576 40 / 10
?	507 036 98	Nut	16	InternBDB: M 5 /985 \| InternKon: 923 576 40 / 11
?	504 010 98	Bolt	32	InternBDB: M5x16 /933 \| InternKon: 923 576 40 / 9
?	634 009 40	Spotlight	10	InternBDB: AB-05-03 ohne Lampe \| InternKon: 926 550 40 / 1
?	507 383 99	Halogen lamp	10	InternBDB: H1 /24V /70W \| InternKon: 926 550 40 / 2
?	769 155 73	Seal	10	InternBDB: ABL 18-11401
?	769 156 73	Pane, white	10	InternBDB: ABL 18-10201
?	621 314 40	Camswitch	1	InternBDB: Klцckner-Mцller P1-25/I-SI-SW+H/11-P1/P3Z \| InternKon: 923 535 40 / 12
?	057 278 40	Socket	3	InternBDB: 0352 221 001 \| InternKon: 923 535 40 / 11
?	655 631 40	Pipe adapter NW 12/10	4	InternBDB: BAVR 12T10T \| InternKon: 923 156 40 / 8
?	517 322 98	Nut	3	InternBDB: M20x1,5 DINEN 50262 \| InternKon: 923 156 40 / 34
?	655 810 40	Pipe adapter NW 29/12	1	InternBDB: BAVR 29G12T \| InternKon: 923 156 40 / 3
?	655 649 40	Protecting hose DN 10	-2	InternBDB: VCST-10B PMA \| InternKon: 923 156 40 / 22
?	898 629 40	Rotaflare light yellow assy.	1
?	898 612 40	Retainer	1	InternKon: 898 629 40 / 1
?	896 497 40	Rotaflare light 24 yellow	1	InternBDB: Hella 2 RL 006 846-01 \| InternKon: 898 629 40 / 2
?	655 621 40	Cable union NW 10	1	InternBDB: PMA BVNV-P090T \| InternKon: 898 629 40 / 3
?	180 322 40	Plug	1	InternBDB: Bosch 0986 352 000 \| InternKon: 898 629 40 / 5
?	323 960 40	Tab	2	InternBDB: 6,3x0,8 35135 \| InternKon: 898 629 40 / 6
?	907 476 40	Cable union NW 10	6	InternBDB: PMA BVNV-M120 \| InternKon: 923 156 40 / 15
?	903 422 40	Plug head light assy.	4	InternKon: 923 156 40 / 2
?	907 692 40	Fitting M16/NW12	4	InternBDB: BVIR M162 \| InternKon: 923 156 40 / 19
?	907 704 40	Cable union NW12	4	InternBDB: Pflitsch 21650 YNPM 3x3,5 \| InternKon: 923 156 40 / 20
?	896 521 40	End pin	6	InternBDB: Pflitsch B0 4,0x25 916 610 40/21 \| InternKon: 923 156 40 / 21
?	515 214 40	Cable 2,5	-2	InternKon: 923 156 40 / 28
?	056 071 40	Cable sleeve 2,5	31	InternKon: 923 156 40 / 32
?	891 051 40	Plug with bushings assy.	2	InternKon: 923 156 40 / 1
?	891 031 40	Plug with pins assy.	1
?	056 070 40	Cable sleeve 1,0-1,5	46	InternKon: 923 156 40 / 31
?	515 213 40	Cable 1,0	-2	InternKon: 923 156 40 / 27
?	655 650 40	Cable protection hose DN 12	-2	InternBDB: PMA VCST-12 B \| InternKon: 923 156 40 / 23
?	907 623 40	Cable union NW 12	1	InternBDB: BVNV-M202 \| InternKon: 923 156 40 / 16
?	907 693 40	Fitting M20/NW17	1	InternBDB: BVIR-M207 \| InternKon: 923 144 40 / 21
?	655 628 40	T-Distributor DN 10	6	InternBDB: PMA BFTL-101010 TTT \| InternKon: 923 156 40 / 4
?	655 629 40	T-Distributor DN 17	6	InternBDB: PMA BFTL-171717 GGG \| InternKon: 923 156 40 / 5
?	655 632 40	Pipe adapter DN 17/10	7	InternBDB: BAVR-17 G 10 T \| InternKon: 923 156 40 / 9
?	907 478 40	Cable union NW 17	3	InternBDB: BVNV-M207 \| InternKon: 923 156 40 / 17
?	655 651 40	Cable protection hose DN 17	-2	InternBDB: VCSG-17 B \| InternKon: 923 156 40 / 24
?	907 476 40	Cable union NW12	10	InternBDB: BVNV-M120 \| InternKon: 923 156 40 / 18
?	256 514 40	Name plate	22	InternBDB: BS5 55476 \| InternKon: 923 156 40 / 29
?	056 292 40	Cable strap	22	InternBDB: TY 23 M \| InternKon: 923 156 40 / 30
?	907 711 40	Cable union M6x4,0	1	InternBDB: 22553 YNPM6x4,0 \| InternKon: 923 144 40 / 24
?	655 634 40	Pipe adapter DN 23/17	2	InternBDB: BAVR-23 G 17 G \| InternKon: 923 156 40 / 11
?	655 630 40	T-Distributor DN 29/23	5	InternBDB: BFTL-292323 GGG \| InternKon: 923 156 40 / 6
?	906 079 40	T-Distributor DN 29	2	InternBDB: BFTL-292929 GGG \| InternKon: 923 156 40 / 7
?	655 633 40	Pipe adapter DN 17/12	1	InternBDB: BAVR-17 G 12 T \| InternKon: 923 156 40 / 10
?	655 809 40	Pipe adapter DN 29/10	5	InternBDB: BAVR-29 G 10 T \| InternKon: 923 156 40 / 12
?	517 320 98	Plug	10	InternBDB: M12x1,5 DINEN 50262 \| InternKon: 923 156 40 / 39
?	320 974 99	Screw	10	InternBDB: M4x10 /84 \| InternKon: 923 576 40 / 12
?	317 319 40	Threaded block	10	InternKon: 923 576 40 / 15
?	319 143 99	Screw	10	InternBDB: M8x40 /912 \| InternKon: 923 576 40 / 13
?	343 108 99	Lock washer	10	InternBDB: 8 /127 \| InternKon: 923 576 40 / 14
?	321 010 99	Screw	4	InternBDB: M5x25 /84 \| InternKon: 923 535 40 / 17
?	340 461 99	Washer	4	InternBDB: 5,3 /125
?	635 143 40	Emergency switch-off	3	InternBDB: Klцckner-Mцller FAK-R/V/KC11A/I \| InternKon: 923 535 40 / 13
?	003 670 79	Clip	3	InternKon: 903 399 40 / 1
?	145 831 40	Clamp 20/15	1	InternBDB: RSGU 1100 20/15 \| InternKon: 898 699 40 / 1
?	510 210 98	Thread pin	30	InternBDB: PM 6x20 /32500 \| InternKon: 898 699 40 / 2
?	507 025 98	Nut	30	InternBDB: M 6 /985 \| InternKon: 898 699 40 / 3
?	006 301 98	Clamp 12/15	17	InternBDB: RSGU 1100 12/15 \| InternKon: 910 019 40 / 1
?	534 092 99	Clamp 8/15	1	InternBDB: RSGU 1100 8/15 \| InternKon: 919 416 40 / 1
?	350 762 99	Washer	3	InternBDB: 6,6 /440 \| InternKon: 903 399 40 / 4
?	655 635 40	Pipe adapter DN 29/17	1	InternBDB: BAVR-29 G 17 G \| InternKon: 923 156 40 / 14
?	655 652 40	Protecting hose DN 23	-2	InternBDB: VCSG-23B \| InternKon: 923 156 40 / 25
?	655 696 40	Protecting hose DN 29	-2	InternBDB: VCSG-29B \| InternKon: 923 156 40 / 26
?	940 463 40	Insulating tube	-2	InternBDB: 7x0,7/ Shore 70 \| InternKon: 923 156 40 / 38
?	923 156 40	Harness - engine housing	1	InternKon: 923 160 40 / 10
?	551 362 40	Camswitch	2	InternBDB: T0-1-8220/I \| InternKon: 923 576 40 / 6

Komatsu PC5500-6 S/N 15049 parts catalog PDF

LIGHTING EQUIPMENT (515-2105k) in PC5500-6 S/N 15049. Diagram image and parts list.
