PC5500-6 S/N 15049

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	655 651 40	Protecting hose DN 17	-2	InternBDB: VCSG-17 B \| InternKon: 923 154 40 / 15
?	655 652 40	Protecting hose DN 23	-2	InternBDB: VCSG-23 B \| InternKon: 923 154 40 / 16
?	655 696 40	Protecting hose DN 29	-2	InternBDB: VCSG-29 B \| InternKon: 923 154 40 / 17
?	655 650 40	Protecting hose NW 12	-2	InternBDB: VCST-12 B \| InternKon: 923 154 40 / 14
?	655 630 40	T-Distributor DN 29/23	2	InternBDB: BFTL-29 23 23 GGG \| InternKon: 923 154 40 / 6
?	655 627 40	Distributor DN 23/17	1	InternBDB: BVYR 23 17 17 GGG \| InternKon: 923 154 40 / 5
?	655 634 40	Pipe adapter DN 23/17	1	InternBDB: BAVR 23 G 17 G \| InternKon: 923 154 40 / 24
?	655 635 40	Pipe adapter DN 29/17	1	InternBDB: BAVR 29 G 17 G \| InternKon: 923 154 40 / 8
?	655 633 40	Pipe adapter MW 17/12	1	InternBDB: BAVR 17 G 12 T \| InternKon: 923 154 40 / 7
?	515 213 40	Cable 1.0	-2	InternKon: 923 154 40 / 18
?	940 169 40	Cable 4x1	-2	InternKon: 923 154 40 / 19
?	907 693 40	Fitting PG 16	3	InternBDB: BFIL P 167 G \| InternKon: 923 154 40 / 10
?	907 710 40	Cable union PG 16	2	InternBDB: Pflitsch 22553 YNPM 18x2,4 \| InternKon: 923 154 40 / 12
?	891 031 40	Plug with pins assy.	15	InternKon: 923 154 40 / 1
?	891 039 40	Plug with bushings assy.	16
?	891 084 40	Plug assy.	3	InternKon: 923 154 40 / 2
?	654 904 40	Pressure switch	1	InternBDB: 0166 404 03 1015 0,5 steigend \| InternKon: 894 546 40 / 1
?	592 669 40	Pressure switch	1	InternBDB: 0166 416 03 1063 24 bar \| InternKon: 894 540 40 / 1
?	003 670 99	Clip	25	InternKon: 923 536 40 / 7
?	932 898 40	Press. measuring transducer	2	InternBDB: Hydac HDA 4740-G-100-161 \| InternKon: 923 536 40 / 8
?	910 055 40	Protection cap assy.	2	InternKon: 923 154 40 / 4
?	907 709 40	Cable union PG 16	1	InternBDB: Pflitsch 22553YNPM 13x2,7 \| InternKon: 923 154 40 / 23
?	907 692 40	Fitting M16/NW12	1	InternBDB: BVIR M162 \| InternKon: 923 154 40 / 9
?	907 705 40	Cable union PG 9	1	InternBDB: Pflitsch 22051 YNPM 5x2,5 \| InternKon: 923 154 40 / 11
?	896 520 40	End pin	9	InternBDB: Pflitsch BO 3,0x25 \| InternKon: 923 154 40 / 13
?	056 070 40	Cable sleeve 1.0-1.5	50	InternKon: 923 154 40 / 20
?	256 514 40	Name plate	20	InternKon: 923 154 40 / 21
?	056 292 40	Cable strap	20	InternBDB: TY 23 M \| InternKon: 923 154 40 / 22
?	923 154 40	Harness - control carrier	1	InternKon: 923 170 40 / 8
?	923 162 40	Harness - control carrier, cold weather	1	InternKon: 923 170 40 / 8
?	510 210 98	Thread pin	20	InternBDB: PM 6x20 /32500 \| InternKon: 903 399 40 / 2
?	507 025 98	Nut	20	InternBDB: M 6 /985 \| InternKon: 903 399 40 / 3
?	350 762 99	Washer	12	InternBDB: R 6,6 /440 \| InternKon: 903 399 40 / 4
?	006 301 98	Clamp 12/15	1	InternBDB: RSGU 1100 12/15 \| InternKon: 910 019 40 / 1
?	006 304 98	Clamp 20/25	3	InternBDB: RSGU 1100 20/25 \| InternKon: 910 020 40 / 1
?	510 363 98	Clamp 29/15	4	InternBDB: RSGU 1100 29/15 \| InternKon: 910 028 40 / 1
?	006 306 98	Clamp 30/25	3	InternBDB: RSGU 1100 30/25 \| InternKon: 910 021 40 / 1
?	509 875 98	Thread pin	3	InternBDB: PM 8x25 /32500 \| InternKon: 910 021 40 / 2
?	334 599 99	Nut	3	InternBDB: M 8 /985 \| InternKon: 910 021 40 / 3
?	006 339 98	Clamp 18/15	3	InternBDB: RSGU 1100 18/15 \| InternKon: 923 536 40 / 5
?	923 176 40	Harness - control plate	1	InternKon: 923 160 40 / 22
?	655 626 40	Distributor DN 17/12	1	InternBDB: BVYR-171212GTT \| InternKon: 923 176 40 / 2
?	907 692 40	Fitting M16/NW12	2	InternBDB: PMA BVIR M162 \| InternKon: 923 176 40 / 9
?	907 707 40	Cable union PG 11	2	InternBDB: Pflitsch 052 YNPM 2x2,5 /2x6 \| InternKon: 923 176 40 / 10
?	655 650 40	Protecting hose DN 12	-2	InternBDB: VCST-12 B \| InternKon: 923 176 40 / 4
?	906 483 40	Valve plug	2	InternBDB: Murr 24999 B + 30m Kabel \| InternKon: 923 176 40 / 1
?	923 560 40	Harness - pressure transducer	1	InternKon: 923 160 40 / 33
?	891 032 40	Plug with pins assy.	2	InternKon: 923 560 40 / 1
?	907 948 40	Fitting M25/NW23	1	InternBDB: BVIR-M253 \| InternKon: 923 560 40 / 2
?	517 328 98	Reducing M25x1.5 - M20x1.5	1	InternBDB: DINEN 50262 \| InternKon: 923 560 40 / 3
?	517 327 98	Reducing M20x1.5 - M16x1.5	1	InternBDB: DINEN 50262 \| InternKon: 923 560 40 / 4
?	907 708 40	Cable union PG 13,5	1	InternBDB: Pflitsch 052 YNPM 6x2,5 \| InternKon: 923 560 40 / 5
?	940 462 40	Insulating tube B 6x0,6	-2	InternBDB: B6x0,6 / PUR \| InternKon: 923 560 40 / 7
?	891 040 40	Plug with bushes assy.	2
?	515 460 40	Seal	2	InternBDB: 14x18,7x1 NSA Busak&Shamban \| InternKon: 894 540 40 / 2
?	795 496 73	Receptacle assy.	1	InternBDB: 0819214820 \| InternKon: 923 154 40 / 3

Komatsu PC5500-6 S/N 15049 parts catalog PDF

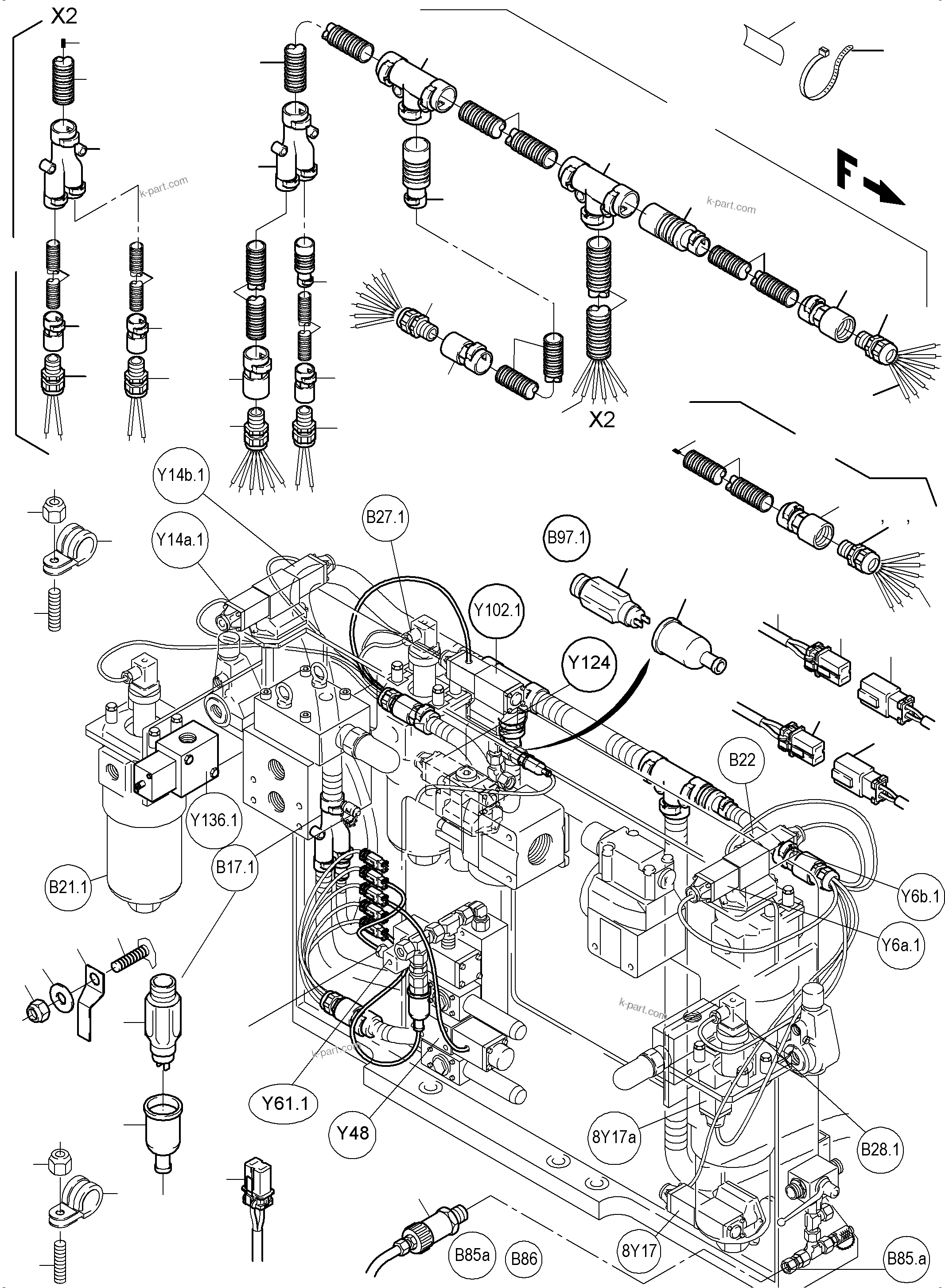

CABLES - CONTROL- AND FILTER PLATE, REAR (515-2147n) in PC5500-6 S/N 15049. Diagram image and parts list.
