PC5500-6 S/N 15049

Komatsu parts book diagram for PC5500-6 S/N 15049: TRACK GROUP - IDLER PROTECTION

01 02 02 03 03 04 06 07 08 08 09 1 1 1 1 1 1 1 1 1 10 12 15 16

	#	Part Number	Partname	Quantity	Options	Reference
	01		Idler assy.	2	InternBDB: 575 630 40 \| InternKon: 929 311 40 / 1	515-3115
	02		Tensioner	4	InternBDB: 607 712 40 \| InternKon: 929 311 40 / 8	515-3113
	03	934 564 40	Cover	4	InternKon: 929 311 40 / 10
	04	308 889 99	Bolt	24	InternBDB: M24x120 10.9 \| InternKon: 929 311 40 / 63
	06		Top roller	6	InternBDB: 429 687 40 \| InternKon: KO-LISTE 608 735 40 / 33	515-3140b
	07	304 369 99	Bolt	24	InternBDB: M30x180 /931 \| InternKon: 898 376 40 / 2
	08	255 057 40	Washer	96	InternBDB: 31 /6916 \| InternKon: 898 376 40 / 28
	09		Track roller	14	InternBDB: 643 410 40 \| InternKon: 929 311 40 / 2	515-3135c
	10	505 193 98	Bolt	56	InternBDB: M30x280 /931 \| InternKon: 929 311 40 / 51
	12	368 715 40	Nut Cold weather design	56	InternBDB: M30 \| InternKon: 929 311 40 / 56
	15	510 513 98	Bolt	56	InternBDB: M30x260 /931 \| InternKon: 594 076 40 / 51
	16	934 565 40	Nut	56	InternBDB: M30 \| InternKon: 594 076 40 / 56

Komatsu PC5500-6 S/N 15049 parts catalog PDF

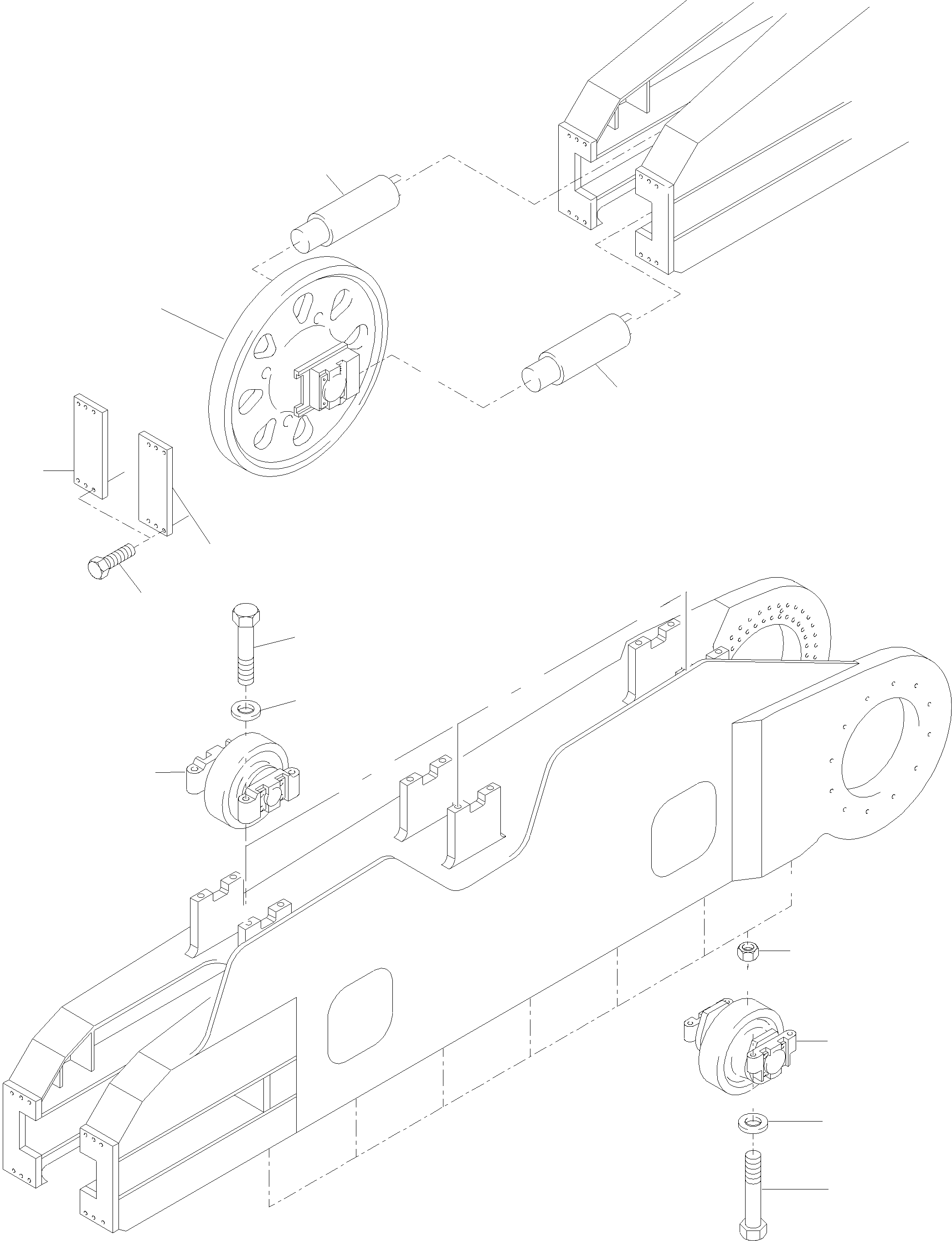

TRACK GROUP - IDLER PROTECTION (515-3111) in PC5500-6 S/N 15049. Diagram image and parts list.
