#	Part Number	Partname	Quantity	Options	Reference
01	927 842 40	Drive gear box,without drive shaft	1	InternBDB: L&S GFA 305 K-1017 / 16574812
\|$$2		Spring pressure disk brake	2	InternBDB: 793 604 73	991-0615
02	793 641 73	Ring gear	1	InternBDB: 16575343 z=52/98 \| InternKon: 16211140 / 2
04	793 642 73	Support ring	1	InternBDB: 16575256 \| InternKon: 16211140 / 4
05	793 643 73	Support ring	1	InternBDB: 16575254 \| InternKon: 16211140 / 5
06	793 644 73	Planet carrier	1	InternBDB: 16575200 \| InternKon: 16211140 / 6
07	793 645 73	Spacer ring	4	InternBDB: 16931836 \| InternKon: 16211140 / 7
08	793 646 73	Planet carrier	4	InternBDB: 16575196 \| InternKon: 16211140 / 8
09	806 386 73	Support Disk	1	InternBDB: 16932045 \| InternKon: 16211140 / 9
10	793 647 73	Sun gear shaft	1	InternBDB: 16575300 z=13 \| InternKon: 16211140 / 10
11	793 648 73	Planet gear	3	InternBDB: 16575275 z=41 \| InternKon: 16211140 / 11
12	793 649 73	Sun gear shaft	1	InternBDB: 16575299 z=12 \| InternKon: 16211140 / 12
13	793 650 73	Planet gear	4	InternBDB: 16575274 z=20 \| InternKon: 16211140 / 13
15	793 651 73	Spur wheel	1	InternBDB: 16575350 \| InternKon: 16211140 / 15
16	793 652 73	Input shaft	2	InternBDB: 16575371 z=15 \| InternKon: 16211140 / 16
17	793 653 73	Support ring	1	InternBDB: 16575231 \| InternKon: 16211140 / 17
18	793 654 73	Planet bolt	4	InternBDB: 16575237 \| InternKon: 16211140 / 18
19	793 655 73	Bearing ring	1	InternBDB: 16575238 \| InternKon: 16211140 / 19
20	793 656 73	Cover	1	InternBDB: 16575241 \| InternKon: 16211140 / 20
21	793 657 73	Cover	1	InternBDB: 16575347 \| InternKon: 16211140 / 21
22	793 658 73	Spacer ring	4	InternBDB: 16938314 \| InternKon: 16211140 / 22
23	513 518 98	Spherical roller bearing	3	InternBDB: 16306784 / 23134 MS / DIN 635 \| InternKon: 16211140 / 23
24	504 839 98	Cylindrical roller bearing	8	InternBDB: 16411653 / RSL 182322 /DIN 5412 \| InternKon: 16211140 / 24
25	504 496 98	Cylindrical roller bearing	1	InternBDB: 16411677 / SL 181864 C3 / DIN 5412 \| InternKon: 16211140 / 25
26	509 231 98	Cylindrical roller bearing	1	InternBDB: 16411780 / SL 1818/530 C3 / DIN 5412 \| InternKon: 16211140 / 26
27	361 455 99	Cylindrical roller bearing	2	InternBDB: 16411303 / NJ 313 EM / DIN 5412 \| InternKon: 16211140 / 27
28	361 299 99	Cylindrical roller bearing	2	InternBDB: 16411283 / NJ 224 \| InternKon: 16211140 / 28
29	517 922 98	Ball bearing	1	InternBDB: 16410293 / 6024 J / DIN 625 \| InternKon: 16211140 / 29
30	793 659 73	Locating ring	8	InternBDB: 16462516 / F 92075 \| InternKon: 16211140 / 30
31	793 660 73	Cover	1	InternBDB: 16929052 \| InternKon: 16211140 / 31
32	506 893 98	Disc	1	InternBDB: 16451063 \| InternKon: 16211140 / 32
33	793 661 73	Bolt	1	InternBDB: 16937026 \| InternKon: 16211140 / 33
34	517 919 98	Radial shaft seal ring	2	InternBDB: 16461353 / 500x540x20 C /3760 \| InternKon: 16211140 / 34
35	342 668 99	Circlip	2	InternBDB: 16452061 / 90x3 / DIN 471 \| InternKon: 16211140 / 35
36	342 675 99	Circlip	4	InternBDB: 16452275 / 120x5 / DIN 472 \| InternKon: 16211140 / 36
37	255 055 40	Circlip	1	InternBDB: 16452375 / 250x5 / DIN 472 \| InternKon: 16211140 / 37
38	342 497 99	Circlip	1	InternBDB: 16452111 / 190x4 / DIN 471 \| InternKon: 16211140 / 38
39	342 696 99	Circlip	8	InternBDB: 16452325 / 220x5 / DIN 472 \| InternKon: 16211140 / 39
40	342 682 99	Circlip	2	InternBDB: 16452295 / 160x4 / DIN 472 \| InternKon: 16211140 / 40
41	342 666 99	Circlip	1	InternBDB: 16452257 / 85x3 / DIN 471 \| InternKon: 16211140 / 41
42	342 684 99	Circlip	3	InternBDB: 16452300 / 170x4 / DIN 472 \| InternKon: 16211140 / 42
43	342 707 99	Circlip	6	InternBDB: 16452355 / 280x5 / DIN 471 \| InternKon: 16211140 / 43
44	517 923 98	Support disk	1	InternBDB: 16452492 / 160x190x3,5 / DIN 988 \| InternKon: 16211140 / 44
45	504 596 98	O-ring	2	InternBDB: 16463242 / 160x3 / DIN 3771 \| InternKon: 16211140 / 45
46	508 922 98	Cylindrical roller bearing	2	InternBDB: 16411265 / NJ 218 EM1F55 / DIN 5412 \| InternKon: 16211140 / 46
48	414 012 40	O-ring	5	InternBDB: 16463396 / 120x3 / DIN 3771 \| InternKon: 16211140 / 48
49	342 566 99	Snap ring	4	InternBDB: 16452058 / 85x3 / DIN 471 \| InternKon: 16211140 / 49
50	500 414 98	O-ring	1	InternBDB: 16463310 / 400x5 / DIN 3771 \| InternKon: 16211140 / 50
51	082 821	O-ring	1	InternBDB: 16463159 / 80x3 / DIN 3771 \| InternKon: 16211140 / 51
52	315 507 99	Eye bolt	1	InternBDB: 16444227 / M36 / DIN 580 \| InternKon: 16211140 / 52
53	514 423 98	Bolt	4	InternBDB: 16441136 / M8x25 / ISO 4017 8.8 \| InternKon: 16211140 / 53
56	319 186 99	Bolt	16	InternBDB: 16445138 / M16x35 / DIN 931 \| InternKon: 16211140 / 56
57	319 287 99	Bolt	24	InternBDB: 16445140 / M16x40 / DIN 912 \| InternKon: 16211140 / 57
58	514 233 98	Bolt	8	InternBDB: 16445092 / M12x25 / DIN 912 \| InternKon: 16211140 / 58
59	319 571 99	Bolt	16	InternBDB: 16445706 / M16x25 / DIN 912 \| InternKon: 16211140 / 59
62	501 532 98	Plug	2	InternBDB: 16444159 / M45x1,5 / DIN 910 \| InternKon: 16211140 / 62
63	339 796 99	Seal ring	2	InternBDB: 16462009 / A 45x52x2 / DIN 7603 \| InternKon: 16211140 / 63
64	313 314 99	Plug	2	InternBDB: 16444186 / M22x1,5 / DIN 910 \| InternKon: 16211140 / 64
65	340 294 99	Seal ring	1	InternBDB: 16462045 / A22x27x1,5 / DIN 7603 \| InternKon: 16211140 / 65
66	795 098 73	Dipstick	1	InternBDB: 16575458 / M22x1,5x130 \| InternKon: 16211140 / 66
69	517 574 98	Bolt	24	InternBDB: 16441759 / M12x40 / DIN 931 \| InternKon: 16211140 / 69
72	795 096 73	Seal ring	2	InternBDB: 16575377 \| InternKon: 16211140 / 72
75	795 097 73	Shaft	1	InternBDB: 16575349 \| InternKon: 16211140 / 75
76	307 785 99	Bolt	30	InternBDB: 16575352 / M20x60 / ISO 4017 \| InternKon: 16211140 / 76
77	517 924 98	Wire Ш 2mm / Lg. 50 mm	-2	InternBDB: 16455334 / DIN 177 \| InternKon: 16211140 / 77
87	517 920 98	Radial shaft seal ring	4	InternBDB: 16461227 / 90x125x13 C / DIN 3760 \| InternKon: 16211140 / 87
84	793 663 73	Planet carrier assy consist of Pic-No.06, 09, 11, 12, 23, 43	1	InternBDB: 16628252
85	793 664 73	Planet carrier assy 07,08,09, 10, 18 19, 22, 24, 29, 36, 37, 38, 39, 44, 48, 50	1	InternBDB: 16628253
86	940 443 40	Drive gear box, plus drive shaft 927 893 40	1	InternBDB: L&S GFA 305 K-1028 / 16630531 \| InternKon: 933 624 40 / 14
\|$$70	793 108 73	Disc assy with springs	1	InternBDB: 570 829
\|$$71	793 109 73	Seal kit brake	1	InternBDB: 570 830

Komatsu PC5500-6 S/N 15049 parts catalog PDF

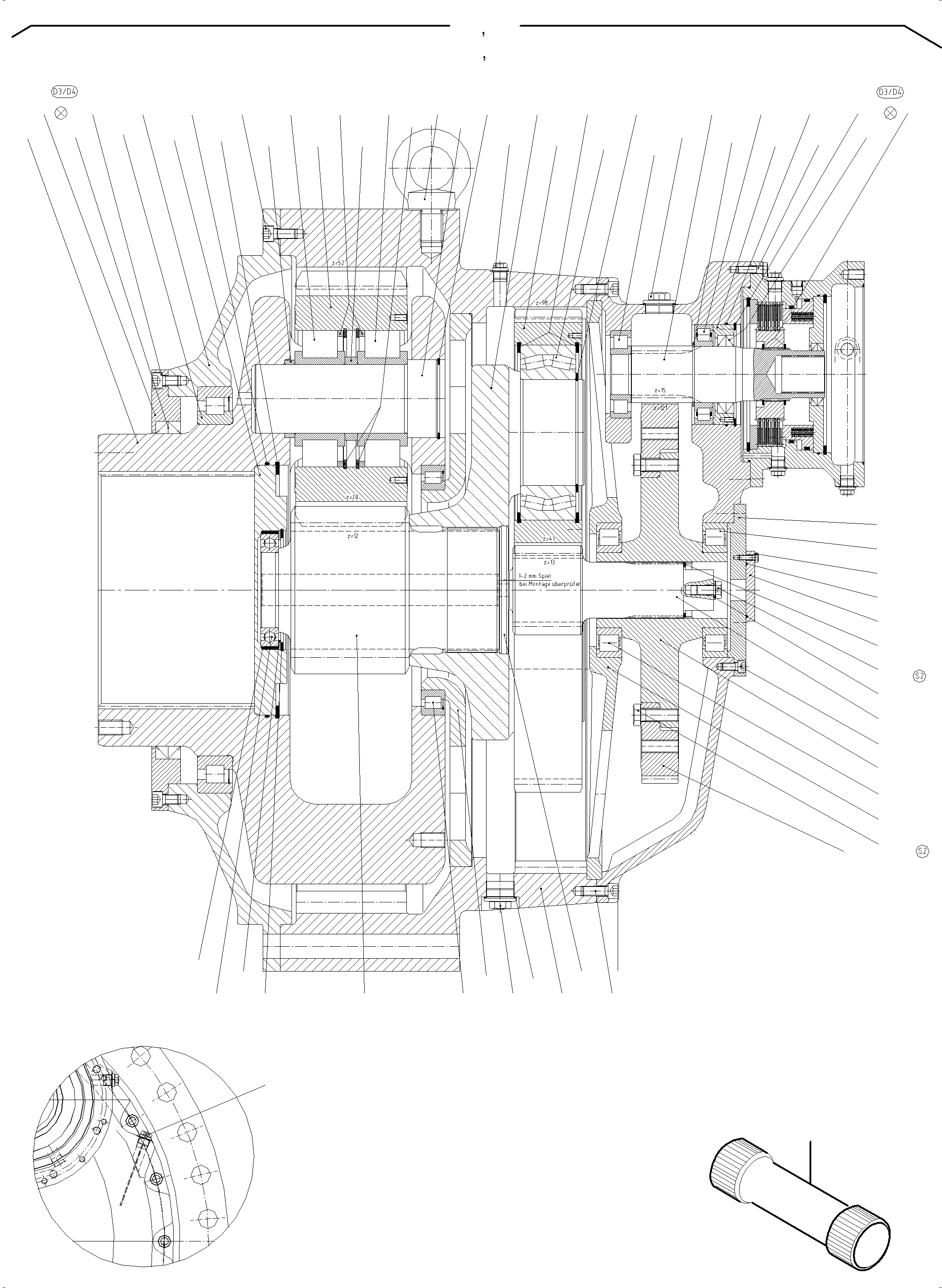

DRIVE GEAR BOX (991-0612a) in PC5500-6 S/N 15049. Diagram image and parts list.
