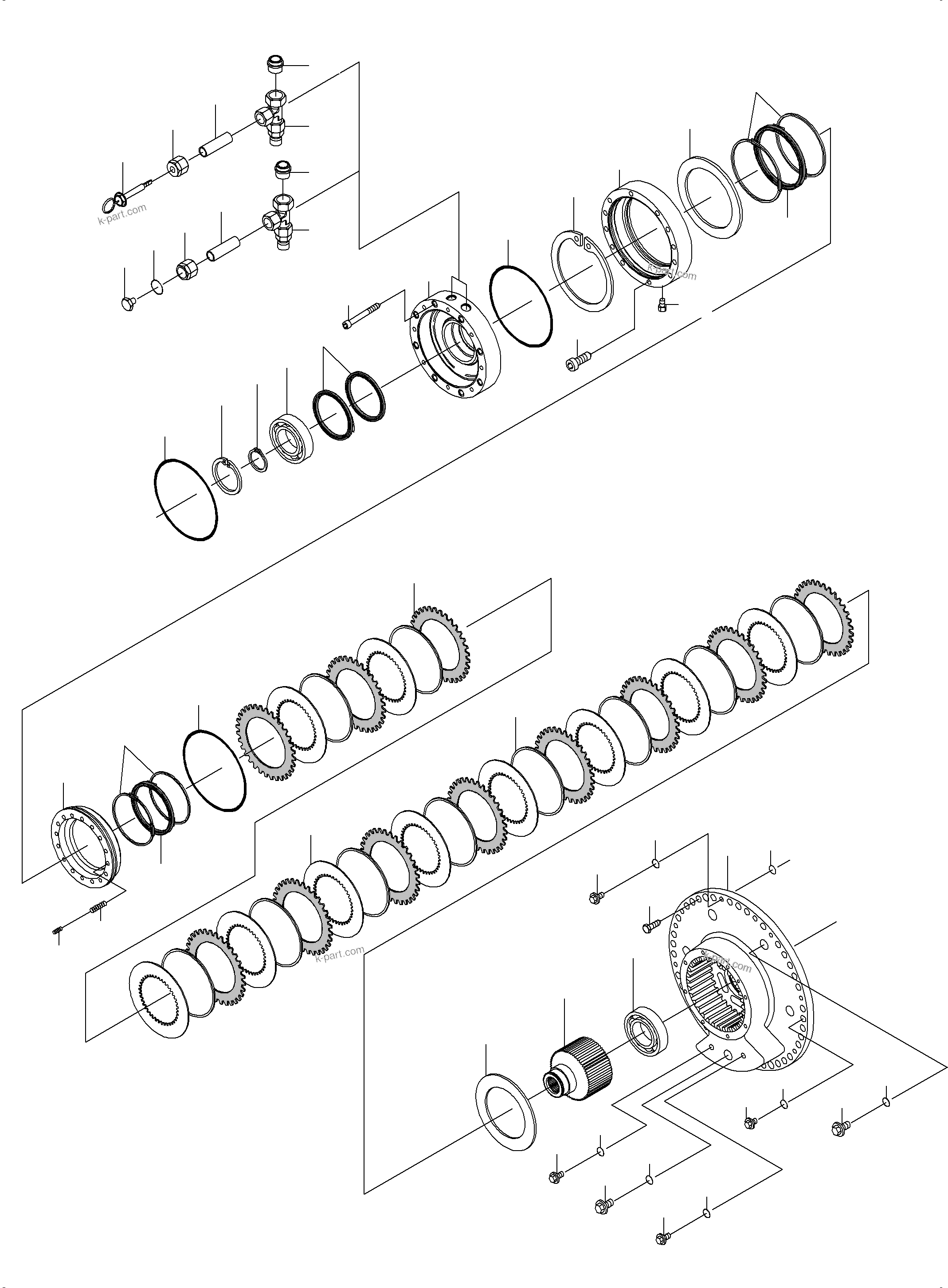

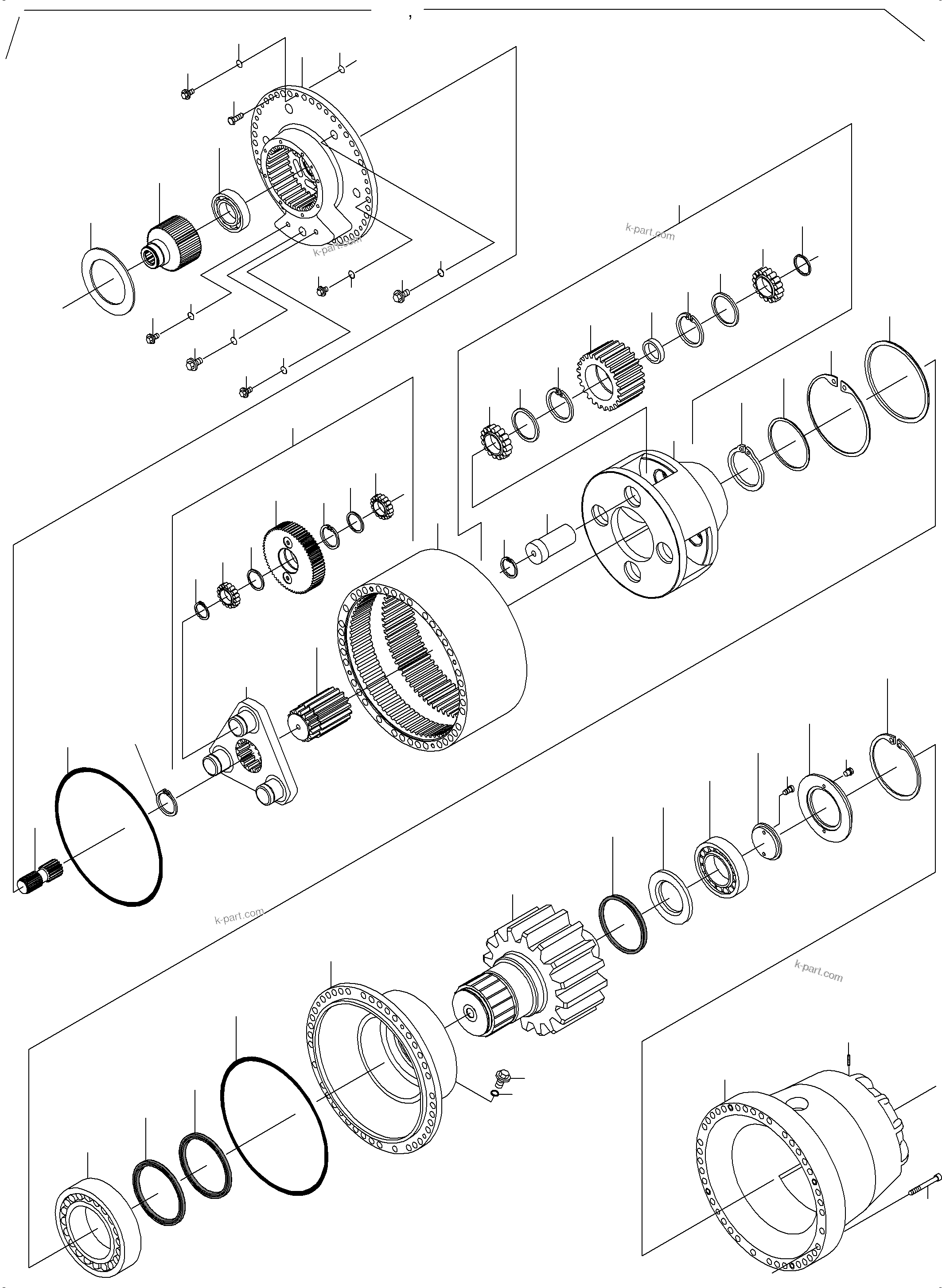

Diagram image 1 of 2

PC5500-6 S/N 15049

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15049

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options	Reference
?	926 795 40	Slew gearbox assy. NT	1	InternBDB: L&S GFB 174 E 9021/ 570 510 /AT-Nr. 711 320 73
?	792 234 73	Ring gear	1	InternBDB: 562943 / 0/0334/9924/0
?	792 235 73	Cartridge	1	InternBDB: 561821 / 0/0020/9531/0
?	792 236 73	Sunn gear z=15	1	InternBDB: 562936 / 2/0257/9214/0
?	792 237 73	Output shaft GFB 174	1	InternBDB: 561823 / 0/0257/9188/1
?	792 238 73	Planet carrier GFB 174	1	InternBDB: 562944 / 0/0385/9480/0
?	757 238 73	Planet bolt GFA 174	4	InternBDB: 931653 3/0220/9385/3
?		Brake assy	1	InternBDB: 564 767	991-0457a
?	792 239 73	Planet gear z=27	4	InternBDB: 562942 / 2/0303/9712/0
?	792 269 73	Planetary Carrier assy consists of fig. no. 08,09,11, 19,30,32,37,52,53	1	InternBDB: 564765 / 0/6113/1017/2
?	763 730 73	Disk	1	InternBDB: 938453 / 4/0409/7343/0
?	757 360 73	Sun gear shaft	1	InternBDB: 938181 / 2/0252/9261/1
?	768 454 73	Disk	1	InternBDB: 938561 / 4/0409/9898/0
?	507 751 98	Cylindrical roller bearing	8	InternBDB: 411650 RSL 182315 DIN 5412
?	792 260 73	Cylindrical roller bearing	1	InternBDB: 563155 / NU 2326 EJ QAB
?	513 531 98	Spherical roller bearing	1	InternBDB: 412110 / 23044 MS DIN 635
?	501 933 98	Circlip	1	InternBDB: 452369 / 340x6 DIN 472
?	757 252 73	Clamp collar	1	InternBDB: 463413 / V 220 A
?	504 544 98	Radial shaft seal ring	1	InternBDB: 461319 250x280x15 C DIN 3760
?	507 748 98	O-ring	1	InternBDB: 463378 595x4 DIN 3771
?	517 015 98	Radial shaft seal ring	1	InternBDB: 461409 / 250x280x15 CS / 72NBR / DIN 3761
?	342 572 99	Circlip	1	InternBDB: 45207 / 110x4/ DIn 472
?	342 666 99	Circlip	4	InternBDB: 452257 / 85x3 DIN 472
?	342 679 99	Circlip	8	InternBDB: 452287 / 145x4 DIN 472
?	342 497 99	Circlip	1	InternBDB: 452111 190x4 DIN 471
?	592 242 40	Locating ring	6	InternBDB: 462525 F 92069
?	349 989 99	Screw plug	1	InternBDB: 444134 M26x1,5 A DIN 7604
?	340 084 99	Seal ring	1	InternBDB: 462049 A 26x31x2 DIN 7603
?	513 136 98	Socket head cap screw	4	InternBDB: 445157 M16x140 DIN 912
?	757 240 73	Spacer ring	3	InternBDB: 931651 / 4/0406/9538/1GFA 174
?	763 731 73	Spacer ring	3	InternBDB: 938457 / 4/0400/9791/1
?	513 532 98	Ball bearing	1	InternBDB: 410288 6018 J DIN 625
?	517 016 98	Ball bearing	1	InternBDB: 311601 6018 J 2RS / C3 DIN 625
?	792 233 73	Cover	1	InternBDB: 561820 / 2/0439/9200/0
?	792 240 73	Planet carrier GFB 174	1	InternBDB: 562947 / 0/0385/9483/0
?	767 764 73	Planet gear GFB 174	3	InternBDB: 938459 1/0303/9568/0 GFB 174
?	506 448 98	Cylindrical roller bearing	6	InternBDB: 411624 RSL 183014 DIN 5412
?	806 076 73	Locating ring	6	InternBDB: 462077 F 88831
?	342 560 99	Circlip	3	InternBDB: 452051 70x2,5 DIN 471
?	342 670 99	Circlip	3	InternBDB: 452265 100x3 DIN 472
?	792 268 73	Planetary carrier assy consists of fig. no.04,89,90,91 94,95,96	1	InternBDB: 564766 / 0/6123/1017/2
?	792 241 73	Disk	1	InternBDB: 561722 / 4/0401/9518/0
?	509 834 98	Socket head cap screw	8	InternBDB: 441277 / M16x50 DIN 912
?	342 707 99	Circlip	1	InternBDB: 452355 / 280x5 / DIN 472
?	507 748 98	O-ring	1	InternBDB: 463378 595x4 DIN 3771
?	313 178 99	Screw plug	6	InternBDB: 444210 G1/2" DIN 910
?	339 950 99	Seal ring	6	InternBDB: 462057 A 42x49x2 DIN 7603
?	792 242 73	Drive Shaft	1	InternBDB: 561677 / 1/0343/9886/0
?	768 464 73	Plug	2	InternBDB: 469001 GPN 710 R 1/4"
?	912 094	O-ring	2	InternBDB: 22,2x3 / DIN 3771
?	319 155 99	Socket head cap srew	6	InternBDB: M12x25 / 912
?	792 243 73	Cover	1	InternBDB: 561822 / 4/0439/9199/0
?	763 736 73	Bearing ring	1	InternBDB: 938454 / 1/0406/9672/3
?	517 514 98	Thread pin	1	InternBDB: M 8x25 10.9 / 915 / 447 399
?	371 856 99	Union	2	InternBDB: 437402 BUZ 18-L
?	763 841 73	Union	2	InternBDB: 309014 EVL 18-PLM
?	215 812 99	Precision tubing 18x1,5, lg 0,1 m	-2	InternBDB: 062063 DIN 2391/C 0,1 m
?	372 824 99	Union	1	InternBDB: 437345 GAI 18-PLM
?	372 834 99	Union	1	InternBDB: 437437 GAI 18-PLR
?	792 244 73	Dipstick G1/2" x156	1	InternBDB: 432101 G1/2" x156
?	215 812 99	Precision tubing 18x1,5, lg 0,1 m	-2	InternBDB: 062063 DIN 2391/C 0,1 m
?	319 349 99	Socket head cap srew	2	InternBDB: M12x65 / 912
?	313 314 99	Plug	1	InternBDB: 444186 / M22x1,5 / 915
?	331 322 99	Plug	3	InternBDB: G1/2 / 910 / 444 203
?	340 294 99	Seal ring	1	InternBDB: 462045 / A 22x27x1,5 / 7603
?	339 998 99	Seal ring	2	InternBDB: 462053 / A 21x26x1,5 / 7603
?	313 367 99	Plug	4	InternBDB: 444189 / M30x1,5 / 910
?	339 932 99	Seal ring	4	InternBDB: 462055 /A 30x36x2 / 7603
?	376 666 99	Radial shaft seal ring	2	InternBDB: 461043 / 100x130x12 A / 3760
?	792 246 73	Disk housing	1	InternBDB: 561681 / 0/0579/9401/1
?	792 247 73	Piston	1	InternBDB: 561678 / 2/0575/9231/0
?	792 248 73	Bearing ring	1	InternBDB: 561680 / 1/0438/9733/1
?	792 249 73	Disk	1	InternBDB: 561674 / 4/0401/9517/0
?	792 250 73	Inner disk	10	InternBDB: 563058 / 3-002-340-63-155
?	792 251 73	Outer disk	11	InternBDB: 312021 / 3-002-210-63-151
?	963 624	Pressure spring	16	InternBDB: 423336 / 2,5x11,5x54 DIN 2098
?	342 678 99	Snap ring	1	InternBDB: 452285 / 140x4 DIN 472
?	806 036 73	Pressure spring	14	InternBDB: 423337 / 1,6x6,5x54 DIN 2098
?	972 122	O-ring	1	InternBDB: 463283 / 280x3 / DIN 3771
?	972 122	O-ring	1	InternBDB: 463283 / 280x3 / DIN 3771
?	792 252 73	Piston seal	1	InternBDB: 563051 / 4378 336Y
?	792 253 73	Support ring	2	InternBDB: 563052 / 266x275,4x1,4 P
?	792 254 73	Piston seal	1	InternBDB: 563049 / 4379 477 B
?	792 256 73	Support ring	2	InternBDB: 563050 / 280,5x290x1,4 P
?	792 255 73	Plug	1	InternBDB: 469021 / GPN 700 B M18x1,5
?	513 135 98	Socket head cap srew	8	InternBDB: 445157 / M16x140 DIN 912
?	342 708 99	Snap ring	1	InternBDB: 452094 / 295x5 DIN 472
?	792 257 73	Locating ring	1	InternBDB: 561675 / 4/0401/9516/0
?	340 236 99	Seal ring	1	InternBDB: 462045 A 22x27x1,5 DIN 7603
?	972 122	O-ring	1	InternBDB: 463283 / 280x3 / DIN 3771
?	313 314 99	Plug	1	InternBDB: 444186 / M 22x1,5 DIN 910
?	342 568 99	Snap ring	1	InternBDB: 452061 / 90x3 DIN 471
?	792 258 73	Seal ring	1	InternBDB: 561676 / 1/0438/9734/0
?	792 259 73	Seal ring	10	InternBDB: 563069 / 1-022-072-63-000
?	907 602 40	O-ring TTT -55	1	InternBDB: ORAR 00379-N7T40 278,77x5,33
?	907 603 40	O-ring TTT -55	1	InternBDB: ORAR 00378-N7T40 266,07x5,33
?	795 340 73	Slew gearbox assy., TTT-55°, with O-Ring 555,556 instead of 512,514	1	InternBDB: TTT -55 L&S GFB 174 E 9021/ 570 510
?	792 273 73	Seal Kit Slew Gearbox consists of fig. no. 25, 26, 27,125, 348, 510	1	InternBDB: 564843 E-ST
?	792 271 73	Repair Kit Brake consists of fig. nos. 505, 506, 507, 509, 512, 513, 514, 515	1	InternBDB: 564768
?	795 297 73	Repair Kit Brake consists TT-55 of fig. nos. 505, 506, 507, 509, 513, 515, 555, 556	1

Komatsu PC5500-6 S/N 15049 parts catalog PDF

SLEW GEARBOX WITH BRAKE (991-0467) in PC5500-6 S/N 15049. Diagram image and parts list.
