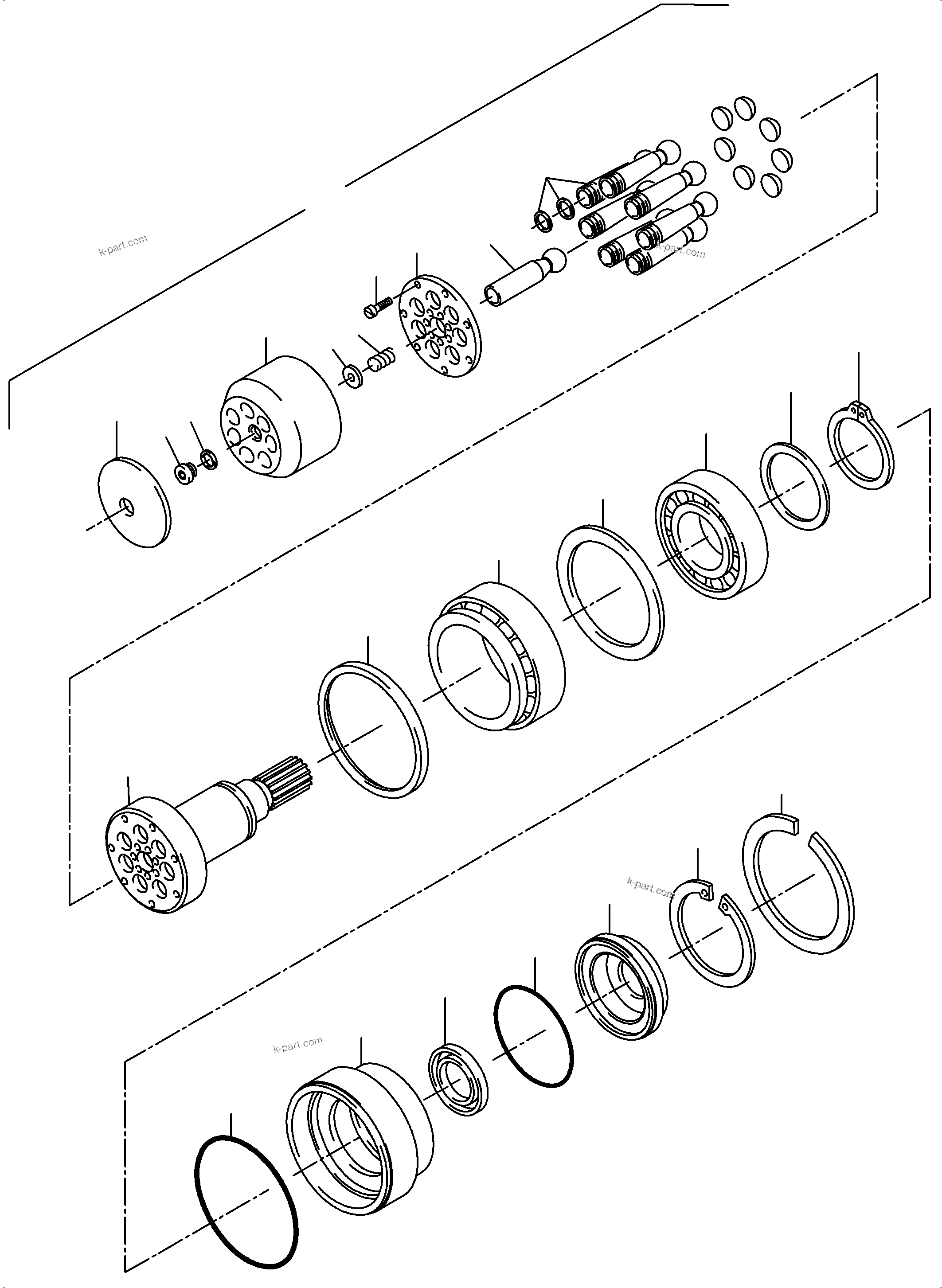

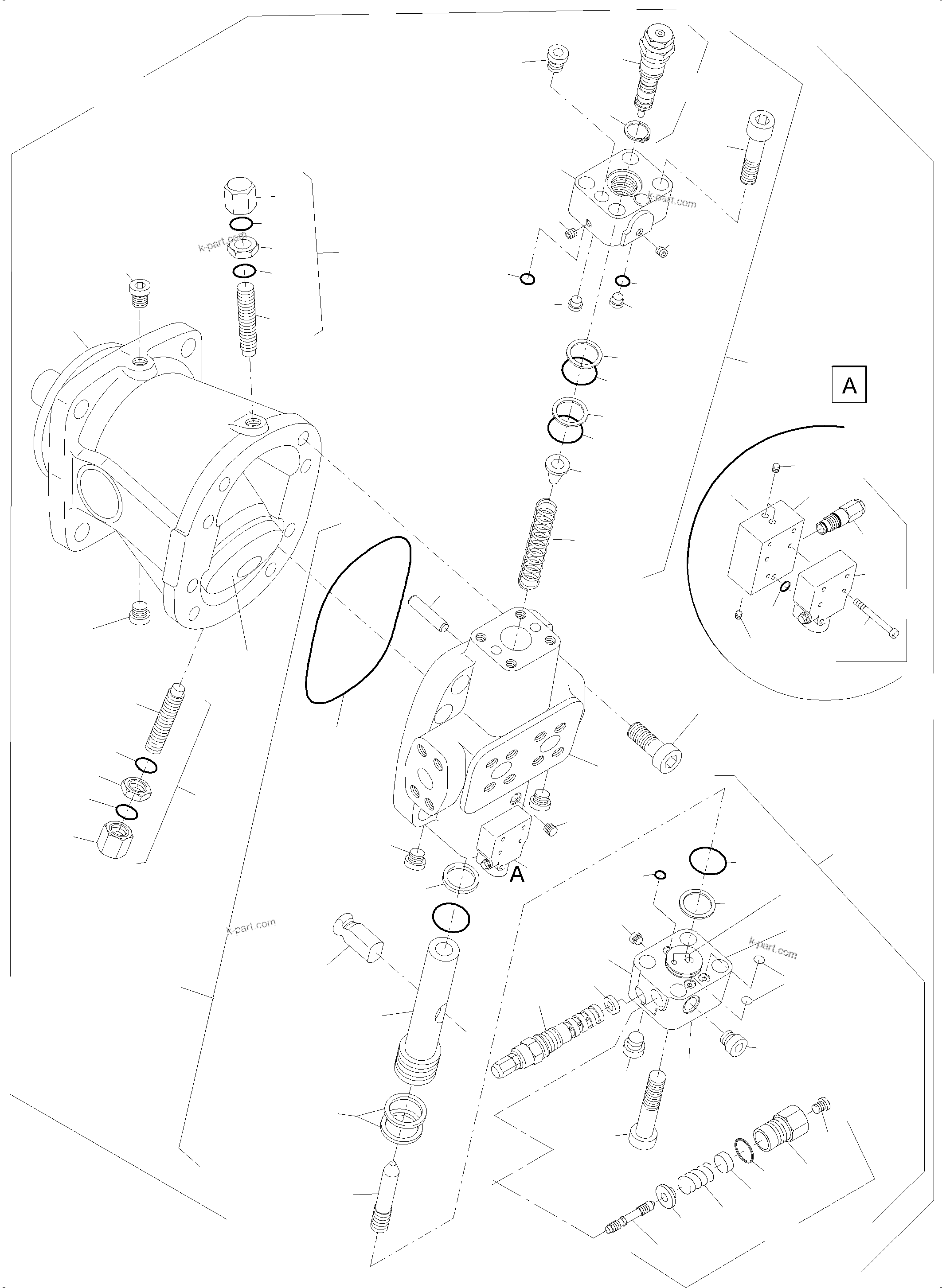

Diagram image 1 of 2

PC5500-6 S/N 15049

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15049

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	927 032 40	Hydr. motor assy.	1	InternBDB: Rexroth (Brueninghaus) A6VLM 355 HD1D /63 W2-VZH 010 B-S0185 AT-
?	767 316 73	Housing	1	InternBDB: 939 342 \| InternKon: 416 372 / 5
?	767 040 73	Plug	1	InternBDB: 636 797 HN 8-WD M33x2 V \| InternKon: 416 372 / 9
?	767 039 73	Plug	1	InternBDB: 532 347 HN 8-WD M14x1,5 V \| InternKon: 416 372 / 10
?	793 410 73	Transmission assy. consist. of fig-nos. 07-30	1	InternBDB: 416 373 \| InternKon: 416 372 / 1
?	793 436 73	Driving flange	1	InternBDB: 997 168 \| InternKon: 416 373 / 1
?	757 300 73	Piston with rings	7	InternBDB: 921 084 + 2x 997 178
?	757 296 73	Cylinder	1	InternBDB: 920 134 \| InternKon: 416 373 / 6
?	793 413 73	Control lense	1	InternBDB: 999 470 \| InternKon: 416 373 / 7
?	757 299 73	Pivot	1	InternBDB: 921 122 \| InternKon: 416 373 / 8
?	756 371 73	Withdrawal plate	1	InternBDB: 903 490 \| InternKon: 416 373 / 9
?	793 414 73	Race	1	InternBDB: 937 898 \| InternKon: 416 373 / 10
?	757 306 73	Sealing flange	1	InternBDB: 921 149 \| InternKon: 416 373 / 11
?	762 750 73	Adjusting ring	1	InternBDB: 936 002 \| InternKon: 416 373 / 13
?	793 416 73	Spring	1	InternBDB: 991 183 \| InternKon: 416 373 / 14
?	793 417 73	Washer	1	InternBDB: 990 563 \| InternKon: 416 373 / 15
?	793 418 73	Adjusting disc set	1	InternBDB: 416 438 \| InternKon: 416 373 / 16
?	757 294 73	Spacer screw	1	InternBDB: 933 066 \| InternKon: 416 373 / 17
?	793 419 73	Spring	1	InternBDB: 717 207 \| InternKon: 416 373 / 18
?	793 420 73	Roller bearing	1	InternBDB: 914 859 \| InternKon: 416 373 / 21
?	793 421 73	Roller bearing	1	InternBDB: 914 860 \| InternKon: 416 373 / 22
?	762 769 73	Shaft seal	1	InternBDB: BAB 4 SL 1,0 70x90x7 75V 595 619 728 \| InternKon: 416 373 / 24
?	514 025 98	O-ring	1	InternBDB: 205x5 V80 636 355 \| InternKon: 416 373 / 25
?	514 045 98	O-ring	1	InternBDB: 140x2,5 V80 912 211 \| InternKon: 416 373 / 26
?	998 898	Circlip	1	InternBDB: 215x5 513 202 \| InternKon: 416 373 / 28
?	342 679 99	Circlip	1	InternBDB: 145x4 /472 \| InternKon: 416 373 / 29
?	342 560 99	Circlip	1	InternBDB: 70x2,5 /471 \| InternKon: 416 373 / 30
?	793 425 73	Shim ring	1	InternBDB: 70x90x1,0 See 677 493 \| InternKon: 416 373 / 34
?	319 241 99	Bolt	14	InternBDB: M8x20 /912 10.9 \| InternKon: 416 373 / 39
?	768 896 73	Displacement section consist. of fig-nos. 32-35	1	InternBDB: 946 732 \| InternKon: 416 372 / 2
?	767 320 73	Thread pin	1	InternBDB: 917 555 M16x150 \| InternKon: 946 732 / 1
?	758 192 73	Cap nut	1	InternBDB: M16 933 539 \| InternKon: 946 732 / 2
?	757 878 73	Nut	2	InternBDB: M16 912 737 \| InternKon: 946 732 / 3
?	506 627 98	O-ring	4	InternBDB: PRP 017 17,17x1,78 V90 903 130 \| InternKon: 946 732 / 4
?	768 897 73	Displacement section consist. of fig-nos. 34,35,37,38	1	InternBDB: 940 783 \| InternKon: 940 783 / 3
?	756 513 73	Thread pin	1	InternBDB: M16x100 909 811 \| InternKon: 940 783 / 1
?	757 877 73	Cap nut	1	InternBDB: M16 933 540 \| InternKon: 940 783 / 2
?	793 438 73	Adjustment assy. consist. of fig-nos. 42-44	1	InternBDB: 414 708 \| InternKon: 940 783 / 2
?	793 423 73	Adjuster assy. consist. of fig-nos. 45-57	1	InternBDB: 999 828 \| InternKon: 414 708 / 1
?	768 900 73	Control part assy. consist. of fig-nos. 58-70	1	InternBDB: 976 231 \| InternKon: 414 708 / 2
?	793 423 73	Cover assy. consist. of fig-nos. 73-86	1	InternBDB: 414 840 \| InternKon: 414 708 / 3
?	793 424 73	Cover plate	1	InternBDB: 998 824 \| InternKon: 999 828 / 4
?	767 327 73	Piston	1	InternBDB: 939 114 \| InternKon: 999 828 / 5
?	793 431 73	Regulation journal	1	InternBDB: 413 011 \| InternKon: 999 828 / 6
?	753 131	Thread pin	1	InternBDB: 819 891 \| InternKon: 999 828 / 7
?	756 795 73	Quadring	2	InternBDB: 56x2,5 /34110 907 604 \| InternKon: 999 828 / 14
?	516 812 98	O-ring	1	InternBDB: PRP 276 278,99x3,53 V90 801 399 \| InternKon: 999 828 / 15
?	414 797 40	Seal ring	1	InternBDB: B + S RS 130 0450-T46 916 878 \| InternKon: 999 828 / 16
?	509 421 98	O-ring	1	InternBDB: PRP 329 50,17x5,33 N90 112 836 \| InternKon: 999 828 / 17
?	514 193 98	Parallel pin	2	InternBDB: 12 M6x28 /7 517 895 \| InternKon: 999 828 / 18
?	319 305 99	Bolt	8	InternBDB: M20x60 /912 10.9 544 744 \| InternKon: 999 828 / 19
?	964 736	Breaking plug	4	InternBDB: M8 977 645 \| InternKon: 999 828 / 20
?	767 039 73	Plug	2	InternBDB: HN8 - WD M14x1,5 V \| InternKon: 999 828 / 21
?	767 429 73	Seal ring	2	InternBDB: ED 14x1,5x-Viton
?	768 903 73	Spring plate	1	InternBDB: 939 087 \| InternKon: 976 231 / 3
?	768 904 73	Spring	1	InternBDB: 939 088 \| InternKon: 976 231 / 5
?	767 709 73	Valve insert consist. of fig-nos. 71-73	1	InternBDB: 926 601 \| InternKon: 976 231 / 1
?	767 330 73	Control housing	1	InternBDB: 939 086 \| InternKon: 976 231 / 2
?	767 331 73	Adjustable non-return valve	2	InternBDB: 974 659 \| InternKon: 976 231 / 8
?	321 597 99	Bolt	4	InternBDB: M16x65 /912 8.8 930 295 \| InternKon: 976 231 / 10
?	767 405 73	O-ring	2	InternBDB: 14x2 V80 976 410 \| InternKon: 976 231 / 13
?	767 724 73	O-ring	2	InternBDB: PRP 112 12,37x2,62 V90 518 336 \| InternKon: 976 231 / 14
?	767 345 73	O-ring	2	InternBDB: PRP 136 50,47x2,62 V90 \| InternKon: 976 231 / 15
?	655 377 40	Support ring	2	InternBDB: B + S (BP-22-H0515-PT00) SS 11109-137-A-56 (939 130) \| InternKon: 976 231 / 16
?	765 466 73	Breaking plug	1	InternBDB: M6 977 663 \| InternKon: 976 231 / 19
?	767 039 73	Plug	1	InternBDB: HN8 - WD M14x1,5 V R910532347 \| InternKon: 976 231 / 20
?	767 429 73	Seal ring	1	InternBDB: ED 14x1,5x-Viton
?	767 727 73	Valve insert	1	InternBDB: 942 919 \| InternKon: 926 601 / 1
?	342 524 99	Circlip	1	InternBDB: 24x1,2 /471 977 027 \| InternKon: 926 601 / 2
?	768 906 73	Valve insert	1	InternBDB: 928 411 \| InternKon: 414 840 / 1
?	793 437 73	Cover	1	InternBDB: 414 841 \| InternKon: 414 840 / 3
?	319 289 99	Bolt	4	InternBDB: M16x60 /912 10.9 189 707 \| InternKon: 414 840 / 6
?	767 039 73	Plug	3	InternBDB: HN8 - WD M14x1,5 V / 532 347 \| InternKon: 414 840 / 15
?	794 402 73	Breaking plug	2	InternBDB: 831 320 \| InternKon: 414 840 / 7
?	964 736	Breaking plug	3	InternBDB: M8 977 645 \| InternKon: 414 840 / 8
?	767 724 73	O-ring	3	InternBDB: PRP 112, 12,37x2,62 V90 / 518 336 \| InternKon: 414 840 / 11
?	765 471 73	O-ring	1	InternBDB: PRP 50,47x2,62 NB70, 535 834 \| InternKon: 414 840 / 12
?	655 377 40	Support ring	1	InternBDB: B + S (BP-22-H0515-PT00) SS 11109-137-A-56 (939 130) \| InternKon: 414 840 / 13
?	804 932 73	Nozzle 0,8 mm	1	InternBDB: M4x0,8 / 593 044 \| InternKon: 414 840 / 14
?	758 207 73	Spacer	1	InternBDB: 960 086 \| InternKon: 414 840 / 4
?	806 693 73	Nozzle	1	InternBDB: 436 941 \| InternKon: 414 840 / 18
?	768 715 73	Nozzle	1	InternBDB: 836 303 \| InternKon: 414 840 / 19
?	767 058 73	Plug	1	InternBDB: HN8 - WD M8x1 V / 788 317 \| InternKon: 414 840 / 20
?	768 614 73	Regulation Valve fig. nos 91-96	1	InternBDB: 988 553
?	768 716 73	Plug	1	InternBDB: 913 809 \| InternKon: 988 553 / 1
?	768 717 73	Piston valve	1	InternBDB: 986 239 \| InternKon: 988 553 / 2
?	753 869	Spring plate	1	InternBDB: 707 023 \| InternKon: 988 553 / 3
?	768 718 73	Washer	1	InternBDB: 988 556 \| InternKon: 988 553 / 4
?	753 868	Spring	1	InternBDB: 707 031 \| InternKon: 988 553 / 6
?	767 058 73	Plug	1	InternBDB: HN8 WD M8x1 V 788 317 \| InternKon: 988 553 / 8
?	768 719 73	O-ring	1	InternBDB: PRP 119 23,47x2,62 V90 / 919 322 \| InternKon: 988 553 / 9
?	767 338 73	Flow control valve consist. of fig-nos. 112-119	1	InternBDB: 974 640 \| InternKon: 974 638 / 3
?	767 335 73	Valve	1	InternBDB: 969 188 \| InternKon: 974 640 / 1
?	767 336 73	Flow limiter	1	InternBDB: MH 2 FR 12 KA 2X /15,0 M 974 642 \| InternKon: 974 640 / 2
?	767 337 73	Intermediate plate	1	InternBDB: MH 2 FR 12 KA 1X 968 963 \| InternKon: 974 640 / 4
?	341 419 99	Screw	5	InternBDB: M6x70 /912 8.8 120 189 \| InternKon: 974 640 / 6
?	767 346 73	O-ring	4	InternBDB: PRP 110 9,19x2,62 V90 516 066 \| InternKon: 974 640 / 7
?	964 736	Breaking plug	2	InternBDB: M8 977 645 \| InternKon: 974 640 / 8
?	999 046	Breaking plug	1	InternBDB: M6 977 663 \| InternKon: 974 640 / 9
