Diagram image 1 of 5

PC5500-6 S/N 15049

04 05 05 05 06 06 06 1 1 1 1 1 1 1 1 120 121 122 14 14 14 14 14 14 14 14 14 26 26 28 28 28 28 28 28 28 28 28 29 29 29 29 31 31 31 39 40 40 44 44 44 44 44 48 48 49 49 50 50 51 51 52 53 54 55 56 56 57 58 59 60 62 64 69 69 70 70 73 75 76 77 80 80 80 81 82 83 83 85

PC5500-6 S/N 15049

1 1 1 1 1 1 15 15 16 17 18 19 20 21 22 23 23 23 23 23 23 23 24 24 24 25 25 26 26 26 61 64 64 68 71 78 78 79 79 84

PC5500-6 S/N 15049

1 1 1 15 15 16 16 17 18 19 20 21 22 23 23 23 23 23 23 24 24 25 25 25 26 26 26 63 64 65 68 72 74 78 78 79 79

PC5500-6 S/N 15049

01 01 01 02 02 02 02 02 03 03 03 03 03 07 07 07 08 08 09 09 1 1 1 1 11 11 11 11 12 12 12 12 124 125 27 27 28 29 29 3 30 30 31 32 33 33 34 35 36 37 38 39 41 41 42 43 44 45 46 47 48 48 50 50 51 67 8

PC5500-6 S/N 15049

07 07 08 08 09 09 1 1 1 1 10 11 11 12 12 126 127 13 13 14 14 14 23 26 28 29 29 31 66 69 69 74 91 92

#	Part Number	Partname	Quantity	Options
01	215 812 99	Pipe Ш 18	-2	InternBDB: 913 574 40 18x1,5 /2391 \| InternKon: 913 568 40 / 29
02	906 349 40	Olive	2	InternBDB: ES-4 L18 Voss 0011252000 \| InternKon: 913 568 40 / 30
03	371 276 99	Union nut	2	InternBDB: AL 18 /3870 \| InternKon: 913 568 40 / 31
04	215 424 99	Pipe Ш 12	-2	InternBDB: 310 065 40 12x1,5x150 /2391 \| InternKon: 913 568 40 / 32
05	906 347 40	Olive	4	InternBDB: ES-4 L12 Voss 0011152000 \| InternKon: 913 568 40 / 33
06	371 274 99	Union nut	4	InternBDB: AL 12 /3870 \| InternKon: 913 568 40 / 34
07	516 192 98	Socket	5	InternBDB: RI 11/4AX 1 WN 655 908 40 \| InternKon: 913 568 40 / 35
08	374 439 99	Socket	4	InternBDB: L 28 E-G 1 /3901 \| InternKon: 913 568 40 / 36
09	516 161 98	Socket	5	InternBDB: L 28 /3942 \| InternKon: 913 568 40 / 37
10	215 816 99	Pipe Ш 28	-2	InternBDB: 311 847 40 28x2,5x60 /2391 \| InternKon: 913 568 40 / 38
11	906 350 40	Olive	8	InternBDB: ES-4 L28 Voss 0011352000 \| InternKon: 913 568 40 / 39
12	371 278 99	Union nut	8	InternBDB: AL 28 /3870 \| InternKon: 913 568 40 / 40
13	374 431 99	Socket	2	InternBDB: L 28 E-M /3901 \| InternKon: 913 568 40 / 41
14	371 459 99	Socket	14	InternBDB: L 12 E-G 3/8 /3901 \| InternKon: 913 568 40 / 42
15	374 412 99	Socket	2	InternBDB: S 30 E-G 1 1/4 /3901 \| InternKon: 913 568 40 / 43
16	516 166 98	Socket	2	InternBDB: S 30 /3942 \| InternKon: 913 568 40 / 44
17	516 100 98	Socket	2	InternBDB: GZR 30/25-PS WN 655 910 40 \| InternKon: 913 568 40 / 45
18	374 419 99	Socket	2	InternBDB: S 25 E-G 1 /3901 \| InternKon: 913 568 40 / 46
19	516 623 98	Socket	2	InternBDB: S 25-G /3945 \| InternKon: 913 568 40 / 47
20	906 763 40	Union	2	InternBDB: TR 30/25/25 PS /OMD Ermeto \| InternKon: 913 568 40 / 48
21	374 439 99	Socket	2	InternBDB: L 28 E-G 1 /3901 \| InternKon: 913 568 40 / 49
22	004 684 98	Coupling	2	InternBDB: 25-S WN 341 985 40 \| InternKon: 913 568 40 / 50
23	374 416 99	Socket	16	InternBDB: L 10 E-G 1/4 /3901 \| InternKon: 913 568 40 / 51
24	516 156 98	Socket	4	InternBDB: L 10 /3942 \| InternKon: 913 568 40 / 52
25	516 624 98	Socket	8	InternBDB: RI 3/8 AX 1/4 WN 655 908 40 \| InternKon: 913 568 40 / 53
26	516 173 98	Socket	9	InternBDB: L 10 /3944 \| InternKon: 913 568 40 / 54
27	516 184 98	Socket	2	InternBDB: L 12-G /3945 \| InternKon: 913 568 40 / 56
28	516 174 98	Socket	11	InternBDB: L 12 /3944 \| InternKon: 913 568 40 / 57
29	516 157 98	Socket	8	InternBDB: L 12 /3942 \| InternKon: 913 568 40 / 58
30	635 997 40	Socket	2	InternBDB: GR 18/12-L /OMD Ermeto \| InternKon: 913 568 40 / 59
31	255 694 40	Plug	10	InternBDB: Vsti R 3/8 ED WN 341 913 40 \| InternKon: 913 568 40 / 60
32	516 170 98	Socket	1	InternBDB: L 28 /3943 \| InternKon: 913 568 40 / 61
33	215 816 99	Pipe Ш 28	-2	InternBDB: 240 793 40 28x2,5x87 /2391 \| InternKon: 913 568 40 / 62
34	906 741 40	Valve	2	InternBDB: RHD 28-PL /OMD Ermeto \| InternKon: 913 568 40 / 63
35	516 187 98	Socket	1	InternBDB: L 28 G /3945 \| InternKon: 913 568 40 / 64
36	516 177 98	Socket	1	InternBDB: L 28 /3944 \| InternKon: 913 568 40 / 65
37	634 310 40	Union	1	InternBDB: T-L 28 ISO 8434 \| InternKon: 913 568 40 / 66
38	621 127 40	Union	1	InternBDB: RED 28/18-PL /OMD Ermeto \| InternKon: 913 568 40 / 67
39	516 169 98	Socket	2	InternBDB: L 18 /3943 \| InternKon: 913 568 40 / 68
40	516 159 98	Socket	2	InternBDB: L 18 /3942 \| InternKon: 913 568 40 / 69
41	516 188 98	Socket	2	InternBDB: L 35-G /3945 \| InternKon: 913 568 40 / 70
42	516 622 98	Union	1	InternBDB: K-L 35 ISO 8434 \| InternKon: 913 568 40 / 71
43	576 409 40	Union	1	InternBDB: RED 35/18-PL /OMD Ermeto \| InternKon: 913 568 40 / 72
44	502 752 98	Coupling	6	InternBDB: 12-L WN 341 985 40 \| InternKon: 913 568 40 / 73
45	576 408 40	Union	1	InternBDB: RED 35/12-PL /OMD Ermeto \| InternKon: 913 568 40 / 74
46	374 460 99	Socket	1	InternBDB: L 35 E-G 1 1/4 /3901 \| InternKon: 913 568 40 / 75
47	516 162 98	Socket	1	InternBDB: L 35 /3942 \| InternKon: 913 568 40 / 76
48	516 176 98	Socket	4	InternBDB: L 18 /3944 \| InternKon: 913 568 40 / 77
49	374 437 99	Socket	2	InternBDB: L 18 E-G 1/2 /3901 \| InternKon: 913 568 40 / 78
50	634 303 40	Union	4	InternBDB: RED 18/12-PL /OMD Ermeto \| InternKon: 913 568 40 / 79
51	371 949 99	Test socket	3	InternBDB: MAV-EV 12-LR WN 011 644 99 \| InternKon: 913 568 40 / 81
52	516 185 98	Socket	1	InternBDB: L 18-G /3945 \| InternKon: 913 568 40 / 82
53	634 298 40	Socket	1	InternBDB: GR 22/18-L /OMD Ermeto \| InternKon: 913 568 40 / 83
54	374 436 99	Socket	1	InternBDB: L 15 E-G 1/2 /3901 \| InternKon: 913 568 40 / 84
55	551 987 40	Union	1	InternBDB: RED 15/12-PL /OMD Ermeto \| InternKon: 913 568 40 / 85
56	511 015 98	Socket	1	InternBDB: L 12 /3908 \| InternKon: 913 568 40 / 86
57	634 396 40	Union	1	InternBDB: RED 18/10-PL /OMD Ermeto \| InternKon: 913 568 40 / 88
58	516 158 98	Socket	1	InternBDB: L 15 /3942 \| InternKon: 913 568 40 / 90
59	515 752 98	Hose assy. DN 10x700	1	InternBDB: 050 DOL 12 /DOL 12-90 WN 341 951 40-1 \| InternKon: 913 568 40 / 91
60	515 554 98	Hose assy. DN 10x550	1	InternBDB: 050 DOL 12 /DOL 12 WN 341 951 40-1 \| InternKon: 913 568 40 / 92
61	643 993 40	Hose assy. DN 08x400	1	InternBDB: 240 DOL 10 /DOL 10 WN 341 951 40 \| InternKon: 913 568 40 / 93
62	516 044 98	Hose assy. DN 10x650	1	InternBDB: 050 DOL 12 /DOL 12-90 WN 341 951 40-1 \| InternKon: 913 568 40 / 94
63	516 308 98	Hose assy. DN 08x400	1	InternBDB: 050 DOL 10 /DOL 10-90 WN 341 951 40-1 \| InternKon: 913 568 40 / 95
64	516 307 98	Hose assy. DN 08x300	5	InternBDB: 050 DOL 10 /DOL 10-90 WN 341 951 40-1 \| InternKon: 913 568 40 / 96
65	516 312 98	Hose assy. DN 08x850	1	InternBDB: 050 DOL 10 /DOL 10-90 WN 341 951 40-1 \| InternKon: 913 568 40 / 97
66	906 930 40	Union	1	InternBDB: Voss 28-LM /OMD Voss \| InternKon: 913 568 40 / 98
67	504 670 98	Coupling	1	InternBDB: 28-L WN 341 985 40 \| InternKon: 913 568 40 / 99
68	215 635 99	Pipe Ш 10	-2	InternBDB: 10x1 /2391 \| InternKon: 913 568 40 / 100
69	515 750 98	Hose assy. DN 10x850	4	InternBDB: 050 DOL 12 /DOL 12-90 WN 341 951 40-1 \| InternKon: 913 568 40 / 101
70	516 049 98	Hose assy. DN 10x1020	1	InternBDB: 050 DOL 12 /DOL 12-90 WN 341 951 40-1 \| InternKon: 913 568 40 / 102
71	516 317 98	Hose assy. DN 08x500	2	InternBDB: 050 DOL 10 /DOL 10-90 WN 341 951 40-1 \| InternKon: 913 568 40 / 103
72	510 924 98	Hose assy. DN 08x590	1	InternBDB: 240 DOL 10 /DOL 10-90 WN 341 951 40 \| InternKon: 913 568 40 / 104
73	215 424 99	Pipe Ш 12	1	InternBDB: 404 718 40 12x1,5x80 /2391 \| InternKon: 913 568 40 / 105
74	255 171 40	Plug	1	InternBDB: Vsti M10x1,0 ED WN 341 913 40 \| InternKon: 913 568 40 / 106
75	533 986 99	Weld-on plate	2	InternBDB: L-AP-K-1 W1 /3015 \| InternKon: 913 568 40 / 107
76	533 985 99	Half clamp	2	InternBDB: L-1-R-12 PP /3015 \| InternKon: 913 568 40 / 108
77	320 214 99	Screw	4	InternBDB: M6x20 /912 8.8 B2E \| InternKon: 913 568 40 / 109
78	371 273 99	Union nut	5	InternBDB: AL 10 /3870 \| InternKon: 913 568 40 / 110
79	906 346 40	Olive	5	InternBDB: ES-4 L10 Voss 0011102000 \| InternKon: 913 568 40 / 111
80	551 379 40	Union	2	InternBDB: RED 12/10-PL/OMD \| InternKon: 913 568 40 / 112
81	655 426 40	Union	2	InternBDB: GV 12-LR / WN 65590640 \| InternKon: 913 568 40 / 113
82	343 873 40	Valve	1	InternBDB: 12-L 690997 \| InternKon: 913 568 40 / 114
83	515 746 98	Hose assy. DN10 x 1100	1	InternBDB: 050/ DOL 12 DOL 12 \| InternKon: 913 568 40 / 115
84	517 073 98	Union	1	InternBDB: 10 LR/OMD /WN 65593440 \| InternKon: 913 568 40 / 116
85	911 433 40	Orifice D=1,00 mm	1	InternKon: 913 568 40 / 117
91	004 398 98	Test socket	1	InternBDB: 10-L /WN 34198540 \| InternKon: 913 568 40 / 28
92	371 498 99	Coupling	1	InternBDB: MAV-EV 10-LR /WN 011 644 99 \| InternKon: 913 568 40 / 55
120	512 671 98	Hose assy. DN 10 x 5900	1	InternBDB: 240 / DOL 12 DOL 12 \| InternKon: 933 976 40 / 19
121	510 923 98	Hose assy. DN 08 x 1670	1	InternBDB: 240 / DOL 10 DOL 10 90 \| InternKon: 933 976 40 / 23
122	643 833 40	Hose assy. DN10 x 1050	1	InternBDB: 240 / DOL 12 DOL 12 \| InternKon: 933 976 40 / 22
124	513 837 98	Hose assy. DN16 x 5300	1	InternBDB: 120 / DOL 18 DOL 18 \| InternKon: 933 976 40 / 15
125	517 100 98	Hose assy. DN10 x 1950	1	InternBDB: 120 / DOL 18 DOL 18 90 \| InternKon: 933 976 40 / 45
126	647 878 40	Hose assy. DN10 x 990	2	InternBDB: 240 / DOL 12 DOL 12 90 \| InternKon: 933 976 40 / 13
127	515 857 40	Hose assy. DN25 x 1100	2	InternBDB: 120 / DOL 28 DOL 28 90 \| InternKon: 933 976 40 / 12

Komatsu PC5500-6 S/N 15049 parts catalog PDF

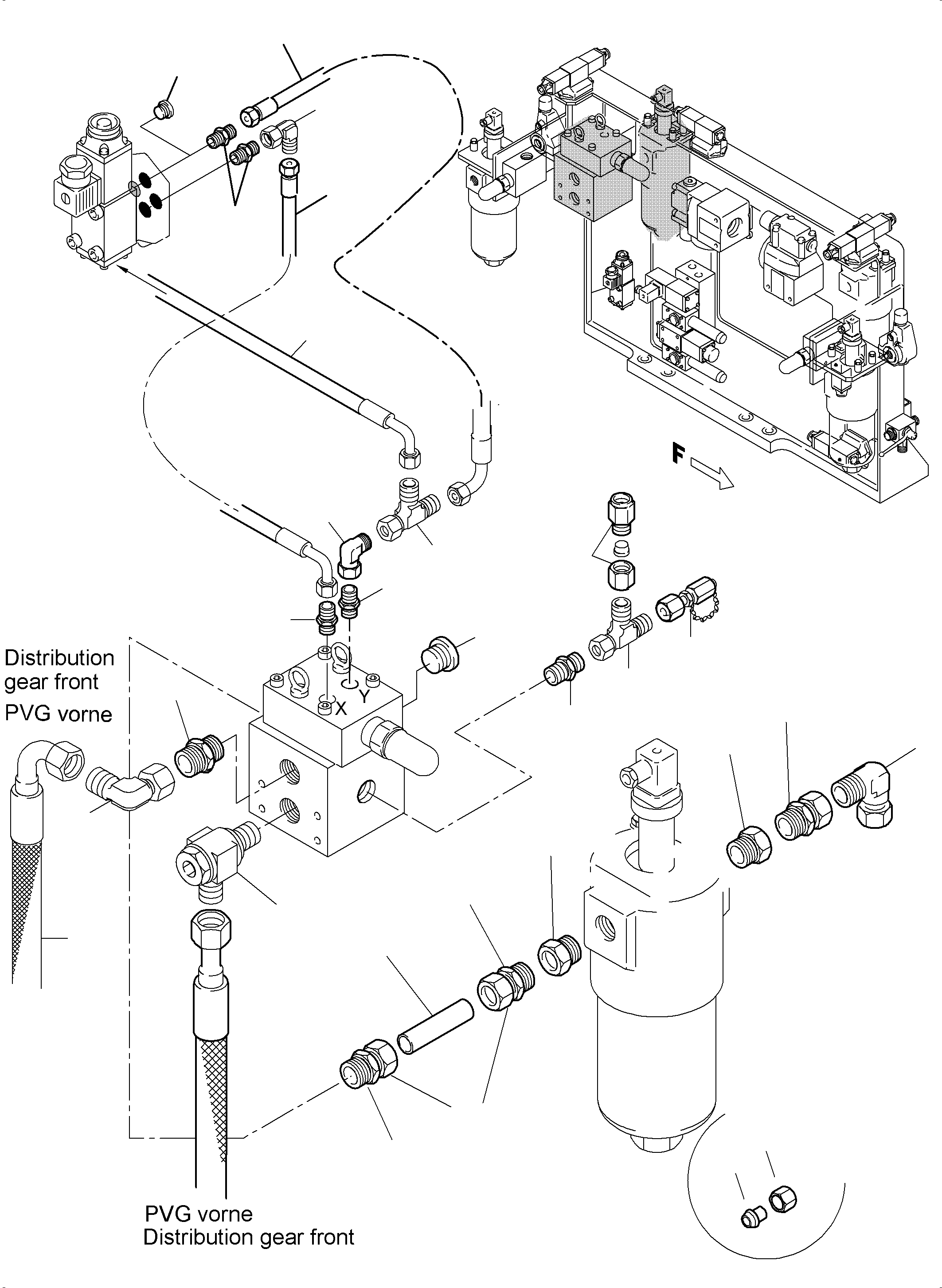

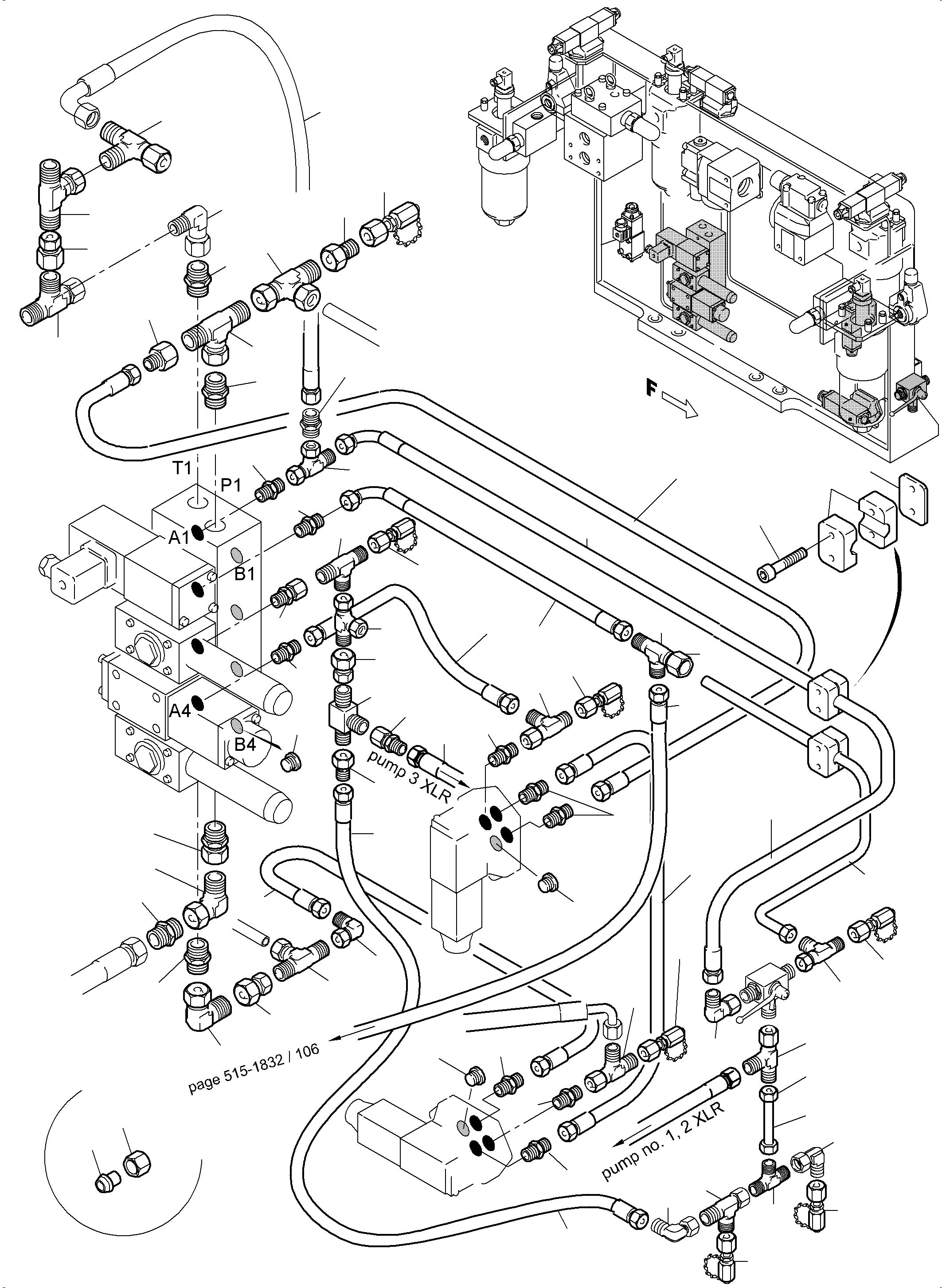

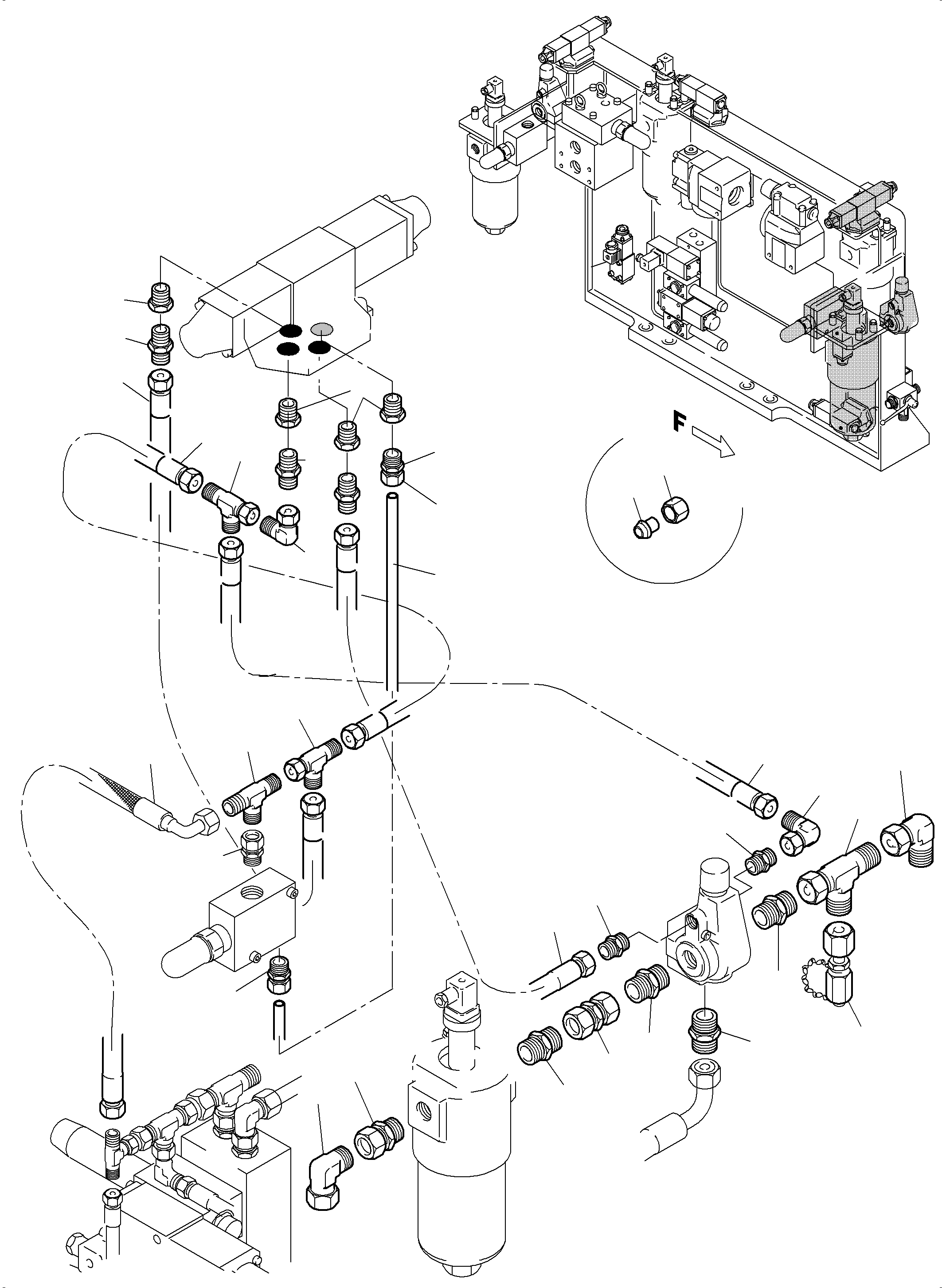

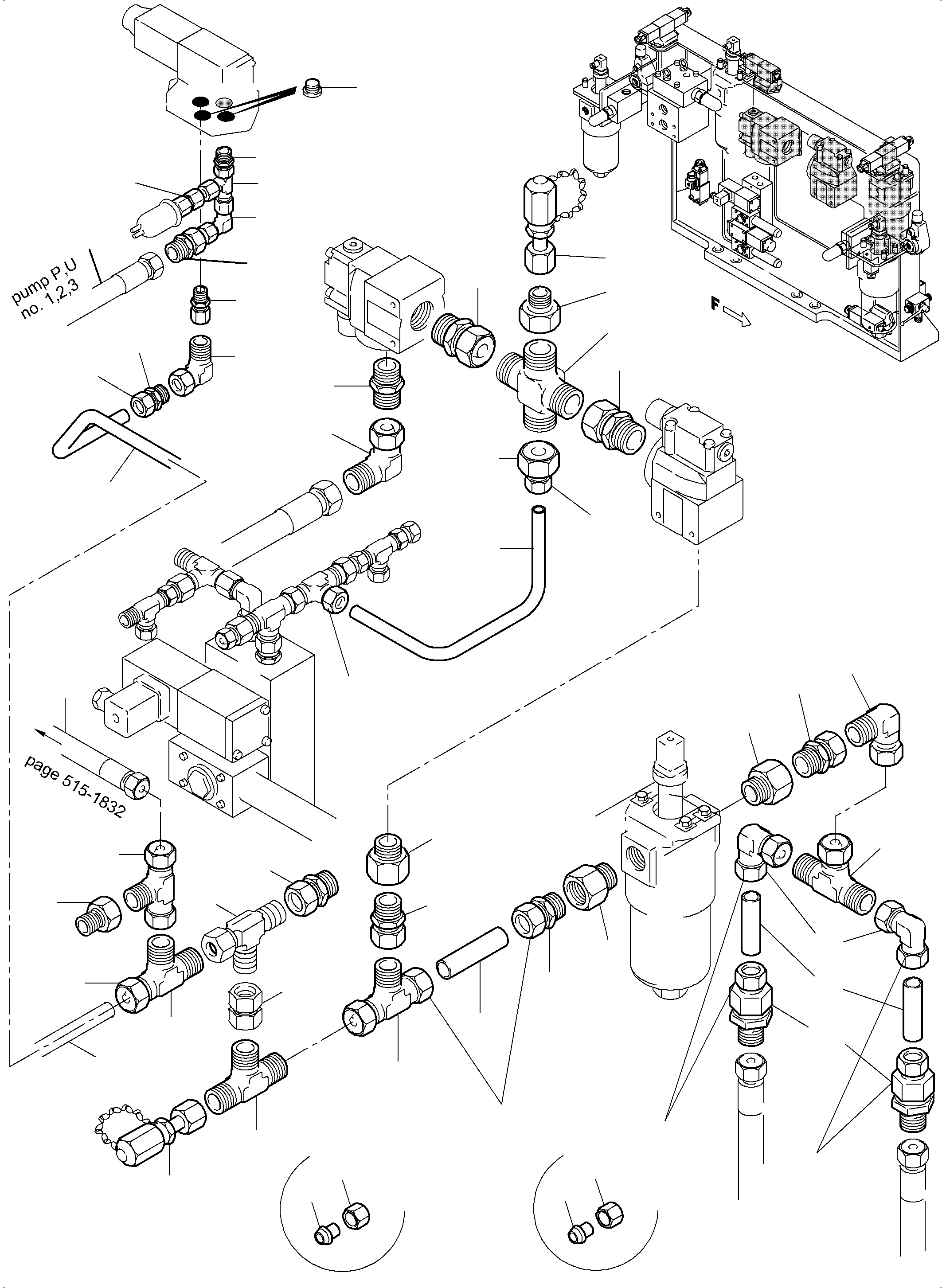

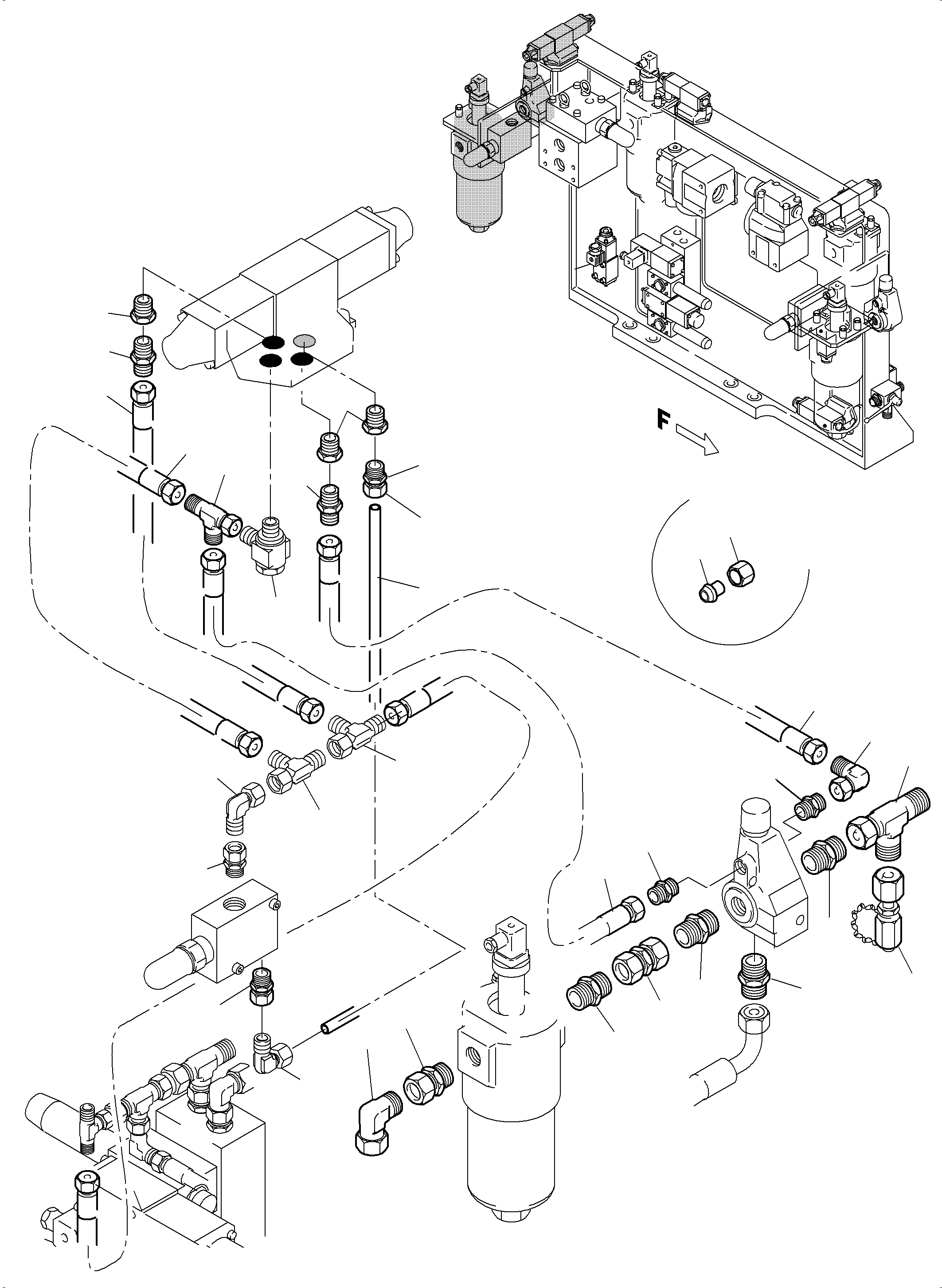

PIPES - CONTROL- AND FILTER PLATE, REAR (515-1834g) in PC5500-6 S/N 15049. Diagram image and parts list.
