Buy PDF Operation Manual

Purchase the Komatsu operation manual in PDF format for this model. Includes operation guidance, controls, safety notes, and daily use instructions.

Buy Komatsu operation manual PDF, Komatsu operators manual PDF, and operator handbook PDF for this model. Model: PC4000-6E S/N 08202.

Back to Diagram

SEO pages: Komatsu parts catalog PDF, parts book PDF, shop manual PDF, repair manual PDF, operation manual PDF, operators manual PDF for this machine.

Buy PDF Operation Manual for PC4000-6E S/N 08202

This page is focused on Buy PDF Operation Manual purchase for PC4000-6E S/N 08202. If needed, you can also open Parts and Shop variants using links below.

Model-specific PDF manual delivery.
Coverage checks by machine/serial title before purchase.
Fast access to diagram, parts list, and tree navigation from the same page.

What manual types are available for this model?

Partsbook PDF, Shop/Repair PDF, and Operation/Operators PDF are available via dedicated tabs and links.

Is this page model-specific?

Yes, the offer is linked to the current model card and its catalog structure shown on this page.

Diagram image 1 of 4

PC4000-6E S/N 08202

01 02 03 04 06 09 09 12 13 13 13 20 20 24 24 24 25 25 26 27 30 31 37 39 41 43 43 51 51 52 53 54 55 55 55 56 56 59 72 82 83 91 92 93 94 95

PC4000-6E S/N 08202

05 07 08 10 10 100 101 101 102 102 103 104 105 106 107 108 109 11 110 111 112 113 14 15 16 17 18 19 22 23 25 25 28 30 30 30 30 31 31 31 33 34 35 36 37 39 51 51 51 56 56 56 61 63 64 72 84 84 85 85 86 86 86 87 87 88 88 89 89 90

PC4000-6E S/N 08202

14 15 16 16 17 17 18 21 29 54 54 54 54 57 61 74 74 74 74 74 74 75 75 76 76 77 77 78 78 79 79 80 80 81 81 82 84 84 85 85 87 87

PC4000-6E S/N 08202

114 114 114 114 114 114 114 114 114 115 115 116 117 117 117 117 118 118 119 119 119 119 25 39 39 39 51 51 51 54 54 54 74 74 74 74 74 74 74 74 74 75 75 75 75 75 75 75 76 76 76 76 76 76

#	Part Number	Partname	Quantity	Options
01	906 930 40	Union	1	InternBDB: 28 LM/OMD \| InternKon: 945 700 40 / 40
02	515 865 98	Socket	1	InternBDB: GZR 18/12-PL \| InternKon: 945 700 40 / 62
03	511 135 98	Socket	1	InternBDB: T-L 18 / ISO 8434 \| InternKon: 945 700 40 / 63
04	576 403 40	Union	1	InternBDB: Red 18/15-PL / OMD \| InternKon: 945 700 40 / 60
05	576 472 40	Union	1	InternBDB: GR 15/12-L/OMD \| InternKon: 945 700 40 / 64
06	592 069 40	Union	1	InternBDB: GR 15/10-L/OMD \| InternKon: 945 700 40 / 65
07	515 814 98	Coupling	1	InternBDB: M 12x1,5-PC \| InternKon: 945 700 40 / 53
08	516 177 98	Socket	1	InternBDB: SWRT-L28 ISO08434 \| InternKon: 945 700 40 / 44
09	604 762 40	Union	4	InternBDB: GR 12/10-L/'OMD \| InternKon: 945 700 40 / 72
10	372 887 99	Socket	2	InternBDB: RI 11/2x1 \| InternKon: 945 700 40 / 49
11	516 167 98	Socket	1	InternBDB: L 12 / 3943 \| InternKon: 945 700 40 / 68
12	634 304 40	Union	1	InternBDB: Red 28/10-PL / OMD \| InternKon: 945 700 40 / 46
13	374 430 99	Socket	6	InternBDB: SDS-L12xM16x1,5 E \| InternKon: 945 700 40 / 74
14	634 482 40	Union	1	InternBDB: Red 38/25-PS / OMD \| InternKon: 945 700 40 / 36
15	516 740 98	Socket	1	InternBDB: SWBT-S 25 / ISO 8434 \| InternKon: 945 700 40 / 54
16	516 248 98	Socket	2	InternBDB: SWE-S 25 \| InternKon: 945 700 40 / 59
17	374 419 99	Socket	2	InternBDB: SDS-S 25 E-G 1 E \| InternKon: 945 700 40 / 55
18	004 684 98	Coupling	1	InternBDB: 25-S \| InternKon: 945 700 40 / 58
19	371 948 99	Union	1	InternBDB: MAV-EV 10-LR \| InternKon: 945 700 40 / 78
20	374 420 99	Socket	3	InternBDB: SDS-L 10xM 14x1,5 E \| InternKon: 945 700 40 / 75
21	516 100 98	Socket	1	InternBDB: Red 30/25-PS \| InternKon: 945 700 40 / 37
22	372 709 99	Union	1	InternBDB: K L10 / 2353 \| InternKon: 945 700 40 / 77
23	516 183 98	Socket	1	InternBDB: L 10G / 3945 \| InternKon: 945 700 40 / 76
24	516 182 98	Socket	5	InternBDB: L 10-M / 3945 \| InternKon: 945 700 40 / 84
25	516 157 98	Socket	2	InternBDB: L12 DIN03942 \| InternKon: 945 700 40 / 85
26	371 274 99	Union nut	1	InternBDB: N-L 12 ISO08434 \| InternKon: 945 700 40 / 66
27	371 854 99	Plug	1	InternBDB: BUZ 12-L \| InternKon: 945 700 40 / 71
28	372 885 99	Socket	1	InternBDB: RI 1 1/4x1 \| InternKon: 945 700 40 / 56
29	374 439 99	Socket	1	InternBDB: SDS-L 28xG 1 E \| InternKon: 945 700 40 / 45
30	516 161 98	Socket	6	InternBDB: SWE-L 28 \| InternKon: 945 700 40 / 43
31	374 431 99	Socket	5	InternBDB: SDS-L 28xM 33x2 \| InternKon: 945 700 40 / 42
33	255 171 40	Union	1	InternBDB: VSTI M 10x1,0 ED \| InternKon: 945 700 40 / 108
34	516 744 98	Union	1	InternBDB: BH-L 28 / ISO 8434 \| InternKon: 945 700 40 / 48
35	509 272 98	Nut	1	InternBDB: M 36x2,0 / 80705 \| InternKon: 945 700 40 / 86
36	374 460 99	Socket	1	InternBDB: SDS-L 35xG 1 1/4 E \| InternKon: 945 700 40 / 38
37	516 184 98	Socket	2	InternBDB: L 12 G / 3945 \| InternKon: 945 700 40 / 67
39	255 694 40	Plug	6	InternBDB: Vsti R 3/8 ED \| InternKon: 945 700 40 / 69
41	592 325 40	Union	1	InternBDB: TR 15/12/12PL/OMD \| InternKon: 945 700 40 / 23
43	516 377 98	Hose assy. DN 10x300	1	InternBDB: 050 DOL 12 / DOL 12-90 \| InternKon: 945 700 40 / 105
51	371 459 99	Socket	8	InternBDB: SDS-L 12xG 3/8 E \| InternKon: 945 700 40 / 73
52	371 949 99	Union	1	InternBDB: 12-LR MAV-EV \| InternKon: 945 700 40 / 109
53	502 752 98	Coupling	1	InternBDB: 12-L \| InternKon: 945 700 40 / 61
54	516 156 98	Socket	6	InternBDB: L 10 / 3942 \| InternKon: 945 700 40 / 79
55	516 174 98	Socket	3	InternBDB: L 12 / 3944 \| InternKon: 945 700 40 / 70
56	515 742 98	Hose assy. DN 10x520	3	InternBDB: DOL 12/ DOL 12-90 \| InternKon: 945 700 40 / 104
57	516 224 98	Socket	1	InternBDB: L 10 / 3943 \| InternKon: 945 700 40 / 81
59	634 423 40	Union	1	InternBDB: RED 28/12-PL / OMD \| InternKon: 945 700 40 / 51
61	938 207 40	Pipe assy. Ш 25	1	InternBDB: 25x3x255 \| InternKon: 945 700 40 / 95
63	908 018 40	Pipe assy. Ш 28	1	InternBDB: 28x2,5x493 \| InternKon: 945 700 40 / 94
64	621 127 40	Union	1	InternBDB: Red 28/18-PL \| InternKon: 945 700 40 / 52
72	513 692 98	Hose assy. DN 25x800	1	InternBDB: 120 DOL 28 /DOL 28-90 \| InternKon: 945 700 40 / 107
74	374 416 99	Socket	17	InternBDB: SDS-L 10xG 1/4 E \| InternKon: 945 700 40 / 82
75	516 173 98	Socket	10	InternBDB: L 10 / 3944 \| InternKon: 945 700 40 / 80
76	516 384 98	Hose assy. DN 08x360	4	InternBDB: 050 DOL 10 /DOL 10-90 \| InternKon: 945 700 40 / 102
77	516 606 98	Hose assy. DN 08x500	1	InternBDB: 240 DOL 10 /DOL 10-90 \| InternKon: 945 700 40 / 100
78	372 876 99	Socket	4	InternBDB: RI 3/8x1/4 \| InternKon: 945 700 40 / 83
79	490 829 40	Hose assy. DN 08x920	1	InternBDB: 240 DOL 10 /DOL 10-90 \| InternKon: 945 700 40 / 98
80	516 441 98	Hose assy. DN 08x700	1	InternBDB: 050 DOL 10 /DOL 10 \| InternKon: 945 700 40 / 99
81	516 383 98	Hose assy. DN 08x250	1	InternBDB: 050 DOL 10 /DOL 10 \| InternKon: 945 700 40 / 103
82	516 317 98	Hose assy. DN 08x500	1	InternBDB: 050 DOL 10 /DOL 10-90 \| InternKon: 945 700 40 / 106
83	516 177 98	Socket	1	InternBDB: SWRT-L 28 \| InternKon: 945 700 40 / 41
84	906 868 40	Olive	2	InternBDB: ES-4 S25 \| InternKon: 945 700 40 / 90
85	371 264 99	Union nut	2	InternBDB: AS 25 \| InternKon: 945 700 40 / 89
86	907 149 40	Socket	3	InternBDB: 28 LR / OMD \| InternKon: 945 700 40 / 50
87	907 150 40	Union	2	InternBDB: 38 SR/OMD / 655 934 40 \| InternKon: 945 700 40 / 34
88	906 350 40	Olive	2	InternBDB: ES-4 L28 \| InternKon: 945 700 40 / 88
89	371 278 99	Union nut	2	InternBDB: AL 28 \| InternKon: 945 700 40 / 87
90	516 162 98	Socket	1	InternBDB: L35 \| InternKon: 945 700 40 / 39
91	374 425 99	Union	1	InternBDB: SDS-L42xG1 1/2A E \| InternKon: 931 059 40 / 25
92	906 870 40	Union	1	InternBDB: RED 42/15-PL/OMD \| InternKon: 931 059 40 / 26
93	510 939 98	Hose assy. DN 12x3200	1	InternBDB: 240 DOL 15 /DOL 15-90 \| InternKon: 931 059 40 / 29
94	516 175 98	Union	1	InternBDB: SWRT-L 15 \| InternKon: 931 059 40 / 67
95	006 525 98	Coupling	1	InternBDB: 15-L \| InternKon: 931 059 40 / 68
100	513 598 98	Hose assy. DN 25x620	1	InternBDB: 120 DOL 28 /DOL 28 \| InternKon: 931 059 40 / 24
101	514 256 98	Hose assy. DN 12x1000	1	InternBDB: 120 DOL 15 /DOL 15 \| InternKon: 931 059 40 / 36
102	517 620 98	Hose assy. DN 25x2000	1	InternBDB: 120 DOL 28 /DOL 28 \| InternKon: 931 059 40 / 21
103	374 407 99	Socket	1	InternBDB: L 15E-M / 3901 \| InternKon: 931 059 40 / 22
104	516 158 98	Socket	1	InternBDB: L15 / 3942 \| InternKon: 931 059 40 / 23
105	516 161 98	Socket	1	InternBDB: L28 / 3942 \| InternKon: 931 059 40 / 27
106	634 306 40	Union	1	InternBDB: RED 42 / 28-PL / OMD \| InternKon: 931 059 40 / 28
107	374 415 99	Socket	1	InternBDB: SDS-L 42XM48x2 \| InternKon: 931 059 40 / 37
108	516 178 98	Socket	1	InternBDB: SWRT-L42 \| InternKon: 931 059 40 / 38
109	371 860 99	Plug	1	InternBDB: BUZ 42L \| InternKon: 931 059 40 / 39
110	502 752 98	Coupling	1	InternBDB: 12 L \| InternKon: 931 059 40 / 40
111	516 195 98	Union	1	InternBDB: RED 28/12-PL \| InternKon: 931 059 40 / 69
112	906 919 40	Pressure switch	1	InternBDB: 0166 404 03 \| InternKon: 931 059 40 / 62
113	516 177 98	Plug	1	InternBDB: Vsti R 1 ED \| InternKon: 931 059 40 / 20
114	516 624 98	Socket	9	InternBDB: RI E 3/8AX 1/4 WN65590840 \| InternKon: 945 700 40 / 123
115	513 546 98	Union	2	InternBDB: RED12/10-PL WN34199440 \| InternKon: 945 700 40 / 124
116	004 398 98	Coupling	4	InternBDB: 10-L WN34198540 \| InternKon: 945 700 40 / 125
117	518 187 98	Hose assy. DN08x1400	2	InternBDB: 050 DOL10/DOL12 \| InternKon: 945 700 40 / 127
118	518 188 98	Hose assy. DN10x1900	1	InternBDB: 050 DOL12/DOL12 \| InternKon: 945 700 40 / 128
119	516 308 98	Hose assy. DN08x400	2	InternBDB: 050 DOL10/DOL10 90 \| InternKon: 945 700 40 / 97

Komatsu PC4000-6E S/N 08202 parts catalog PDF

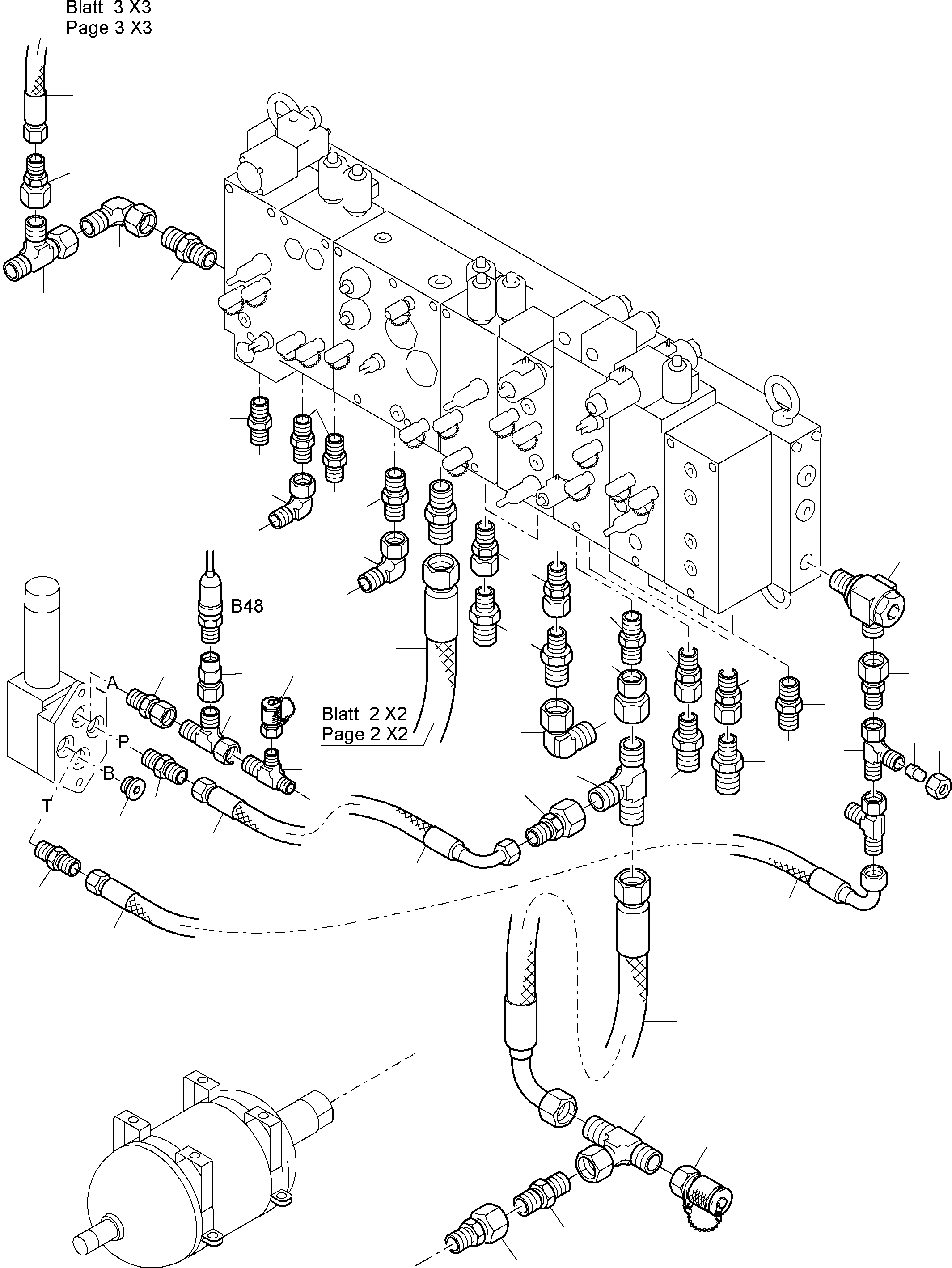

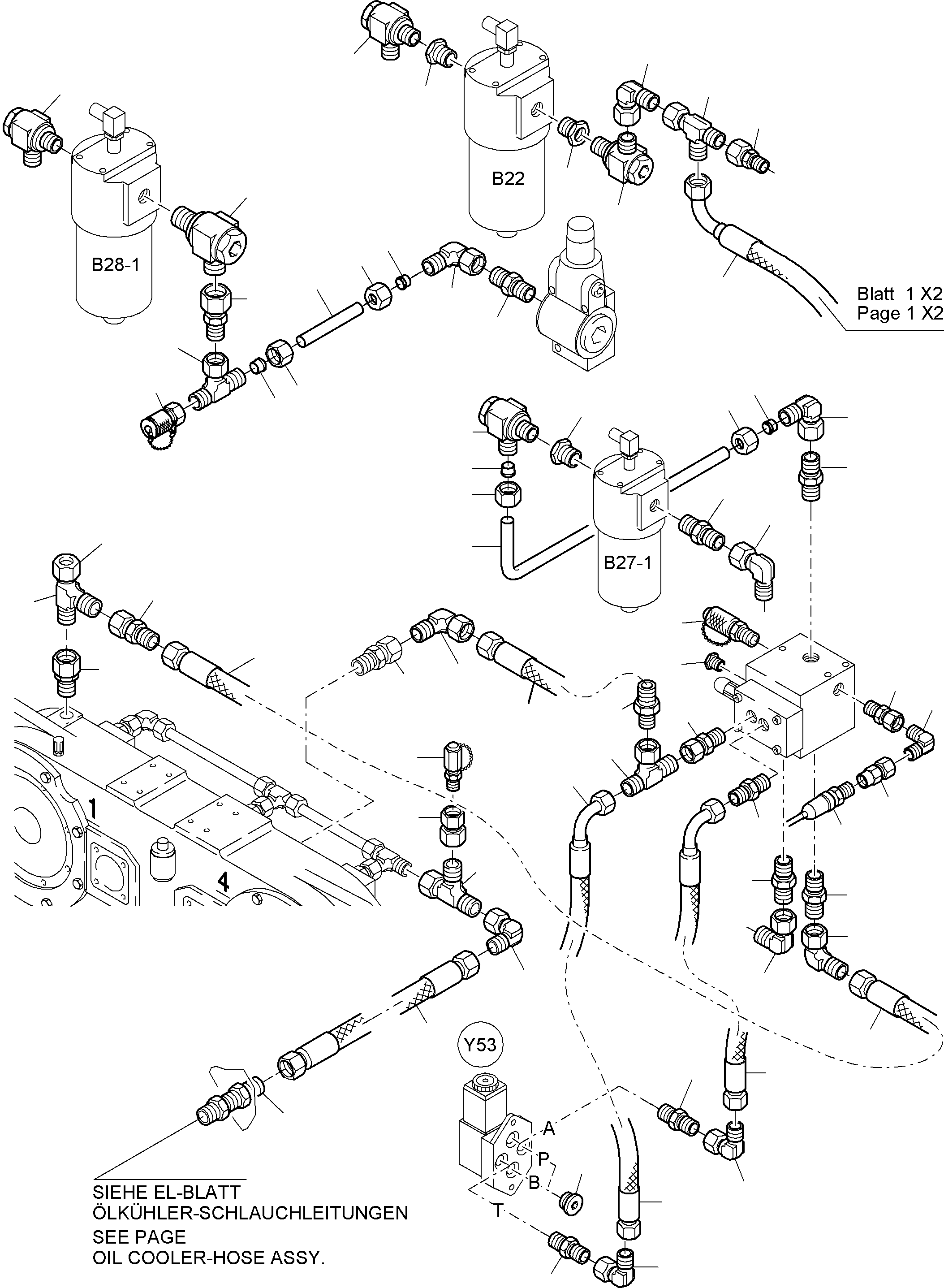

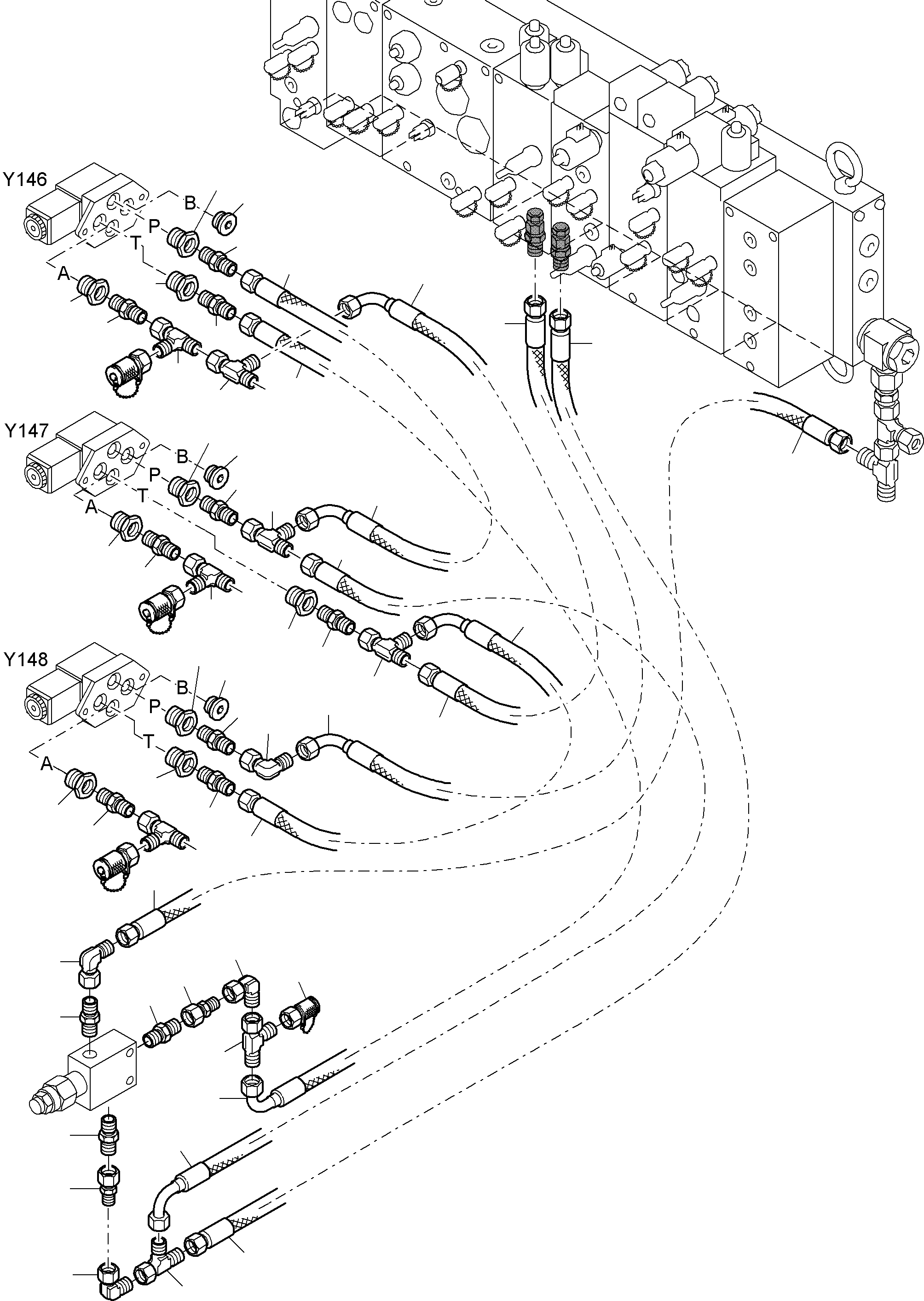

CONTROL- AND FILTER PLATE PIPING (356-1842c) in PC4000-6E S/N 08202. Diagram image and parts list.

Model manual types and quick links

buy PC4000-6E S/N 08202 parts catalog pdf buy PC4000-6E S/N 08202 parts book pdf buy PC4000-6E S/N 08202 shop manual pdf buy PC4000-6E S/N 08202 repair manual pdf buy PC4000-6E S/N 08202 service manual pdf buy PC4000-6E S/N 08202 workshop manual pdf buy PC4000-6E S/N 08202 maintenance manual pdf buy PC4000-6E S/N 08202 operation manual pdf buy PC4000-6E S/N 08202 operators manual pdf

Buy PDF Operation Manual

Buy PDF Operation Manual for PC4000-6E S/N 08202

Komatsu PC4000-6E S/N 08202 parts catalog PDF

How to get full access?
