PC4000-6E S/N 08202

01 01 02 02 02 03 03 03 04 06 07 07 08 09 10 11 12 13 13 14 15 15 16 16 17 17 17 18 19 19 20 21 21 22 23 24 24 25 26 27 28 28 29 29 29 29 30 30 30 30 31 32 33 33 33 33 34 35 35 36 37 38 39 40 41 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 63

#	Part Number	Partname	Quantity	Options	Reference
01		Metering valve	2	InternBDB: 269 880 40 \| InternKon: 918 210 40 / 2	991-0091
02	654 130 40	Protection cap with o-ring	10	InternBDB: 83272 \| InternKon: 918 210 40 / 3
03	372 182 99	Union	3	InternBDB: DDS 12 /2353 \| InternKon: 918 210 40 / 39
04	308 579 99	Bolt	6	InternBDB: M 10x60 /931 \| InternKon: 918 210 40 / 15
06	373 772 99	Union	1	InternBDB: TR 25/12/25-S \| InternKon: 918 210 40 / 38
07	372 415 99	Union	2	InternBDB: ES 25 /2353 \| InternKon: 918 210 40 / 37
08	516 642 98	Hose assy. DN 20x2850 lg.	1	InternBDB: DOS 25 /DOS 25 WN 341 951 40 \| InternKon: 918 210 40 / 45
09	918 213 40	Pipe assy. Ш 25	1	InternKon: 919 083 40 / 46
10	942 844 40	Pipe assy. Ш 25	1	InternKon: 919 083 40 / 47
11	635 896 40	Tube protection 12x9x1.5	-2	InternBDB: 100 121 005 Baier u. Kцppel \| InternKon: 918 210 40 / 21
12		Metering valve	1	InternBDB: 270 131 40 \| InternKon: 918 210 40 / 1	991-0091
13	308 555 99	Bolt	5	InternBDB: M8x45 8.8 DIN00931 \| InternKon: 918 210 40 / 5
14	936 978 40	Thread plate	1	InternBDB: 40x80 \| InternKon: 918 210 40 / 4
15	324 672 40	Plug	3	InternBDB: 3/8 - NPT \| InternKon: 918 210 40 / 7
16	517 121 98	Washer	5	InternBDB: 8 WN65593840 \| InternKon: 918 210 40 / 6
17	512 273 98	Socket	3	InternBDB: EVGE 12-S 3/8 NPT \| InternKon: 918 210 40 / 41
18	372 130 99	Union	1	InternBDB: EES 12 /2353 \| InternKon: 918 210 40 / 40
19	534 001 99	Cover plate	5	InternBDB: S-2-R-25 /3015 \| InternKon: 918 210 40 / 13
20	323 945 40	Thread pin	58	InternBDB: M6x15 /32501 \| InternKon: 918 210 40 / 32
21	373 588 99	Union	10	InternBDB: GE-6-PL / 1/8 NPT \| InternKon: 918 210 40 / 34
22	534 002 99	Weld on plate	3	InternBDB: S-AP-A-2 /3015 \| InternKon: 918 210 40 / 14
23	372 456 99	Union	4	InternBDB: DS 6 /2353 \| InternKon: 918 210 40 / 36
24	006 912 98	Union	10	InternBDB: Voss 6-SR \| InternKon: 918 210 40 / 35
25	006 302 98	Clamp	29	InternBDB: RSGU 1100 15/15 \| InternKon: 918 210 40 / 28
26	534 092 99	Clamp	10	InternBDB: RSGU 1100 8/15 \| InternKon: 918 210 40 / 26
27	507 025 98	Nut	58	InternBDB: M 6 /985 \| InternKon: 918 210 40 / 33
28	534 000 99	Clamp Set	5	InternBDB: S-2-R-25 /3015 \| InternKon: 918 210 40 / 12
29	515 029 40	Hose connection 90	16	InternBDB: Lincoln 532-30739-1 \| InternKon: 918 210 40 / 23
30	515 028 40	Collet	24	InternBDB: 432-23031-1 \| InternKon: 918 210 40 / 25
31	515 027 40	Hose connection	6	InternBDB: 432-23030-1 \| InternKon: 918 210 40 / 22
32	509 308 98	Locking plate	3	InternBDB: SI 4 WN 011 839 99 \| InternKon: 918 210 40 / 16
33	576 160 40	Plastic hose	-2	InternBDB: Lincoln 504-36033-3 8,4x2,1 \| InternKon: 918 210 40 / 20
34	929 431 40	Clamp	4	InternKon: 918 210 40 / 8
35	634 978 40	Cover plate	8	InternKon: 918 210 40 / 9
36	512 055 98	Thread pin	8	InternBDB: PM 12x80 /32500 \| InternKon: 918 210 40 / 10
37	307 789 99	Bolt	4	InternBDB: M10x80 /933 \| InternKon: 918 210 40 / 18
38	332 114 99	Nut	4	InternBDB: M 10 /934 \| InternKon: 918 210 40 / 19
39	918 209 40	Angle	1	InternKon: 918 210 40 / 17
40	929 238 40	Clamp Set	4	InternKon: 932 473 40 / 3
41	929 256 40	Pipe Ш 28	1	InternKon: 932 473 40 / 4
43	509 059 98	Clamp Set	4	InternBDB: L-4-G-28 /3015 \| InternKon: 932 473 40 / 6
44	501 584 98	Weld-on plate	4	InternBDB: L-AP-K-4 /3015 \| InternKon: 932 473 40 / 7
45	319 417 99	Screw	8	InternBDB: M6x35 /912 \| InternKon: 932 473 40 / 8
46	307 810 99	Bolt	4	InternBDB: M12x60 /931 \| InternKon: 932 473 40 / 11
47	334 600 99	Nut	4	InternBDB: M 12 /985 \| InternKon: 932 473 40 / 10
48	332 334 99	Nut	8	InternBDB: M 12 /934 \| InternKon: 932 473 40 / 9
49	635 853 40	Hose connection 45	2	InternKon: 918 210 40 / 24
50	372 724 99	Union	1	InternBDB: KS 25 /2353 \| InternKon: 918 210 40 / 42
51	515 951 98	Union	1	InternBDB: Red 25/12-PS \| InternKon: 918 210 40 / 43
52	372 627 99	Union	1	InternBDB: QS 25 /2353 \| InternKon: 918 210 40 / 44
53	942 846 40	Pipe assy. Ш 25	1	InternKon: 919 083 40 / 48
54	918 217 40	Pipe assy. Ш 25	1	InternKon: 919 083 40 / 49
55	334 600 99	Nut	8	InternBDB: M 12 /985 \| InternKon: 918 210 40 / 11
56	006 301 98	Clamp	6	InternBDB: RSGU 1100 12/15 \| InternKon: 918 210 40 / 27
57	006 339 98	Clamp	9	InternBDB: RSGU 1100 18/15 \| InternKon: 918 210 40 / 29
58	006 303 98	Clamp	2	InternBDB: RSGU 1100 22/15 \| InternKon: 918 210 40 / 30
59	502 855 98	Clamp	2	InternBDB: RSGU 1100 25/15 \| InternKon: 918 210 40 / 31
60	929 255 40	Cover	1	InternKon: 932 473 40 / 2
61	307 806 99	Bolt	4	InternBDB: M12x40 /933 \| InternKon: 932 473 40 / 12
62	517 118 98	Lock washer	4	InternBDB: 12 \| InternKon: 932 473 40 / 13
63	936 979 40	Thread plate	2	InternBDB: 40x145 \| InternKon: 918 210 40 / 50

Komatsu PC4000-6E S/N 08202 parts catalog PDF

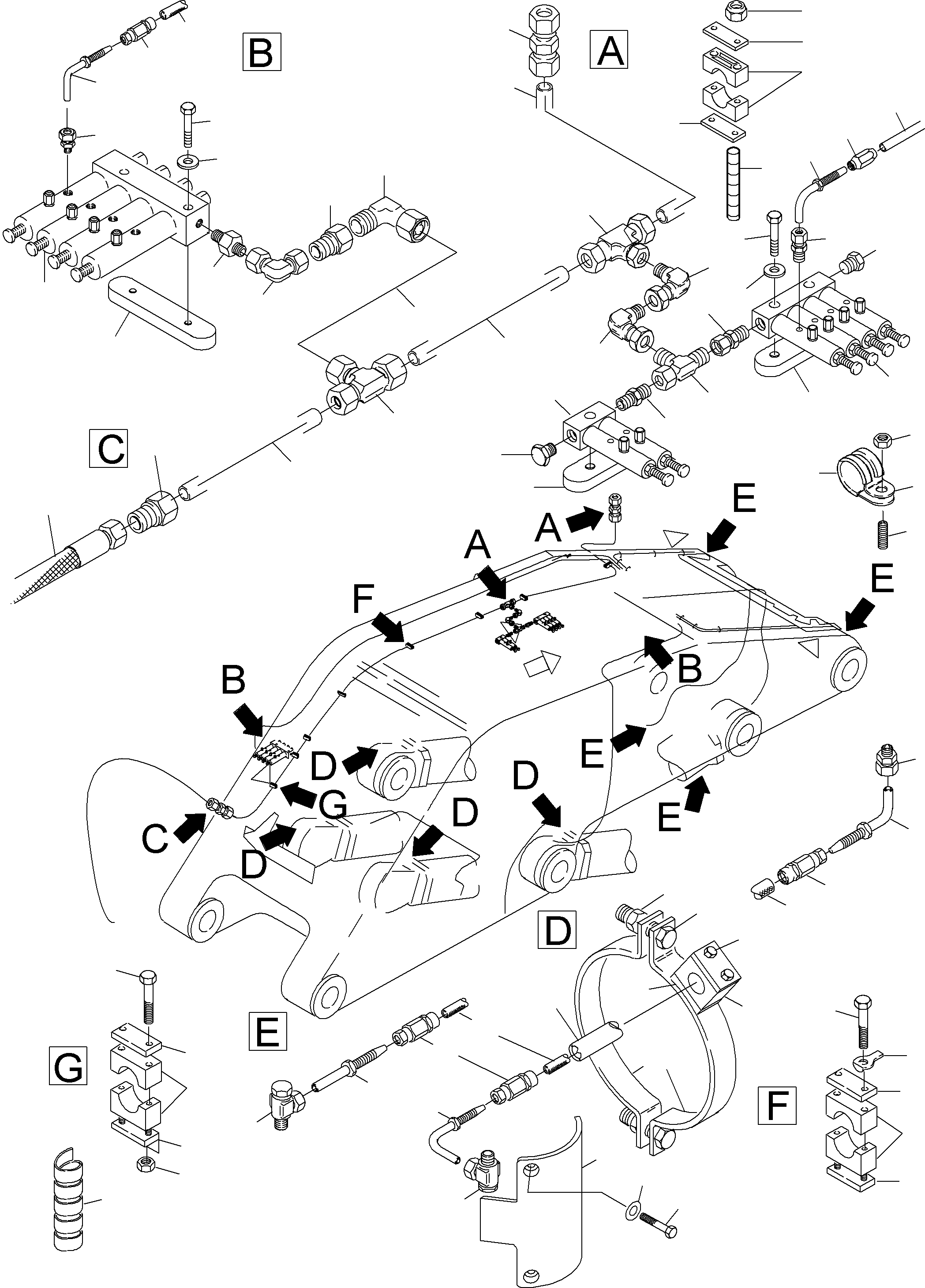

BOOM - CENTRAL LUBRICATION (BBE) (355-2350e) in PC4000-6E S/N 08202. Diagram image and parts list.
