Diagram image 1 of 2

PC4000-6 S/N 08195

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6 S/N 08195

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	926 527 40	Switch assy.	1	InternKon: 943 941 40 / 1
?	255 680 40	Pull switch	1	InternBDB: ES G1 WZ 10 E/1S \| InternKon: 943 941 40 / 2
?	942 119 40	Indicator lamp with LED, red	7	InternKon: 915 539 40 / 2
?	255 328 40	Circuit element	1	InternBDB: Lumitas 04.91050 \| InternKon: 915 539 40 / 4
?	323 677 40	Press button adapter, red	1	InternBDB: Lumitas 040 122 \| InternKon: 915 539 40 / 5
?	903 423 40	Graphical symbol	1	InternKon: 915 539 40 / 3
?	517 333 98	Plug	1	InternBDB: M20x1,5 CUZN39PB3 DIN EN50262 \| InternKon: 915 539 40 / 6
?	517 322 98	Nut	1	InternBDB: M20x1,5 CUZN39PB3 DIN EN50262 \| InternKon: 915 539 40 / 7
?	323 430 40	Housing, empty	1	InternKon: 915 539 40 / 1
?	902 412 40	Thread plate	4	InternKon: 943 941 40 / 10
?	321 014 99	Screw	4	InternBDB: M6x16 / DIN 84 \| InternKon: 943 941 40 / 11
?	910 026 40	Plate	1	InternKon: 943 941 40 / 12
?	321 010 99	Screw	3	InternBDB: M5x25 / DIN 84 \| InternKon: 943 941 40 / 15
?	507 036 98	Nut	3	InternBDB: M5 / DIN 985 \| InternKon: 943 941 40 / 16
?	472 688 99	Chain	-2	InternBDB: 2 / DIN 5686 \| InternKon: 943 941 40 / 17
?	098 955 40	Ring	2	InternKon: 943 941 40 / 18
?	340 461 99	Washer	3	InternBDB: 5,3 / DIN 125 \| InternKon: 943 941 40 / 19
?	940 735 40	Bulb	7	InternBDB: BA 9S /24V AC / DC 384-5705 RS.Electron \| InternKon: 942 119 40 / 2
?	891 040 40	Plug with bushings assy.	1	InternKon: 926 527 40 / 1
?	940 016 40	Switch	1	InternBDB: IFM IIM 203 \| InternKon: 926 527 40 / 2
?	0443451210	Clip	6	InternKon: 943 941 40 / 13
?	0443451610	Clip	8	InternKon: 943 941 40 / 14
?	507 037 98	Nut	22	InternBDB: M10 / DIN 985 \| InternKon: 943 941 40 / 21
?	340 465 99	Washer	22	InternBDB: 10,5/125 \| InternKon: 943 941 40 / 22
?	0443452110	Clip	6	InternKon: 943 941 40 / 20
?	944 059 40	Harness - refueling	1	InternKon: 943 941 40 / 24
?	795 134 73	Plug with pins assy.	1	InternBDB: 0819213920 KES 08192 \| InternKon: 944 059 40 / 1
?	655 629 40	T-Distributor DN 17	1	InternBDB: PMA BFTL-17 17 17 GGG \| InternKon: 944 059 40 / 25
?	655 631 40	Pipe adapter DN 12/10	2	InternBDB: PMA BAVR-12 T 10 T \| InternKon: 944 059 40 / 3
?	907 476 40	Union DN 10	1	InternBDB: PMA BVNV-M120 \| InternKon: 944 059 40 / 4
?	907 478 40	Union DN 17	1	InternBDB: PMA BVNV-M207 \| InternKon: 944 059 40 / 5
?	940 471 40	Fitting M16 / DN 10	1	InternBDB: PMA BVIR-M160 \| InternKon: 944 059 40 / 6
?	907 703 40	Cable union	1	InternBDB: Pflitsch 21650 YNPM 4x3 \| InternKon: 944 059 40 / 7
?	655 649 40	Cable protection hose DN 10	-2	InternBDB: PMA VCST-10 B \| InternKon: 944 059 40 / 8
?	655 650 40	Cable protection hose DN 12	-2	InternBDB: PMA VCST-12 B \| InternKon: 944 059 40 / 9
?	655 651 40	Cable protection hose DN 17	-2	InternBDB: PMA VCSG-17 B \| InternKon: 944 059 40 / 10
?	896 520 40	End pin	1	InternBDB: Pflitsch BO 3,0x25 \| InternKon: 944 059 40 / 11
?	256 514 40	Plate 15x30x1,5	2	InternBDB: Alu \| InternKon: 944 059 40 / 12
?	056 292 40	Cable strap	2	InternBDB: TY 23 M \| InternKon: 944 059 40 / 13
?	515 213 40	Cable 1mmІ	-2	InternBDB: PUR-Litze 1mmІ \| InternKon: 944 059 40 / 14
?	056 070 40	Cable sleeve 1,0 - 1,5	15	InternKon: 944 059 40 / 15
?	906 420 40	T-Distributor DN 12	1	InternBDB: PMA BFTL-121212TTT \| InternKon: 944 059 40 / 16
?	940 461 40	Insulating tube	-2	InternBDB: 0,3m / B5x0,6 PUR 70 Shore \| InternKon: 944 059 40 / 17
?	795 126 73	Plug	1	InternBDB: HD36-18-14PE-059 0819121206 \| InternKon: 944 059 40 / 2
?	795 157 73	Pin	28	InternBDB: Deutsch 0460-202-16141 / KES 08191 \| InternKon: 944 059 40 / 19
?	907 975 40	Fitting DN 17	3	InternBDB: PMA BVIVG-U297 \| InternKon: 944 059 40 / 20
?	796 339 73	Plug	1	InternBDB: Deutsch HD34-18-14PE-059 0819123106 KES 08191 \| InternKon: 944 059 40 / 21
?	795 154 73	Cablesocket	14	InternBDB: Deutsch 0819105420 / 0462-201-16141 KES 08191 \| InternKon: 944 059 40 / 22
?	940 629 40	Warmth shrink hose	-2	InternBDB: 0,090 m / Bьrklin .05060 91F2570 \| InternKon: 944 059 40 / 23
?	795 141 73	Plug socket	1	InternBDB: Deutsch HD36-18-14SE-059 / KES 08191 \| InternKon: 944 059 40 / 18
?	358 291 40	Plug	4	InternBDB: MBN 071 6201 \| InternKon: 915 539 40 / 8
?	655 632 40	Pipe adapter DN 17/10	1	InternBDB: PMA BAVR-17 G 10 T \| InternKon: 944 059 40 / 24
?	655 633 40	Pipe adapter DN 17/12	1	InternBDB: PMA BAVR-17 G 12 T \| InternKon: 944 059 40 / 26
?	323 675 40	Indicator light, red	7	InternBDB: Lumitas 04.0002 \| InternKon: 942 119 40 / 1
?	944 613 40	Plate	1	InternKon: 943 941 40 / 25
?	507 596 98	Washer	22	InternBDB: 11/7989 \| InternKon: 943 941 40 / 23

Komatsu PC4000-6 S/N 08195 parts catalog PDF

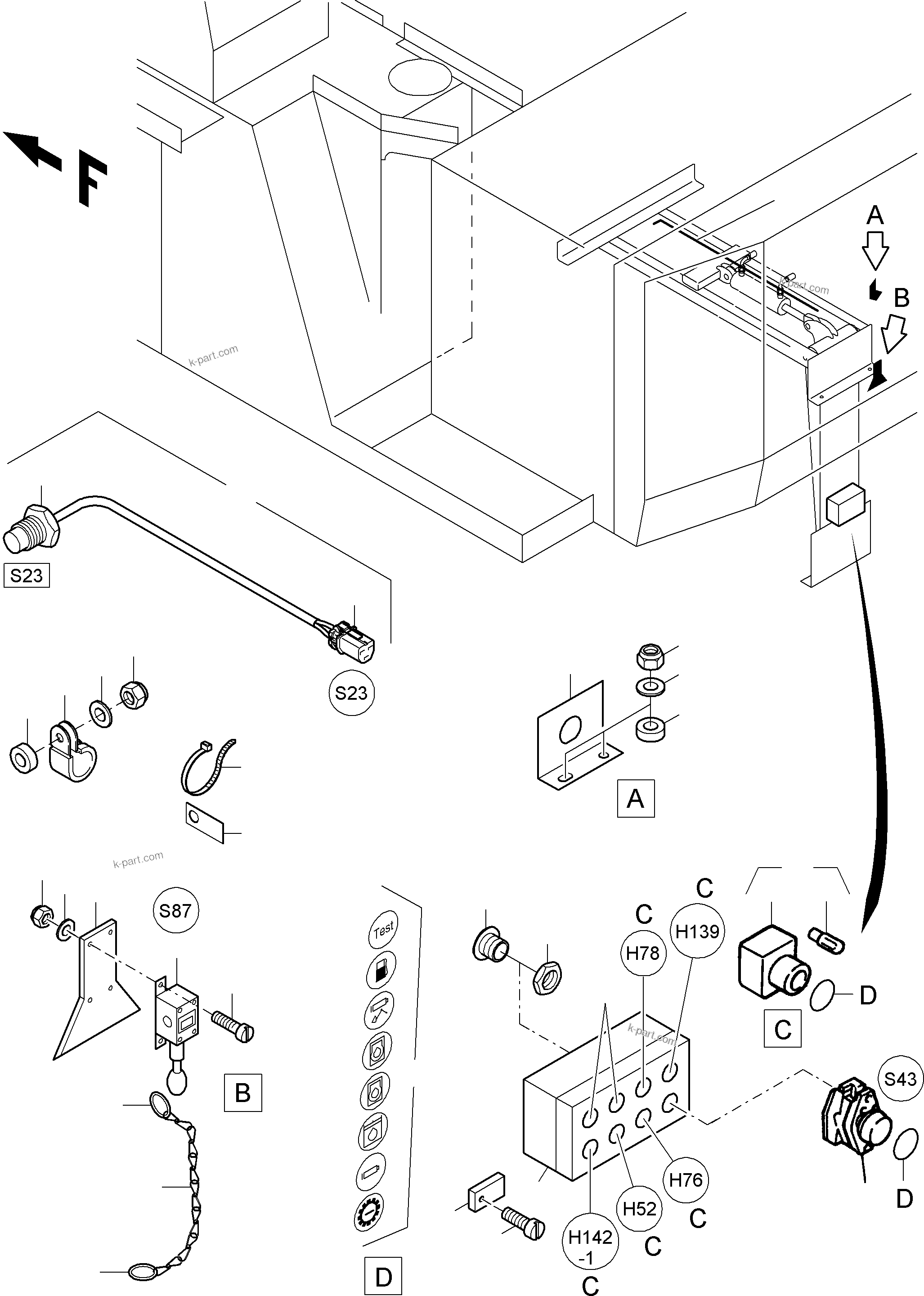

ELECTRIC PARTS - REFUELING (355-2305h) in PC4000-6 S/N 08195. Diagram image and parts list.
