Diagram image 1 of 2

PC4000-6 S/N 08195

01 01 02 03 04 04 05 05 07 07 08 09 09 10 101 102 102 103 103 104 105 106 106 107 107 108 109 11 11 110 111 112 113 12 13 14 14 15 17 18 19 20 21 22 23 24 25 26 27 27 28 28 28 28 28 29 29 29 30 30 31 32 33 33 33 33 33 33 34 35 36 37 38 39 40 40 41 42 43 44 45 46 47 48 49 50 50 51 51 52 52 53 53 53 54 54 54 55 55 56 57 57 57 58 58 59 61 62 63 64 65 66 67 68 69 70 71 76 80 90 92 95 95 95 96 96 97 97 98 98 99 99 99 99 99

PC4000-6 S/N 08195

01 01 01 01 100 28 28 28 29 29 30 31 32 33 33 33 40 40 50 51 52 53 54 55 55 55 55 56 57 57 57 57 58 58 59 59 60 60 62 63 68 70 72 73 74 75 77 78 79 80 81 82 83 84 87 88 90 91 92 93 94 95 98 98 99 99 99

#	Part Number	Partname	Quantity	Options	Reference
01		Metering valve	10	InternBDB: 269 881 40 \| InternKon: 923 370 40 / 1	991-0323a
02		Metering valve	1	InternBDB: 269 880 40 \| InternKon: 923 370 40 / 2	991-0091
03		Metering valve	1	InternBDB: 270 131 40 \| InternKon: 923 370 40 / 3	991-0091
04	654 130 40	Protection cap	6	InternBDB: Lincoln 83272 mit O-Ring \| InternKon: 923 370 40 / 4
05	308 555 99	Bold	3	InternBDB: M8x45 DIN00931 \| InternKon: 923 370 40 / 5
07	517 121 98	Washer	3	InternBDB: 8 WN65593840 \| InternKon: 923 370 40 / 6
08	512 273 98	Socket	1	InternBDB: EVGE 12-S /3/8 NPT \| InternKon: 923 370 40 / 9
09	906 984 40	Union	2	InternBDB: GE 12-S /3/8 NPT/ OMD \| InternKon: 923 370 40 / 10
10	324 672 40	Plug	1	InternBDB: 3/8 NPT Lincoln \| InternKon: 923 370 40 / 25
11	518 355 98	Hose assy.	1	InternBDB: DN8x700 DOS12 90 DOS12 90 WN34195140 \| InternKon: 923 370 40 / 11
12	634 481 40	Union	1	InternBDB: Red 25/12-PS/ OMD \| InternKon: 923 370 40 / 12
13	516 834 98	Union	1	InternBDB: T-S 25 /8434-4 \| InternKon: 923 370 40 / 13
14	374 443 99	Union	2	InternBDB: S-S 25 /8434-4 \| InternKon: 923 370 40 / 14
15	551 456 40	Union	1	InternBDB: RED 15/10-PL/OMD \| InternKon: 923 370 40 / 15
17	516 173 98	Socket	1	InternBDB: L10 /3944 \| InternKon: 923 370 40 / 17
18	516 183 98	Socket	1	InternBDB: L10-G /3945 \| InternKon: 923 370 40 / 18
19	551 615 40	Union	1	InternBDB: RED 10/06-PL/OMD \| InternKon: 923 370 40 / 19
20	371 861 99	Breech block	1	InternBDB: 6-L \| InternKon: 923 370 40 / 20
21	341 754 40	Ultimate pressure control	1	InternBDB: Barksdale \| InternKon: 923 370 40 / 21
22	652 383 40	Shackle	2	InternKon: 923 370 40 / 22
23	511 773 98	Thread pin	4	InternBDB: PM 10x70 /32500 \| InternKon: 923 370 40 / 23
24	507 037 98	Nut	4	InternBDB: M 10 /985 \| InternKon: 923 370 40 / 24
25	512 672 98	Hose assy. DN 20x4400	1	InternBDB: 350 DOS 25 /DOS 25 WN34195140 \| InternKon: 923 370 40 / 49
26	936991 40	Pipe assy. Ш25	1	InternBDB: Ш25x3x1800 \| InternKon: 923 370 40 / 50
27	906 981 40	Union	6	InternBDB: GE 6 L 1/8 NPT/OMD \| InternKon: 923 370 40 / 8
28	515 028 40	Collet	32	InternBDB: Lincoln 432-23031-1 \| InternKon: 923 370 40 / 26
29	515 029 40	Socket 90°	20	InternBDB: Lincoln 532-30739-1 \| InternKon: 923 370 40 / 27
30	515 027 40	Socket, straight	12	InternBDB: Lincoln 432-23030-1 \| InternKon: 923 370 40 / 28
31	517 291 98	Union	10	InternBDB: 6-SR/OMD \| InternKon: 923 370 40 / 29
32	374 428 99	Union	6	InternBDB: SDS-S 6xG 1/4A-Type E /8434 \| InternKon: 923 370 40 / 30
33	576 160 40	Hose DN 4	-2	InternKon: 923 370 40 / 31
34	635 896 40	Tube protection	-2	InternKon: 923 370 40 / 32
35	942 824 40	Angle	4	InternBDB: 194x200 \| InternKon: 923 370 40 / 54
36	923 356 40	Plate	1	InternKon: 923 370 40 / 63
37	931 890 40	Grease block	4	InternKon: 923 370 40 / 55
38	307 805 99	Bolt	4	InternBDB: M12x35 DIN00933 \| InternKon: 923 370 40 / 64
39	634 546 40	Union	1	InternBDB: RED 16PS/15-PL/OMD \| InternKon: 923 370 40 / 57
40	334 600 99	Nut	37	InternBDB: M12 DIN00985 \| InternKon: 923 370 40 / 47
41	929 431 40	Clamp	4	InternBDB: S-2-R-25 \| InternKon: 923 370 40 / 44
42	634 978 40	Cover plate	8	InternKon: 923 370 40 / 45
43	512 055 98	Thread pin	8	InternBDB: PM 12x80 /32500 \| InternKon: 923 370 40 / 46
44	502 618 98	Clamp Set	2	InternBDB: S-3-E /3015 \| InternKon: 923 370 40 / 38
45	534 005 99	Weld on plate	2	InternBDB: S-AP-A-3 /3015 \| InternKon: 923 370 40 / 39
46	534 004 99	Cover plate	2	InternBDB: S-DP-A-3 /3015 \| InternKon: 923 370 40 / 40
47	504 926 98	Grommet	2	InternBDB: S-3-32 /3015 \| InternKon: 923 370 40 / 41
48	308 581 99	Bolt	4	InternBDB: M10x70 /931 \| InternKon: 923 370 40 / 42
49	500 801 98	Lock washer	4	InternBDB: S10 WN24195640 \| InternKon: 923 370 40 / 43
50	006 303 98	Clamp	5	InternBDB: RSGU 1100 / 22/15 \| InternKon: 923 370 40 / 33
51	006 339 98	Clamp	32	InternBDB: RSGU 1100 / 18/15 \| InternKon: 923 370 40 / 34
52	006 301 98	Clamp	25	InternBDB: RSGU 1100 / 12/15 \| InternKon: 923 370 40 / 35
53	323 945 40	Thread pin	77	InternBDB: M6x16 /32501 \| InternKon: 923 370 40 / 36
54	507 025 98	Nut	77	InternBDB: M 6 /985 \| InternKon: 923 370 40 / 37
55	654 496 40	Protection cap	10	InternBDB: Lincoln 83730 \| InternKon: 923 370 40 / 65
56	517 560 98	Union	10	InternBDB: GE 6 L 1/4 NPT/OMD \| InternKon: 923 370 40 / 59
57	502 303 98	Socket	10	InternBDB: EVGE 16-S 1/2 NPT \| InternKon: 923 370 40 / 56
58	655 268 40	Union	4	InternBDB: K-S 16 /8434 \| InternKon: 923 370 40 / 52
59	428 861 40	Pipe assy. Ш 16	4	InternBDB: 16x2x80 /2391 \| InternKon: 923 370 40 / 51
60	909 206 40	Cover tube	6	InternKon: 923 370 40 / 66
61	516 700 98	Union	1	InternBDB: GZR 25/16-PS \| InternKon: 923 370 40 / 53
62	634 775 40	Clamp	20	InternKon: 923 370 40 / 60
63	634 774 40	Cover plate	20	InternKon: 923 370 40 / 61
64	308 611 99	Bold	16	InternBDB: M12x90 DIN00931 \| InternKon: 923 370 40 / 62
65	634 271 40	Union	1	InternBDB: TR 25/20/25-PS/OMD \| InternKon: 923 370 40 / 67
66	942 827 40	Pipe assy. Ш25	1	InternBDB: 25x3x417 \| InternKon: 923 370 40 / 68
67	923 369 40	Pipe assy. Ш20	1	InternKon: 923 370 40 / 69
68	504 224 98	Clamp Set	4	InternBDB: S-2-R-20 /3015 \| InternKon: 923 370 40 / 70
69	907 334 40	Hose assy. DN 16x1500	1	InternBDB: DOS 20 DOS 20 2755 Aeroquip \| InternKon: 923 370 40 / 71
70	374 442 99	Union	2	InternBDB: S-S 20 /8434 \| InternKon: 923 370 40 / 72
71	907 378 40	Swivel union	1	InternBDB: S20 G3/4a Voss \| InternKon: 923 370 40 / 73
72	517 561 98	Union	1	InternBDB: 20-SR/OMD \| InternKon: 923 370 40 / 74
73	0443453412	Clip	1	InternKon: 923 370 40 / 75
74	507 121 98	Thread pin	1	InternBDB: PM 12x25 /32500 \| InternKon: 923 370 40 / 76
75	340 467 99	Washer	2	InternBDB: 13 /125 \| InternKon: 923 370 40 / 77
76	933 084 40	Guard plate	1	InternKon: 923 370 40 / 78
77	907 341 40	Straight swivel union	1	InternBDB: DG 101 /20S A3C Parker \| InternKon: 923 370 40 / 79
78	933 085 40	Pipe assy. Ш 20	1	InternKon: 923 370 40 / 80
79	517 148 98	Socket	1	InternBDB: GZR 20/16-PS \| InternKon: 923 370 40 / 81
80	907 377 40	Hose protection	2	InternKon: 923 370 40 / 82
81	933 083 40	Plate	1	InternKon: 923 370 40 / 83
82	923 366 40	Plate	1	InternKon: 923 370 40 / 84
83	923 367 40	Plate	1	InternKon: 923 370 40 / 85
84	923 361 40	Thread pin	4	InternBDB: M16x130 TL \| InternKon: 923 370 40 / 86
87	307 454 99	Bolt	4	InternBDB: M16x50 /933 \| InternKon: 923 370 40 / 89
88	517 123 98	Washer	4	InternBDB: 16 WN65593840 \| InternKon: 923 370 40 / 90
90	534 001 99	Cover plate	2	InternBDB: S-DP-A-2 /3015 \| InternKon: 923 370 40 / 92
91	534 002 99	Weld-on plate	2	InternBDB: S-AP-A-2 /3015 \| InternKon: 923 370 40 / 93
92	308 579 99	Bolt	4	InternBDB: M10x60 /931 \| InternKon: 923 370 40 / 94
93	308 612 99	Bolt	24	InternBDB: M12x100 /931 \| InternKon: 923 370 40 / 95
94	517 255 98	Union	1	InternBDB: T-S16 ISO08434 \| InternKon: 923 370 40 / 96
95	371 271 99	Tube nut	16	InternBDB: N-L 6 /8434 \| InternKon: 923 370 40 / 97
96	933 081 40	Pipe Ш31,8	2	InternBDB: 31,8x8,8x1383 \| InternKon: 923 370 40 / 98
97	933 082 40	Pipe Ш31,8	2	InternBDB: 31,8x8,8x2001 \| InternKon: 923 370 40 / 99
98	371 257 99	Tube nut	16	InternBDB: N-S 6 /8434 \| InternKon: 923 370 40 / 100
99	907 080 40	Olive	32	InternBDB: VOSS ES-4 S 6 \| InternKon: 923 370 40 / 101
100	907 436 40	Hose assy. DN16x1300	1	InternBDB: 2755x1300 DOS 20 DOS 20 \| InternKon: 923 370 40 / 102
101	936 962 40	Pipe assy. Ш25	1	InternBDB: Ш25x3x130 \| InternKon: 923 370 40 / 48
102	371 264 99	Union	6	InternBDB: N-S25 ISO08434 \| InternKon: 923 370 40 / 104
103	906 868 40	Olive	6	InternBDB: ES-4S25 WN65593940 \| InternKon: 923 370 40 / 105
104	371 260 99	Union	2	InternBDB: N-S20 ISO08434 \| InternKon: 923 370 40 / 106
105	906 351 40	Olive	2	InternBDB: E-4S20 WN65593940 \| InternKon: 923 370 40 / 107
106	371 263 99	Union	7	InternBDB: N-S16 ISO08434 \| InternKon: 923 370 40 / 108
107	907 151 40	Olive	7	InternBDB: S16 WN65593940 \| InternKon: 923 370 40 / 109
108	936 978 40	Thread plate	1	InternBDB: 40x80 \| InternKon: 923 370 40 / 110
109	936 979 40	Thread plate	1	InternBDB: 40x145 \| InternKon: 923 370 40 / 111
110	517 118 98	Washer	16	InternBDB: 12 WN65593840 \| InternKon: 923 370 40 / 112
111	942 851 40	Weld-on plate 90x90	1	InternKon: 923 370 40 / 116
112	517 122 98	Washer	4	InternBDB: 10 WN65593840 \| InternKon: 923 370 40 / 115
113	006 302 98	Clamp	1	InternBDB: RSGU1100 15/15 WN01166099 \| InternKon: 923 370 40 / 117

Komatsu PC4000-6 S/N 08195 parts catalog PDF

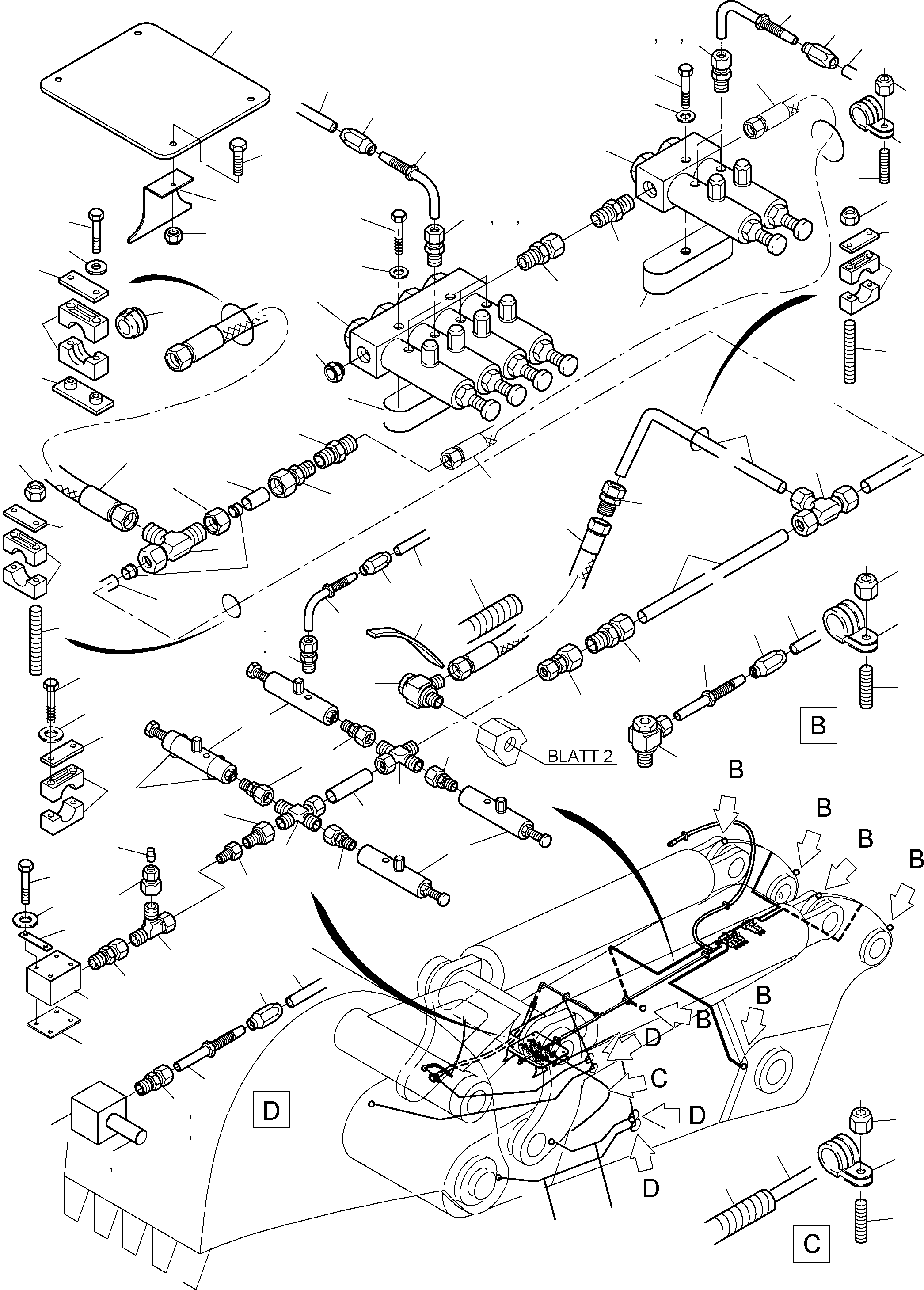

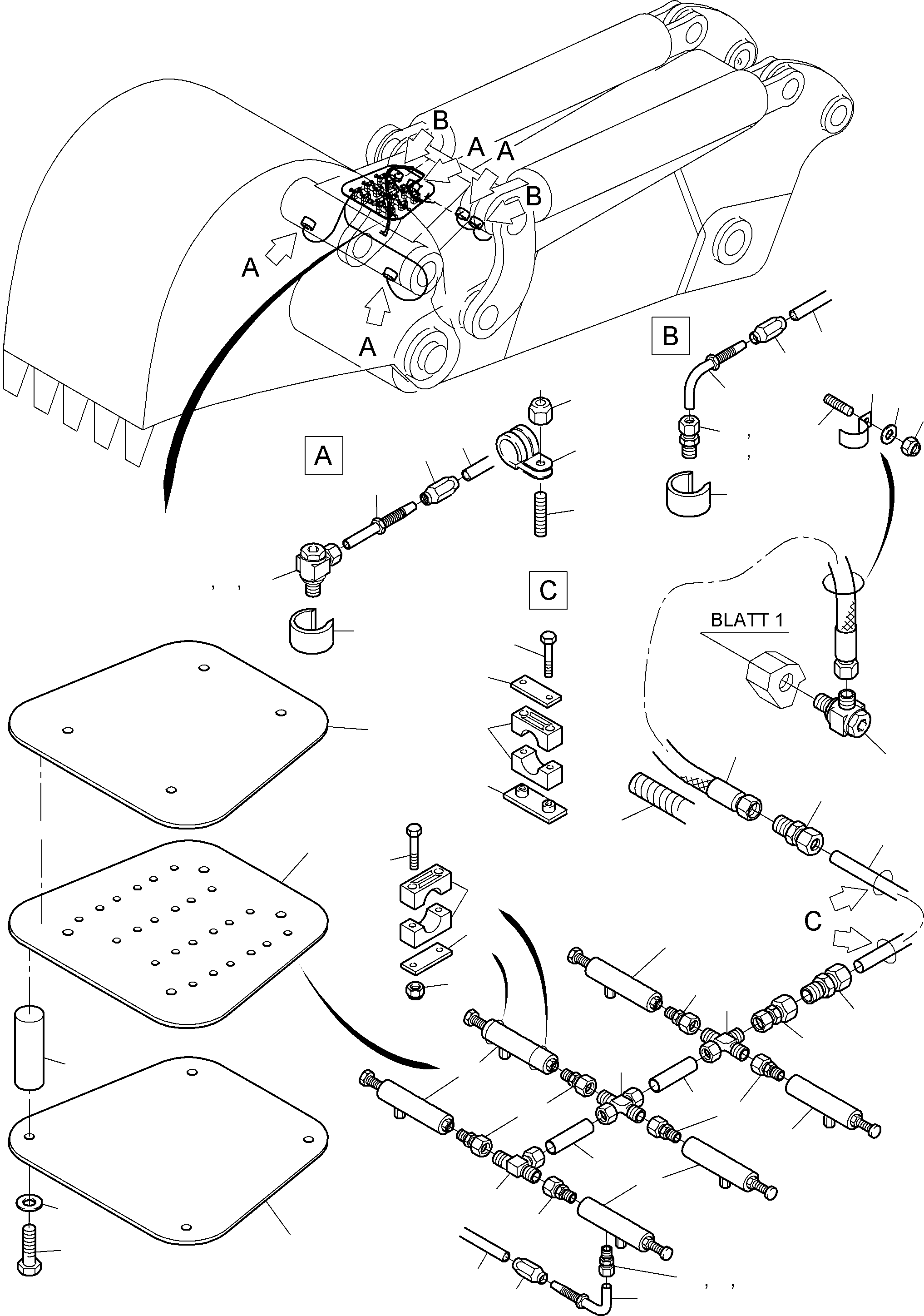

STICK - LUBRICATION 4,5 M (355-2372f) in PC4000-6 S/N 08195. Diagram image and parts list.
