#	Part Number	Partname	Quantity	Options	Reference
?	635 991 40	Clamp with console	4	InternKon: 904 295 40 / 10
?	308 559 99	Thread pin	8	InternBDB: M8x65 8.8 DIN00931 \| InternKon: 904 295 40 / 12
?	334 599 99	Nut	8	InternBDB: M8 / DIN 985 \| InternKon: 904 295 40 / 13
?	202 970 40	Plug	1	InternBDB: M16x1,5 ED \| InternKon: 904 295 40 / 14
?	374 413 99	Socket	3	InternBDB: SDS-S20X-M27x2 - Typ E / ISO 08434 \| InternKon: 904 295 40 / 17
?	374 419 99	Socket	2	InternBDB: SDS-S25-G 1 A-Typ E/ ISO 08434 \| InternKon: 904 295 40 / 23
?	634 297 40	Union	2	InternBDB: RED 25/20-PS / OMD \| InternKon: 904 295 40 / 24
?	516 180 98	Socket	4	InternBDB: SWRT-S 20 / ISO 08434 \| InternKon: 904 295 40 / 25
?	004 132 98	Coupling	2	InternBDB: 20-S /341 985 40 \| InternKon: 904 295 40 / 26
?	173 415 40	Plug	1	InternBDB: VSTI M 27x2,0 ED \| InternKon: 904 295 40 / 34
?	517 593 98	Hose assy. DN 16x3500	2	InternBDB: DOS 20 / DOS 20 90 \| InternKon: 938 750 40 / 17
?	922 591 40	Pipe	2	InternKon: 938 750 40 / 32
?	502 682 98	Half clamp	4	InternBDB: S-2-G-28 /3015 \| InternKon: 938 750 40 / 33
?	534 002 99	Weld on plate	2	InternBDB: S-AP-A-2 /3015 \| InternKon: 938 750 40 / 34
?	534 001 99	Cover plate	2	InternBDB: S-DP-A-2 /3015 \| InternKon: 938 750 40 / 35
?	308 579 99	Bolt	4	InternBDB: M10x60 /931 \| InternKon: 938 750 40 / 36
?		Valve block assy.	1	InternBDB: 566 530 40 \| InternKon: 938 750 40 / 3	114-3190d
?	506 728 98	Bolt	4	InternBDB: M 12x135 / 931 \| InternKon: 938 750 40 / 22
?	512 545 98	Washer	4	InternBDB: A 13,0 \| InternKon: 938 750 40 / 23
?	641 487 40	Hose assy. DN 16x1690	2	InternBDB: DOS 20 / DOS 20-90 \| InternKon: 938 750 40 / 24
?	514 125 98	Hose assy. DN 16x1550	1	InternBDB: DOS 20 / DOS 20-90 \| InternKon: 938 750 40 / 25
?	515 812 98	Coupling	2	InternBDB: G 1/4-PC / 655 914 40 \| InternKon: 942 810 40 / 43
?	516 172 98	Union	1	InternBDB: SWBT-S 20 / St-NBR / ISO 8434-4 \| InternKon: 942 810 40 / 44
?	461 133 40	Ball cock	1	InternBDB: BKH 20S 16 1113 0 / Pister \| InternKon: 942 810 40 / 45
?	516 165 98	Union	2	InternBDB: SWE-S 20 / St-NBR / ISO 8434-4 \| InternKon: 942 810 40 / 46
?	517 578 98	Hose assy. DN 16x920	2	InternBDB: DOS 20 DOS 20 \| InternKon: 942 810 40 / 54
?	374 413 99	Union	2	InternBDB: SDS-S20X-M27x2 - Typ E / ISO 08434 \| InternKon: 942 810 40 / 47
?	516 180 98	Union	1	InternBDB: SWRT-S 20 / St-NBR / ISO 08434-4 \| InternKon: 942 810 40 / 48
?	551 715 40	Hose assy. DN 16x390	1	InternBDB: DOS 20 DOS 20 90 \| InternKon: 942 810 40 / 49
?	374 418 99	Socket	1	InternBDB: SDS-S20 X-G 3/4A-Type E / ISO 08434 \| InternKon: 942 810 40 / 50
?	307 752 99	Bolt	4	InternBDB: M 8x20 /8.8 / 933 \| InternKon: 942 810 40 / 51
?	517 121 98	Lock washer	4	InternBDB: 8 / StZn / WN 65593840 \| InternKon: 942 810 40 / 52
?		Accumulator	2	InternBDB: siehe jeweilige Gerдte-Karte
?		Diaphragm-type accumulator	2	InternBDB: siehe jeweilige Gerдte-Karte
?	513 208 98	Hose assy. DN12 x 1900	1	InternBDB: 240 / DOL 15 / DOL 15 90 / WN 34195140 \| InternKon: 938 750 40 / 26
?	374 431 99	Socket	2	InternBDB: SDS-L28XM33x2 - TYPE E / ISO 8434 / St A3C \| InternKon: 904 295 40 / 18
?	516 177 98	Socket	3	InternBDB: SWRT-L28 / ISO 8434-4 / St-NBR \| InternKon: 904 295 40 / 19
?	634 304 40	Union	2	InternBDB: RED 28/10-PL/OMD / St A3C \| InternKon: 904 295 40 / 20
?	576 406 40	Union	1	InternBDB: RED 28/15-PL/OMD / St A3C \| InternKon: 904 295 40 / 35
?			-2

Komatsu PC4000-6 S/N 08195 parts catalog PDF

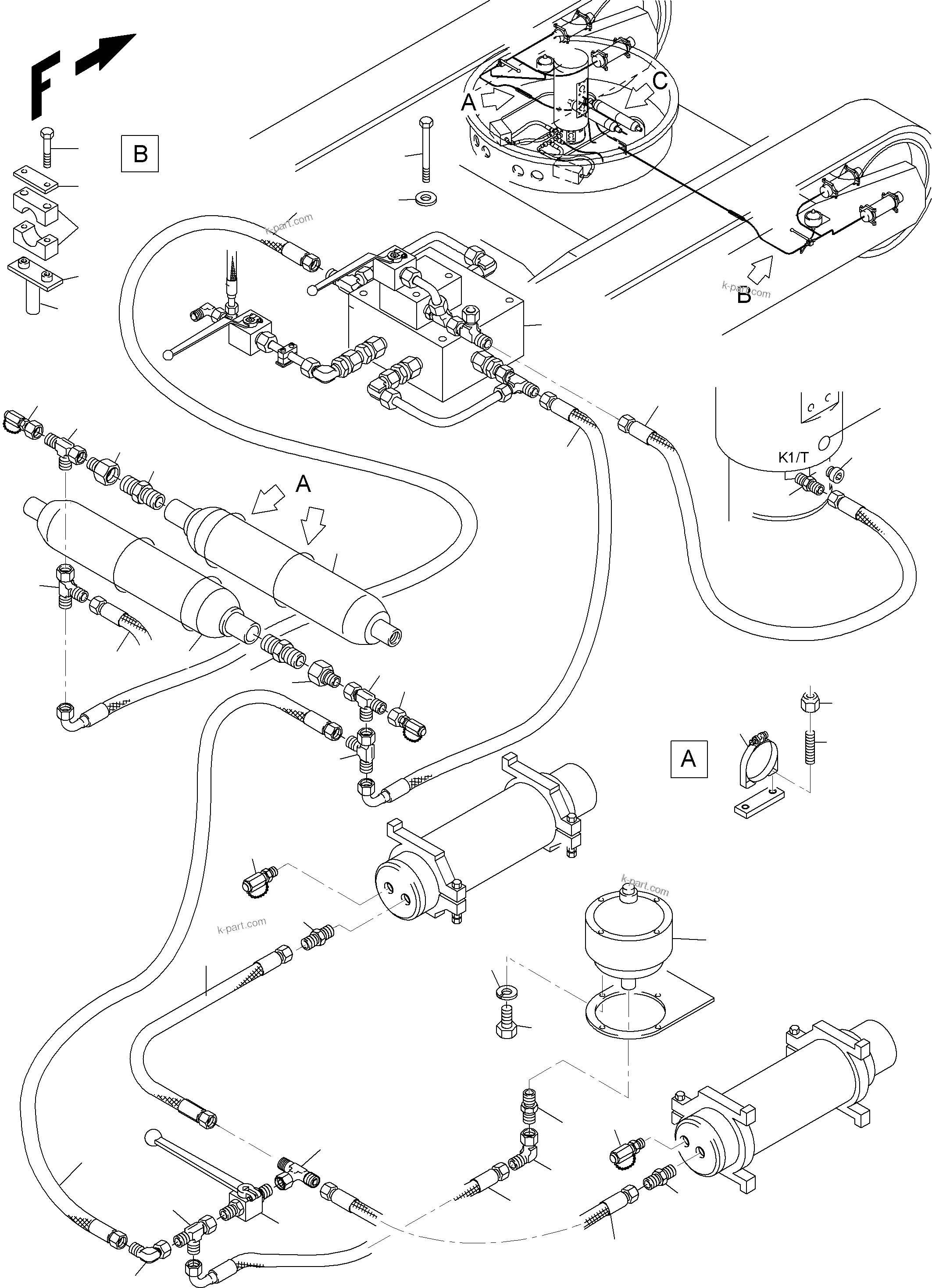

TRACK ADJUSTING (355-3185h) in PC4000-6 S/N 08195. Diagram image and parts list.
