#	Part Number	Partname	Quantity	Options
01	942 223 40	Door without hinge	1	InternKon: 942 250 40 / 1
02	942 282 40	Wall	1	InternKon: 942 250 40 / 2
03	935 012 40	Door without hinge	1	InternKon: 942 250 40 / 3
04	942 298 40	Door	1	InternKon: 942 250 40 / 4
05	942 292 40	Wall	1	InternKon: 942 250 40 / 5
06	942 293 40	Wall	1	InternKon: 942 250 40 / 6
07	914 751 40	Door frame without hinge	1	InternKon: 942 250 40 / 7
08	949 354 40	Post	1	InternKon: 942 250 40 / 9
09	949 355 40	Post	1	InternKon: 942 250 40 / 10
10	949 353 40	Post	1	InternKon: 942 250 40 / 11
11	949 356 40	Post	1	InternKon: 942 250 40 / 12
12	949 357 40	Post	1	InternKon: 942 250 40 / 13
13	390 199 40	Hinge assy.	17	InternKon: 942 250 40 / 14
14	943 929 40	Catch	1	InternKon: 942 250 40 / 16
15	902 011 40	Flat steel	1	InternBDB: 50x5x1195 \| InternKon: 942 250 40 / 17
16	902 012 40	Flat steel	1	InternBDB: 50x5x137 \| InternKon: 942 250 40 / 18
17	902 013 40	Flat steel	1	InternBDB: 50x5x332 \| InternKon: 942 250 40 / 19
18	902 014 40	Flat steel	1	InternBDB: 50x5x351 \| InternKon: 942 250 40 / 20
19	902 015 40	Flat steel	1	InternBDB: 50x5x170 \| InternKon: 942 250 40 / 21
20	908 073 40	Strip	1	InternKon: 942 250 40 / 22
21	308 614 99	Bolt	2	InternBDB: M12x120 / DIN 931 / 8.8 \| InternKon: 942 250 40 / 23
22	940 906 40	Fastener LH	3	InternBDB: Emka 31514 \| InternKon: 942 250 40 / 24
25	940 907 40	Fastener RH	1	InternBDB: A 17,0 / 140 HV / DIN 125 \| InternKon: 942 250 40 / 27
26	308 610 99	Bolt	19	InternBDB: M12x80 / DIN 931 / 8.8 \| InternKon: 942 250 40 / 28
27	334 600 99	Nut	25	InternBDB: M12 / DIN 985 / 8 \| InternKon: 942 250 40 / 29
28	304 369 99	Bolt	32	InternBDB: M30x180 / DIN 931 / 10.9 \| InternKon: 942 250 40 / 30
29	510 725 98	Resilient sleeve	32	InternBDB: 31/60x100 \| InternKon: 942 250 40 / 31
30	510 742 98	Resilient sleeve	12	InternBDB: 26,5/45x60 \| InternKon: 942 250 40 / 34
31	308 404 99	Bolt	12	InternBDB: M24x140 / DIN 931 / 10.9 \| InternKon: 942 250 40 / 35
32	514 085 98	Bolt	14	InternBDB: M12x95 / DIN 931 / 10.9 \| InternKon: 942 250 40 / 37
33	902 019 40	Pipe	2	InternKon: 942 250 40 / 38
34	307 806 99	Bolt	4	InternBDB: M12x40 / DIN 933 / 8.8 \| InternKon: 942 250 40 / 39
35	902 020 40	Plate	1	InternBDB: 5x84x1365 \| InternKon: 942 250 40 / 40
36	902 021 40	Plate	2	InternBDB: 5x84x900 \| InternKon: 942 250 40 / 41
37	902 022 40	Angle	1	InternBDB: 65x7x610 \| InternKon: 942 250 40 / 42
38	332 334 99	Nut	14	InternBDB: M12 / DIN 934 / 8 \| InternKon: 942 250 40 / 44
39	561 904 40	Pipe	1	InternBDB: 38x5x60 \| InternKon: 942 250 40 / 49
40	912 701 40	Angle	1	InternBDB: 60x70 \| InternKon: 942 250 40 / 51
41	949 358 40	Post	1	InternKon: 942 250 40 / 52
42	621 108 40	Pin	1	InternKon: 390 199 40 / 1
43	390 600 40	Round bar steel	2	InternKon: 390 199 40 / 2
44	390 601 40	Round bar steel	1	InternKon: 390 199 40 / 3
45	340 612 99	Washer	1	InternBDB: 16 / DIN 1440 \| InternKon: 390 199 40 / 4
46	342 061 99	Cotter pin	1	InternBDB: 4x32 / DIN 94 \| InternKon: 390 199 40 / 5
47	350 562 99	Grease nipple	1	InternBDB: AM 10x1 / DIN 71412 / 5.8 A2E \| InternKon: 390 199 40 / 6
48	953 329 40	Roof section	1	InternBDB: PC 4000-6 \| InternKon: 953 325 40 / 1
49	953 330 40	Roof section	1	InternBDB: PC 4000-6 \| InternKon: 953 325 40 / 2
50	953 331 40	Roof section	1	InternBDB: PC 4000-6 \| InternKon: 953 325 40 / 3
51	953 322 40	Threaded rail	2	InternBDB: 2406 \| InternKon: 953 325 40 / 4
52	953 323 40	Threaded rail	2	InternBDB: 636 \| InternKon: 953 325 40 / 5
53	953 324 40	Threaded rail	2	InternBDB: 2475 \| InternKon: 953 325 40 / 6
54	953 326 40	Threaded rail	2	InternBDB: 1455 \| InternKon: 953 325 40 / 7
55	936 075 40	Threaded rail	2	InternBDB: 640 \| InternKon: 953 325 40 / 8
56	936 074 40	Threaded rail	2	InternBDB: 1838 \| InternKon: 953 325 40 / 9
57	936 070 40	Exhaust air hood	1	InternBDB: PC 4000-6 \| InternKon: 953 325 40 / 10
58	308 426 99	Bolt	63	InternBDB: M16x80 / 10.9 / DIN 931 \| InternKon: 953 325 40 / 11
59	510 733 98	Resilient sleeve	63	InternBDB: 17/30X50 / 42CRMO4-TQ+T / WN 34194840 \| InternKon: 953 325 40 / 12
61	940 627 40	Plug	1	InternBDB: F 12 \| InternKon: 953 325 40 / 21
62	307 821 99	Bolt	5	InternBDB: M 16x25 / 8.8 / DIN 00933 \| InternKon: 953 325 40 / 13
63	517 123 98	Spring ring	5	InternBDB: B 16 WN 65593840 \| InternKon: 953 325 40 / 14
64	592 259 40	Gista-Profile	-2	InternBDB: 0,6m / 4610075 \| InternKon: 953 325 40 / 15
65	490 694 40	Moulding material	-2	InternBDB: 0,3m / 20X20 / NK20 \| InternKon: 953 325 40 / 16
66	180 894 40	Plug	13	InternBDB: F10 / GPN 300 / PE-WEICH \| InternKon: 953 325 40 / 17
67	940 628 40	Plug	11	InternBDB: F241 / GPN 300 \| InternKon: 953 325 40 / 18
68	953 332 40	Roof section	1	InternBDB: PC 4000-6 \| InternKon: 953 325 40 / 19
69	953 327 40	Threaded rail	2	InternBDB: 1149 \| InternKon: 953 325 40 / 20
72	304 172 99	Bolt	12	InternBDB: M36x260 / DIN 931 / 10.9 \| InternKon: 938 554 40 / 22
73	255 056 40	Washer	12	InternBDB: 37 / DIN 6916 \| InternKon: 938 554 40 / 23
74	931 062 40	Roof frame	1	InternKon: 936 060 40 / 2
75	324 741 40	Locking stopple	4	InternBDB: F26 \| InternKon: 936 060 40 / 4
76	902 030 40	Deflector	1	InternKon: 942 290 40 / 3
77	931 914 40	Door, right	1	InternKon: 942 290 40 / 4
78	946 258 40	Door, left	1	InternKon: 942 290 40 / 10
79	930 938 40	Deflector	1	InternKon: 942 290 40 / 12
80	440 821 40	Moulding material 30x30	-2	InternBDB: 30x30 /Z 125 / 2,3 m \| InternKon: 942 290 40 / 13
81	507 037 98	Nut	40	InternBDB: M10 / DIN 985 / 8 \| InternKon: 942 290 40 / 25
82	332 334 99	Nut	4	InternBDB: M12 / DIN 934 / 8 \| InternKon: 942 290 40 / 38
83	308 612 99	Bolt	10	InternBDB: M12x100 / DIN 931 / 8.8 \| InternKon: 942 290 40 / 39
84	902 034 40	Angle	2	InternBDB: RSt 37-2 \| InternKon: 942 290 40 / 40
85	511 263 98	Thread pin	20	InternBDB: PM 10x25 / DIN 32500 / 4.8 \| InternKon: 942 290 40 / 41
87	340 605 99	Washer	20	InternBDB: 12 / DIN 1440 / St \| InternKon: 942 290 40 / 103
88	914 710 40	Pipe	1
90	946 280 40	Door	1	InternKon: 942 250 40 / 36
91	081 282 40		1	InternBDB: GEHE 4700056 \| InternKon: 942 250 40 / 45
92	319 135 99	Bolt	1	InternBDB: M6x45 8.8 DIN00912 \| InternKon: 942 250 40 / 46
93	507 025 98	Nut	1	InternBDB: M6 8 DIN00985 \| InternKon: 942 250 40 / 47
95	510 730 98	Resilient sleeve	8	InternBDB: 17/30X55 / WN 34194840 \| InternKon: 953 615 40 / 3

Komatsu PC4000-6 S/N 08195 parts catalog PDF

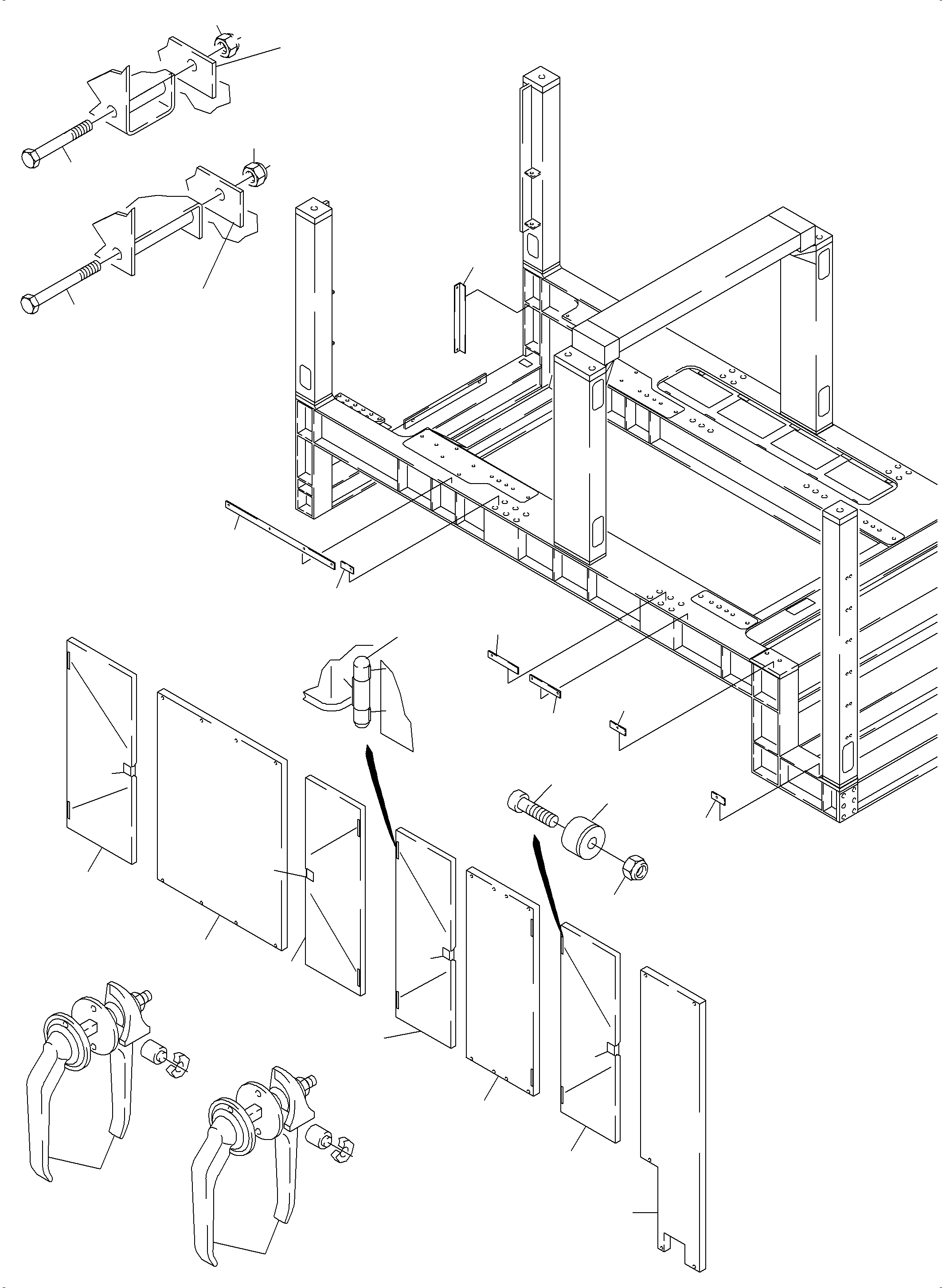

COVERING, ENGINE HOUSING (355-1030g) in PC4000-6 S/N 08195. Diagram image and parts list.
