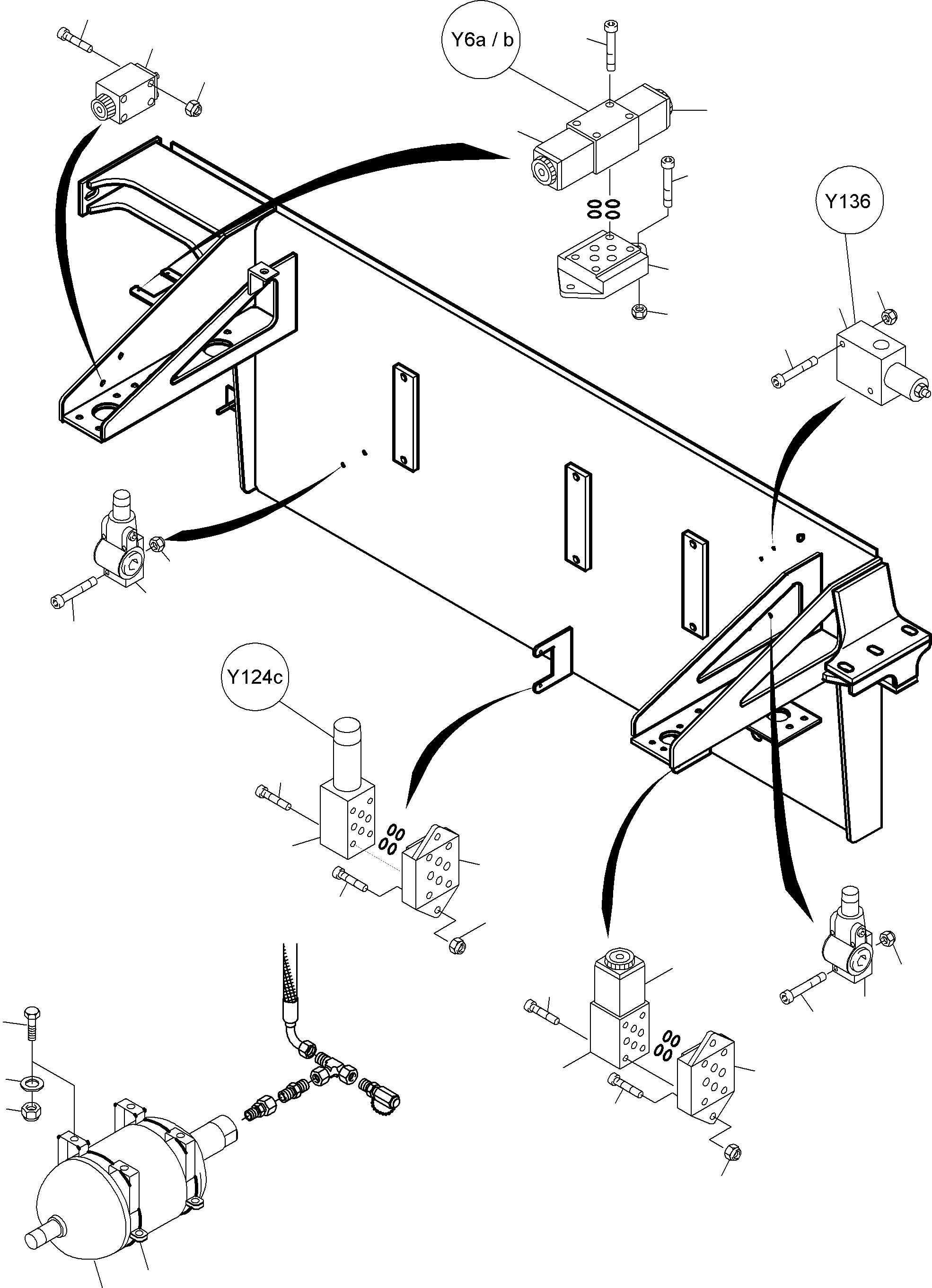

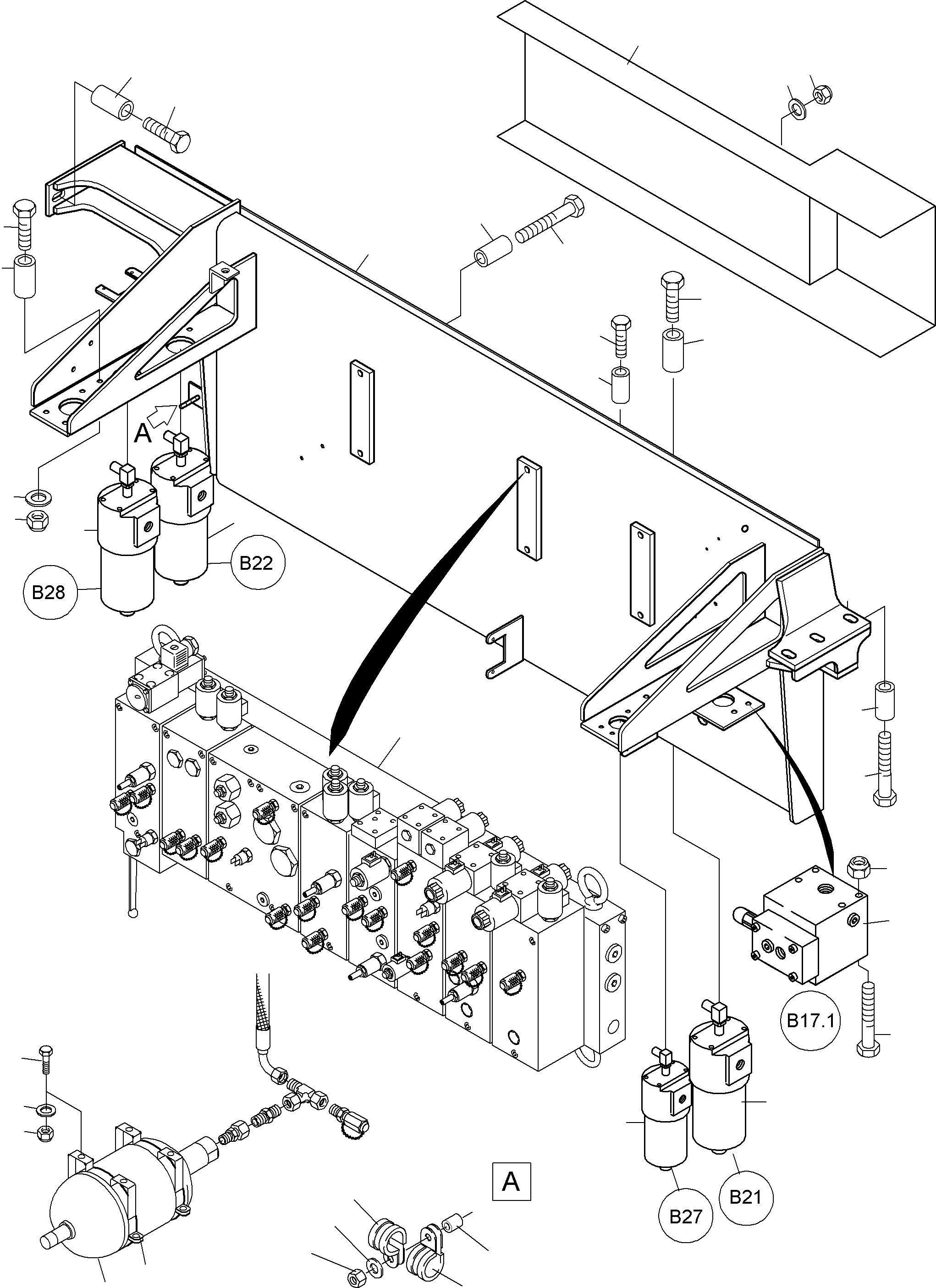

Diagram image 1 of 3

PC4000-6 S/N 08195

01 02 03 03 04 06 07 15 16 16 17 18 19 20 26 27 50 50 51 51 52 53 54 55 56 57 58 59 60 61 62 63 64 72 73 74

PC4000-6 S/N 08195

05 05 10 10 10 11 12 14 21 21 22 22 24 24 24 25 25 25 25 30 30 34 35 36 37 38 39 39 40 40 52 53 54 55 56 65

PC4000-6 S/N 08195

10 10 10 11 11 11 15 16 24 24 24 25 25 25 30 30 30 66 67 68 69 70 71

#	Part Number	Partname	Quantity	Options	Reference
01	938 205 40	Control- and filter plate	1	InternKon: 938 204 40 / 1
02		Inline filter	1	InternBDB: 940 102 40 \| InternKon: 938 204 40 / 2	991-0739
03		Pressure filter	2	InternBDB: 940 093 40 \| InternKon: 938 204 40 / 3	991-0738
04		Inline filter	1	InternBDB: 906 852 40 \| InternKon: 938 204 40 / 4	991-0424a
05	440 083 40	Pressure relief valve	2	InternBDB: DB20G2-4X/315XY \| InternKon: 938 204 40 / 5
06	918 375 40	Valve block	1	InternBDB: PC 8000-6E \| InternKon: 938 204 40 / 6
07		Cadridge block assy.	1	InternBDB: 916 760 40 \| InternKon: 938 204 40 / 7	991-0480d
10	180 325 40	Base plate	6	InternBDB: G 342/1 3/8" \| InternKon: 938 204 40 / 11
11	940 730 40	4/2 Directional spool valve	4	InternBDB: Vickers 02-411976 DG4V-3M-0A-M-KUP5D2-H7-60 \| InternKon: 938 204 40 / 12
12	940 732 40	4/3 Directional spool valve	1	InternBDB: Vickers 02-411978DG4V-3M-2C-M-KUP5D2-H7-60 \| InternKon: 938 204 40 / 13
14	461 653 40	Pressure reducing valve	1	InternBDB: DR 6 DP2-5X/75Y / R900413241 \| InternKon: 938 204 40 / 10
15	500 814 98	Bolt	16	InternBDB: M12x60 /931 8.8 \| InternKon: 938 204 40 / 16
16	510 744 98	Resilient sleeve	16	InternBDB: 13/25x32 \| InternKon: 938 204 40 / 17
17	308 578 99	Bolt	4	InternBDB: M10x55 /931 8.8 \| InternKon: 938 204 40 / 18
18	510 746 98	Resilient sleeve	4	InternBDB: 10,5/25x35 \| InternKon: 938 204 40 / 19
19	308 638 99	Bolt	6	InternBDB: M16x100 /931 8.8 \| InternKon: 938 204 40 / 14
20	510 730 98	Resilient sleeve	6	InternBDB: 17 / 30x55 WN 34194840 \| InternKon: 938 204 40 / 15
21	319 426 99	Screw	4	InternBDB: M8x70 /912 8.8 \| InternKon: 938 204 40 / 26
22	334 599 99	Nut	4	InternBDB: M 8 /985 \| InternKon: 938 204 40 / 27
24	319 133 99	Screw	12	InternBDB: M6x30 /912 8.8 \| InternKon: 938 204 40 / 28
25	507 025 98	Nut	16	InternBDB: M 6 /985 \| InternKon: 938 204 40 / 29
26	304 322 99	Bolt	4	InternBDB: M12x160 /931 10.9 \| InternKon: 938 204 40 / 24
27	334 682 99	Nut	4	InternBDB: M 12 /985 \| InternKon: 938 204 40 / 25
30	514 340 98	Screw	20	InternBDB: M5x30 /912 10.9 \| InternKon: 938 204 40 / 33
34	906 418 40	Pressure relief valve	1	InternBDB: M10 / 1198 / 974 366 \| InternKon: 938 204 40 / 8
35	356 140 40	Pressure relief valve	1	InternBDB: DBDS 6G X/200SO 74 \| InternKon: 938 204 40 / 9
36	307 740 99	Bolt	4	InternBDB: M6x60 /933 8.8 \| InternKon: 938 204 40 / 30
37	319 553 99	Screw	2	InternBDB: M5x60 /912 8.8 \| InternKon: 938 204 40 / 31
38	507 036 98	Nut	2	InternBDB: M 5 /985 8 \| InternKon: 938 204 40 / 32
39	796 626 73	Solenoid for fig-no.11 and 12	6	InternBDB: Eaton 02-365945
40	796 627 73	Seal kit	-2	InternBDB: Eaton 858995
50	517 254 98	Resilient sleeve	6	InternBDB: 19/40x52 \| InternKon: 937 520 40 / 15
51	501 594 98	Bolt	6	InternBDB: M18x90 /931 10.9 \| InternKon: 937 520 40 / 16
52		Accumulator	1	InternBDB: 239 441 40 / SB 330-10A1/112U-330A \| InternKon: 937 520 40 / 17	090-0270
53	256 132 40	Clamp	2	InternBDB: HSS 222 / 229 \| InternKon: 937 520 40 / 18
54	308 439 99	Bolt	4	InternBDB: M12x45 / 931 10.9 \| InternKon: 937 520 40 / 19
55	334 682 99	Nut	4	InternBDB: M 12 / 985 10 \| InternKon: 937 520 40 / 20
56	340 467 99	Washer	4	InternBDB: B 13,0 /125 140HV \| InternKon: 937 520 40 / 21
57	924 896 40	Cover	1	InternKon: 937 520 40 / 27
58	502 687 98	Washer	4	InternBDB: 13 / 7349 \| InternKon: 937 520 40 / 28
59	334 600 99	Nut	4	InternBDB: M 12 / 985 \| InternKon: 937 520 40 / 29
60	510 744 98	Resilient sleeve	1	InternBDB: 13/25x32 \| InternKon: 938 204 40 / 111
61	507 037 98	Nut	1	InternBDB: M10 \| InternKon: 938 204 40 / 112
62	340 465 99	Washer	1	InternBDB: B 10,5 / DIN 125 \| InternKon: 938 204 40 / 113
63	443451510	Clip	1	InternBDB: KES 04434 \| InternKon: 938 204 40 / 114
64	443 451 410	Clip	1	InternBDB: KES 04434 \| InternKon: 938 204 40 / 115
65	319 174 99	Screw	1	InternBDB: M5 x 50 / DIN 912 / 10.9 \| InternKon: 938 204 40 / 116
66	938 557 40	Plate 10x280x545	1	InternBDB: St52-3N / Montagewinkel fьr 4/2-Wegeventil und Druckreduziervent \| InternKon: 938 204 40 / 117
67	308 539 99	Bolt	2	InternBDB: M6x55 / 8.8 / DIN 931 \| InternKon: 938 204 40 / 118
68	340 463 99	Washer	2	InternBDB: B6,4 / 140HV / DIN 125 \| InternKon: 938 204 40 / 119
69	507 025 98	Nut	2	InternBDB: M6 / 8 / DIN 985 \| InternKon: 938 204 40 / 120
70	940 545 40	Pressure reduction valve	1	InternBDB: R901109740* \| InternKon: 938 204 40 / 121
71	940 546 40	Housing	1	InternBDB: R901102336 / 03.30.05.20.40.00.000 \| InternKon: 938 204 40 / 122
72	334 682 99	Nut	8	InternBDB: M12 / DIN 985 / 10 \| InternKon: 938 204 40 / 25
73	308 608 99	Bolt	4	InternBDB: M12x70 / 8.8 / DIN 931 \| InternKon: 938 204 40 / 137
74	340 467 99	Washer	4	InternBDB: B 13,0 / DIN 125 / 140HV \| InternKon: 938 204 40 / 138

Komatsu PC4000-6 S/N 08195 parts catalog PDF

CONTROL- AND FILTER PLATE (355-1840j) in PC4000-6 S/N 08195. Diagram image and parts list.
