#	Part Number	Partname	Quantity	Options	Reference
?		Operator's seat	1	InternBDB: 904 622 40 \| InternKon: 509 01 0000 / 1	991-0365a
?		Operation panel	1		355-1926e
?		Manipulator	2	InternBDB: 921 521 40 Matec 117500066 \| InternKon: 509 01 0000 / 7	991-0514
?		Manipulator	2	InternBDB: 903 401 40 \| InternKon: 946 221 40 / 7	991-0122b
?		Manipulator	3	InternBDB: 903 402 40 \| InternKon: 946 223 40 / 7	991-0121b
?	490 958 40	Socket	7	InternBDB: Gr. + Ha. GHW-NR 14019.562.699
?	490 959 40	Housing	7	InternBDB: Gr. + Ha. GHW-NR 14020.562.699
?	515 129 40	Contact	80	InternBDB: Gr. + Ha. GHW-NR 46851.213.179
?	490 960 40	Tab	80	InternBDB: Gr. + Ha. GHW-NR 26260.331.179
?	634 374 40	Cable	1	InternBDB: FSG 3522S10-90.00A
?	319 227 99	Screw	36	InternBDB: M6x20 /912 10.9
?	635 329 40	Cable 18-pol.	-2	InternKon: 942 045 40 / 9
?	769 587 73	Hose	-2	InternBDB: Matek 114 100 473 BRW Fluidtechnik 077 421 \| InternKon: 509 01 0000 / 4
?	793 738 73	Cable flange DN 48-90°	2	InternBDB: PMA BVOD - P 488 GT \| InternKon: 509 01 0000 / 5
?	517 957 98	Bolt	8	InternBDB: AM6x25/7985 4.8 \| InternKon: 509 01 0000 / 6
?	769 582 73	Control panel	2	InternBDB: Matek 111 002 572 \| InternKon: 509 01 0000 / 3
?	318 604 99	Bolt	8	InternBDB: M10x16 /912
?	343 110 99	Lock washer	8	InternBDB: A 10 /127
?	769 588 73	Safety sheeting sw	-2	InternBDB: Matek 111 011 617 Reiff 107 1280 (1445x10000x4)
?	793 735 73	Cover plate	1	InternBDB: Matek 509 004 000
?	320 471 99	Bolt	10	InternBDB: M6x12 /7991
?	769 585 73	Seal	2	InternBDB: Matek 503 000 007
?	318 914 99	Screw	16	InternBDB: M8x16 /912
?	769 586 73	Face	1	InternBDB: Matek-Nr. 503 003 000
?	907 748 40	Fire extinguisher	1	InternBDB: Minimax WS 6 F-C Schaum
?	414 500 40	Bracket	1	InternBDB: 521 695 90
?	307 779 99	Bolt	2	InternBDB: M 10x30 / 933
?	944 994 40	Harness X86a-X2	1	InternKon: 944 002 40 / 88
?	795 144 73	Socket	2	InternBDB: Deutsch HD34-24-23SE-059 0819184106 \| InternKon: 944 994 40 / 1
?	795 154 73	Cablesocket	80	InternBDB: Deutsch 0819105420 / 0462-201-16141 / KES 08191 \| InternKon: 944 994 40 / 2
?	795 122 73	Sealing plate	26	InternBDB: 114 017 KES \| InternKon: 944 994 40 / 3
?	907 975 40	Fitting DN17	13	InternBDB: PMA BVIVG-U297 \| InternKon: 944 994 40 / 4
?	655 651 40	Cable protection hose DN 17	-2	InternBDB: PMA VCST-17 B \| InternKon: 944 994 40 / 6
?	940 629 40	Warmth shrink hose	-2	InternBDB: 0,090 m / Bьrklin .05060 91F2570 \| InternKon: 944 994 40 / 5
?	500 090 98	Wire end ferrule 0,75-6	71	InternKon: 944 994 40 / 8
?	256 514 40	Plate	13	InternKon: 944 994 40 / 9
?	174 411 40	Cable strap	13	InternBDB: 200x4,8 5315/C \| InternKon: 944 994 40 / 10
?	793 736 73	Safety lever assy.	1	InternBDB: Matec 509 04 0000
?	793 737 73	Tension spring	1	InternBDB: Matec 509 0400 10 \| InternKon: 509 04 0000 / 10
?	319 140 99	Bolt	4	InternBDB: M8x20/912 \| InternKon: 509 04 0000 / 11
?	340 507 99	Washer	4	InternBDB: 8,4/125 \| InternKon: 509 04 0000 / 12
?	944 995 40	Harness X86b-X2	1	InternKon: 944 002 40 / 90
?	907 200 40	Cable 30x1	-2	InternKon: 919 455 40 / 4
?	907 201 40	Cable 20x2,5	-2	InternKon: 919 455 40 / 5
?	907 202 40	Cable 7x4	-2	InternKon: 919 455 40 / 6
?	906 651 40	Cable 95,0	-2	InternKon: 919 455 40 / 7
?	796 974 73	Arm	1	InternBDB: Matec 509 040 100 \| InternKon: 509 04 0000 / 100
?	796 975 73	Plate	1	InternBDB: Matec 509 040 200 \| InternKon: 509 04 0000 / 200
?			-2
?	944 996 40	Harness X86c-X2	1	InternKon: 944 002 40 / 92
?	944 997 40	Harness X86d-X2	1	InternKon: 944 002 40 / 94
?	944 052 40	Mounting plate	1	InternKon: 944 077 40 / 9
?	307 726 99	Bolt (BHE)	4	InternBDB: M6x10/933
?	919 543 40	Cover plate(BHE)	1
?	795 141 73	Socket	4	InternBDB: Deutsch HD34-18-14SE-059 0819124106 \| InternKon: 944 997 40 / 1
?	944 998 40	Harness X86e-X2	1	InternKon: 944 002 40 / 96
?	944 999 40	Harness X86f-X2	1	InternKon: 946 272 40 / 7
?	946 200 40	Harness X86g-X2	1	InternKon: 946 272 40 / 5
?	946 215 40	Harness X86a-E19	1	InternKon: 944 077 40 / 16
?	907 478 40	Cable union DN 17	2	InternBDB: PMA BVNV-M207 \| InternKon: 946 215 40 / 8
?	795 157 73	Pin	91	InternBDB: Deutsch 0460-202-16141 059 0819105320 \| InternKon: 946 215 40 / 2
?	795 128 73	Plug	2	InternBDB: Deutsch HD34-24-23PE-059 0819181206 \| InternKon: 946 215 40 / 21
?	946 217 40	Harness X86b-E20	1	InternKon: 944 077 40 / 17
?	946 219 40	Harness X86c-E21a	1	InternKon: 944 077 40 / 3
?	795 126 73	Plug	5	InternBDB: Deutsch HD36-18-14PE-059 000819121206 \| InternKon: 946 219 40 / 1
?	907 693 40	Fitting PG 16	5	InternBDB: PMA M20/NW17 BVIR-M207 \| InternKon: 946 219 40 / 8
?	906 491 40	Cable union	5	InternBDB: HSK-K M20X1,5 1.219.2000.50 GRAU \| InternKon: 946 219 40 / 9
?	946 221 40	Harness X86d-E21b	1	InternKon: 944 077 40 / 4
?	946 223 40	Harness X86d-E23	1	InternKon: 944 077 40 / 5
?	946 225 40	Harness X86f-E24	1	InternKon: 946 272 40 / 6
?	946 227 40	Harness X86g-E22	1	InternKon: 946 272 40 / 1
?	796 976 73	Lever	1	InternBDB: Matec 509 040 300 \| InternKon: 509 04 0000 / 300
?	796 977 73	Taster	1	InternBDB: Matec 509 040 500 \| InternKon: 509 04 0000 / 500
?	796 978 73	Hood	1	InternBDB: Matec 509 040 400 \| InternKon: 509 04 0000 / 400
?	0819150809	Panel lock washer	-2	InternBDB: Deutsch 112264 \| InternKon: 944 994 40 / 11
?	0819150808	Panel nut	-2	InternBDB: Deutsch 112263-90 \| InternKon: 944 994 40 / 12
?	941328 40	Seal ring	-2	InternBDB: 44x51x \| InternKon: 944 994 40 / 13
?	941 329 40	Seal ring	-2	InternBDB: 39x44x2

Komatsu PC4000-6 S/N 08195 parts catalog PDF

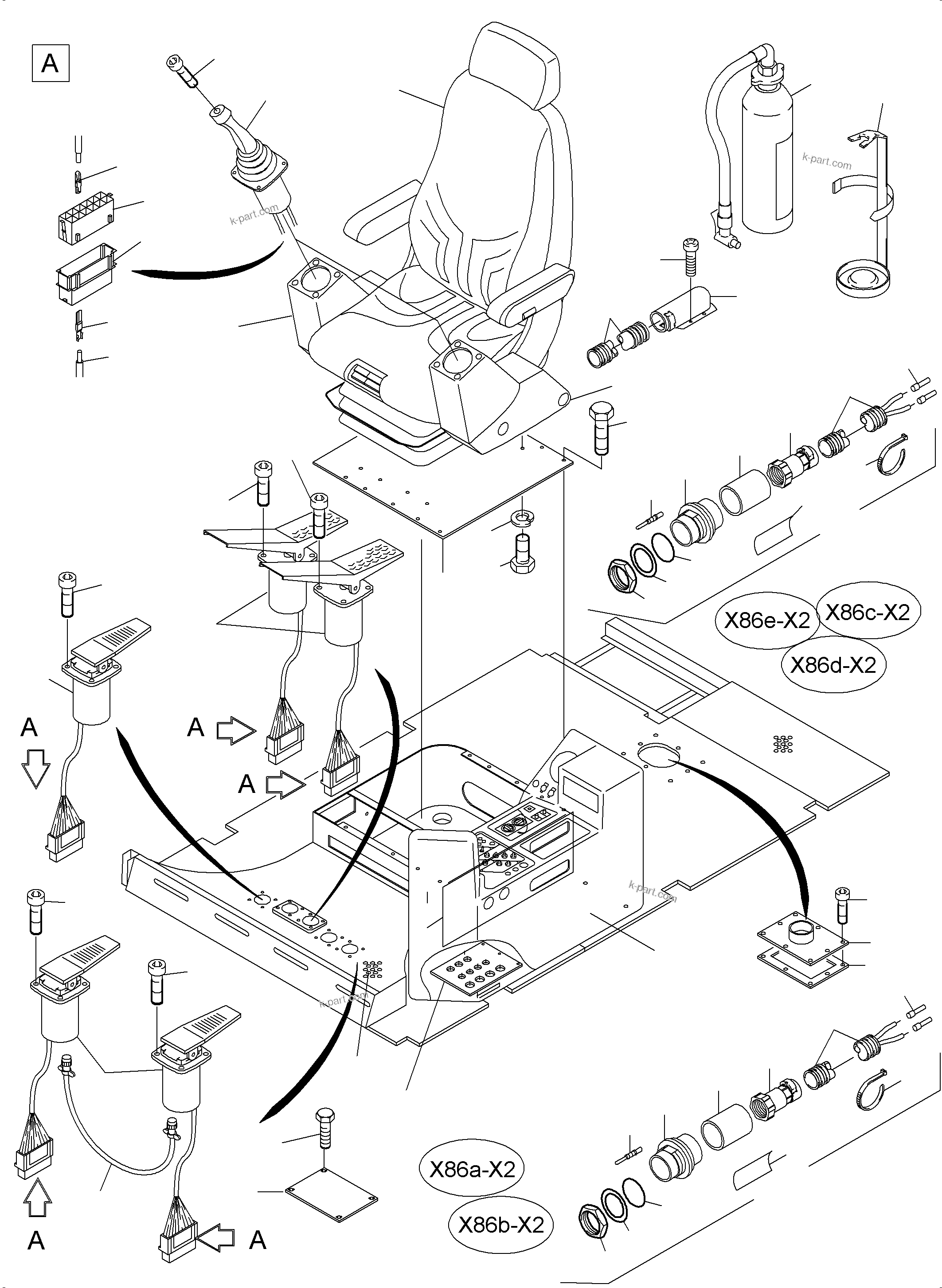

OPERATOR'S STAND (355-1921e) in PC4000-6 S/N 08195. Diagram image and parts list.
