#	Part Number	Partname	Quantity	Options
?	933 233 40	Rail	1	InternKon: 933 232 40 / 8
?	933 234 40	Rail	1	InternKon: 933 232 40 / 9
?	914 511 40	Rail	1	InternKon: 933 232 40 / 15
?	914 508 40	Rail	1	InternKon: 933 232 40 / 16
?	914 505 40	Rail	1	InternKon: 933 232 40 / 17
?	923 128 40	Rail	1	InternKon: 933 232 40 / 18
?	915 199 40	Rail	1	InternKon: 933 232 40 / 19
?	915 197 40	Rail	1	InternKon: 933 232 40 / 20
?	922 642 40	Rail	1	InternKon: 933 232 40 / 29
?	915 176 40	Rail	1	InternKon: 933 232 40 / 30
?	674 996 40	Rail	1	InternKon: 933 242 40 / 4
?	915 184 40	Rail	1	InternKon: 933 242 40 / 25
?	308 605 99	Bolt	-2	InternBDB: M12x55 /931 \| InternKon: 921 811 40 / 6
?	510 744 98	Resilient sleeve	-2	InternKon: 921 811 40 / 7
?	307 802 99	Bolt	2	InternBDB: M12x25/ 933 \| InternKon: 933 232 40 / 39
?	343 054 99	Disc	2	InternBDB: 13 / 463 \| InternKon: 933 232 40 / 40
?	937 833 40	Rail	1	InternKon: 933 232 40 / 55
?	921 023 40	Rail	1	InternKon: 922 650 40 / 11
?	912 169 40	Rail	1	InternKon: 922 650 40 / 12
?	921 020 40	Rail	1	InternKon: 922 650 40 / 13
?	912 202 40	Console	1	InternKon: 933 232 40 / 2
?	906 503 40	Grating 2x40x300x1710	1	InternKon: 933 232 40 / 5
?	906 502 40	Grating 2x40x240x1710	1	InternKon: 933 232 40 / 6
?	323 454 40	Grating 2x40x180x390	1	InternKon: 933 232 40 / 7
?	914 530 40	Console l.h.	1	InternKon: 933 232 40 / 13
?	901 913 40	Grating	1	InternKon: 919 498 40 / 11
?	901 914 40	Grating	1	InternKon: 919 498 40 / 12
?	906 021 40	Grating	2	InternKon: 919 498 40 / 17
?	901 926 40	Grating	1	InternKon: 919 498 40 / 13
?	901 927 40	Gitterrost	1	InternKon: 919 498 40 / 14
?	914 519 40	Console r.h.	1	InternKon: 933 232 40 / 14
?	461 755 40	Grating 2x40x300x450	1	InternKon: 933 232 40 / 25
?	906 866 40	Grating	1	InternKon: 933 232 40 / 26
?	324 519 40	Grating 2x40x480x480	2	InternKon: 933 232 40 / 27
?	915 188 40	Grating	1	InternKon: 933 232 40 / 23
?	915 187 40	Grating	1	InternKon: 933 232 40 / 24
?	933 236 40	Grating	1	InternKon: 933 232 40 / 51
?	934 260 40	Frame	1	InternKon: 933 242 40 / 1
?	626 624 40	Frame	1	InternKon: 933 242 40 / 2
?	936 818 40	Frame with ladder	1	InternKon: 933 242 40 / 3
?	934 259 40	Console	1	InternKon: 933 242 40 / 5
?	626 646 40	Console	1	InternKon: 933 242 40 / 6
?	934 258 40	Console	1	InternKon: 933 242 40 / 7
?	934 255 40	Grid	1	InternKon: 933 242 40 / 9
?	414 172 40	Grid 40x360x540	2	InternKon: 933 242 40 / 10
?	270 185 40	Grid 40x480x870	1	InternKon: 933 242 40 / 27
?	317 301 40	Grid 40x480x540	4	InternKon: 933 242 40 / 12
?	936 815 40	Grid 40x415x485	3	InternKon: 933 242 40 / 31
?	317 319 40	Threaded block	28	InternKon: 933 242 40 / 14
?	317 318 40	Wing nut, plastic	28	InternKon: 933 242 40 / 15
?	502 354 98	Bolt	28	InternBDB: M8x40 /963 \| InternKon: 933 242 40 / 16
?	308 639 99	Bolt	12	InternBDB: M16x110 /931 \| InternKon: 933 242 40 / 17
?	510 733 98	Resilient sleeve	12	InternBDB: 17/30x50 \| InternKon: 933 242 40 / 18
?	308 605 99	Bolt	4	InternBDB: M12x55 /931 \| InternKon: 933 242 40 / 19
?	510 744 98	Resilient sleeve	13	InternBDB: 13/25x32 \| InternKon: 933 242 40 / 20
?	308 612 99	Bolt	3	InternBDB: M12x100 /931 \| InternKon: 933 242 40 / 21
?	332 334 99	Nut	9	InternBDB: M 12 /934 \| InternKon: 933 242 40 / 22
?	307 810 99	Bolt	6	InternBDB: M12x60 /933 \| InternKon: 933 242 40 / 23
?	307 805 99	Bolt	6	InternBDB: M12x35 /933 \| InternKon: 933 242 40 / 24
?	334 600 99	Nut	22	InternBDB: M 12 /985 \| InternKon: 933 242 40 / 11
?	307 804 99	Bolt	-2	InternBDB: M12x30 /933 \| InternKon: 933 242 40 / 30
?	504 011 98	Bolt	-2	InternBDB: M12x80 /933 \| InternKon: 933 242 40 / 32
?	882 769 40	Handle	-2	InternKon: 933 242 40 / 33
?	334 599 99	Nut	-2	InternBDB: M8 /985 \| InternKon: 933 242 40 / 34
?	936 881 40	Protective plate	1	InternKon: 933 242 40 / 35
?	936 882 40	Protective plate	2	InternKon: 933 242 40 / 36
?	934 249 40	Protective plate	1	InternKon: 933 242 40 / 37
?	511 321 98	Thread Pin	20	InternBDB: PM 16x35/48 \| InternKon: 933 232 40 / 10
?	340 469 99	Washer	20	InternBDB: ш17/ 140 HV \| InternKon: 933 232 40 / 11
?	334 601 99	Nut	20	InternBDB: M 16 \| InternKon: 933 232 40 / 12
?	515 390 98	Resilent Sleeve	4	InternBDB: ш31/ 55x100 \| InternKon: 933 232 40 / 3
?	304 306 99	Bolt	4	InternBDB: M30x160 / 10.9 \| InternKon: 933 232 40 / 4
?	915 163 40	Thread plate	4	InternBDB: 20x225x140 \| InternKon: 933 232 40 / 35
?	308 637 99	Bolt	16	InternBDB: M16x90 / 8.8 / 931 \| InternKon: 933 232 40 / 36
?	510 733 98	Resilent Sleeve	16	InternBDB: 17/ 30x50 \| InternKon: 933 232 40 / 37
?	237 129 40	Thread plate	1	InternBDB: 15x110x50 \| InternKon: 933 232 40 / 38
?	936 841 40	Rail cpl.	1	InternBDB: PC 5500-6 \| InternKon: 936 835 40 / 36
?	919 724 40	Rail	1	InternBDB: PC 5500-6 \| InternKon: 919 498 40 / 16
?	928 248 40	Rail	1	InternBDB: PC 5500-6 \| InternKon: 936 835 40 / 37
?	341 271 99	Trigger snap	2	InternBDB: HAK C 70 \| InternKon: 919 498 40 / 30
?	472 508 99	Chain	-2	InternBDB: 2-8x24 \| InternKon: 919 498 40 / 31
?	930 338 40	Rail pipe	1	InternKon: 928 766 40 / 2
?	930 031 40	Catch	1	InternKon: 928 766 40 / 3
?	517 697 98	Pin	1	InternBDB: B12H11X 35X 29,5 ST DIN 01444 \| InternKon: 928 766 40 / 4
?	340 605 99	Disc	1	InternBDB: 12 ST DIN 01440 \| InternKon: 928 766 40 / 5
?	342 045 99	Cotter pin	1	InternBDB: 3 X 20 ST33 DIN 00094 \| InternKon: 928 766 40 / 6
?	907 219 40	Emergency jack	1	InternBDB: KF-N5 4901.10.05 / CARLSTAHL \| InternKon: 916 740 40 / 1
?	922 588 40	Retainer	2	InternKon: 916 740 40 / 2
?	916 733 40	Retainer	2	InternBDB: 25x18 \| InternKon: 916 740 40 / 3
?	081 474 40	Rubber hood retainer	2	InternBDB: Happich 6020023 \| InternKon: 916 740 40 / 4
?	922 589 40	Retainer	2	InternKon: 916 740 40 / 5
?	308 284 99	Bolt	4	InternBDB: M5x35 /931 8.8 \| InternKon: 916 740 40 / 6
?	507 036 98	Nut	4	InternBDB: M5 / 985 \| InternKon: 916 740 40 / 7
?	340 461 99	Disc	4	InternBDB: B5,3 / 125 \| InternKon: 916 740 40 / 8
?	318 373 99	Bolt	8	InternBDB: M4x16 4,8 B2E / 963 \| InternKon: 916 740 40 / 9
?	334 649 99	Nut	4	InternBDB: M4 6 A2E / 985 \| InternKon: 916 740 40 / 10
?	921 811 40	Emergency Ladder	1	InternKon: 933 232 40 / 28
?	510 744 98	Resilent sleeve	32	InternBDB: 13 / 25x32 WN 34194840 \| InternKon: 922 650 40 / 20
?	902 410 40	Thread plate	8	InternBDB: 15x110x80 WN 34193240 \| InternKon: 922 650 40 / 21
?	902 411 40	Thread plate	4	InternBDB: 15x78x78 WN 34193240 \| InternKon: 922 650 40 / 22
?	308 605 99	Bolt	32	InternBDB: M12x55 /8.8 / 931 \| InternKon: 922 650 40 / 23
?	308 615 99	Bolt	28	InternBDB: M12x130 / 8.8 / 931 \| InternKon: 922 650 40 / 24
?	512 545 98	Washer	32	InternBDB: A 13,0 7 140HV \| InternKon: 922 650 40 / 25
?	334 600 99	Nut	32	InternBDB: M12 / 8.0 / 985 \| InternKon: 922 650 40 / 26
?	504 004 98	Clamp set	14	InternBDB: S-4-R-38 \| InternKon: 922 650 40 / 27
?	534 008 99	Cover plate	14	InternBDB: S-DP-A-4 \| InternKon: 922 650 40 / 28
?	921 026 40	Angle	1	InternBDB: 1635 \| InternKon: 922 650 40 / 9
?	921 030 40	Plate	1	InternBDB: 144x510 \| InternKon: 922 650 40 / 31
?	307 805 99	Bolt	4	InternBDB: M12x35 / 8.8 / 933 \| InternKon: 922 650 40 / 32
?	921 029 40	Angle	1	InternBDB: 2200 \| InternKon: 922 650 40 / 10
?	933 237 40	Grating	1	InternKon: 933 232 40 / 31
?	915 189 40	Grating	1	InternKon: 933 232 40 / 22
?	937 830 40	Rail	1	InternKon: 933 232 40 / 54
?	937 825 40	Rail	1	InternKon: 933 232 40 / 53
?	937 822 40	Rail	1	InternKon: 933 232 40 / 52
?	512 467 98	Nut	8	InternBDB: M12 /982 \| InternKon: 933 242 40 / 39
?	604 275 40	Grid	1	InternKon: 933 242 40 / 8
?	933 241 40	Frame	1	InternKon: 933 242 40 / 26

Komatsu PC5500-6E S/N 15060 parts catalog PDF

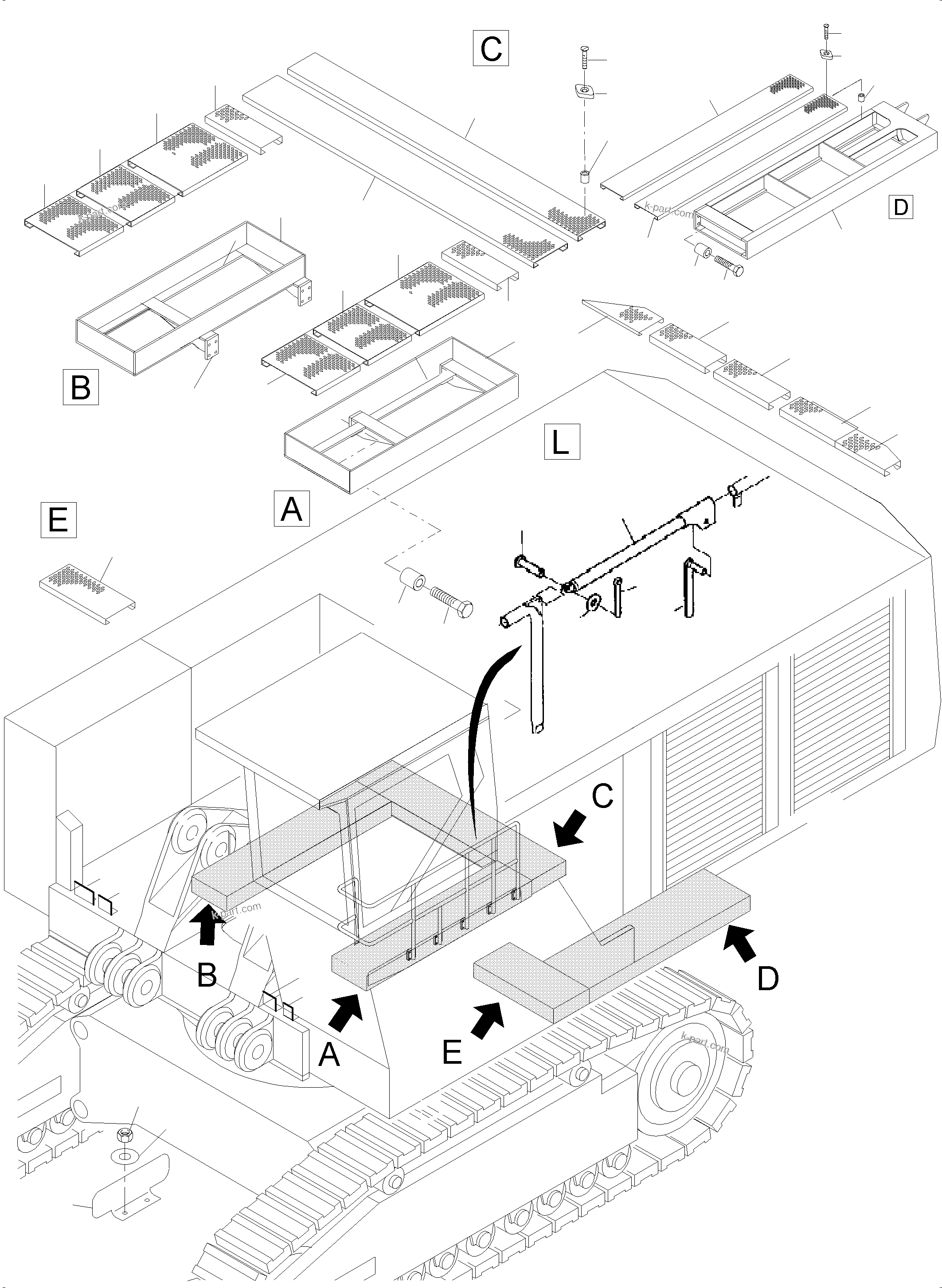

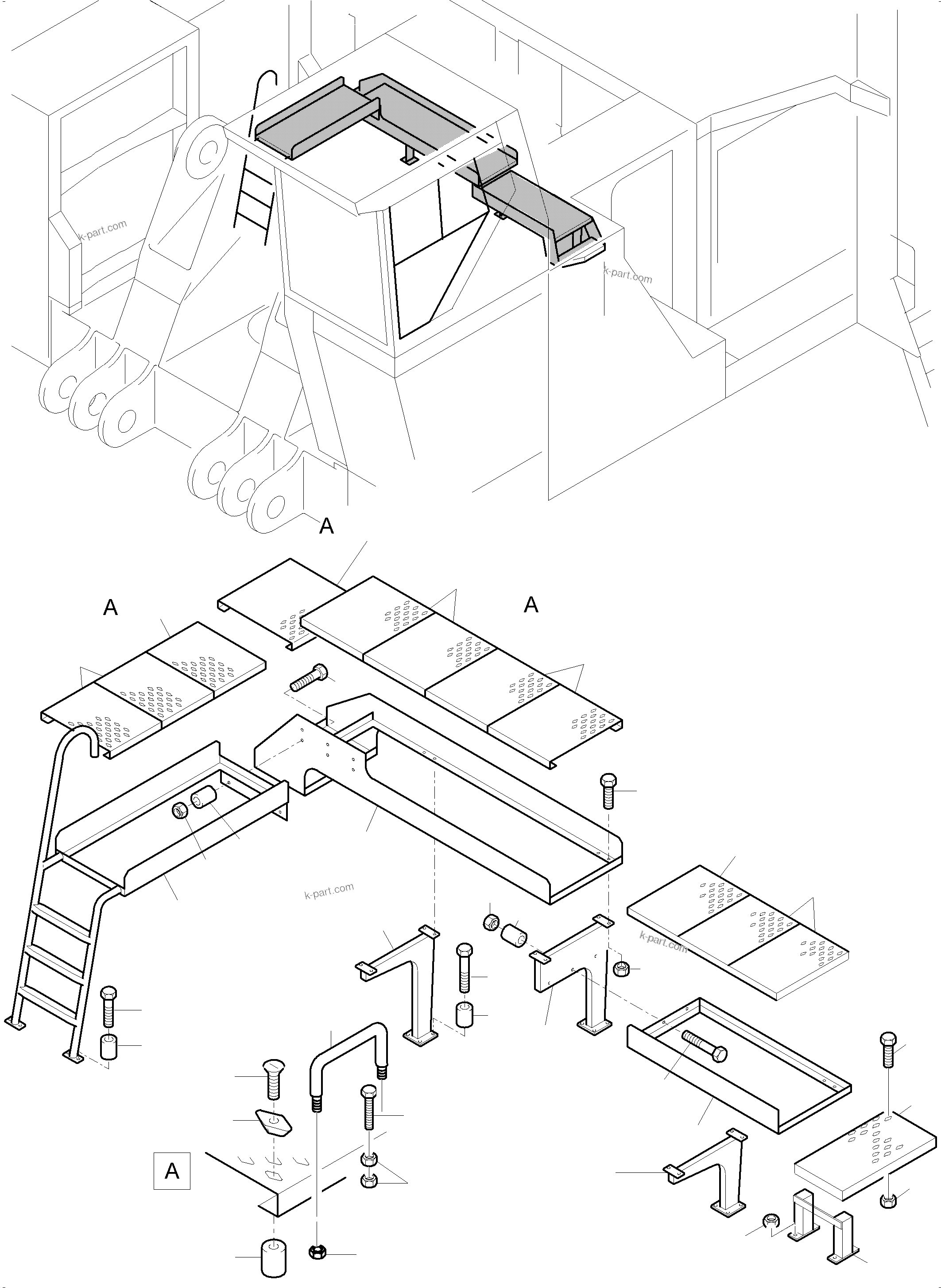

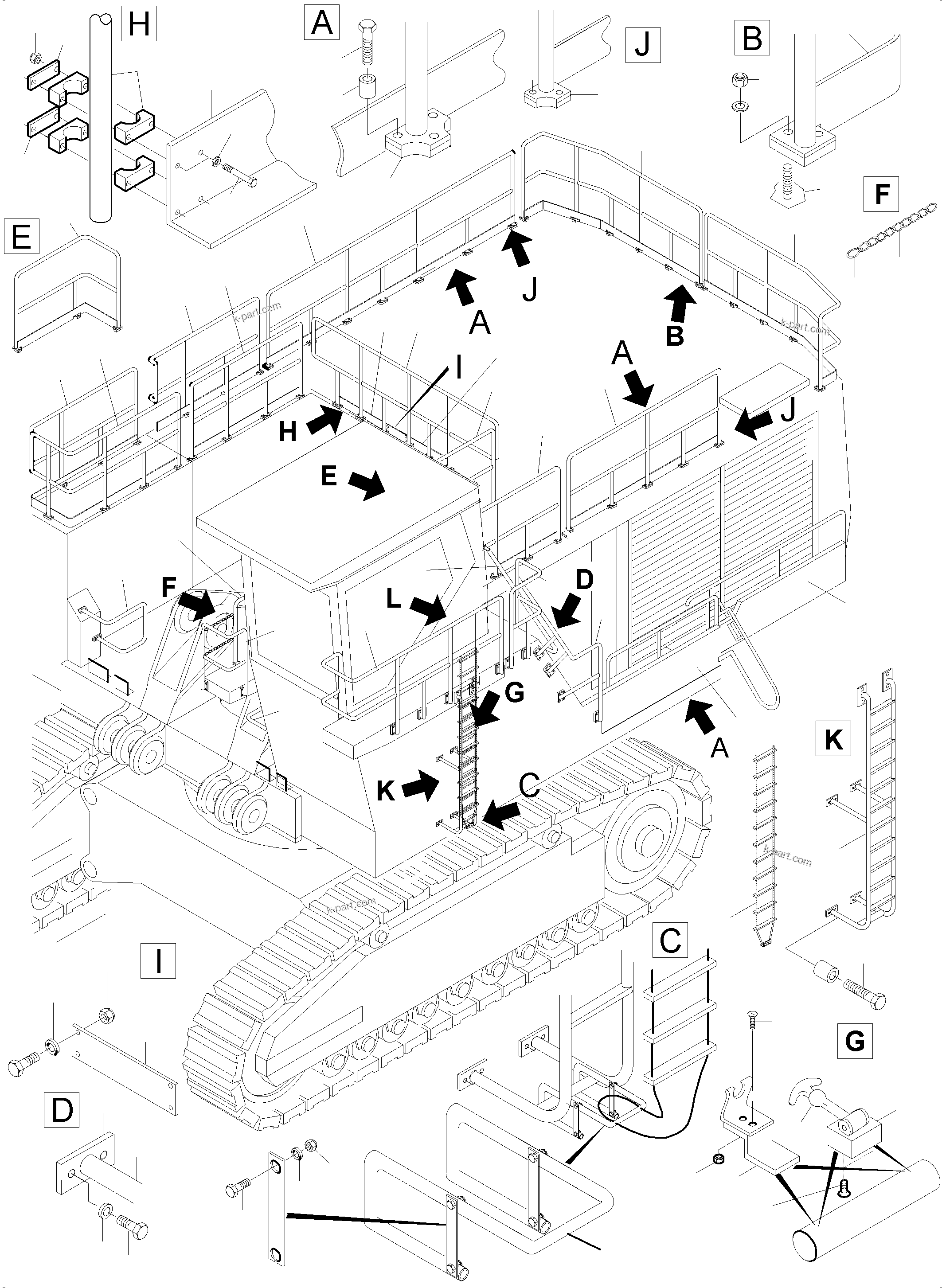

RAILS (715-1054e1) in PC5500-6E S/N 15060. Diagram image and parts list.
