PC5500-6E S/N 15060

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	923 171 40	Harness - sensor - sprocket	1	InternKon: 944 719 40 / 25
?	923 178 40	Harness - movement signal	1	InternKon: 944 719 40 / 14
?	907 476 40	Cable union NW 10	2	InternBDB: PMA BVNV-M120 \| InternKon: 923 178 40 / 1
?	655 649 40	Cable protection hose DN 10	-2	InternBDB: PMA VCST-10 B \| InternKon: 923 178 40 / 2
?	056 070 40	Cable sleeve 1,0-1,5	10	InternKon: 923 178 40 / 3
?	256 514 40	Name plate	4	InternKon: 923 178 40 / 4
?	056 292 40	Cable strap	4	InternBDB: TY 23 M \| InternKon: 923 178 40 / 5
?	515 213 40	Cable 1,0	-2	InternKon: 923 178 40 / 6
?	055 130 40	Tab 0,5-1,5	6	InternKon: 923 178 40 / 7
?	896 746 40	Alarm transmitter	1	InternBDB: Ecco 787 \| InternKon: 923 567 40 / 1
?	910 713 40	Plate	1	InternKon: 923 567 40 / 2
?	308 585 99	Screw	2	InternBDB: M10x100 /931 \| InternKon: 923 567 40 / 3
?	507 037 98	Nut	2	InternBDB: M 10 /985 \| InternKon: 923 567 40 / 4
?	057 296 40	Wiring connection	1	InternBDB: Hella 8KV 002 132-003 \| InternKon: 921 536 40 / 1
?	500 399 98	Weld on plate	1	InternBDB: S-AP-A-5 /DIN 03015 \| InternKon: 921 536 40 / 5
?	906 951 40	Switch	2	InternBDB: Ballauf BES 516-327-AO-C-PU-05 \| InternKon: 921 536 40 / 6
?	055 130 40	Tab	6	InternBDB: 0,5-1,5 35040-000-000 ROT \| InternKon: 921 536 40 / 7
?	534 009 99	Weld on plate	1	InternBDB: S-AP-A-4 /DIN 03015 \| InternKon: 921 536 40 / 8
?	509 064 98	Clamp set	1	InternBDB: S-5-E /DIN 03015 \| InternKon: 921 536 40 / 9
?	500 398 98	Cover plate	1	InternBDB: S-DP-A-5 /DIN 03015 \| InternKon: 921 536 40 / 10
?	308 641 99	Bolt	2	InternBDB: M16X130 /DIN 00931 \| InternKon: 921 536 40 / 11
?	343 008 99	Washer	2	InternBDB: 17 /DIN 00093 \| InternKon: 921 536 40 / 12
?	505 212 98	Grommet	1	InternBDB: S-5-68 /DIN 03015 \| InternKon: 921 536 40 / 13
?	502 371 98	Clamp set	1	InternBDB: S-4-E /DIN 03015 \| InternKon: 921 536 40 / 14
?	534 008 99	Cover plate	1	InternBDB: S-DP-A-4 /DIN 03015 \| InternKon: 921 536 40 / 15
?	308 612 99	Bolt	2	InternBDB: M12X100 /DIN 00931 \| InternKon: 921 536 40 / 16
?	343 006 99	Washer	2	InternBDB: 13 /DIN 00093 \| InternKon: 921 536 40 / 17
?	512 053 98	Grommet	1	InternBDB: S-4-48 /DIN 03015 \| InternKon: 921 536 40 / 18
?	006 301 98	Clamp 12/15	11	InternBDB: RSGU 1100 12/15 \| InternKon: 910 019 40 / 1
?	510 210 98	Thread pin	11	InternBDB: PM 6x20 /32500 \| InternKon: 910 019 40 / 2
?	507 025 98	Nut	11	InternBDB: M 6 /985 \| InternKon: 910 019 40 / 3
?	006 306 98	Clamp 30/25	8	InternBDB: RSGU 1100 30/25 \| InternKon: 910 021 40 / 1
?	509 875 98	Thread pin	8	InternBDB: PM 8x25 /32500 \| InternKon: 910 021 40 / 2
?	334 599 99	Nut	8	InternBDB: M 8 /985 \| InternKon: 910 021 40 / 3
?	944 849 40	Retainer	1	InternKon: 944 850 40 / 1
?	944 853 40	Bracket	2	InternKon: 944 850 40 / 2
?	307 802 99	Bolt	2	InternBDB: 6KTSHR M12 X 25 8.8 DIN 00933 \| InternKon: 944 850 40 / 3
?	307 775 99	Bolt	4	InternBDB: 6KTSHR M10 X 20 8.8 DIN 00933 \| InternKon: 944 850 40 / 4
?	319 127 99	Screw	4	InternBDB: ZYLSHR M 5 X 50 8.8 DIN 00912 \| InternKon: 944 850 40 / 5
?	507 036 98	Nut	4	InternBDB: 6KTMU M 5 8 DIN 00985 \| InternKon: 944 850 40 / 6
?	517 118 98	Lock washer	2	InternBDB: SG-SHB 12 STZN WN 65593840 \| InternKon: 944 850 40 / 7
?	517 122 98	Lock washer	4	InternBDB: SG-SHB 10 STZN WN 65593840 \| InternKon: 944 850 40 / 8
?	654 052 40	Switch	1	InternBDB: IC5005 ICE 3040-FPKG \| InternKon: 944 992 40 / 1
?	795 461 73	Plug assy. Female	1	InternBDB: KES 0819213820 \| InternKon: 944 992 40 / 2
?	944 991 40	Cable harness rotation angle warning	1	InternKon: 944 719 40 / 71
?	940 462 40	Insulating tube	-2	InternBDB: B6x0,6 Pur 70Shore Sievert \| InternKon: 944 991 40 / 3
?	907 692 40	Fitting M16/NW12	1	InternBDB: BVIR-M162 \| InternKon: 944 991 40 / 4
?	907 704 40	Cable union	1	InternBDB: Pflitsch 21650 YNPM 3x3,5 \| InternKon: 944 991 40 / 5
?	795 134 73	Plug assy. Male	1	InternBDB: KES 0819213920 \| InternKon: 944 991 40 / 8

Komatsu PC5500-6E S/N 15060 parts catalog PDF

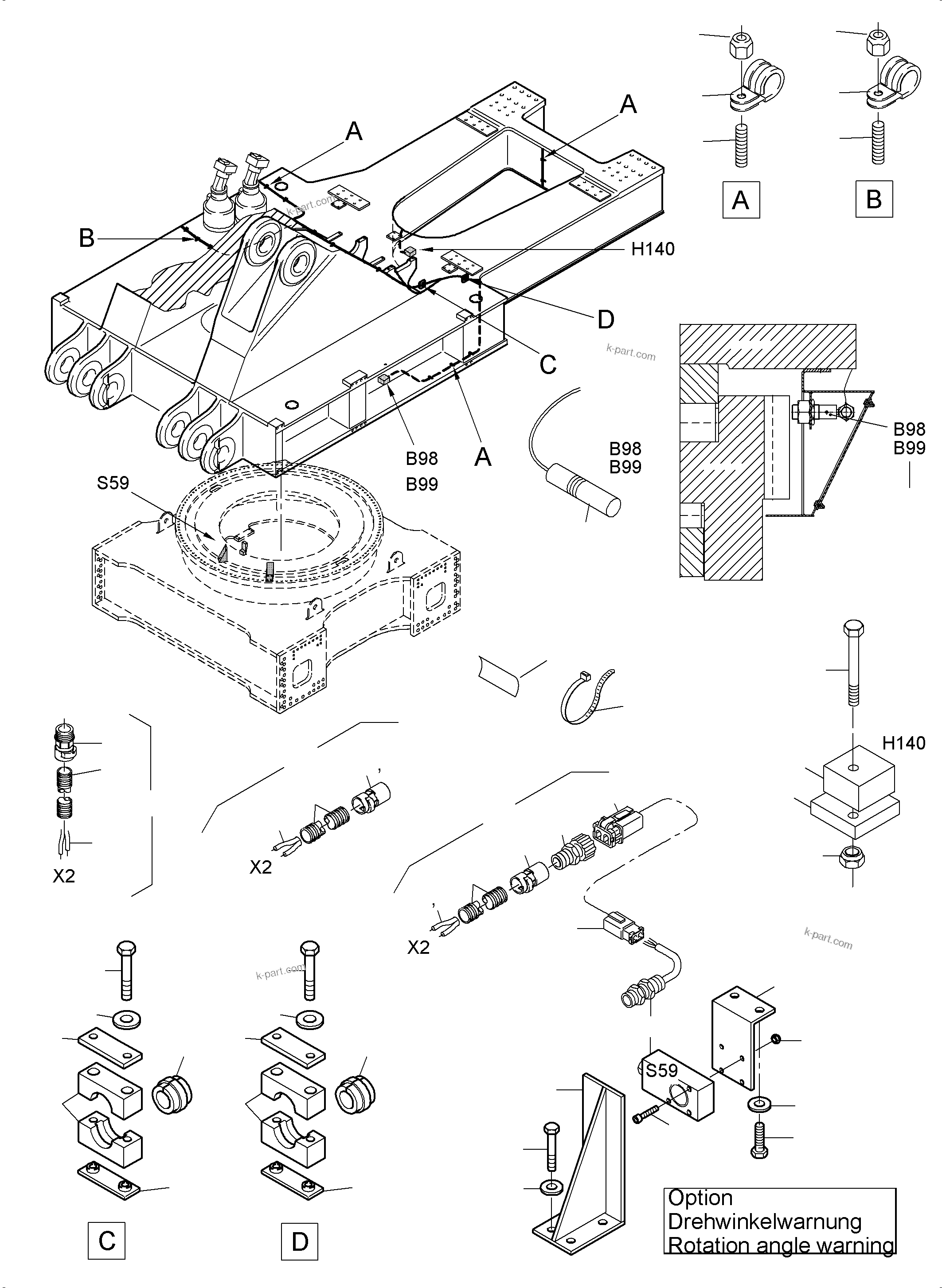

ELECT. PARTS - MOVEM. SIGNAL AND SPROCKET SENSOR (715-2152b) in PC5500-6E S/N 15060. Diagram image and parts list.
