PC5500-6E S/N 15060

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	923 140 40	Plate	1	InternKon: 923 138 40 / 1
?	308 635 99	Bolt	2	InternBDB: M16x75 /931 \| InternKon: 923 138 40 / 3
?	510 733 98	Resilient sleeve 17/30x50	2	InternKon: 923 138 40 / 4
?	341 711 40	Filler neck	1	InternBDB: Wiggins 6000 B 12 \| InternKon: 923 138 40 / 5
?	360 856 40	Cap	1	InternBDB: Wiggins 6009-12 \| InternKon: 923 138 40 / 6
?	341 710 40	Filler neck	1	InternBDB: Wiggins OSP 2 \| InternKon: 923 138 40 / 7
?	270 861 40	Filler neck	1	InternBDB: Wiggins 6005 A 12 \| InternKon: 923 138 40 / 8
?	270 862 40	Cap	1	InternBDB: Wiggins 6008-12 \| InternKon: 923 138 40 / 9
?	323 906 40	Filler neck	1	InternBDB: EC 285 A8 \| InternKon: 923 138 40 / 10
?	324 438 40	Cap	1	InternBDB: 1208-8 \| InternKon: 923 138 40 / 11
?	515 877 98	Graphical symbol (hydraulic oil)	1	InternKon: 923 138 40 / 12
?	515 878 98	Graphical symbol (central lubrication)	1	InternKon: 923 138 40 / 13
?	515 879 98	Graphical symbol (pinion lubrication)	1	InternKon: 923 138 40 / 14
?	515 880 98	Graphical symbol (cabin water)	1	InternKon: 923 138 40 / 15
?	513 485 98	Hose, DN 20x3850	2	InternBDB: DOL 22 /DOL 22-90 \| InternKon: 923 138 40 / 16
?	514 794 98	Hose, DN 20x10650	1	InternBDB: DOL 22 /DOL 22-90 \| InternKon: 923 138 40 / 17
?	513 455 98	Hose, DN 20x8800	1	InternBDB: DOL 22 /DOL 22-90 \| InternKon: 923 138 40 / 18
?	512 951 98	Hose, DN 20x6800	1	InternBDB: DOL 22 /DOL 22 \| InternKon: 923 138 40 / 19
?	374 409 99	Socket	5	InternBDB: L 22 E-M /3901 \| InternKon: 923 138 40 / 20
?	516 160 98	Socket	8	InternBDB: L 22 / \| InternKon: 923 138 40 / 21
?	516 281 98	Socket	2	InternBDB: L 22 /3944 \| InternKon: 923 138 40 / 22
?	515 882 98	Union	2	InternBDB: GV 22-LR \| InternKon: 923 138 40 / 23
?	374 438 99	Union	1	InternBDB: SDS-L22xG 3/4 A \| InternKon: 923 138 40 / 24
?	305 992 99	Ball cock	1	InternBDB: G 3/4 WN 341 960 40 \| InternKon: 923 138 40 / 25
?	654 458 40	Valve	2	InternBDB: RHD 22-PL /OMD 0,2 bar \| InternKon: 923 138 40 / 26
?	903 208 40	Pipe Ш 22x2x40	1	InternKon: 923 138 40 / 27
?	906 752 40	Olive	-2	InternBDB: ES-4 L 22 \| InternKon: 923 138 40 / 28
?	371 277 99	Union nut	-2	InternBDB: M 22-L /3870 \| InternKon: 923 138 40 / 29
?	516 189 98	Socket	1	InternBDB: L 28-M /3945 \| InternKon: 923 138 40 / 30
?	634 301 40	Union	1	InternBDB: GR 28/22-L /OMD \| InternKon: 923 138 40 / 31
?	906 751 40	Union	1	InternBDB: GR 22/12-L /OMD \| InternKon: 923 138 40 / 32
?	501 584 98	Weld-on plate	-2	InternBDB: L-AP-K-4 /3015 \| InternKon: 923 138 40 / 33
?	511 857 98	Cover plate	-2	InternBDB: L-DP-4 /3015 \| InternKon: 923 138 40 / 34
?	509 059 98	Clamp set	-2	InternBDB: L-4-G-28 /3015 \| InternKon: 923 138 40 / 35
?	308 537 99	Bolt	-2	InternBDB: M6x45 /931 \| InternKon: 923 138 40 / 36
?	343 003 99	Washer	-2	InternBDB: 6,4 /93 \| InternKon: 923 138 40 / 37
?	914 965 40	Retainer	1	InternKon: 923 138 40 / 38
?	500 942 98	Clamp set	1	InternBDB: L-3-R-22 /3015 \| InternKon: 923 138 40 / 39
?	319 133 99	Screw	2	InternBDB: M6x30 /912 \| InternKon: 923 138 40 / 40
?	323 430 40	Box, aluminium	1	InternBDB: Bopla A 123 \| InternKon: 915 539 40 / 1
?	323 675 40	Indicator light, red	7	InternBDB: Lumitas 704-000.2 \| InternKon: 942 119 40 / 1
?	940 735 40	Light emitting diode, red	7	InternBDB: BA9S T10x25 24V AC/DC 384-5705 \| InternKon: 942 119 40 / 2
?	903 423 40	Graphical symbol	1	InternKon: 915 539 40 / 3
?	323 677 40	Press button adapter	1	InternBDB: Lumitas 040 122 \| InternKon: 915 539 40 / 5
?	255 328 40	Circuit element	1	InternBDB: 04.910.50 \| InternKon: 915 539 40 / 1
?	517 333 98	Plug	1	InternBDB: M20x1,5 \| InternKon: 915 539 40 / 6
?	517 332 98	Plug	1	InternBDB: M16x1,5 \| InternKon: 915 539 40 / 7
?	358 291 40	Plug	4	InternBDB: MBN 071 6201 alu eloxiert \| InternKon: 915 539 40 / 8
?	923 571 40	Harness Refueling TT	1	InternKon: 917 398 40 / 1
?	655 650 40	Cable protection hose DN 12	-2	InternBDB: PMA VCST-12B \| InternKon: 923 571 40 / 1
?	907 477 40	Cable union DN 12	2	InternBDB: PMA BVNV-M162 \| InternKon: 923 571 40 / 2
?	515 213 40	Cable 1,0	-2	InternKon: 923 571 40 / 3
?	056 070 40	Cable sleeve 1,0-1,5	2	InternKon: 923 571 40 / 4
?	056 292 40	Cable strap	4	InternBDB: TY 23 M \| InternKon: 923 571 40 / 5
?	321 014 99	Screw	4	InternBDB: 6x16 /84

Komatsu PC5500-6E S/N 15060 parts catalog PDF

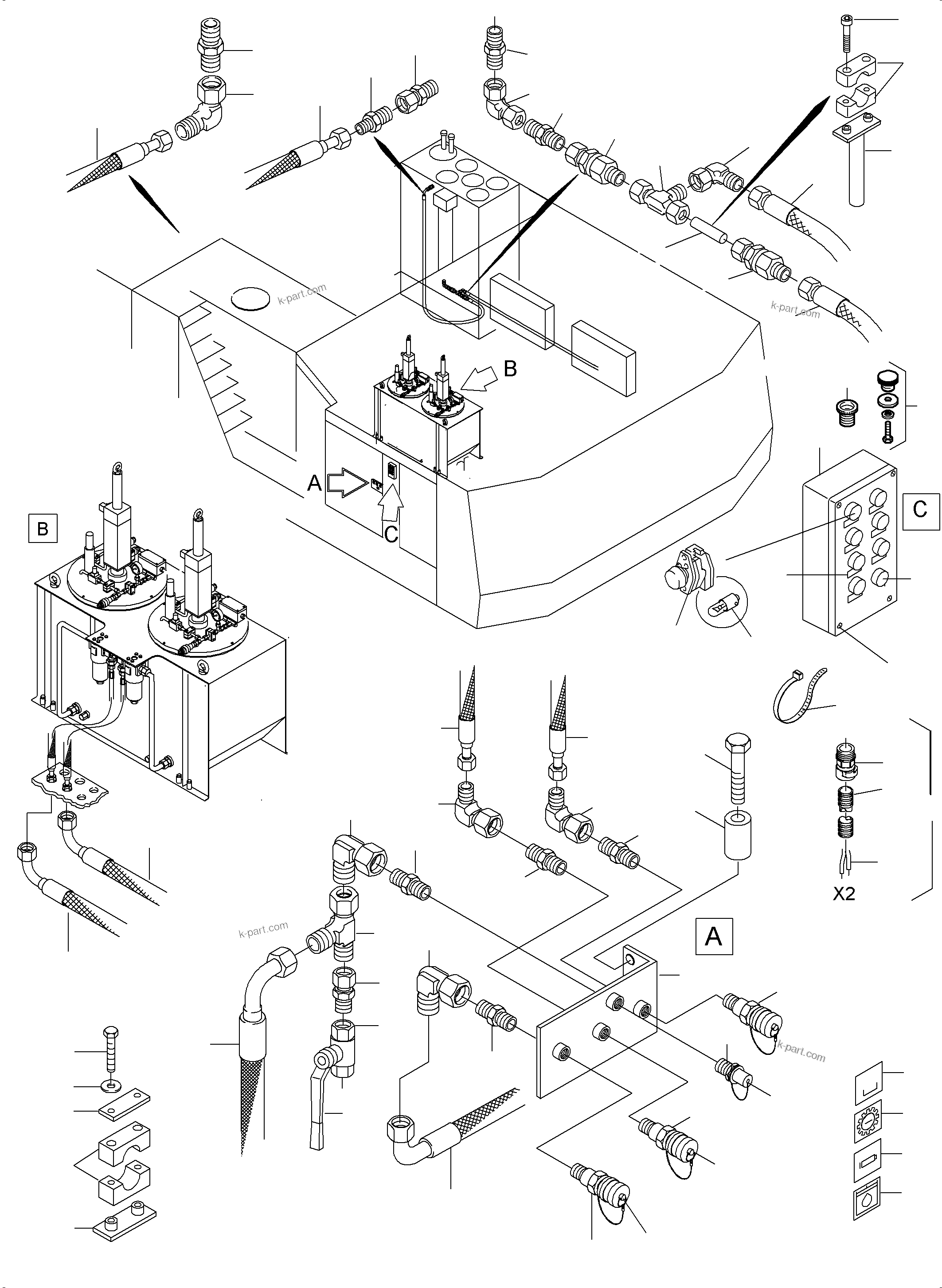

REFUELING EQUIPMENT (715-2306a) in PC5500-6E S/N 15060. Diagram image and parts list.
