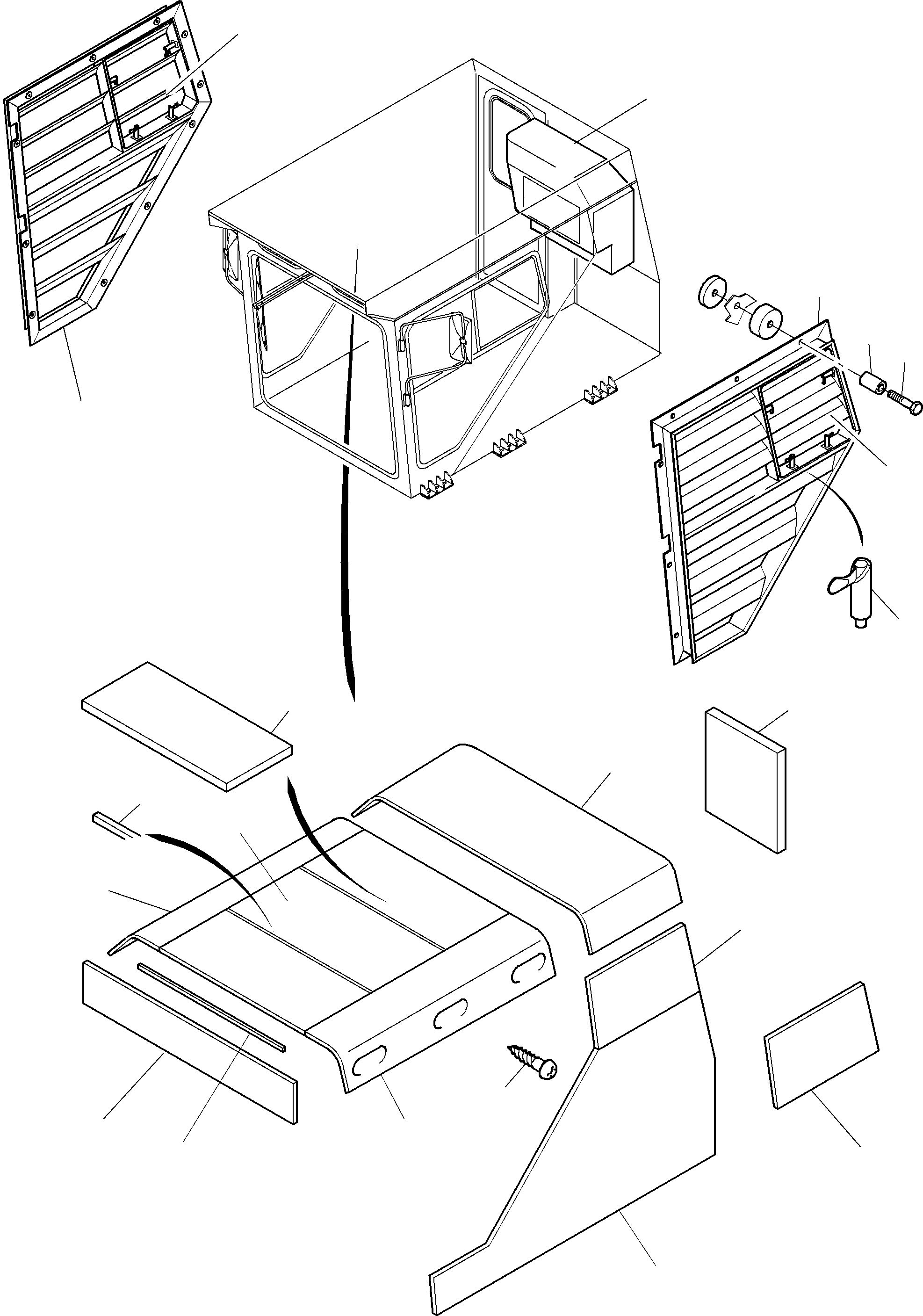

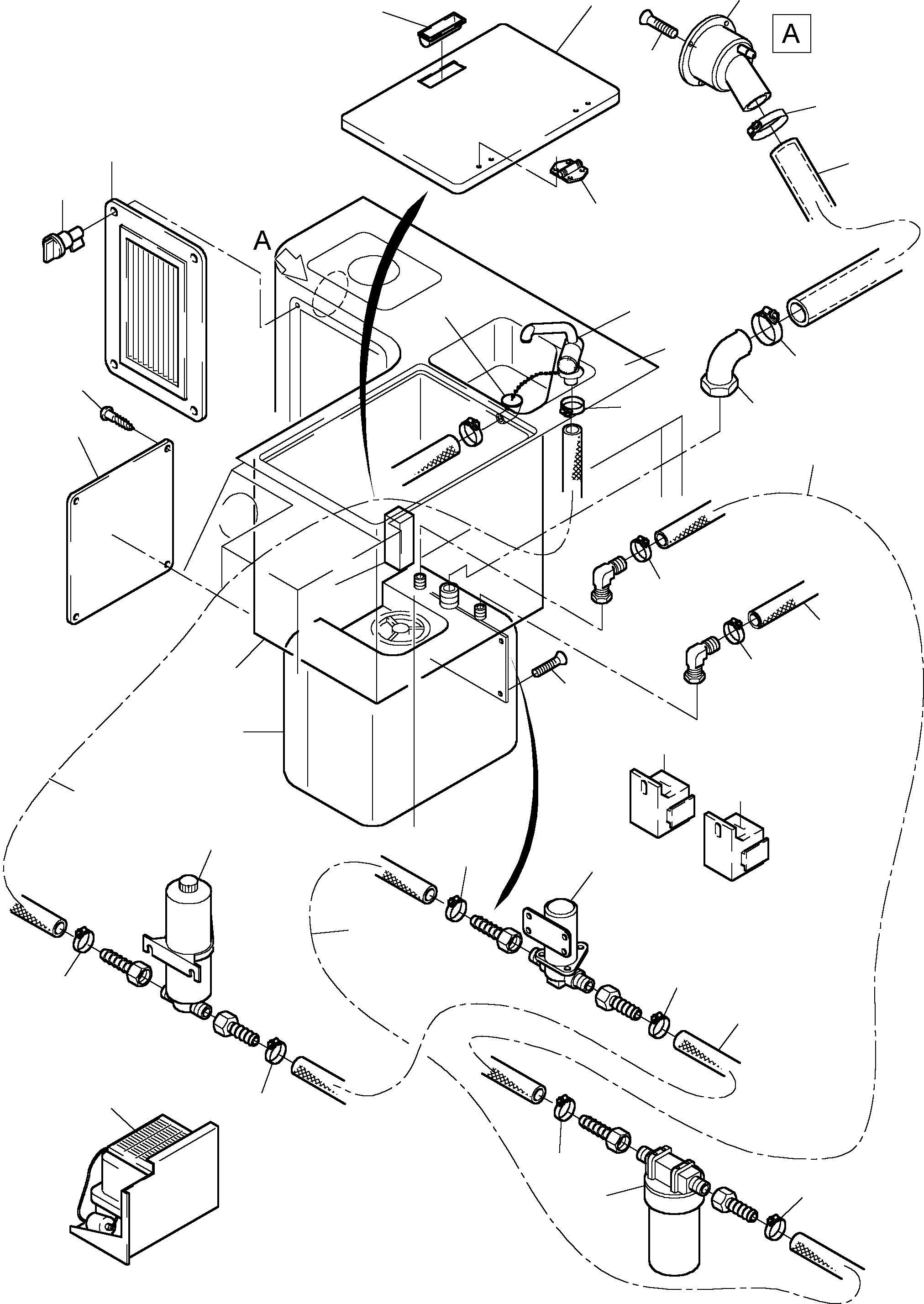

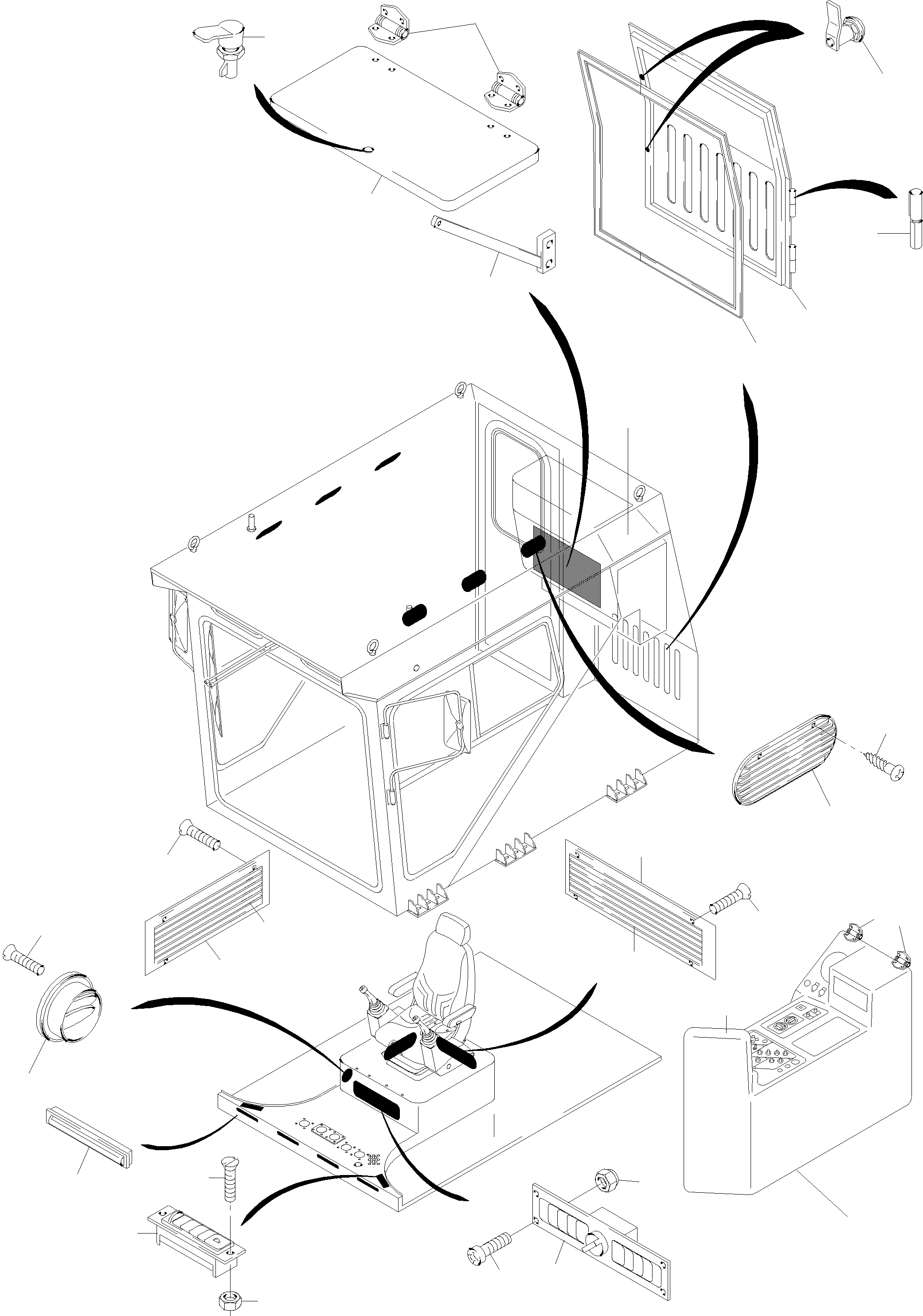

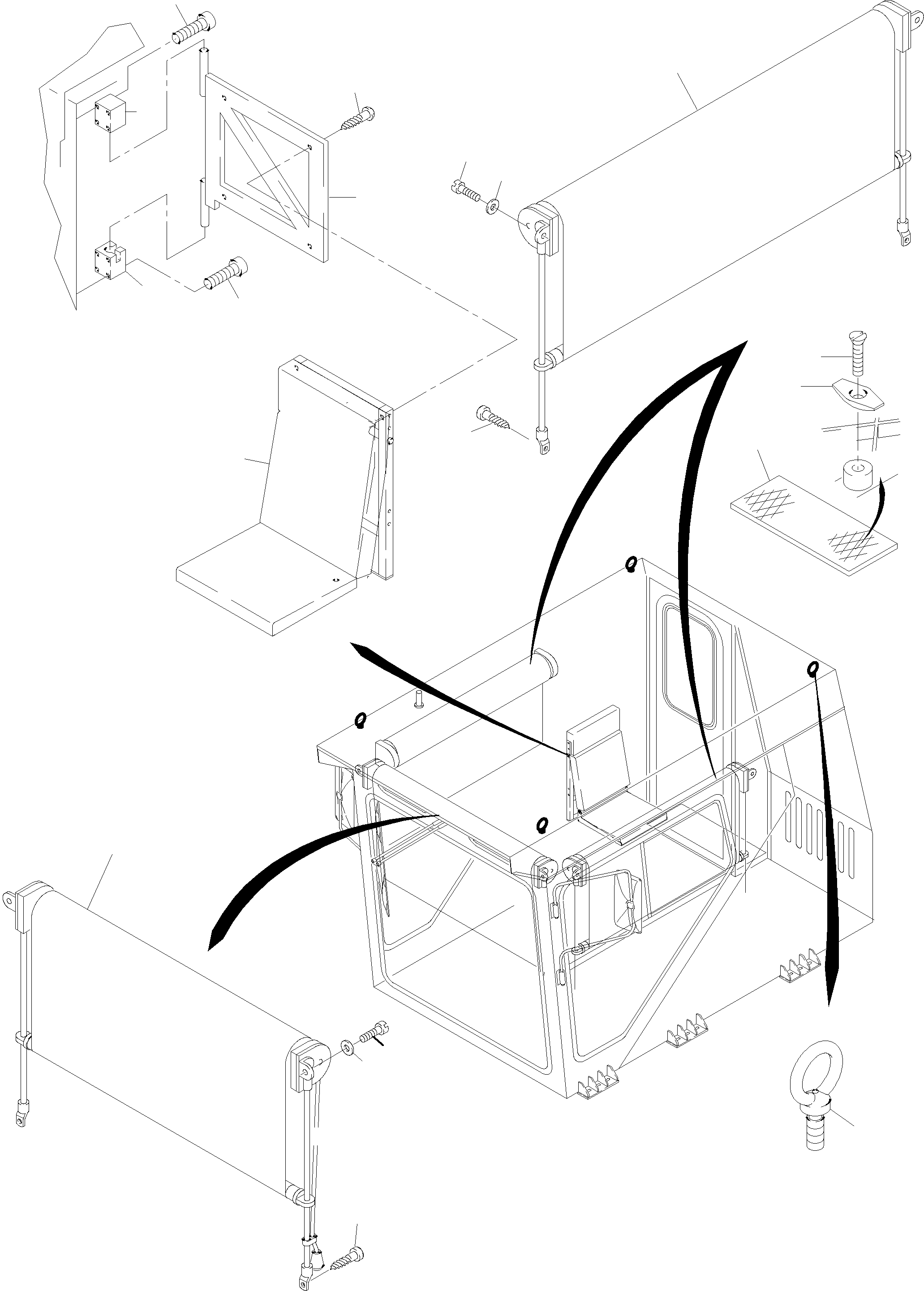

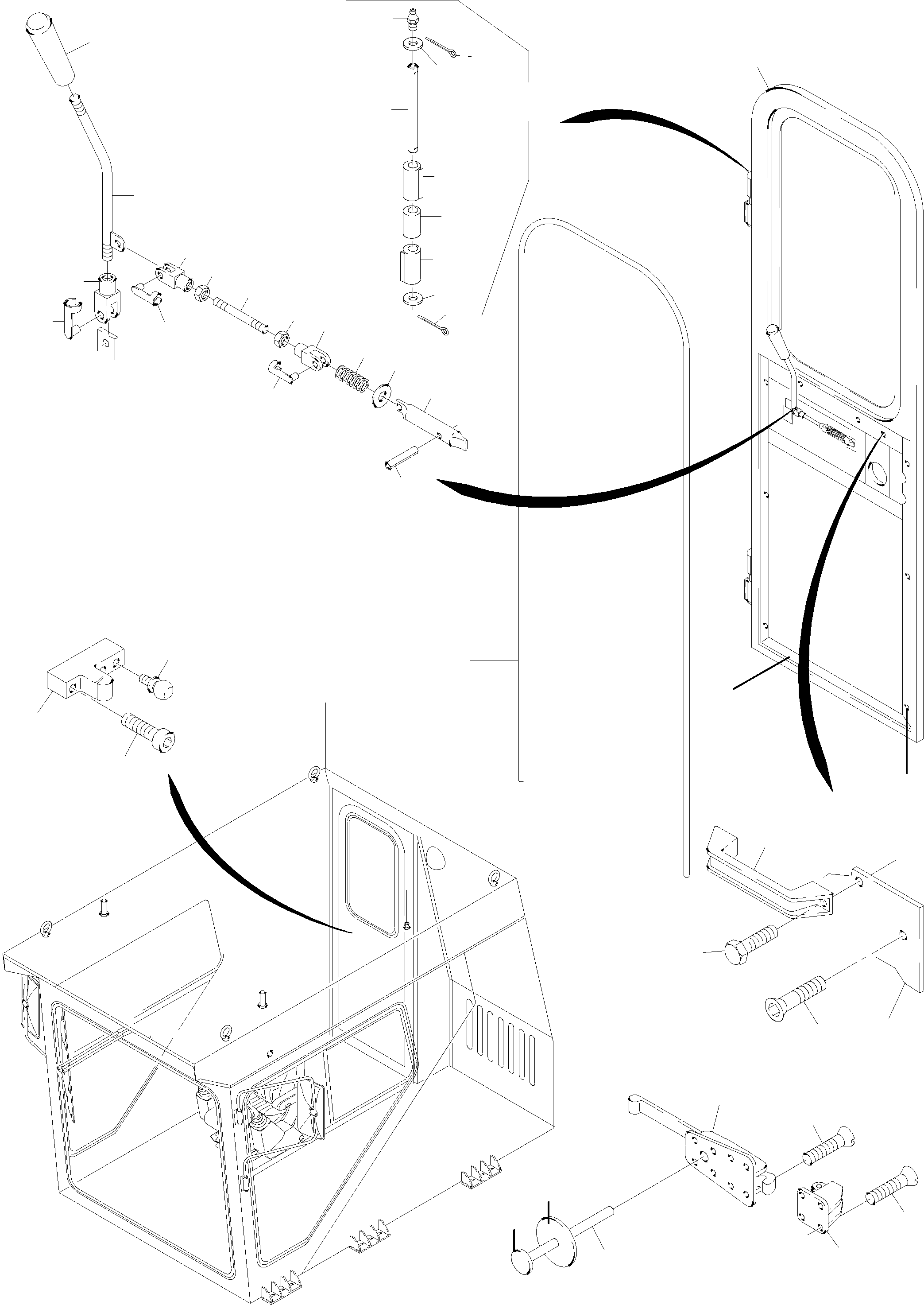

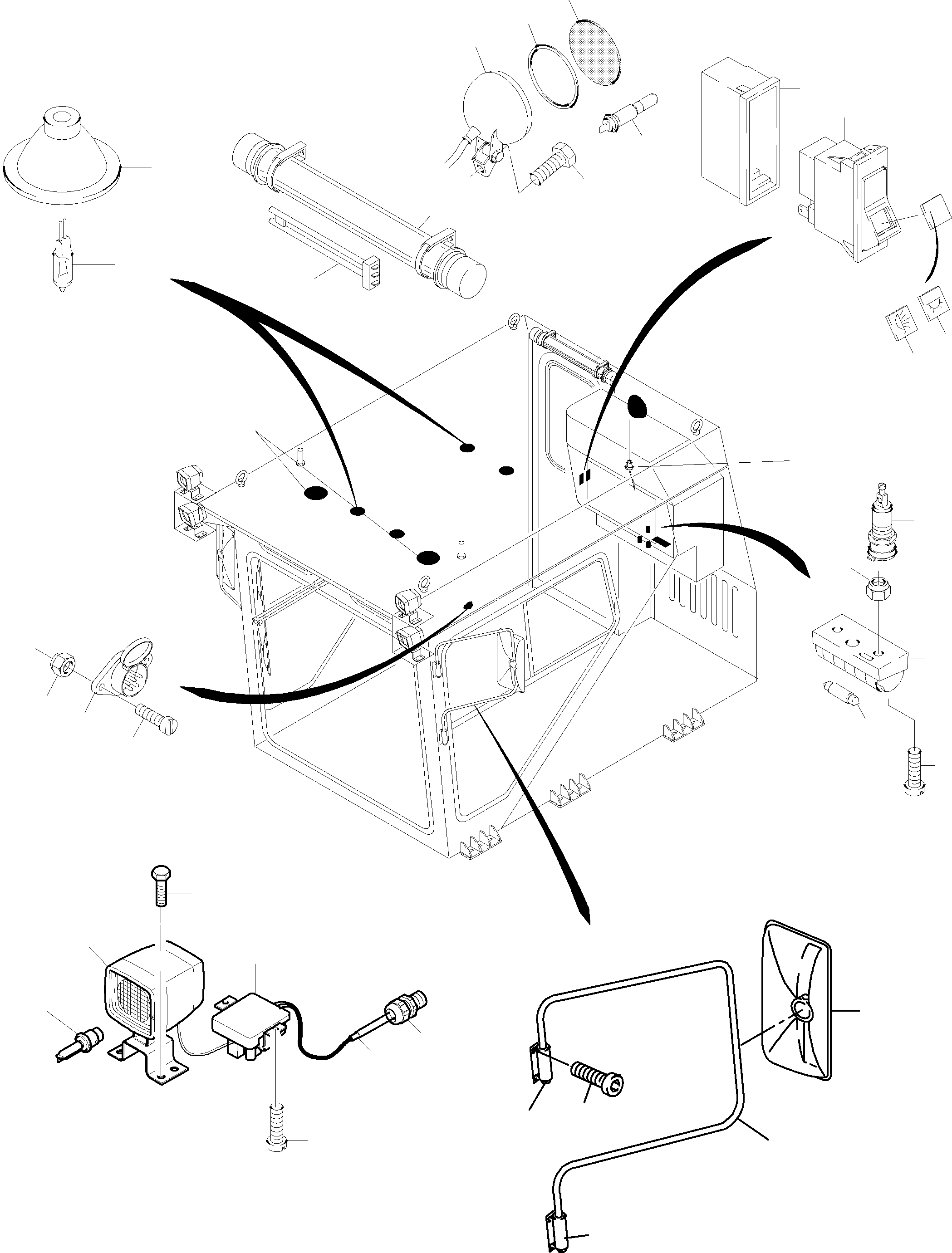

Diagram image 1 of 6

PC5500-6E S/N 15060

01 02 03 04 05 06 07 08 09 10 11 11 12 12 121 122 123 13 14 15 15 16 17 18 19 20 21 22 23 24 25 29 30 31 32 77 78 79 79 80 81 81 82 82 87

PC5500-6E S/N 15060

11 157 158 175 176 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 54 55 56 57 58 59 60 61 62 68 69

PC5500-6E S/N 15060

11 124 126 126 127 127 128 128 63 64 65 66 66 67 72 73 74 75 76 83

PC5500-6E S/N 15060

100 101 101 102 103 104 105 106 106 107 116 117 125 142 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99

PC5500-6E S/N 15060

108 109 110 111 112 113 114 115 118 120 129 130 130 130 130 130 130 130 130 131 132 133 134 135 136 137 138 138 138 138 139 140 141 167 168 169 170 170 171 172 173

PC5500-6E S/N 15060

142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 160 161 162 163 164 165 166

#	Part Number	Partname	Quantity	Options
01	942 046 40	Operator's cab assy.	1	InternBDB: Fa. Matec 509 000 000 /TL
02	796 431 73	Door assy.	1	InternBDB: Fa. Matec 509 400 000 \| InternKon: 509 000 000 / 1
03	390 199 40	Hinge	2
04	356 533 40	Catch	1	InternKon: 503 400 000 / 14
05	374 222 40	Detent	1	InternKon: 509 000 000 / 25
06	368 431 40	Pane	1	InternKon: 503 400 000 / 17
07	356 535 40	Compression spring	1	InternKon: 503 400 000 / 16
08	356 536 40	Threaded rod	1	InternKon: 503 400 000 / 18
09	385 708 40	Lever	1	InternKon: 503 400 000 / 12
10	345 178 99	Dowel pin	1	InternBDB: 6x30 /1481 \| InternKon: 503 400 000 / 15
11	332 110 99	Nut	2	InternBDB: M 6 /934 \| InternKon: 503 400 000 / 19
12	350 748 99	Fork end	2	InternBDB: G 6x12 /71752 \| InternKon: 503 400 000 / 20
13	350 742 99	Fork end	1	InternBDB: G 10x20 /71752 \| InternKon: 503 400 000 / 21
14	002 827 98	Pin	1	InternBDB: 10x20 ESN 01 WN 010 869 99
15	002 823 98	Pin	2	InternBDB: 6x12 ESN 01 WN 010 869 99
16	769 602 73	Handle	1	InternBDB: GHE 581 0062 \| InternKon: 503 400 000 / 22
17	516 643 98	Bolt	2	InternBDB: M6x16 /965 \| InternKon: 503 400 000 / 23
18	769 603 73	Cylinder button	1	InternBDB: Matec 114 010 607 /6 N 519.1-23-B10 \| InternKon: 503 400 000 / 13
19	769 652 73	Profiled joint ca. 4300 1,5-2	-2	InternBDB: Matec 111 000 385 TEP A 3043 \| InternKon: 509 000 000 / 2
20	319 238 99	Screw	2	InternBDB: M8x70 /912 10.9 \| InternKon: 509 000 000 / 26
21	356 130 40	Silent bloc	2	InternBDB: 781 053 \| InternKon: 509 000 000 / 27
22	635 262 40	Stop	1	InternBDB: Kason 0056 005 002 \| InternKon: 509 000 000 / 6
23	318 297 99	Bolt	4	InternBDB: M6x25 /963 \| InternKon: 509 000 000 / 7
24	635 261 40	Handle with lock	1	InternBDB: Kason 0056 CH 5020 \| InternKon: 503 400 000 / 6
25	318 308 99	Bolt	4	InternBDB: M6x16 /963 \| InternKon: 503 400 000 / 7
29	796 429 73	Handle	1	InternBDB: Matec 509 400 012 \| InternKon: 503 400 000 / 11
30	796 428 73	Tappet	1	InternBDB: Matec 509 400 013 \| InternKon: 503 400 000 / 10
31	769 607 73	Door moulding	1	InternBDB: 503500012 \| InternKon: 503 400 000 / 30
32	321 187 99	Fillister-head screw	11	InternBDB: M6x20 /7991 \| InternKon: 503 400 000 / 31
34	769 609 73	Rod for mirror	2	InternBDB: Fa. Mekra 58.2484.528 Matek 114010276 \| InternKon: 503 018 000 / 2
35	769 610 73	Mirror	2	InternBDB: Fa. Mekra 51.3300.147 24V elektr. verstellbar \| InternKon: 503 018 000 / 4
36	516 246 98	Screw	16	InternBDB: M8x12 /7984 \| InternKon: 503 018 000 / 3
37	769 611 73	Push-toggle switch	2	InternBDB: SWF 511.021 \| InternKon: 503 600 003 / 1.1
38	769 612 73	Graphical symbol - spotlight	1	InternBDB: SWF 596 472 \| InternKon: 503 600 003 / 1.2
39	769 613 73	Graphical symbol - indoor lighting	1	InternBDB: SWF 596 640 \| InternKon: 503 600 003 / 2.2
40	769 614 73	Tail piece	2	InternBDB: SWF 594 802 \| InternKon: 503 600 003 / 3
41	769 615 73	Antenna	1	InternBDB: 16.17 Uni-Gummistab mit Kabel Matek-Nr. 117210009 \| InternKon: 503 600 200 / 1
42	461 562 40	Extension cable	1	InternBDB: Bosch 8 694 413 774 \| InternKon: 503 600 200 / 2
43	896 705 40	Pair of speakers	1	InternBDB: Blue Magic 7606100001 AL 100 \| InternKon: 503 600 200 / 3
44	769 188 73	Dome lamp	4	InternBDB: Hella 2 JA 998 508-001 /11700032 \| InternKon: 503 600 025 / 1
45	769 189 73	Bulb 28V 20W	4	InternBDB: Hella 8 GH 005 758-271 /117000008 \| InternKon: 503 600 025 / 2
46	769 616 73	Dome lamp (cabinet)	1	InternBDB: Hella 2 JA 004 192-001 Matek-Nr. 117000011 \| InternKon: 503 600 030 / 1
47	516 245 98	Lamp 24V 10W	1	InternBDB: Hella 8 GM 002 091-251 /72601-K-24V-10W Matek-Nr. 117000055 \| InternKon: 503 600 030 / 2
48	318 044 99	Screw	2	InternBDB: M4x12 /84 \| InternKon: 503 600 030 / 3
49	334 649 99	Nut	2	InternBDB: M 4 /985 \| InternKon: 503 600 030 / 4
50	769 617 73	Socket installation	3	InternBDB: Juro 114320 Matek-Nr. 117200294
51	057 295 40	Socket	1	InternBDB: Bosch 0352 030 002 \| InternKon: 503 600 037 / 1
52	318 180 99	Screw	2	InternBDB: M5x25 /84 \| InternKon: 503 600 037 / 2
53	507 036 98	Nut	2	InternBDB: M 5 /985 \| InternKon: 503 600 037 / 3
54	932 687 40	Head light assy. with lamp	2	InternBDB: ABL 500 Xenon 2A0704A538900 \| InternKon: 509 600 040 / 1
55	794 517 73	Lamp 24V35W	2	InternBDB: Xenon D 1 S 35 W
56	500 294 98	Bolt	16	InternBDB: AM 4x16/7985 \| InternKon: 509 600 040 / 7
57	307 732 99	Bolt	16	InternBDB: M6x25 /933 \| InternKon: 509 600 040 / 4
58	634 009 40	Spotlight	1	InternBDB: AB-05-03 \| InternKon: 503 600 063 / 1
59	507 383 99	Halogen lamp	1	InternBDB: H 1 /24V /70W
60	769 155 73	Seal	1	InternBDB: ABL 18-11401
61	769 156 73	Pane, white	1	InternBDB: ABL 18-10201
62	307 752 99	Bolt	1	InternBDB: M8x20 /933 \| InternKon: 503 600 063 / 2
63	793 797 73	Seat frame	1	InternBDB: Matec 503001000 \| InternKon: 509 016 000 / 1
64	769 621 73	Swing trestle top	1	InternBDB: Matec 503000020 \| InternKon: 509 016 000 / 2
65	769 622 73	Swing trestle lower	1	InternBDB: Matec 503000021 \| InternKon: 509 016 000 / 3
66	319 350 99	Bolt	7	InternBDB: M10x65 /912 10.9 \| InternKon: 509 016 000 / 4
67	907 755 40	Co-Driver's seat	1	InternBDB: BKM 0150050051
68	795 989 73	Harness-Spread beam headlamp	1	InternBDB: 509600010 \| InternKon: 509 600 040 / 10
69	795 990 73	Cable Union	4	InternBDB: 117 500 594 M16x1,5 Schlemmer 5308941 \| InternKon: 509 600 040 / 6
72	793 798 73	Window shade	1	InternBDB: F104 A=1600 B=1035 C=1110 Stoff S4 \| InternKon: 509 019 000 / 1
73	793 799 73	Window shade	2	InternBDB: F104 A=1600 B=725 C=800 Stoff S4 \| InternKon: 509 019 000 / 2
74	414 327 40	Grating	1	InternKon: 503 000 000 / 8
75	317 318 40	Wing nut, plastic	4	InternKon: 503 000 000 / 9
76	318 391 99	Bolt	4	InternBDB: M8x50 /963 \| InternKon: 503 000 000 / 13
77	350 562 99	Grease nipple	1	InternBDB: AM 10x1 \| InternKon: 390 199 40 / 6
78	621 108 40	Pin	1	InternKon: 390 199 40 / 1
79	390 600 40	Bushing	2	InternKon: 390 199 40 / 2
80	390 601 40	Bushing	1	InternKon: 390 199 40 / 3
81	340 612 99	Washer	2	InternKon: 390 199 40 / 4
82	342 061 99	Cotter pin	2	InternBDB: 4x32 \| InternKon: 390 199 40 / 5
83	906 783 40	Eyebolt	4	InternBDB: VRS-M24 D5556 V024 \| InternKon: 509 000 000 / 60
84	795 996 73	Door	1	InternBDB: Matek 503 021 000 \| InternKon: 503 021 000 / 1
85	769 631 73	Band roller	2	InternBDB: Matek 114 011 254 KAL 733 1010
86	769 632 73	Sash lock	2	InternBDB: Matek 114 300 308 \| InternKon: 503 021 000 / 2
87	769 651 73	Profiled joint	-2	InternBDB: Matek 111 000 334 Tep A1 102 S PVC /Moosgummi schwarz \| InternKon: 503 021 000 / 4
88	769 633 73	Air intake	6	InternBDB: Aurora 431-410-0012 Matek-Nr. 117 200 142 \| InternKon: 509 013 000 / 1
89	793 800 73	Filter box	1	InternBDB: Matec 509 013 200 \| InternKon: 509 013 000 / 200
90	769 635 73	Hot air jet	4	InternBDB: Hoko 13-455 Matek-Nr. 117 200 436 \| InternKon: 509 013 000 / 5
91	769 636 73	Adjustment	1	InternBDB: Aurora 334-311-0003 TWIN-SET Matek-Nr. 117 200 202 \| InternKon: 509 013 000 / 4
92	769 637 73	Hot air jet, long	4	InternBDB: Aurora 334-314-0002 Matek-Nr. 117 200 199 \| InternKon: 509 013 000 / 6
93	793 801 73	Filter box	1	InternBDB: Matec 509 013 100 \| InternKon: 509 013 000 / 100
94	516 247 98	Tapping screw	24	InternBDB: 3,5x19 /7983 \| InternKon: 509 013 000 / 2
95	516 243 98	Bolt	8	InternBDB: M3x12 /963 \| InternKon: 509 013 000 / 7
96	332 201 99	Nut	4	InternBDB: M 3 /934 \| InternKon: 509 013 000 / 8
97	318 293 99	Bolt	4	InternBDB: M4x20 /963 \| InternKon: 509 013 000 / 9
98	516 244 98	Screw	6	InternBDB: M4x30 /964 \| InternKon: 509 013 000 / 10
99	334 649 99	Nut	10	InternBDB: M 4 /985 \| InternKon: 509 013 000 / 11
100	770 070 73	Cap	4	InternKon: 509 013 000 / 13
101	770 071 73	Hinge for upper cupboard door and Panel	4	InternBDB: Matec 503 500 006/2
102	769 640 73	Upper cupboard door	1	InternBDB: Matec 503 500 006 \| InternKon: 509 500 000 / 6
103	770 072 73	Cupboard door - catch	1	InternBDB: Matec 503 500 005/4
104	770 073 73	Snap lock with handle	1	InternBDB: Matec 503 500 006/1
105	793 802 73	Round nozzle	1	InternBDB: Aurora 334-220-0016 \| InternKon: 509 013 000 / 3
106	508 900 98	Bolt	8	InternBDB: M6x35/963 \| InternKon: 509 013 100 / 2
107	793 803 73	Filter mat	1	InternBDB: Matec 509 013 103 \| InternKon: 509 013 100 / 3
108	769 644 73	Maintenance cover	1	InternBDB: Matec 503 500 002 \| InternKon: 509 500 000 / 2
109	769 645 73	Ventilation	1	InternBDB: Matec 503 500 011 \| InternKon: 509 500 000 / 11
110	770 074 73	Spagnolet for ventilation	4	InternBDB: Matec 503 500 011/4
111	769 646 73	Ice box door	1	InternBDB: Matec 503 500 004 \| InternKon: 509 500 000 / 4
112	770 075 73	Handle - ice-box door	1	InternBDB: Matec 503 500 004/1
113	770 071 73	Hinge - ice-box door	2	InternBDB: Matec 503 500 004/2
114	770 076 73	Water tap	1	InternBDB: Matec 114 450 074 PMC 0.110.013.081 \| InternKon: 114 450 070 / 4
115	769 647 73	Cooler assy.	1	InternBDB: 114 450 064 BD 35 F / R134a PMC 0.020.000.013
116	793 804 73	Operation panel - base	1	InternBDB: Matec 509 500 011 \| InternKon: 509 500 000 / 9
117	793 805 73	Operation panel - upper	1	InternBDB: Matec 509 500 012 \| InternKon: 509 500 000 / 10
118	769 650 73	Ice-box assy.	1	InternBDB: Matec 114 450 060 /PMC 0.001.000.197 \| InternKon: 503 007 000 / 1
120	770 078 73	Water tank	1	InternBDB: Matec 114 450 076 /PMC 0.110.015.081 \| InternKon: 114 450 070 / 6
121	770 079 73	Door, steel construction	1	InternBDB: 503 410 000 \| InternKon: 503 400 000 / 1
122	770 080 73	Washer	1	InternBDB: 503 400 040 \| InternKon: 503 400 000 / 40
123	770 081 73	Blind rivet-nut	15	InternBDB: 113 430 044 \| InternKon: 503 400 000 / 32
124	319 147 99	Bolt	5	InternBDB: M10x25 /912 \| InternKon: 509 016 000 / 5
125	793 806 73	Filter mat	1	InternBDB: Matec 509 013 203 \| InternKon: 509 013 200 / 3
126	307 693 99	Bolt	6	InternBDB: M5x20 /933 \| InternKon: 509 019 000 / 3
127	340 500 99	Washer	6	InternBDB: 5,3 /125 \| InternKon: 509 019 000 / 4
128	318 574 99	Screw	6	InternBDB: M4x12 /964 \| InternKon: 509 019 000 / 5
129	374 923 99	Clamp	2	InternBDB: 12-22 \| InternKon: 503 008 000 / 2
130	374 925 99	Clamp	10	InternBDB: 14-32 \| InternKon: 503 008 000 / 3
131	504 245 98	Bolt	4	InternBDB: M8x20 /965 \| InternKon: 503 008 000 / 4
132	770 082 73	Pump 24V	1	InternBDB: PMC 0.120.039.000 \| InternKon: 114 450 070 / 1
133	770 084 73	Ballance of pressure tank (water)	1	InternBDB: PMC 0.110.015.071 \| InternKon: 114 450 070 / 2
134	770 083 73	Filter assy.	1	InternBDB: PMC 0.110.013.086 RKC 50 Biolit \| InternKon: 114 450 070 / 3
135	770 085 73	Element	1	InternBDB: PMC 0.110.013.096 RKC 50
136	770 086 73	Drain pipe with chain and seal	1	InternBDB: PMC 0.110.047.000 \| InternKon: 114 450 070 / 10
137	770 087 73	Hose 10x3 clear	-2	InternBDB: PMC 0.110.046.001 \| InternKon: 114 450 070 / 8
138	770 088 73	Hose 19x4 clear	-2	InternBDB: PMC 0.110.046.000 \| InternKon: 114 450 070 / 9
139	770 089 73	Thermostat	1	InternBDB: PMC 0.090.009.000 077 B 0028 \| InternKon: 114 450 060 / 1
140	770 090 73	Plate with wash basin	1	InternBDB: Matec 503 500 003 \| InternKon: 503 500 000 / 3
141	511 260 98	Bolt	4	InternBDB: M6x30 /7991
142	770 091 73	Top cabinet	1	InternBDB: 503 500 005 \| InternKon: 503 500 000 / 5
143	770 092 73	Wall covering r.h.	1	InternBDB: 503 500 008 \| InternKon: 503 500 000 / 8
144	770 093 73	Insulation - roof and outside wall	-2	InternBDB: 503 500 030 /50x1250x600 \| InternKon: 503 500 000 / 30
145	770 094 73	Insulation - door	-2	InternBDB: 503 500 031 /30x1250x600 \| InternKon: 503 500 000 / 31
146	770 095 73	Clip	90	InternBDB: 113 895 521 15-31-05 \| InternKon: 503 500 000 / 35
147	770 096 73	Roof moulding rear	1	InternBDB: 503 500 050 \| InternKon: 503 500 000 / 50
148	770 097 73	Roof moulding center	1	InternBDB: 503 500 051 \| InternKon: 503 500 000 / 51
149	770 098 73	Roof moulding l.h.	1	InternBDB: 503 500 052 \| InternKon: 503 500 000 / 52
150	770 099 73	Roof moulding r.h.	1	InternBDB: 503 500 053 \| InternKon: 503 500 000 / 53
151	770 100 73	Roof moulding front	1	InternBDB: 503 500 054 \| InternKon: 503 500 000 / 54
152	770 101 73	Wall covering l.h.	1	InternBDB: 503 500 055 \| InternKon: 503 500 000 / 55
153	770 102 73	Wall covering r.h.	1	InternBDB: 503 500 056 \| InternKon: 503 500 000 / 56
154	770 103 73	Profile holder	-2	InternBDB: GHE 372 0213 \| InternKon: 503 500 000 / 61
155	516 247 98	Screw	50	InternBDB: 3,5x19 /7983 \| InternKon: 503 500 000 / 63
156	770 104 73	Cover profile	-2	InternBDB: GHE 440 B 910 \| InternKon: 503 500 000 / 62
157	770 378 73	Retainer top with cable	2	InternBDB: Mekra 20.2480.217
158	770 377 73	Retainer lower	2	InternBDB: Mekra 20.2480.210
160	770 443 73	Sunvisor l.h.	1	InternBDB: 503 810 100 \| InternKon: 503 810 000 / 1
161	510 746 98	Resilient sleeve	22	InternBDB: 10,5 / 25x35 \| InternKon: 503 810 000 / 9
162	513 928 98	Bolt	22	InternBDB: M 10x75 / 931 \| InternKon: 503 810 000 / 11
163	770 444 73	Sunvisor rear-l.h.	1	InternBDB: 503 810 300 \| InternKon: 503 810 000 / 3
164	770 445 73	Catch	6	InternBDB: 503 810 010
165	770 446 73	Sunvisor r.h.	1	InternBDB: 503 810 200 \| InternKon: 503 810 000 / 2
166	770 447 73	Sunvisor rear-r.h.	1	InternBDB: 503 810 400 \| InternKon: 503 810 000 / 4
167	792 550 73	Water filler neck	1	InternKon: 503 008 000 / 5
168	502 245 98	Screw	4	InternBDB: AM 8x20/965 \| InternKon: 503 008 000 / 4
169	792 551 73	Hose	-2	InternBDB: 111 000 745 \| InternKon: 503 008 000 / 6
170	792 552 73	Clamp	2	InternBDB: Norma TXD 40-60/12/C8/W3 Matec 113 880 073 \| InternKon: 503 008 000 / 8
171	792 655 73	Relay	1	InternBDB: Werle204 07 100 /24V20A ohne Sockel
172	792 656 73	Fuse	1	InternBDB: 7,5A Merit 13 37 53 /Matec 117000375
173	792 657 73	Socket	1	InternBDB: 114 450 083 \| InternKon: 503 008 000 / 7
175	634 135 40	Fluorescent lamp	1	InternBDB: Kira KE-CL-DW 6318/24-0 \| InternKon: 942 46 40 / 18
176	766 904 73	Fluorescent lamp	1	InternBDB: KIRA 18W 201 884

Komatsu PC5500-6E S/N 15060 parts catalog PDF

OPERATOR'S CAB (991-0775) in PC5500-6E S/N 15060. Diagram image and parts list.

Model manual types and quick links

buy PC5500-6E S/N 15060 parts catalog pdf buy PC5500-6E S/N 15060 parts book pdf buy PC5500-6E S/N 15060 shop manual pdf buy PC5500-6E S/N 15060 repair manual pdf buy PC5500-6E S/N 15060 service manual pdf buy PC5500-6E S/N 15060 workshop manual pdf buy PC5500-6E S/N 15060 maintenance manual pdf buy PC5500-6E S/N 15060 operation manual pdf buy PC5500-6E S/N 15060 operators manual pdf

Buy PDF Operation Manual

Buy PDF Operation Manual for PC5500-6E S/N 15060

Komatsu PC5500-6E S/N 15060 parts catalog PDF

How to get full access?
