PC5500-6E S/N 15060

01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77

#	Part Number	Partname	Quantity	Options	Reference
01	944 733 40	Slip ring assy. PC8000	1	InternBDB: TL/ 70.211/12/1-0000:00 \| InternKon: 944 744 40 / 4
01	943 286 40	Slip ring assy. PC5500	1	InternBDB: TL/ 70.211/12/1-0000:00 \| InternKon: 943 292 40 / 6
02		Ring body assy.	1	InternBDB: 70.211/12-4000:00 \| InternKon: 70.211/12/1-0000:00 / 2	991-0730
03	795 929 73	Frame assy.	1	InternBDB: 70.211/12-2000:00 \| InternKon: 70.211/12/1-0000:00 / 3
04		Hood assy. with line entrance	1	InternBDB: 70.211/12/1-6000:00 \| InternKon: 70.211/12/1-0000:00 / 4	991-0783
05		Hood assy. with inspection glass	1	InternBDB: 70.211/5-5000:00 \| InternKon: 70.211/12/1-0000:00 / 5	991-0699
06		Current supply unit	1	InternBDB: 70.211/12-3000:00 \| InternKon: 70.211/12/1-0000:00 / 6	991-0732
07	770 216 73	Hood	1	InternBDB: 70.211/5-0100:00 \| InternKon: 70.211/12/1-0000:00 / 7
08	505 955 99	Assembly rail TS 35	-2	InternKon: 70.211/12/1-0000:00 / 8
09	793 862 73	Throught clamp	13	InternBDB: Wago 281-101 \| InternKon: 70.211/12/1-0000:00 / 9
10	793 861 73	Protective wire clip	2	InternBDB: Wago 281-107 \| InternKon: 70.211/12/1-0000:00 / 10
11	793 884 73	Throught clamp	2	InternBDB: Wago 283-101 \| InternKon: 70.211/12/1-0000:00 / 11
12	004 387 98	Plug	4	InternBDB: NPG 21 /46320 \| InternKon: 70.211/12/1-0000:00 / 12
13	323 354 40	Cable union PG 29	2	InternKon: 70.211/12/1-0000:00 / 13
14	313 541 99	Eyebolt	2	InternBDB: M 16 /580 \| InternKon: 70.211/12/1-0000:00 / 14
15	332 336 99	Nut	6	InternBDB: M 16 /934 \| InternKon: 70.211/12/1-0000:00 / 15
16	307 732 99	Bolt	1	InternBDB: M6x25 /933 \| InternKon: 70.211/12/1-0000:00 / 16
17	796 102 73	Angle with assembly rail	1	InternBDB: 70.211/11-0300:00 \| InternKon: 70.211/12/1-0000:00 / 17
18	766 039 73	Regulated radiator	1	InternBDB: Super Mini 230V /10W \| InternKon: 70.211/12/1-0000:00 / 18
19	765 986 73	Light	1	InternBDB: 1x18W /AEG Lichttechnick Galaxielux AWW 118 IND mit Leuchtstoffr \| InternKon: 70.211/12/1-0000:00 / 19
20	307 730 99	Bolt	2	InternBDB: M6x20 /933 \| InternKon: 70.211/12/1-0000:00 / 20
21	512 465 98	Nut	6	InternBDB: M 6 /982 \| InternKon: 70.211/12/1-0000:00 / 21
22	795 515 73	Heater	1	InternBDB: LH-3002-TK 230V/300W \| InternKon: 70.211/12/1-0000:00 / 22
23	307 741 99	Screw	2	InternBDB: M5x16/933 \| InternKon: 70.211/12/1-0000:00 / 23
24	764 584 73	Switch	2	InternBDB: GC-U1 VT \| InternKon: 70.211/12/1-0000:00 / 24
25	793 879 73	Switch retainer	1	InternBDB: 70.211/10-0000:03 \| InternKon: 70.211/12/1-0000:00 / 25
26	343 106 99	Lock washer	1	InternBDB: B 6 /127 FST \| InternKon: 70.211/12/1-0000:00 / 26
27	377 750 99	Bolt	4	InternBDB: M8x16 /933 \| InternKon: 70.211/12/1-0000:00 / 27
28	319 010 99	Screw	4	InternBDB: M4x40 /84 \| InternKon: 70.211/12/1-0000:00 / 28
29	307 805 99	Bolt	8	InternBDB: M12x35 /933 \| InternKon: 70.211/12/1-0000:00 / 29
30	765 568 73	Cable retainer	1	InternBDB: 70.211/5-0000:01 \| InternKon: 70.211/12/1-0000:00 / 30
31	346 510 99	Lock washer	8	InternBDB: B 8 /127 FST \| InternKon: 70.211/12/1-0000:00 / 31
32	377 752 99	Bolt	4	InternBDB: M8x20/933 \| InternKon: 70.211/12/1-0000:00 / 32
33	270 873 40	Cable channel	-2	InternBDB: 40x40 /BA 640 0040 Tehalit \| InternKon: 70.211/12/1-0000:00 / 33
34	318 991 99	Screw	8	InternBDB: M4x12 /84 \| InternKon: 70.211/12/1-0000:00 / 34
35	515 239 98	Fuse screw	4	InternBDB: B 151 90 M6x16 /6921 \| InternKon: 70.211/12/1-0000:00 / 35
36	343 092 99	Lock washer	33	InternBDB: B 4 /127 FST \| InternKon: 70.211/12/1-0000:00 / 36
37	332 078 99	Nut	25	InternBDB: M 4 /934 \| InternKon: 70.211/12/1-0000:00 / 37
38	765 569 73	Hose (polyethylen)	-2	InternKon: 70.211/12/1-0000:00 / 38
39	765 560 73	Union	4	InternBDB: GE 04 LLM A3C \| InternKon: 70.211/12/1-0000:00 / 39
40	350 560 99	Grease nipple	4	InternBDB: AM 6 /71412 \| InternKon: 70.211/12/1-0000:00 / 40
41	270 873 40	Cable channel	-2	InternBDB: 40x40 /BA 640 0040 Tehalit \| InternKon: 70.211/12/1-0000:00 / 41
42	307 756 99	Bolt	4	InternBDB: M8x30 /933 \| InternKon: 70.211/12/1-0000:00 / 42
43	340 507 99	Washer	8	InternBDB: 8,4 /125 \| InternKon: 70.211/12/1-0000:00 / 43
44	512 557 98	Nut	4	InternBDB: M 8 /982 \| InternKon: 70.211/12/1-0000:00 / 44
45	512 466 98	Nut	4	InternBDB: M 16 /982 \| InternKon: 70.211/12/1-0000:00 / 45
46	340 469 99	Washer	4	InternBDB: B 17 /125 \| InternKon: 70.211/12/1-0000:00 / 46
47	307 824 99	Bolt	4	InternBDB: M16x40 /933 \| InternKon: 70.211/12/1-0000:00 / 47
48	796 098 73	Cable union	1	InternBDB: Roxtec RS 125 RS00001251023 \| InternKon: 70.211/12/1-0000:00 / 48
49	764 607 73	Ball bearing	1	InternBDB: 13/500.0 ungehдrtet \| InternKon: 70.211/12/1-0000:00 / 49
50		Lower plate, weld on part	1	InternBDB: 70.211/12/1-1100:00 \| InternKon: 70.211/12/1-0000:00 / 50
51	511 459 98	Fuse screw	60	InternBDB: B 151 90 M8x16 /6921 \| InternKon: 70.211/12/1-0000:00 / 51
52	318 367 99	Bolt	8	InternBDB: M10x35 /963 \| InternKon: 70.211/12/1-0000:00 / 52
53	507 037 98	Nut	8	InternBDB: M 10 /985 \| InternKon: 70.211/12/1-0000:00 / 53
54	765 560 73	Union	4	InternBDB: GE 04 LLM A3C \| InternKon: 70.211/12/1-0000:00 / 54
55	512 467 98	Nut	10	InternBDB: M 12 /982 \| InternKon: 70.211/12/1-0000:00 / 55
56	765 987 73	Fluorescent lamp	1	InternBDB: 106.1882 TL-D 18W/827 \| InternKon: 70.211/12/1-0000:00 / 56
57	770 217 73	Sealing 3x12	-2	InternKon: 70.211/12/1-0000:00 / 57
58		Plate	1	InternBDB: 70.211/12/1-2000:01 \| InternKon: 70.211/12/1-0000:00 / 58
59	343 095 99	Lock washer	3	InternBDB: B 10 /127 FST \| InternKon: 70.211/12/1-0000:00 / 59
60	307 781 99	Bolt	3	InternBDB: M10x40 /933 \| InternKon: 70.211/12/1-0000:00 / 60
61	307 679 99	Bolt	4	InternBDB: M5x12/933 \| InternKon: 70.211/12/1-0000:00 / 61
62	343 805 99	Lock washer	8	InternBDB: 5/127 \| InternKon: 70.211/12/1-0000:00 / 62
63	340 461 99	Washer	22	InternBDB: 5,3/125 \| InternKon: 70.211/12/1-0000:00 / 63
64	906 613 40	Cover plate	4	InternKon: 70.211/12/1-0000:00 / 64
65	356 265 40	Clamp	8	InternKon: 70.211/12/1-0000:00 / 65
66	517 324 98	Nut	1	InternBDB: M32x1,5 \| InternKon: 70.211/12/1-0000:00 / 66
67	323 354 40	Cable union PG 29	1	InternKon: 70.211/12/1-0000:00 / 67
68	906 612 40	Throught clamp	32	InternKon: 70.211/12/1-0000:00 / 68
69	795 925 73	Current supply rod	2	InternBDB: 70.211/12-0000:18 \| InternKon: 70.211/12/1-0000:00 / 69
70	765 926 40	Assembly rail	2	InternBDB: 70.211/12-0000:00 \| InternKon: 70.211/12/1-0000:00 / 70
71	795 927 73	Switch retainer	1	InternBDB: 70.211/10-0000:19 \| InternKon: 70.211/12/1-0000:00 / 71
72	512 467 98	Nut	2	InternBDB: M12/982 \| InternKon: 70.211/12/1-0000:00 / 72
73	324 413 99	Parallel pin	2	InternBDB: M4x10/551 \| InternKon: 70.211/12/1-0000:00 / 73
74	343 817 99	Lock washer	2	InternBDB: B16/127 \| InternKon: 70.211/12/1-0000:00 / 74
75	318 983 99	Screw	13	InternBDB: M4x16/84 \| InternKon: 70.211/12/1-0000:00 / 75
76	319 003 99	Screw	11	InternBDB: M4x8/84 \| InternKon: 70.211/12/1-0000:00 / 76
77	318 076 99	Screw	4	InternBDB: M5x12/84 \| InternKon: 70.211/12/1-0000:00 / 77

Komatsu PC5500-6E S/N 15060 parts catalog PDF

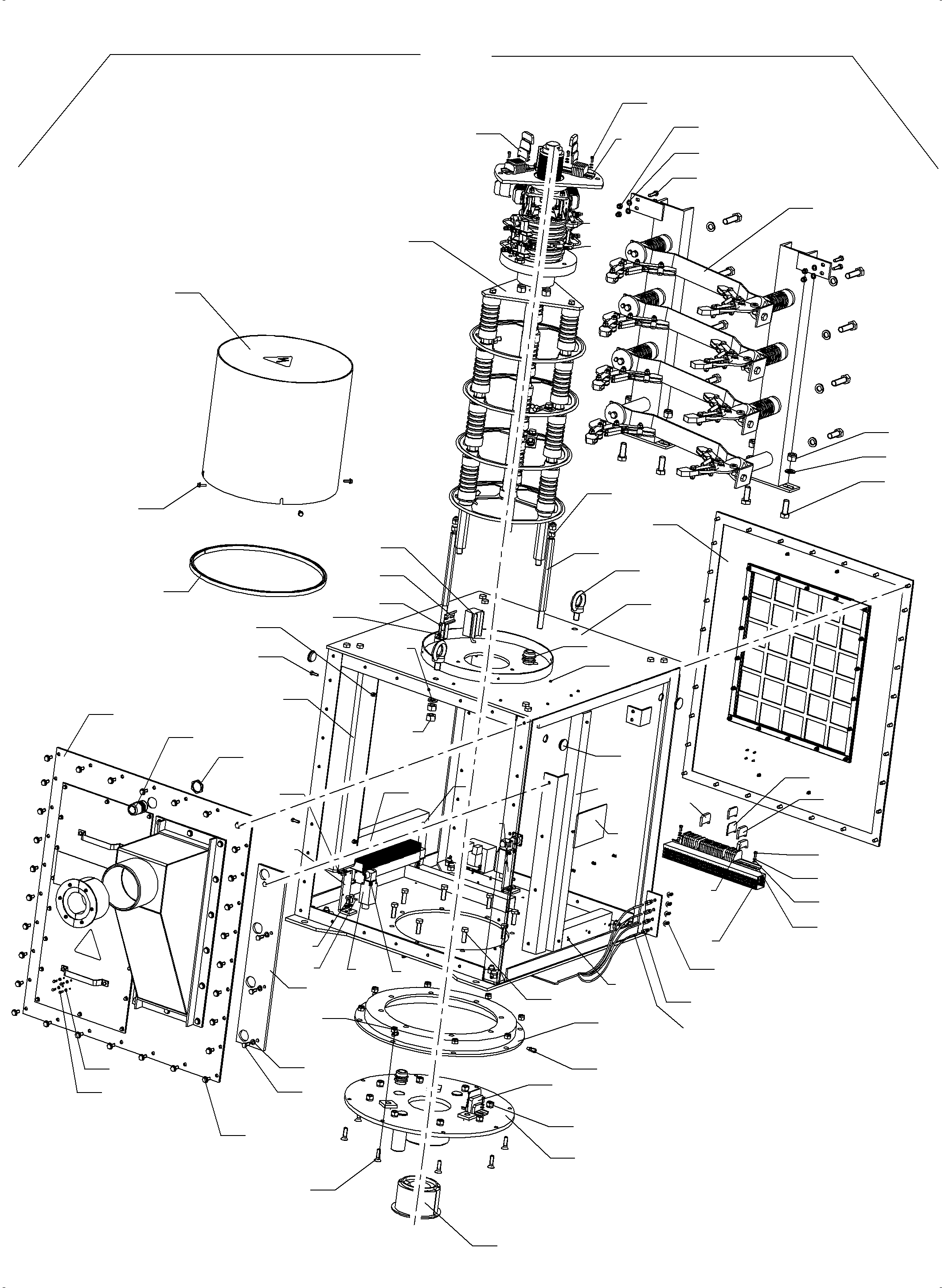

SLIP RING (991-0782) in PC5500-6E S/N 15060. Diagram image and parts list.
