Diagram image 1 of 2

PC5500-6E S/N 15060

01 02 03 03 03 03 03 03 03 03 03 03 03 04 04 04 05 05 06 07 09 09 10 11 13 13 13 14 15 16 16 16 16 16 16 16 17 18 19 19 20 21 21 21 21 22 22 22 22 23 23 23 24 25 27 28 30 31 31 31 31 31 32 32 32 34 35 36 37 37 38 38 39 39 40 41 41 41 41 41 42 42 43 43 43 44 45 46 46 46 47 47 48 49 49 50 51 52 53 54 55 56 57

PC5500-6E S/N 15060

03 03 03 03 03 03 03 07 08 08 12 12 13 16 18 23 23 26 27 28 29 30 31 31 32 32 33 34 41 42 43 46 47

#	Part Number	Partname	Quantity	Options	Reference
01		Sswitch box	1	InternBDB: Blt-33-06-8X8	991-0787
02	635 143 40	Emergency switch-off	1	InternBDB: Klцckner-Mцller FAK-R/V/KC11/IY 229748 \| InternKon: 944 749 40 / 7
03			-2
03	655 649 40	Cable protection hose DN 10	-2	InternBDB: PMA VCST-10 B
04	907 477 40	Cable union DN 12	2	InternBDB: BVNV-M162
05	600 847 99	Reducing 16-9	1	InternBDB: 123 964
06	006 301 98	Clamp	21	InternBDB: RSGU 1100 12/15 \| InternKon: 910 019 40 / 1
07	796 547 73	Harness X8-Switch	1	InternBDB: Blt-33-06
08	907 480 40	Cable union DN 10-90	2	InternBDB: PMA BVWV-M160
09	906 079 40	T-Distributor DN 29	2	InternBDB: PMA BFTL-29 29 29 GGG
10	510 210 98	Thread pin	51	InternBDB: M6x20 /32501 \| InternKon: 910 019 40 / 2
11	507 025 98	Nut	51	InternBDB: M 6 /985 \| InternKon: 910 019 40 / 3
12	655 631 40	Pipe adapter DN 12/10	2
13	655 652 40	Cable protection hose DN 23	-2	InternBDB: VCSG-23B
14	600 814 99	Reducing 21-16	4
15	600 815 99	Reducing 29-21	4
16	655 651 40	Cable protection hose DN 17	-2	InternBDB: VCST-17 B
17	655 627 40	Distributor DN 23/17	1	InternBDB: BVYR-23 17 17 GGG
18	655 633 40	Pipe adapter DN 17/12	2	InternBDB: BAVR-17 G 12 T
19	896 558 40	Pipe adapter DN 29/23	2	InternBDB: BAVR-29 G 23 G
20	655 809 40	Pipe adapter DN 29/10	1	InternBDB: BAVR 29 G 10 T
21	655 629 40	T-Distributor DN 17	4	InternBDB: BFTL-171717 GGG
22	655 632 40	Pipe adapter DN 17/10	4	InternBDB: BAVR-17 G 10 T
23	655 621 40	Cable union DN 10	6	InternBDB: BVNV-P 090 T
24	145 831 40	Clamp	5	InternBDB: RSGU 1100 20/15 \| InternKon: 898 699 40 / 1
25	510 363 98	Clamp	25	InternBDB: RSGU 1100 29/15 \| InternKon: 910 028 40 / 1
26	655 079 40	Cable 1.5 gr/ge	-2
27	515 213 40	Cable 1,0 bl	-2
28	655 080 40	Cable 1,5 rt	-2
29	655 873 40	Cable 1,5 bl	-2
30	906 420 40	T-Distributor DN 12	2	InternBDB: BFTL-12 12 12 TTT
31	655 650 40	Cable protection hose DN 12	-2	InternBDB: VCST-12 B
32	655 628 40	T-Distributor DN 10	5	InternBDB: BAVR-10 T 10 T
33	634 736 40	Cable 2,5 sw	-2	InternKon: BLT-33-06 / 68
34	515 214 40	Cable 2,5 bl	-2
35	907 672 40	Control switch	1	InternBDB: Klцckner-Mцller TO-2-82 31/I 1+SVA T3 \| InternKon: 944 749 40 / 6
36	655 701 40	Cable union DN 23-90	1	InternBDB: BVWV-P213G
37	655 696 40	Cable protection hose DN 29	-2	InternBDB: VCSG-29B
38	921 560 40	Harness X8-Resistor	1
39	921 558 40	Harness X8-junction box	1
40	907 690 40	Cable union DN 23	1	InternBDB: BVNV-M253 \| InternKon: 921 560 40 / 3
41	056 071 40	Cable sleeve 2,5	43	InternKon: 921 560 40 / 1
42	056 070 40	Cable sleeve 1,0-1,5	19	InternKon: 921 559 40 / 5
43	655 081 40	Cable 2,5 br	-2	InternKon: 921 559 40 / 9
44	256 514 40	Name plate	11	InternKon: 921 559 40 / 7
45	056 292 40	Cable strap	-2	InternBDB: TY 23 M \| InternKon: 921 558 40 / 11
46	655 082 40	Cable 2,5 gr/ge	-2	InternKon: 921 558 40 / 6
47	635 042 40	Wire end ferrule	4	InternKon: 921 558 40 / 10
48	517 327 98	Reducing	1	InternKon: 921 558 40 / 9
49	921 559 40	Harness X8-Drive	1
50	934 489 40	Reducing	1	InternKon: 921 559 40 / 6
51	907 478 40	Cable union DN 17	1	InternBDB: BVNV-M207 \| InternKon: 921 559 40 / 2
52	907 132 40	Cable sho	7	InternKon: 921 559 40 / 3
53	940 694 40	E-Chain assy.	-2	InternBDB: Igus Gmbh B15.025.038 \| InternKon: 944 749 40 / 9
54	940 695 40	Alu-steck rinne	-2	InternBDB: Igus Gmbh 91.930 \| InternKon: 944 749 40 / 10
55	940 697 40	Mounting set with Plate	3	InternBDB: Igus Gmbh 91.950.025 \| InternKon: 944 749 40 / 12
56	940 711 40	Connecting set	1	InternBDB: Igus Gmbh 1025.34PZ \| InternKon: 944 749 40 / 13
57	321 010 99	Screw	2	InternBDB: M5x25/84 \| InternKon: 944 749 40 / 8

Komatsu PC5500-6E S/N 15060 parts catalog PDF

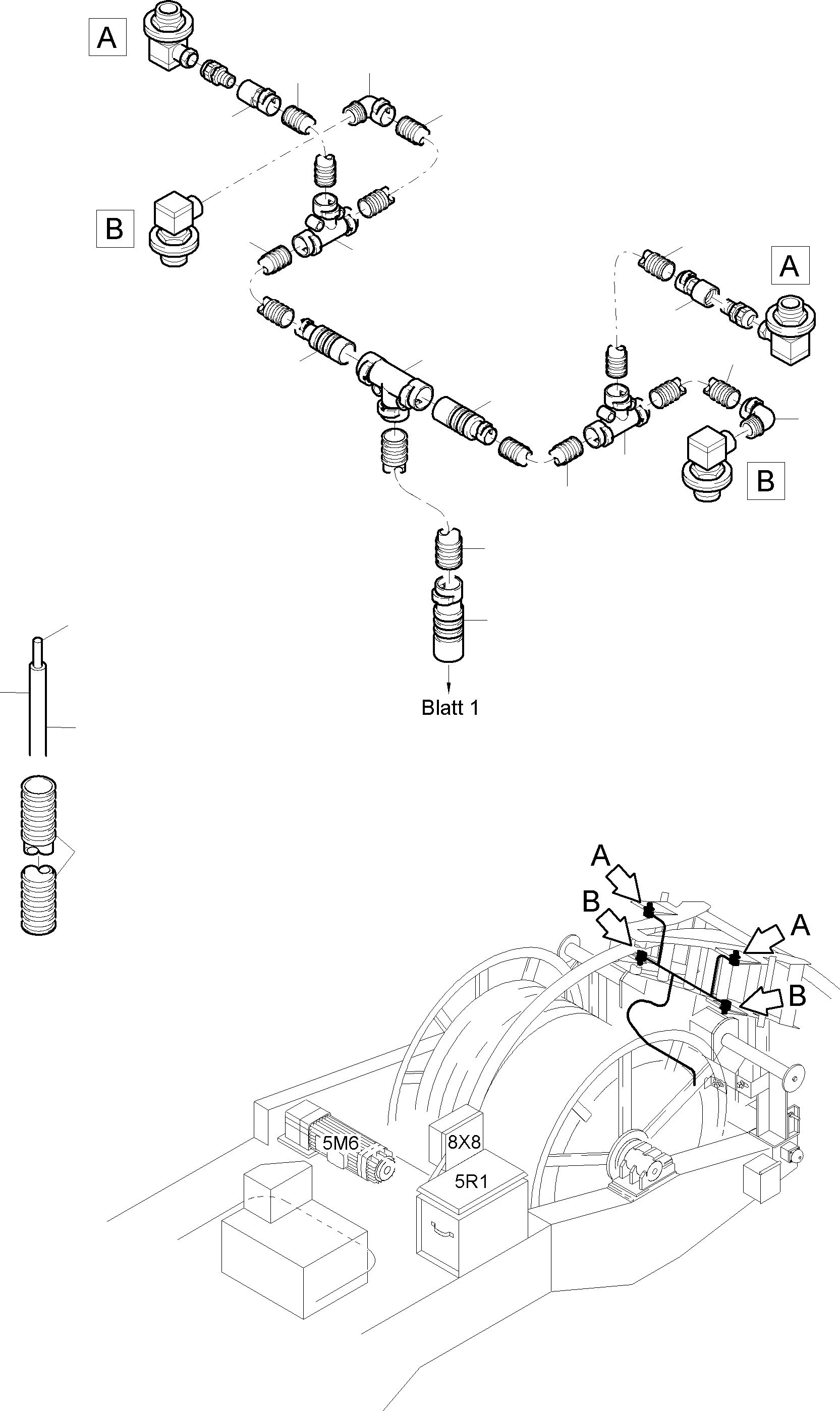

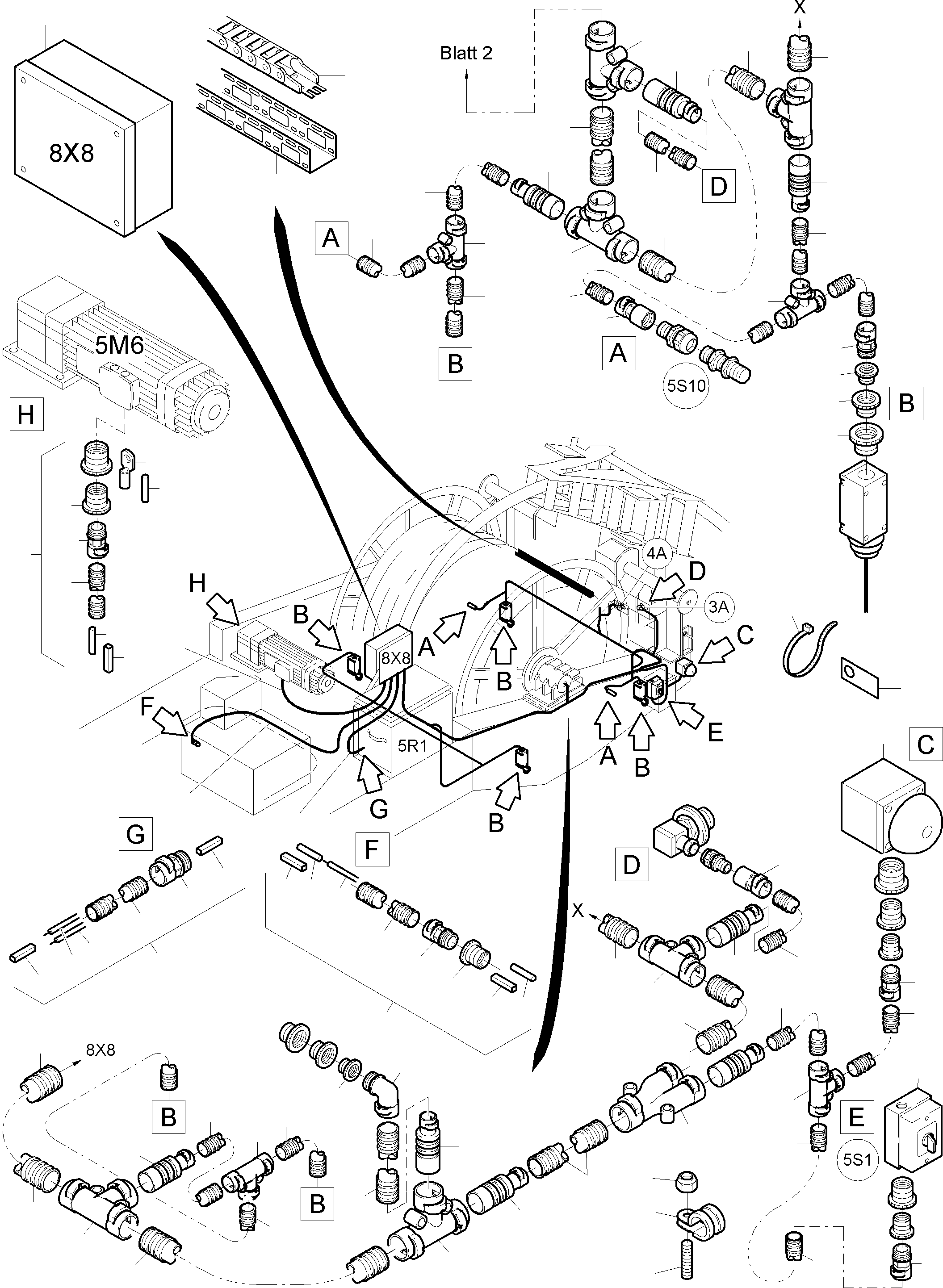

CABLES- CABLE DUCT (991-0788) in PC5500-6E S/N 15060. Diagram image and parts list.
