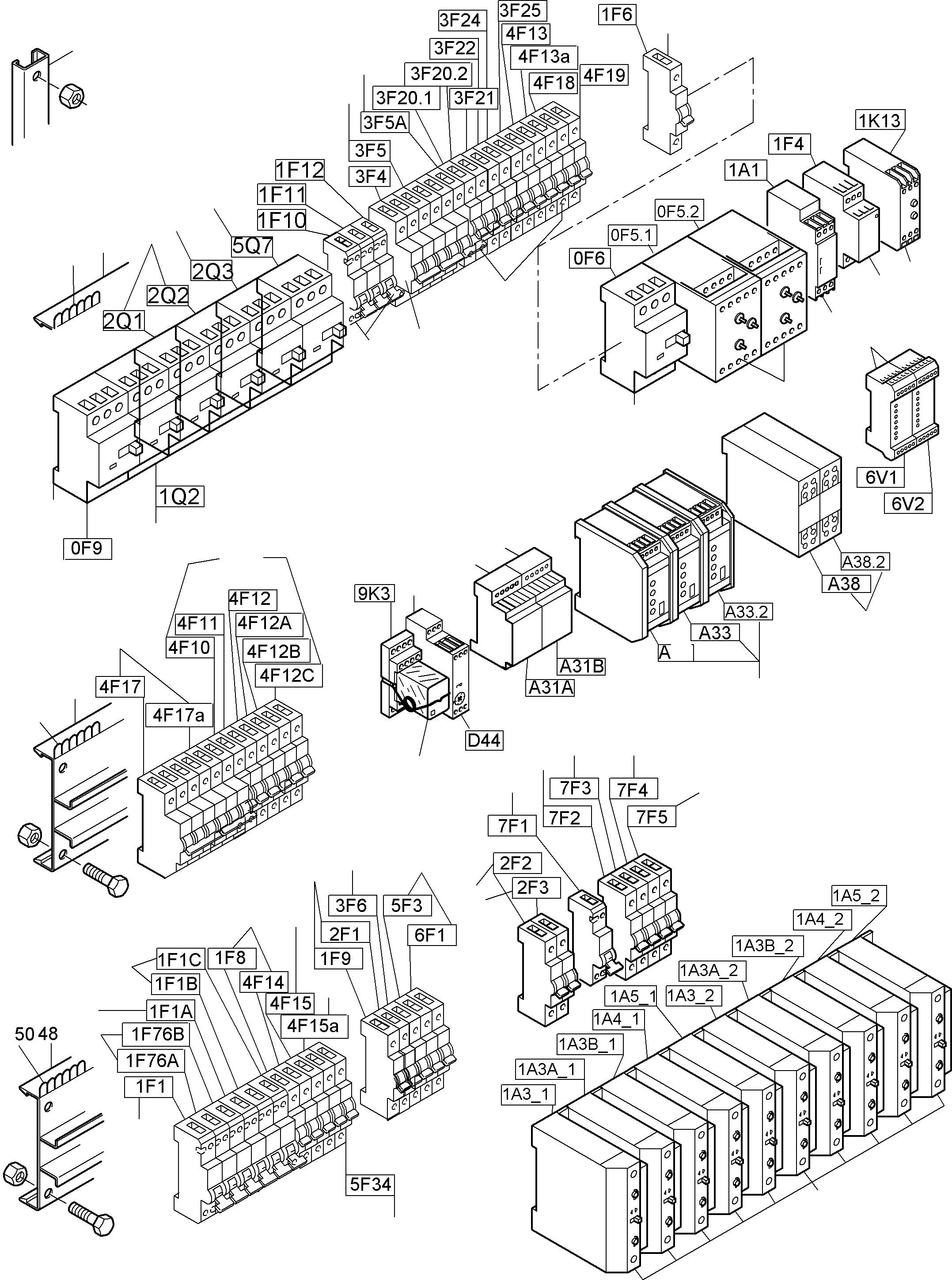

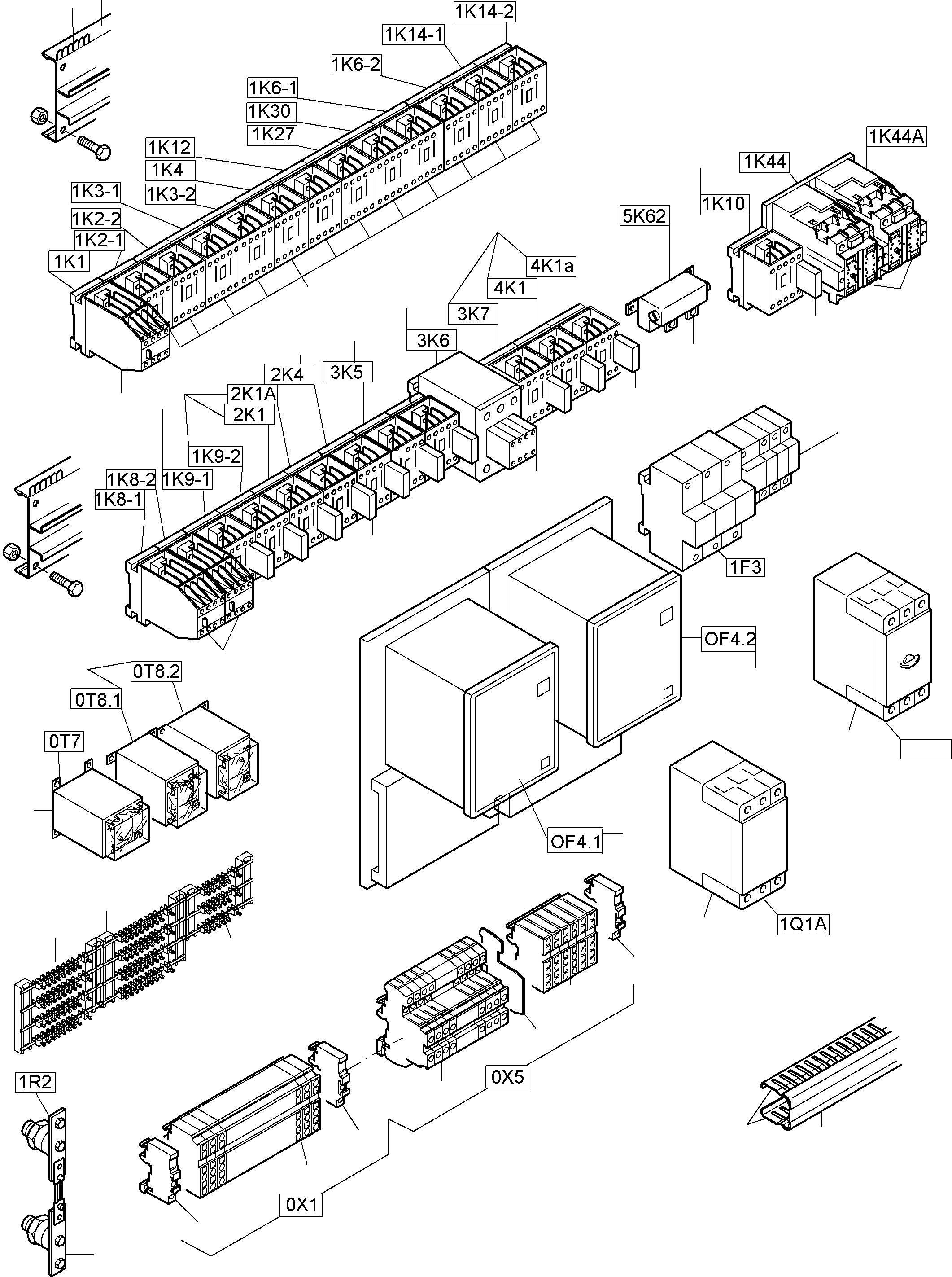

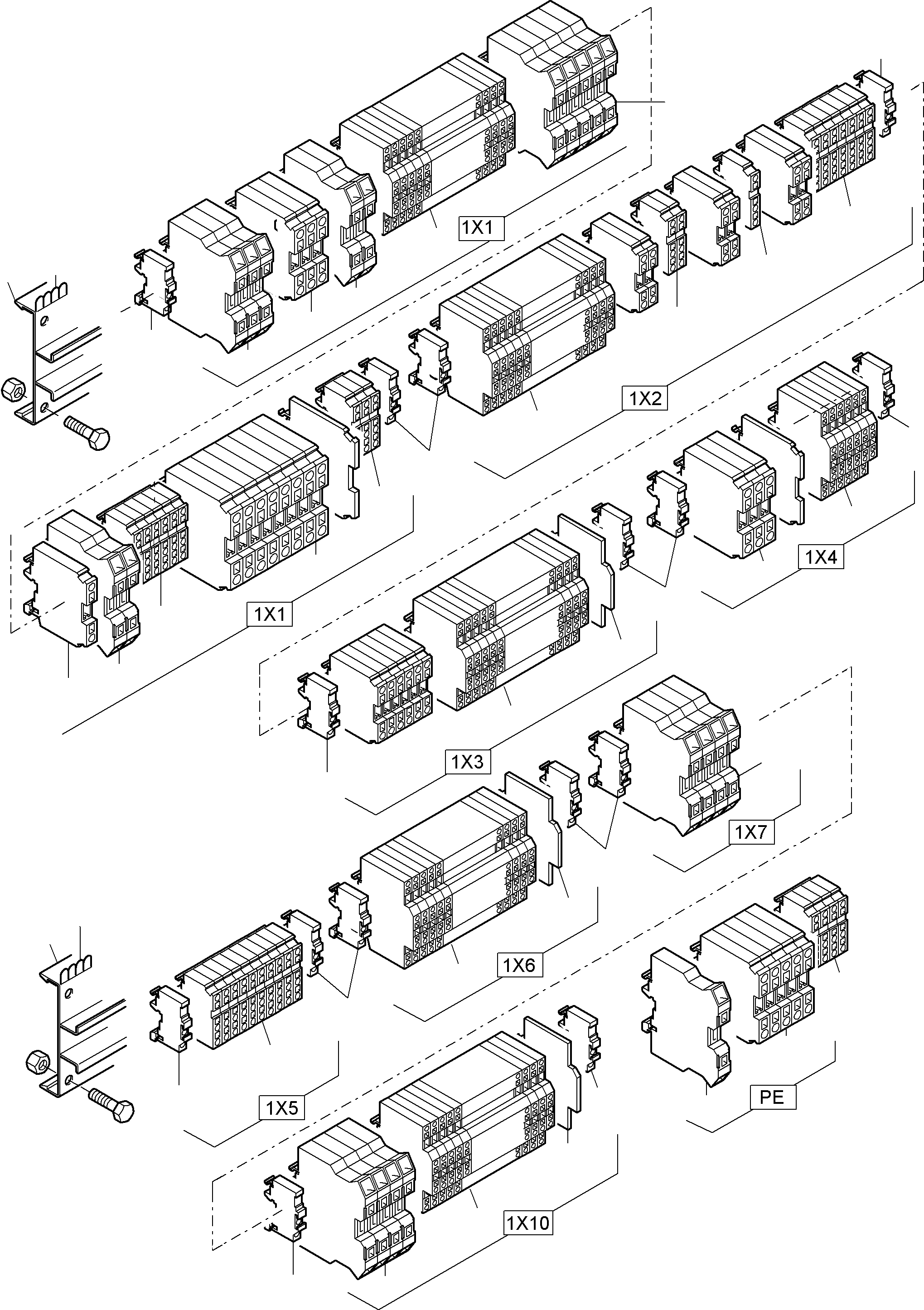

Diagram image 1 of 3

PC5500-6E S/N 15060

01 01 02 03 04 05 05 05 05 05 05 06 07 08 09 10 11 12 13 14 15 15 15 16 17 18 18 18 18 18 19 20 21 22 23 24 25 29 31 32 32 33 35 36 37 38 48 48 50 50 51

PC5500-6E S/N 15060

23 26 27 27 28 30 34 39 40 40 41 42 43 43 44 45 46 46 47 48 49 50 503 52 53 53 53 54 55 56 58 61 62 63 64 65 67 68 68 68

PC5500-6E S/N 15060

48 48 50 50 53 53 53 53 53 53 53 53 53 53 53 54 54 54 54 54 54 55 55 55 56 57 57 58 58 58 58 58 58 59 59 59 59 59 59 60 60 60 66 67

#	Part Number	Partname	Quantity	Options
01	793 912 73	Power switch 7-10A	3	InternBDB: Siemens 3 RV 1021 - 1 JA 10 \| InternKon: 06//06/015. 15060.0205 / 11
02	792 856 73	Power switch 9-12,5A	1	InternBDB: Siemens 3 RV 1021 - 1 KA 10 \| InternKon: 06//06/015. 15060.0205 / 12
03	795 370 73	Breaker 16A	1	InternBDB: ABB S202-C16 \| InternKon: 06//06/015. 15060.0205 / 21
04	765 150 73	Breaker 63A 3-pol.	2	InternBDB: ABB S 223 - K 63 \| InternKon: 06//06/015. 15060.0205 / 26
05	795 383 73	Breaker 6A 1-pol.	18	InternBDB: ABB S 201 - C 6 \| InternKon: 06//06/015. 15060.0205 / 17
06	792 860 73	Voltage converter - safety breaker 2,5A	1	InternBDB: Siemens 16,7- 60 HZ 3 RV 1611 - 1CG14 \| InternKon: 06//06/015. 15060.0205 / 4
07	795 429 73	Current relay	2	InternBDB: Dold BA 9053/013 AC1-10A UH AC 230V 0-20S \| InternKon: 06//06/015. 15060.0205 / 14
08	792 998 73	Actuator assy.	1	InternBDB: Siemens 3 RN 1010 -1CM00 230V AC 50/60Hz 2 LED \| InternKon: 06//06/015. 15060.0205 / 16
09	795 910 73	Phase sequence relay	1	InternBDB: Siemens 3 UG 4512-1 BR20 AC 50/60 Hz 3x160?690V \| InternKon: 06//06/015. 15060.0205 / 13
10	794 611 73	Low voltage relay	1	InternBDB: Dold MK 9054 AC 25-250V UH AC 230V 5S \| InternKon: 06//06/015. 15060.0205 / 15
11	792 832 73	Power switch 0,14-0,2A	1	InternBDB: Siemens 3 RV 1011 - 0BA 10 \| InternKon: 06//06/015. 15060.0205 / 3
12	794 720 73	Breaker 16A	3	InternBDB: Merlin-Gerin DPNa - B 16 \| InternKon: 06//06/015. 15060.0205 / 27
13	795 364 73	Breaker 25A 2-pol.	1	InternBDB: ABB S 202-C25 \| InternKon: 06//06/015. 15060.0205 / 22
14	795 469 73	Breaker 80A	2	InternBDB: ABB S 291 K80 \| InternKon: 06//06/015. 15060.0205 / 25
15	794 176 73	Breaker 63A	4	InternBDB: Siemens 5SP 4163-7 \| InternKon: 06//06/015. 15060.0205 / 24
16	794 612 73	Breaker 100A	1	InternBDB: ABB S 291 K100 \| InternKon: 06//06/015. 15060.0205 / 9
17	795 366 73	Breaker 16A 1-pol.	6	InternBDB: ABB S 201-C16 \| InternKon: 06//06/015. 15060.0205 / 19
18	795 367 73	Breaker 10A 1-pol.	5	InternBDB: ABB S 201-C10 \| InternKon: 06//06/015. 15060.0205 / 18
19	795 368 73	Breaker 32A 2-pol.	1	InternBDB: ABB S 202-C32 \| InternKon: 06//06/015. 15060.0205 / 23
20	795 393 73	Breaker 25A 1-pol.	2	InternBDB: ABB S 201-C25 \| InternKon: 06//06/015. 15060.0205 / 20
21	792 811 73	Power switch 0,55-0,8A	1	InternBDB: Siemens 3RV 1011-OHA 10 \| InternKon: 06//06/015. 15060.0205 / 8
22	907 481 40	Time relay D44	1	InternBDB: Finder 82.11.0.240 \| InternKon: 06//06/015. 15060.0205 / 43
23	323 179 40	Power relay	1	InternBDB: Bosch 0 332 002 256 \| InternKon: 06//06/015. 15060.0205 / 38
24	765 906 73	Diode array	2	InternBDB: Lьtze 710 818 \| InternKon: 06//06/015. 15060.0205 / 40
25	794 613 73	Amplifier	10	InternBDB: Kriwan PT 100-2AV -50 +150є C 220 VAC 50/60 Hz \| InternKon: 06//06/015. 15060.0205 / 41
26	795 372 73	Servo contactor	12	InternBDB: Siemens 3 RH 1122-1 AP00 230VAC 50/60 Hz \| InternKon: 06//06/015. 15060.0205 / 29
27	792 823 73	Servo contactor	5	InternBDB: Siemens 3 RH 1122-1 BB 40 2S + 20 24 VDC \| InternKon: 06//06/015. 15060.0205 / 32
28	696 221 73	Current breaker	2	InternBDB: Siemens 3 TC 4417-0 AB 4 \| InternKon: 06//06/015. 15060.0205 / 33
29	794 177 73	Breaker 50A	1	InternBDB: ABB S 281 UC-K50 \| InternKon: 06//06/015. 15060.0205 / 28
30	792 824 73	Contactor	1	InternBDB: Siemens 3 RT 1017-1 BB 41 GR S00 5,5 KW 24 VDC \| InternKon: 06//06/015. 15060.0205 / 37
31	399 773 40	Relay	1	InternKon: 06//06/015. 15060.0205 / 39
32	592 338 40	Socket	1	InternKon: 06//06/015. 15060.0205 / 39
33	414 369 40	Spring retainer	1	InternKon: 06//06/015. 15060.0205 / 39
34	794 180 73	BC-contact copper wire with FM-contact 1F3	1	InternBDB: Phoenix Contact 100 KA Powerset BC 3x1-100/FM/Plus \| InternKon: 06//06/015. 15060.0205 / 42
35	919 525 40	Signal rectifier ESR 50Hz	3	InternBDB: 449 986 40 \| InternKon: 06//06/015. 15060.0205 / 46
36	894 590 40	Measuring transducer	2	InternBDB: Weigel A1U 2.2 15F50 10,5 T1 H3 \| InternKon: 06//06/015. 15060.0205 / 47
37	907 585 40	Modulator	1	InternBDB: Datel +/-15V DM-BWR-15/575-D24A \| InternKon: 06//06/015. 15060.0205 / 44
38	907 586 40	Modulator	1	InternBDB: Datel +5V DM-UWR-5 /3000-D24A \| InternKon: 06//06/015. 15060.0205 / 45
39	796 185 73	Contactor	1	InternBDB: Siemens 3RT 1023-1BB40 \| InternKon: 06//06/015. 15060.0205 / 36
40	769 175 73	Motor protection relay with mounting frame	2	InternBDB: ABB SPAM 150C Vers.2 80-265V DC/AC 50/60 Hz \| InternKon: 06//06/015. 15060.0205 / 5
41	794 615 73	Power switch 70-90A	1	InternBDB: Siemens 3 RV 1041-4 LA 10 \| InternKon: 06//06/015. 15060.0205 / 6
42	794 173 73	Power switch 17-22A	1	InternBDB: Siemens 3 RV 1021-4 CA 10 \| InternKon: 06//06/015. 15060.0205 / 7
43	766 509 73	Voltage converter	1	InternBDB: Ritz MeЯwandler KSZRH 70 100/10V 50 Hz 5 VA \| InternKon: 06//06/015. 15060.0205 / 1
44	765 905 73	Voltage transformer	2	InternBDB: Ritz MeЯwandler ZKSWH 60 5A /10V 50 Hz 1 VA \| InternKon: 06//06/015. 15060.0205 / 2
45	761 603 73	Aux. resistor	1	InternBDB: 100A 60mV \| InternKon: 06//06/015. 15060.0205 / 10
46	769 185 73	Potential distributor 125 A	2	InternBDB: Entrelec 179 535.23 BRT 125 A
47	769 186 73	Potential distributor 80 A	1	InternBDB: Entrelec 179 534.22 BRT 80 A
48	635 728 40	Sectional plate	10	InternBDB: SA 120x860 Lьtze 33335
49	323 233 40	Wiring profile	-2	InternBDB: 33002
50	323 237 40	Wiring terminal	-2
51	906 284 40	Assembly rail WP 1600	2	InternBDB: 330111
52	323 234 40	Cover	-2	InternBDB: 30071
53	356 265 40	Clamp	-2	InternBDB: 116 535-04
54	793 769 73	Twin terminal	170	InternBDB: Wago 870-501 \| InternKon: 06//06/015. 15060.0205 / 48
55	793 770 73	Cover plate	-2	InternBDB: Wago 870-518
56	795 623 73	Protective wire clip	21	InternBDB: Wago 870-637 \| InternKon: 06//06/015. 15060.0205 / 48
57	793 776 73	Protective wire clip	23	InternBDB: Wago 285-635 \| InternKon: 06//06/015. 15060.0205 / 50
58	793 773 73	Series terminal	64	InternBDB: Wago 870-681 \| InternKon: 06//06/015. 15060.0205 / 49
59	793 774 73	Series terminal	20	InternBDB: Wago 283-601 \| InternKon: 06//06/015. 15060.0205 / 50
60	793 775 73	Series terminal	10	InternBDB: Wago 284-601 \| InternKon: 06//06/015. 15060.0205 / 51
61	764 600 73	Servo contactor	1	InternBDB: Siemens 3TH 4244-OAP00 \| InternKon: 06//06/015. 15060.0205 / 30
62	761 981 73	Servo contactor	2	InternBDB: Siemens 3TH 4244-OBB4 \| InternKon: 06//06/015. 15060.0205 / 31
63	792 825 73	Contactor	3	InternBDB: Siemens 3 RT 1015-1BB41 \| InternKon: 06//06/015. 15060.0205 / 34
64	766 629 73	Contactor	1	InternBDB: Siemens 3 RT 1016-1BB41 \| InternKon: 06//06/015. 15060.0205 / 35
65	793 777 73	Servo contact	1	InternBDB: Siemens 3RH1911-1FA22 zu 3K \| InternKon: 06//06/015. 15060.0205 / 36
66	795 624 73	Protective wire clip	1	InternBDB: Wago 285-637 \| InternKon: 06//06/015. 15060.0205 / 59
67	793 772 73	Protective wire clip	5	InternBDB: Wago 284-607 \| InternKon: 06//06/015. 15060.0205 / 59
68	795 912 73	Overvoltage limiter	10	InternBDB: Siemens 3RT 1916-1EH00 12-250V

Komatsu PC5500-6E S/N 15060 parts catalog PDF

MOUNTING PLATE - CAB SUPPORT (991-0791) in PC5500-6E S/N 15060. Diagram image and parts list.
