PC5500-6E S/N 15060

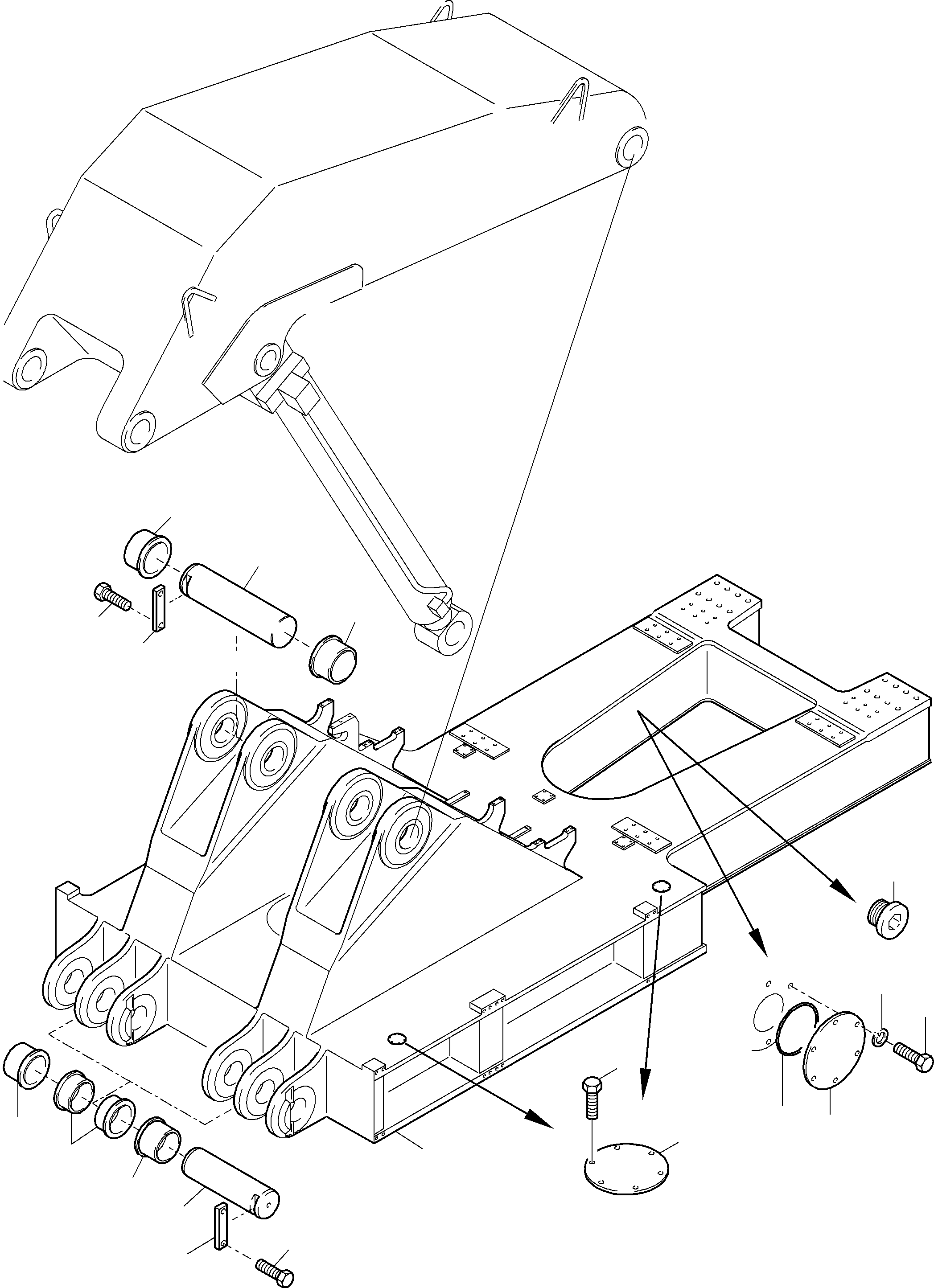

Komatsu parts book diagram for PC5500-6E S/N 15060: SUPERSTRUCTURE PLATFORM

01 02 03 03 04 04 05 05 06 07 08 08 1 10 11 12 13 14 15 16 17 18

	#	Part Number	Partname	Quantity	Options	Reference
	01	930 152 40	Platform	1	InternBDB: SK 933 210 40 \| InternKon: 933 974 40 / 1
	02	930 157 40	Pin	2	InternKon: 933 974 40 / 8
	03	923 488 40	Bushing	4	InternKon: 933 974 40 / 13
	04	923 476 40	Axle stirrup	4	InternKon: 933 974 40 / 10
	05	511 811 98	Bolt	8	InternBDB: M36x85 /933 \| InternKon: 933 974 40 / 14
	05	513 968 98	Bolt, cold weather	8	InternBDB: M36x85 /933 \| InternKon: 933 974 40 / 14
	06	930 158 40	Pin	2	InternKon: 933 974 40 / 9
	07	923 486 40	Bushing	4	InternKon: 933 974 40 / 11
	08	923 487 40	Bushing	4	InternKon: 933 974 40 / 12
	10	904 244 40	Cover	2	InternBDB: Ш200 \| InternKon: 933 974 40 / 23
	11	904 243 40	Gasket	2	InternBDB: DICHTUNG KLINGER SIL \| InternKon: 933 974 40 / 24
	12	307 805 99	Bolt	12	InternBDB: M12 X 35 /DIN 00933 \| InternKon: 933 974 40 / 25
	13	504 271 98	Lock washer	12	InternBDB: B 12 /DIN 00127 \| InternKon: 933 974 40 / 26
	14	358 657 40	Plug	2	InternBDB: 1"NPT \| InternKon: 933 974 40 / 38
	15	324 550 40	Plug	2	InternBDB: 3/4"NPT \| InternKon: 933 974 40 / 39
	16	173 495 40	Plug	2	InternBDB: VSTI M48X2,0ED /WN 34191340 \| InternKon: 933 974 40 / 41
	17	641 345 40	Cover	2	InternBDB: Ш165 \| InternKon: 933 974 40 / 45
	18	320 428 99	Bolt	4	InternBDB: M8X12 /DIN 07991 \| InternKon: 933 974 40 / 46

Komatsu PC5500-6E S/N 15060 parts catalog PDF

SUPERSTRUCTURE PLATFORM (515-1015k) in PC5500-6E S/N 15060. Diagram image and parts list.
