PC5500-6E S/N 15060

01 02 03 04 05 06 06 07 07 08 19 20 23 24 28 28 28 29 29 29 30 30 30 30 31 31 32 33 34 35 36 37 38 39 42 43 52 52 61 61 61 61 62 62 62 62

PC5500-6E S/N 15060

09 09 09 09 10 10 11 11 11 11 12 13 13 13 14 14 14 15 15 15 16 16 16 17 18 44 44 44 45 45 45 46 47 48 49 50 51 53 54 55 56 57 57 58 58 58 59 59 60

PC5500-6E S/N 15060

59 80 80 81 82 83 83 84 84 85 85 86 86 86 87 88 88 88 88 89 90 91 91 92 92 93 93 93 94 95 96 97

PC5500-6E S/N 15060

101 102 102 102 102 102 103 103 103 103 104 104 104 104 104 105 105 105 106 106 106 106 106 107 107 107 107 107 108 109 110 111 112 112 113 113 114 114 115 116 117 118 119 120 121 122

#	Part Number	Partname	Quantity	Options	Reference
01	913 486 40	Grease barrel	1	InternKon: 936 505 40 / 1
02		Lube pump station	3	InternBDB: 907 677 40 \| InternKon: 936 505 40 / 2	991-0553c
03	308 321 99	Bolt	8	InternBDB: M16x90 /931 10.9 \| InternKon: 936 506 40 / 4
04	510 729 98	Resilient sleeve	8	InternBDB: 17/30x35 WN 341 948 40 \| InternKon: 936 506 40 / 5
05	332 355 99	Nut	8	InternBDB: M16 / DIN 934 \| InternKon: 936 506 40 / 6
06	516 616 98	Socket	2	InternBDB: RI E 1 1/4AX 3/4 WN 655 909 40 \| InternKon: 936 506 40 / 12
07	513 495 98	Hose assy.	2	InternBDB: 120 20x1630 DOL 22 \| InternKon: 936 506 40 / 7
08	907 051 40	Union	2	InternBDB: 22 LR/OMD \| InternKon: 936 506 40 / 13
09	255 400 40	Hose assy. DN 20x1500	2	InternBDB: 350 20x1500 DOS 25 \| InternKon: 936 506 40 / 9
10	641 482 40	Hose assy. DN 20x2230	1	InternBDB: 350 20x2230 DOS 25 \| InternKon: 936 506 40 / 10
11	513 495 98	Hose assy. DN 20x1630	2	InternBDB: 120 20x1630 DOL 22 \| InternKon: 936 506 40 / 7
12	515 570 98	Hose assy. DN 10x2500	1	InternBDB: 240 10x2500 DOL12 \| InternKon: 936 506 40 / 8
13	516 322 98	Valve	2	InternBDB: RHV 18-PLR-ED \| InternKon: 936 505 40 / 4
14	516 618 98	Union	3	InternBDB: BH-L 22 ISO 8434 \| InternKon: 936 506 40 / 14
15	506 954 98	Nut	3	InternBDB: M30x2 /80705 \| InternKon: 936 506 40 / 15
16	513 144 98	Socket	1	InternBDB: L12 / DIN 3910 \| InternKon: 936 506 40 / 16
17	509 267 98	Nut	1	InternBDB: M18x1,5 /80705 \| InternKon: 936 506 40 / 17
18	516 615 98	Union	3	InternBDB: BH-S 25 ISO 8434 \| InternKon: 936 506 40 / 18
19	509 272 98	Nut	3	InternBDB: M36x2 /80705 \| InternKon: 936 506 40 / 19
20	374 410 99	Union	3	InternBDB: SDS-S30X42x2 - Type E / ISO 8434 \| InternKon: 935 505 40 / 24
23	307 757 99	Bolt	12	InternBDB: M8x35 / DIN 933 \| InternKon: 935 505 40 / 20
24	340 464 99	Washer	12	InternBDB: B8,4 / DIN 125 \| InternKon: 935 505 40 / 21
28	518 263 98	Hose assy.	3	InternBDB: 350 16x550 DOL 20 DOL 20 90 \| InternKon: 935 505 40 / 8
29	907 798 40	Union	3	InternBDB: Red 30 /20-PS /OMD \| InternKon: 935 505 40 / 7
30	516 181 98	Socket	4	InternBDB: SWRT-S 30 ISO 08434 \| InternKon: 935 505 40 / 23
31	374 412 99	Socket	2	InternBDB: SCS-S30XG1 1/4A - Type E / ISO 8434 \| InternKon: 935 505 40 / 22
32	928 711 40	Pipe Ш 30	1	InternBDB: 30x4 / DIN 2391 \| InternKon: 935 505 40 / 25
33	307 775 99	Bolt	8	InternBDB: M10x20 / DIN 933 \| InternKon: 935 505 40 / 18
34	340 465 99	Washer	8	InternBDB: B 10,5 / DIN 125 \| InternKon: 935 505 40 / 19
35	517 434 98	Info plate	1	InternBDB: WN 655 922 40 \| InternKon: 935 505 40 / 32
36	308 582 99	Bolt	2	InternBDB: M10x75 /931 \| InternKon: 935 505 40 / 30
37	534 001 99	Cover plate	1	InternBDB: S-DP-A-2 /3015 \| InternKon: 935 505 40 / 29
38	504 677 98	Half clamp	2	InternBDB: S-2-G-30 /3015 \| InternKon: 935 505 40 / 28
39	507 037 98	Nut	2	InternBDB: M10 / DIN 985 \| InternKon: 935 505 40 / 31
42	915 741 40	Pipe Ш 30	1	InternBDB: 30x4 / DIN 2391 \| InternKon: 935 505 40 / 27
43	928 712 40	Pipe Ш 30	1	InternBDB: 30x4 / DIN 2391 \| InternKon: 935 505 40 / 26
44	512 715 98	Hose assy.	2	InternBDB: 08x1200 DOL 10 DOL 10 90 \| InternKon: 935 505 40 / 5
45	512 938 98	Hose assy.	2	InternBDB: 12x1200 DOL 15 DOL 15 90 \| InternKon: 935 505 40 / 6
46	516 173 98	Socket	2	InternBDB: L10 / 3944 \| InternKon: 935 505 40 / 12
47	515 765 98	Socket	1	InternBDB: GZR 12/10-PL WN 655 910 40 \| InternKon: 935 505 40 / 13
48	510 537 98	Socket	1	InternBDB: E-L 12 ISO 08434 \| InternKon: 935 505 40 / 14
49	516 175 98	Socket	2	InternBDB: SWRT-L 15 / ISO 8434 \| InternKon: 935 505 40 / 15
50	515 862 98	Socket	1	InternBDB: GZR 22/15-PL WN 655 910 40 \| InternKon: 935 505 40 / 16
51	516 824 98	Socket	1	InternBDB: E-L 22 / ISO8434 \| InternKon: 935 505 40 / 17
52		Pressure filter	2	InternBDB: 634 602 40 \| InternKon: 935 505 40 / 3	090-3139
53	374 431 99	Socket	1	InternBDB: SDS-L28XM33x2 - Type E \| InternKon: 936 507 40 / 18
54	516 161 98	Socket	1	InternBDB: SWE-L 28 / ISO 8434 \| InternKon: 936 507 40 / 20
55	551 345 40	Union	1	InternBDB: RED 28/22-PL/OMD \| InternKon: 936 507 40 / 19
56	518 206 98	Hose assy., with fire protection coating DN 20x13300	1	InternBDB: DOL 22 /DOL 22-90 \| InternKon: 936 507 40 / 2
57	518 239 98	Hose assy., with fire protection coating DN 10x 9000	1	InternBDB: DOL 12 /DOL 12-90 \| InternKon: 936 507 40 / 1
58	512 962 98	Hose assy.	2	InternBDB: 350 20x6700 Dos 25 \| InternKon: 936 507 40 / 3
59	516 820 98	Hose assy.	1	InternBDB: 350 20x5400 DOS 25 \| InternKon: 936 507 40 / 22
60	168 491 40	Hose assy. DN 20x1500	1	InternBDB: 20x2500 DOL 22 \| InternKon: 936 506 40 / 11
61	906 352 40	Olive	9	InternBDB: ES-4 S30 WN 655 939 40 \| InternKon: 936 505 40 / 34
62	371 265 99	Union nut	9	InternBDB: N-S 30 / ISO 8434 \| InternKon: 936 505 40 / 33
80	511 003 98	Hose assy. 20X 5750	1	InternBDB: SHL350 DOS 25 DOS 25 WN 34195140 \| InternKon: 936 508 40 / 1
81	512 672 98	Hose assy. 20X 4400	1	InternBDB: SHL350 DOS 25 DOS 25 WN 34195140 \| InternKon: 936 508 40 / 2
82	936 509 40	Pipe	1	InternBDB: 25X 3X 300 \| InternKon: 936 508 40 / 3
83	374 443 99	Union	2	InternBDB: S-S 25 ST A3C ISO 08434 \| InternKon: 936 508 40 / 4
84	906 868 40	Olive	2	InternBDB: ES-4 S25 / WN 65593940 \| InternKon: 936 508 40 / 5
85	371 264 99	Union nut	2	InternBDB: N-S 25 /ISO 08434 \| InternKon: 936 508 40 / 6
86	504 923 98	Clamp set	11	InternBDB: S-3-G-32 /DIN 03015 \| InternKon: 936 508 40 / 7
87	534 005 99	Weld on plate	5	InternBDB: S-AP-A-3 /DIN 03015 \| InternKon: 936 508 40 / 8
88	534 004 99	Cover plate	14	InternBDB: S-DP-A-3 /DIN 03015 \| InternKon: 936 508 40 / 9
89	308 581 99	Bolt	10	InternBDB: M10X 70 /DIN 00931 \| InternKon: 936 508 40 / 10
90	308 269 99	Bolt	6	InternBDB: M10X 150 /DIN 00931 \| InternKon: 936 508 40 / 11
91	507 037 98	Nut	10	InternBDB: M10 /DIN 00985 \| InternKon: 936 508 40 / 12
92	534 000 99	Clamp set	4	InternBDB: S-2-R-25 /DIN 03015 \| InternKon: 936 508 40 / 13
93	534 001 99	Plate	6	InternBDB: S-DP-A-2 /DIN 03015 \| InternKon: 936 508 40 / 14
94	308 588 99	Bolt	4	InternBDB: M10X 130 /DIN 00931 \| InternKon: 936 508 40 / 15
95	516 615 98	Socket	1	InternBDB: BH-S-25 /SO 8434 \| InternKon: 936 507 40 / 4
96	516 248 98	Socket	1	InternBDB: S 25 /3942 \| InternKon: 936 507 40 / 5
97	509 272 98	Nut	1	InternBDB: M 36x2 /80705 \| InternKon: 936 507 40 / 21
101	936 869 40	Retainer	1	InternKon: 936 851 40 / 1
102	509 060 98	Clamp set	5	InternBDB: L-5-G-32 PA DIN 03015 \| InternKon: 936 851 40 / 2
103	319 136 99	Screw	6	InternBDB: M 6X 50 /DIN 00912 \| InternKon: 936 851 40 / 3
104	515 669 98	Clamp set	7	InternBDB: L-4-G-26,9 PA /DIN 03015 \| InternKon: 936 851 40 / 4
105	319 417 99	Screw	10	InternBDB: M 6X 35 /DIN 00912 \| InternKon: 936 851 40 / 5
106	502 631 98	Clamp set	5	InternBDB: L-2-G-16 PP /DIN 03015 \| InternKon: 936 851 40 / 6
107	319 132 99	Screw	10	InternBDB: M 6X25 /DIN 00912 \| InternKon: 936 851 40 / 7
108	936 871 40	Retainer	1	InternKon: 936 852 40 / 1
109	509 057 98	Clamp set	1	InternBDB: L-3-G-20 PA /DIN 03015 \| InternKon: 936 852 40 / 6
110	319 133 99	Screw	2	InternBDB: M 6X30 /DIN 00912 \| InternKon: 936 852 40 / 7
111	936 874 40	Retainer	1	InternKon: 936 858 40 / 1
112	504 201 98	Clamp	2	InternBDB: S-3-G-30 PA /DIN 03015 \| InternKon: 936 858 40 / 4
113	308 581 99	Bolt	4	InternBDB: M10X70 /DIN 00931 \| InternKon: 936 858 40 / 5
114	534 004 99	Cover plate	2	InternBDB: S-DP-A-3 W1 /DIN 03015 \| InternKon: 936 858 40 / 6
115	936 875 40	Retainer	1	InternKon: 936 860 40 / 1
116	511 858 98	Cover plate	1	InternBDB: L-5 W1 /DIN 03015 \| InternKon: 936 860 40 / 3
117	320 025 99	Screw	2	InternBDB: M 6X110 /DIN 00912 \| InternKon: 936 860 40 / 5
118	511 857 98	Cover plate	2	InternBDB: L-4 W1 /DIN 03015 \| InternKon: 936 860 40 / 9
119	502 206 98	Bolt	2	InternBDB: M 6X90 /DIN 00931 \| InternKon: 936 860 40 / 10
120	936 862 40	Retainer	1	InternKon: 936 863 40 / 1
121	936 895 40	Retainer	1	InternKon: 936 896 40 / 1
122	533 989 99	Weld on plate	1	InternBDB: L-AP-K-2 /DIN 03015

Komatsu PC5500-6E S/N 15060 parts catalog PDF

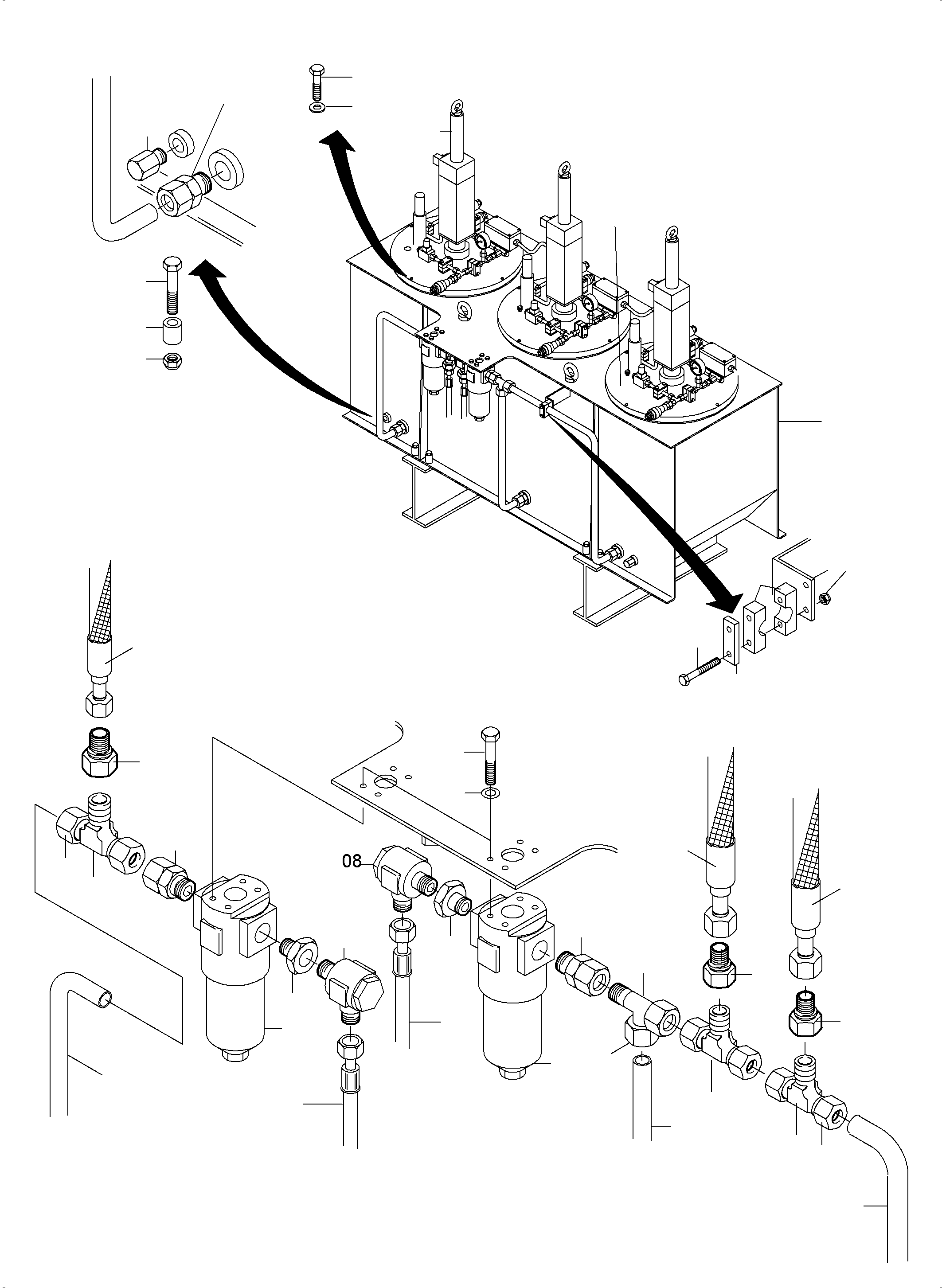

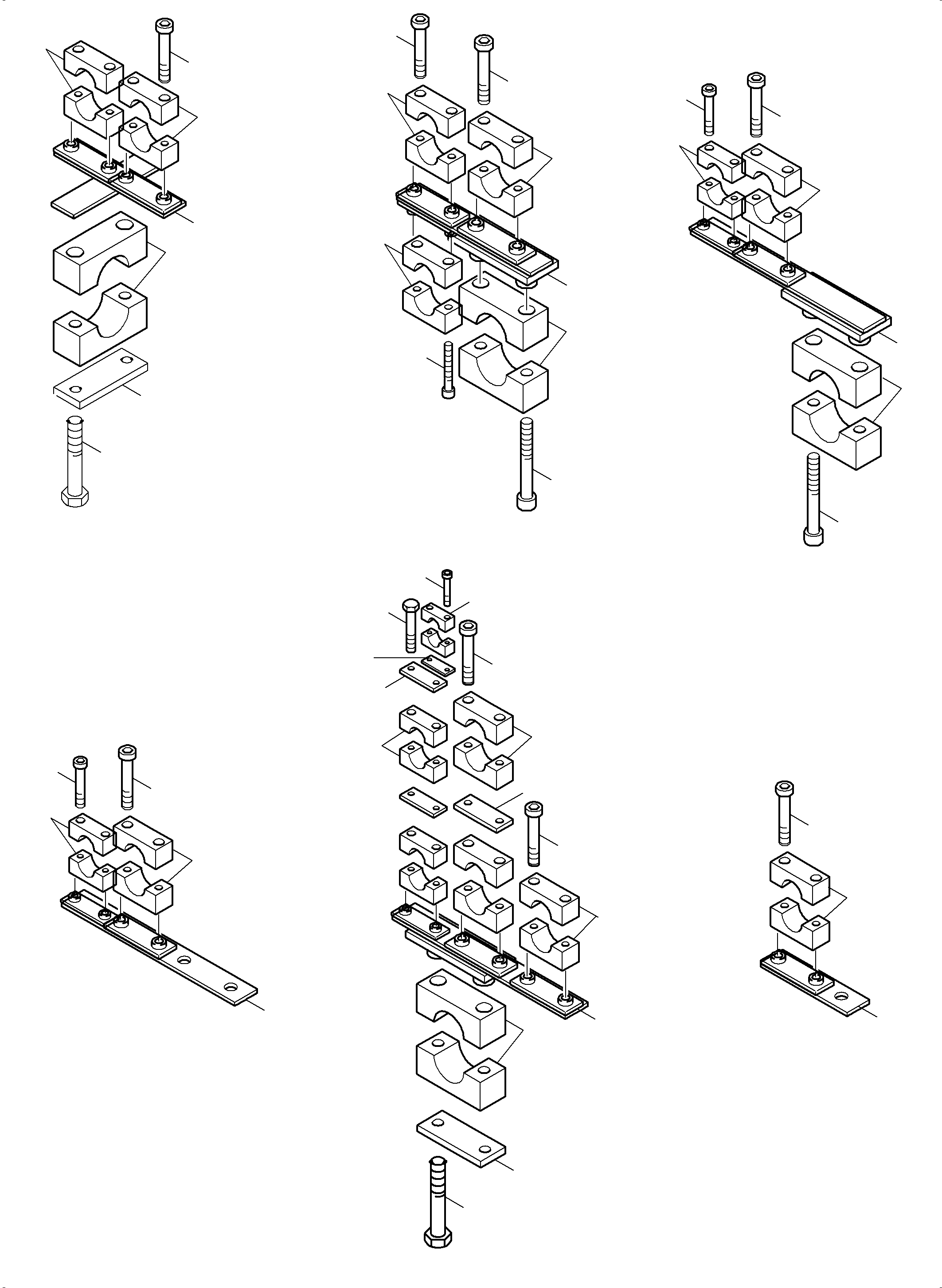

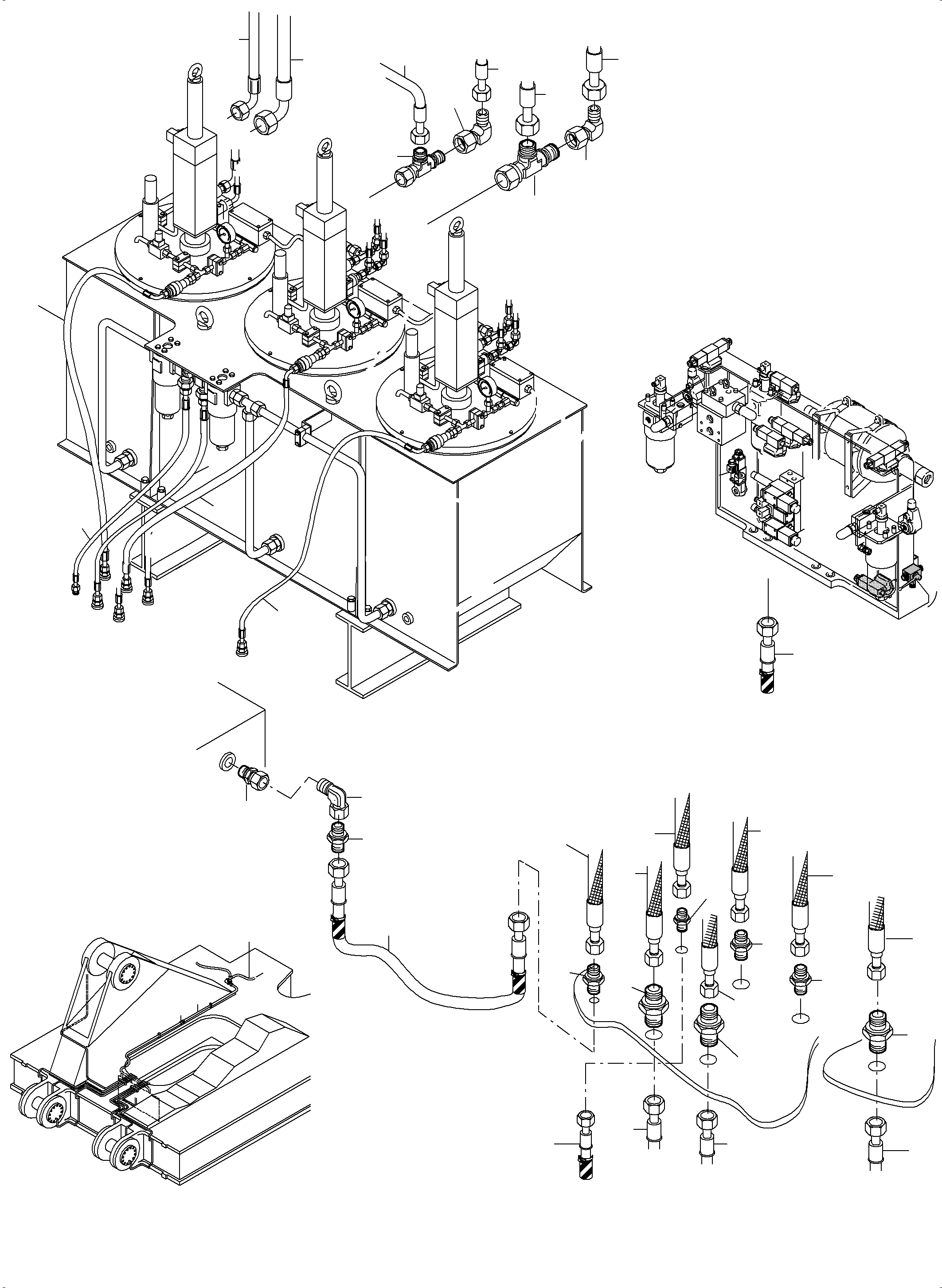

LUBE STATION ARRANGEMENT AND GREASE PIPE (515-2314c) in PC5500-6E S/N 15060. Diagram image and parts list.
