#	Part Number	Partname	Quantity	Options
?	942 738 40	Harness - control plates, NT+TT	1	InternKon: 923 170 40 / 11
?	923 158 40	Harness - h.p. filter	1	InternKon: 923 170 40 / 12
?	923 166 40	Harness - h.p. filter, cold weather	1	InternKon: 923 170 40 / 12
?	655 834 40	Cable protection hose DN 36	14	InternBDB: NW 36 VCSG-36B \| InternKon: 942 738 40 / 1
?	907 999 40	Pipe adapter DN 36/29	2	InternBDB: NW 36/29 BAVR-36/29 \| InternKon: 942 738 40 / 3
?	907 500 40	T-Distributor DN 36	1	InternBDB: NW 36 BVTR-363636 \| InternKon: 942 738 40 / 4
?	932 531 40	Fitting M30/NW29	3	InternBDB: BVIR-M329 \| InternKon: 942 738 40 / 6
?	940 447 40	Cable union M30	3	InternBDB: 23255 YPM 30X3,0 \| InternKon: 942 738 40 / 7
?	515 213 40	Cable 1,0	-2	InternBDB: Blau 090100bl \| InternKon: 942 738 40 / 9
?	933 385 40	Plug with bushings assy.	26	InternKon: 942 738 40 / 10
?	933 384 40	Receptacle assembly	13	InternKon: 942 738 40 / 11
?	891 031 40	Plug with bushings assy.	6	InternKon: 923 158 40 / 1
?	891 039 40	Plug with pins assy.	6
?	891 032 40	Plug with bushings assy.	4	InternKon: 923 158 40 / 2
?	891 040 40	Plug with pins assy.	4
?	906 079 40	T-Distributor DN 29	2	InternBDB: BFTL 29 29 29 GGG \| InternKon: 923 158 40 / 3
?	655 635 40	Pipe adapter DN 29/17	2	InternBDB: BAVR-29 G 17 G \| InternKon: 923 158 40 / 4
?	907 693 40	Fitting M20/NW17	2	InternBDB: BVIR-M207 \| InternKon: 923 158 40 / 5
?	907 709 40	Cable union PG 16	2	InternBDB: Pflitsch 553 YNPM 13x2,7 \| InternKon: 923 158 40 / 6
?	896 520 40	End pin	8	InternBDB: Pflitsch BO 3,0x25 \| InternKon: 923 158 40 / 7
?	655 651 40	Protecting hose DN 17	-2	InternBDB: VCSG - 17 B \| InternKon: 923 158 40 / 8
?	655 696 40	Protecting hose DN 29	-2	InternKon: 923 158 40 / 9
?	056 070 40	Cable sleeve 1,0-1,5	184	InternKon: 923 158 40 / 10
?	256 514 40	Name plate	49	InternKon: 923 158 40 / 11
?	056 292 40	Cable strap	49	InternKon: 923 158 40 / 12
?	940 169 40	Cable 4x1	-2	InternBDB: Kenpur 600C 4x1,00mm2 \| InternKon: 923 158 40 / 14
?	896 558 40	Pipe adapter DN 29/23	1	InternKon: 923 158 40 / 15
?	600 814 99	Reducing HPG21-PG16	1	InternBDB: HPG 21 - PG 16 /46320 \| InternKon: 923 158 40 / 16
?	907 948 40	Fitting M25/NW23	1	InternBDB: BVIR-M253 \| InternKon: 923 158 40 / 17
?	907 708 40	Cable union PG 13,5	1	InternBDB: Pflitsch 052 YNPM 6x2,5 \| InternKon: 923 158 40 / 18
?	655 652 40	Protecting hose DN 23	-2	InternBDB: VCSG-23B \| InternKon: 923 158 40 / 19
?	940 717 40	Fitting M17/M25	1	InternBDB: BVIR-M257 \| InternKon: 923 158 40 / 20
?	006 302 98	Clamp	2	InternBDB: RSGU1100 15/15 /01166099 \| InternKon: 910 797 40 / 1
?	510 210 98	Thread pin	43	InternBDB: PM 6x20 /32500 \| InternKon: 910 797 40 / 2
?	507 025 98	Nut	43	InternBDB: M 6 /985 \| InternKon: 910 797 40 / 3
?	006 339 98	Clamp	6	InternBDB: RSGU1100 18/15 /01166099 \| InternKon: 910 798 40 / 1
?	003 670 79	Clip	13	InternBDB: KES 08053 \| InternKon: 942 775 40 / 6
?	350 762 99	Washer	9	InternBDB: R 6,6 /440 \| InternKon: 903 399 40 / 3
?	932 899 40	Pressure transducer 500 bar	4	InternBDB: Hydac HDA 4740-G-600-161 \| InternKon: 942 775 40 / 7
?	509 856 98	Thread pin	2	InternBDB: PM 10x35 /32500 \| InternKon: 942 775 40 / 8
?	507 037 98	Nut	2	InternBDB: M 10 /985
?	507 596 98	Washer	9	InternBDB: A 11 ST DIN 07989 \| InternKon: 942 775 40 / 9
?	942 778 40	Retainer	1	InternKon: 942 775 40 / 10
?	942 776 40	Retainer	1	InternKon: 942 775 40 / 11
?	942 779 40	Retainer	1	InternKon: 942 775 40 / 12
?	510 744 98	Resilient sleeve	6	InternBDB: 13 /25X 32 / WN 34194840 \| InternKon: 942 775 40 / 14
?	340 467 99	Washer	6	InternBDB: B 13,0 / DIN 00125 \| InternKon: 942 775 40 / 15
?	307 808 99	Bolt	6	InternBDB: M12X 50 /DIN 00933 \| InternKon: 942 775 40 / 16
?	340 465 99	Washer	69	InternBDB: B 10,5 / DIN 00125 \| InternKon: 942 775 40 / 17
?	307 773 99	Bolt	57	InternBDB: M10X 16 / DIN 00933 \| InternKon: 942 775 40 / 18
?	0819320010	Clip	39	InternBDB: KES 08193 \| InternKon: 942 775 40 / 19
?	006 301 98	Clamp	24	InternBDB: RSGU1100 12/15 /01166099 \| InternKon: 910 019 40 / 1
?	007 625 98	Clamp	11	InternBDB: RSGU1100 42/25 /01166099 \| InternKon: 942 775 40 / 21
?	006 306 98	Clamp	-2	InternBDB: RSGU1100 30/25 /01166099 \| InternKon: 910 021 40 / 1
?	509 875 98	Thread pin	1	InternBDB: PM 8x25 /32500 \| InternKon: 910 021 40 / 2
?	334 599 99	Nut	1	InternBDB: M 8 /985 \| InternKon: 910 021 40 / 3
?	510 363 98	Clamp	5	InternBDB: RSGU1100 29/15 /01166099 \| InternKon: 910 028 40 / 1
?			-2
?			-2
?			-2
?			-2

Komatsu PC5500-6 S/N 15056 parts catalog PDF

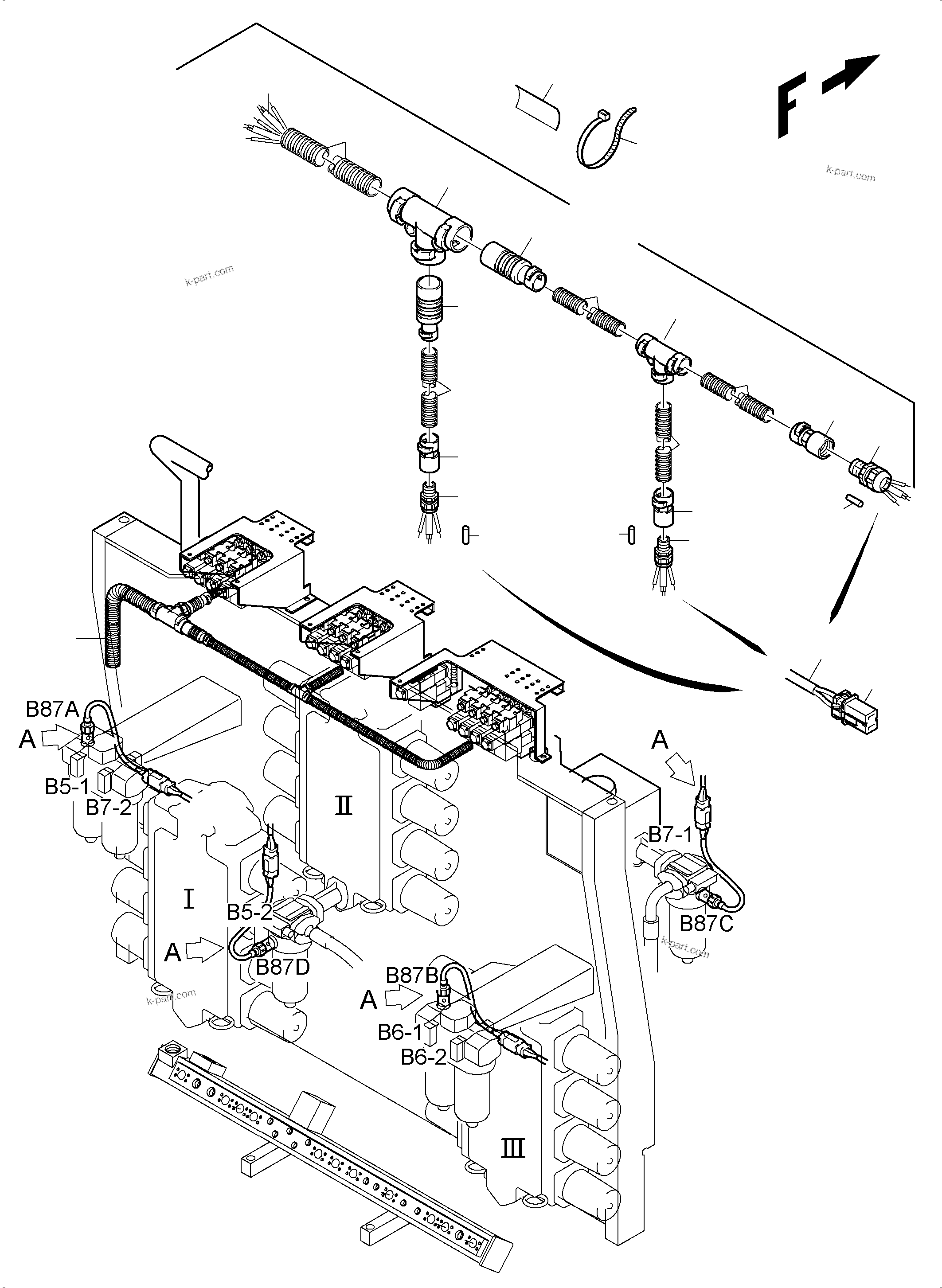

CABLES - CONTROL BLOCKS - H.P.-FILTER (515-2145j) in PC5500-6 S/N 15056. Diagram image and parts list.
