#	Part Number	Partname	Quantity	Options	Reference
?		Lube pump station	2	InternBDB: 907 677 40 \| InternKon: 915 682 40 / 2	991-0553c
?	915 680 40	Grease barrel	1	InternKon: 915 682 40 / 1
?		Pressure filter	2	InternBDB: 634 602 40 \| InternKon: 915 682 40 / 3	090-3139
?	516 322 98	Non-return valve	2	InternBDB: RHV 18-PLR-ED \| InternKon: 915 682 40 / 4
?	308 578 99	Bolt	8	InternBDB: M10x55 /931 \| InternKon: 915 682 40 / 9
?	510 746 98	Resilient sleeve	8	InternKon: 915 682 40 / 10
?	307 757 99	Bolt	8	InternBDB: M8x35 /933 \| InternKon: 915 682 40 / 11
?	340 464 99	Washer	8	InternBDB: 8,4 /125 \| InternKon: 915 682 40 / 12
?	374 412 99	Socket	2	InternBDB: S 30 E-G 1 1/4 \| InternKon: 915 682 40 / 13
?	371 265 99	Union	4	InternBDB: AS 30 /3870 \| InternKon: 915 682 40 / 14
?	906 352 40	Olive	4	InternBDB: ES-4 S 30 \| InternKon: 915 682 40 / 15
?	374 410 99	Socket	2	InternBDB: S 30 E-M /3901 \| InternKon: 915 682 40 / 16
?	928 707 40	Pipe Ш 30	1	InternBDB: 30x4/2391 \| InternKon: 915 682 40 / 17
?	928 708 40	Pipe Ш 30	1	InternBDB: 30x4/2391 \| InternKon: 915 682 40 / 18
?	308 321 99	Bolt	8	InternBDB: M16x90 /931 10.9 \| InternKon: 918 816 40 / 4
?	510 729 98	Resilient sleeve	8	InternKon: 918 816 40 / 5
?	332 355 99	Nut	8	InternBDB: M 16 /934 \| InternKon: 918 816 40 / 6
?	516 616 98	Socket	2	InternBDB: RI E 1 1/4 A x 3/4 \| InternKon: 918 816 40 / 12
?	907 051 40	Union	2	InternBDB: Voss 22-LR /OMD \| InternKon: 918 816 40 / 13
?	513 495 98	Hose assy. DN 20x1630	2	InternBDB: DOL 22 /DOL 22 \| InternKon: 918 816 40 / 7
?	512 715 98	Hose assy. DN 08x1200	1	InternBDB: DOL 10 /DOL 10-90 \| InternKon: 915 682 40 / 5
?	512 938 98	Hose assy. DN 12x1200	1	InternBDB: DOL 15 /DOL 15-90 \| InternKon: 915 682 40 / 6
?	516 173 98	Socket	1	InternBDB: L 10 /3944 \| InternKon: 915 682 40 / 7
?	516 175 98	Socket	1	InternBDB: SWRT-L15iso 08434 \| InternKon: 915 682 40 / 8
?	515 765 98	Socket	1	InternBDB: GZR 12/10-PL \| InternKon: 918 816 40 / 14
?	510 537 98	Socket	1	InternBDB: L 12 /3905 \| InternKon: 918 816 40 / 15
?	515 862 98	Socket	1	InternBDB: GZR 22/15-PL \| InternKon: 918 816 40 / 17
?	516 824 98	Union	1	InternBDB: E-L 22 /ISO 8434 \| InternKon: 918 816 40 / 16
?	515 570 98	Hose assy. DN 10x2500	1	InternBDB: DOL 12 /DOL 12 \| InternKon: 918 816 40 / 8
?	168 491 40	Hose assy. DN 20x2500	1	InternBDB: DOL 22 /DOL 22 \| InternKon: 918 816 40 / 11
?	255 400 40	Hose assy. DN 20x1500	1	InternBDB: DOS 25 /DOS 25 \| InternKon: 918 816 40 / 9
?	641 482 40	Hose assy. DN 20x2230	1	InternBDB: DOS 25 /DOS 25 \| InternKon: 918 816 40 / 10
?	518 206 98	Hose assy., with fire protection coating DN 20x13300	1	InternBDB: DOL 22 /DOL 22-90 \| InternKon: 912 736 40 / 2
?	518 239 98	Hose assy., with fire protection coating DN 10x 9000	1	InternBDB: DOL 12 /DOL 12-90 \| InternKon: 912 736 40 / 1
?	516 161 98	Socket	1	InternBDB: L28/3942 \| InternKon: 912 736 40 / 20
?	374 431 99	Socket	1	InternBDB: L28E-M/3901 \| InternKon: 912 736 40 / 18
?	551 345 40	Union	1	InternBDB: Red 28/22-PL/OMD \| InternKon: 912 736 40 / 19
?	516 618 98	Union	3	InternBDB: BH-L 22 ISO 8434 \| InternKon: 918 816 40 / 18
?	506 954 98	Nut	3	InternBDB: M30x2 /80705 \| InternKon: 918 816 40 / 19
?	513 144 98	Socket	1	InternBDB: L 12 /3910 \| InternKon: 918 816 40 / 20
?	509 267 98	Nut	1	InternBDB: M18x1,5 /80705 \| InternKon: 918 816 40 / 21
?	516 615 98	Union	2	InternBDB: BH-S 25 ISO 8434 \| InternKon: 918 816 40 / 22
?	509 272 98	Nut	2	InternBDB: M36x2 /80705 \| InternKon: 918 816 40 / 23
?	516 181 99	Socket	2	InternBDB: SWRT-S30 ISO 08434 \| InternKon: 915 682 40 / 23
?	515 224 98	Union	2	InternBDB: Red30/20-PS \| InternKon: 915 682 40 / 24
?	518 262 98	Hose assy. DN 16x430	1	InternBDB: DOS 20 /DOS 20-90 \| InternKon: 915 682 40 / 21
?	551 715 40	Hose assy. DN 16x390	1	InternBDB: DOS 20 /DOS 20-90 \| InternKon: 915 682 40 / 22
?	936 869 40	Retainer	1	InternKon: 936 851 40 / 1
?	509 060 98	Clamp set	5	InternBDB: L-5-G-32 PA DIN 03015 \| InternKon: 936 851 40 / 2
?	319 136 99	Screw	6	InternBDB: M 6X 50 /DIN 00912 \| InternKon: 936 851 40 / 3
?	515 669 98	Clamp set	7	InternBDB: L-4-G-26,9 PA /DIN 03015 \| InternKon: 936 851 40 / 4
?	319 417 99	Screw	10	InternBDB: M 6X 35 /DIN 00912 \| InternKon: 936 851 40 / 5
?	502 631 98	Clamp set	5	InternBDB: L-2-G-16 PP /DIN 03015 \| InternKon: 936 851 40 / 6
?	319 132 99	Screw	10	InternBDB: M 6X25 /DIN 00912 \| InternKon: 936 851 40 / 7
?	936 871 40	Retainer	1	InternKon: 936 852 40 / 1
?	509 057 98	Clamp set	1	InternBDB: L-3-G-20 PA /DIN 03015 \| InternKon: 936 852 40 / 6
?	319 133 99	Screw	2	InternBDB: M 6X30 /DIN 00912 \| InternKon: 936 852 40 / 7
?	936 874 40	Retainer	1	InternKon: 936 858 40 / 1
?	504 201 98	Clamp	2	InternBDB: S-3-G-30 PA /DIN 03015 \| InternKon: 936 858 40 / 4
?	308 581 99	Bolt	4	InternBDB: M10X70 /DIN 00931 \| InternKon: 936 858 40 / 5
?	534 004 99	Cover plate	2	InternBDB: S-DP-A-3 W1 /DIN 03015 \| InternKon: 936 858 40 / 6
?	936 875 40	Retainer	1	InternKon: 936 860 40 / 1
?	511 858 98	Cover plate	1	InternBDB: L-5 W1 /DIN 03015 \| InternKon: 936 860 40 / 3
?	320 025 99	Screw	2	InternBDB: M 6X110 /DIN 00912 \| InternKon: 936 860 40 / 5
?	511 857 98	Cover plate	2	InternBDB: L-4 W1 /DIN 03015 \| InternKon: 936 860 40 / 9
?	502 206 98	Bolt	2	InternBDB: M 6X90 /DIN 00931 \| InternKon: 936 860 40 / 10
?	936 862 40	Retainer	1	InternKon: 936 863 40 / 1
?	936 895 40	Retainer	2	InternKon: 936 896 40 / 1
?	533 989 99	Weld on plate	2	InternBDB: L-AP-K-2 /DIN 03015

Komatsu PC5500-6 S/N 15056 parts catalog PDF

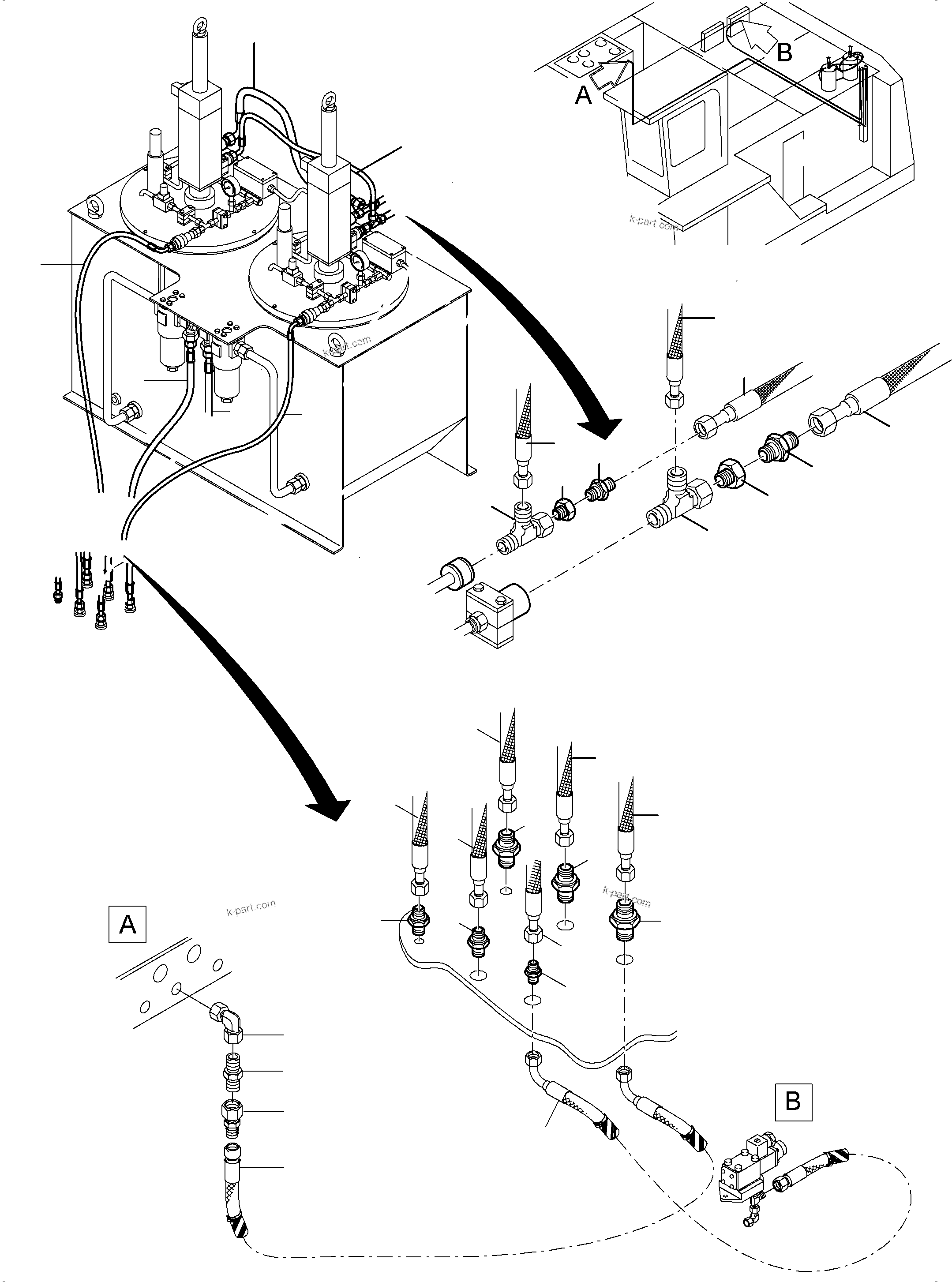

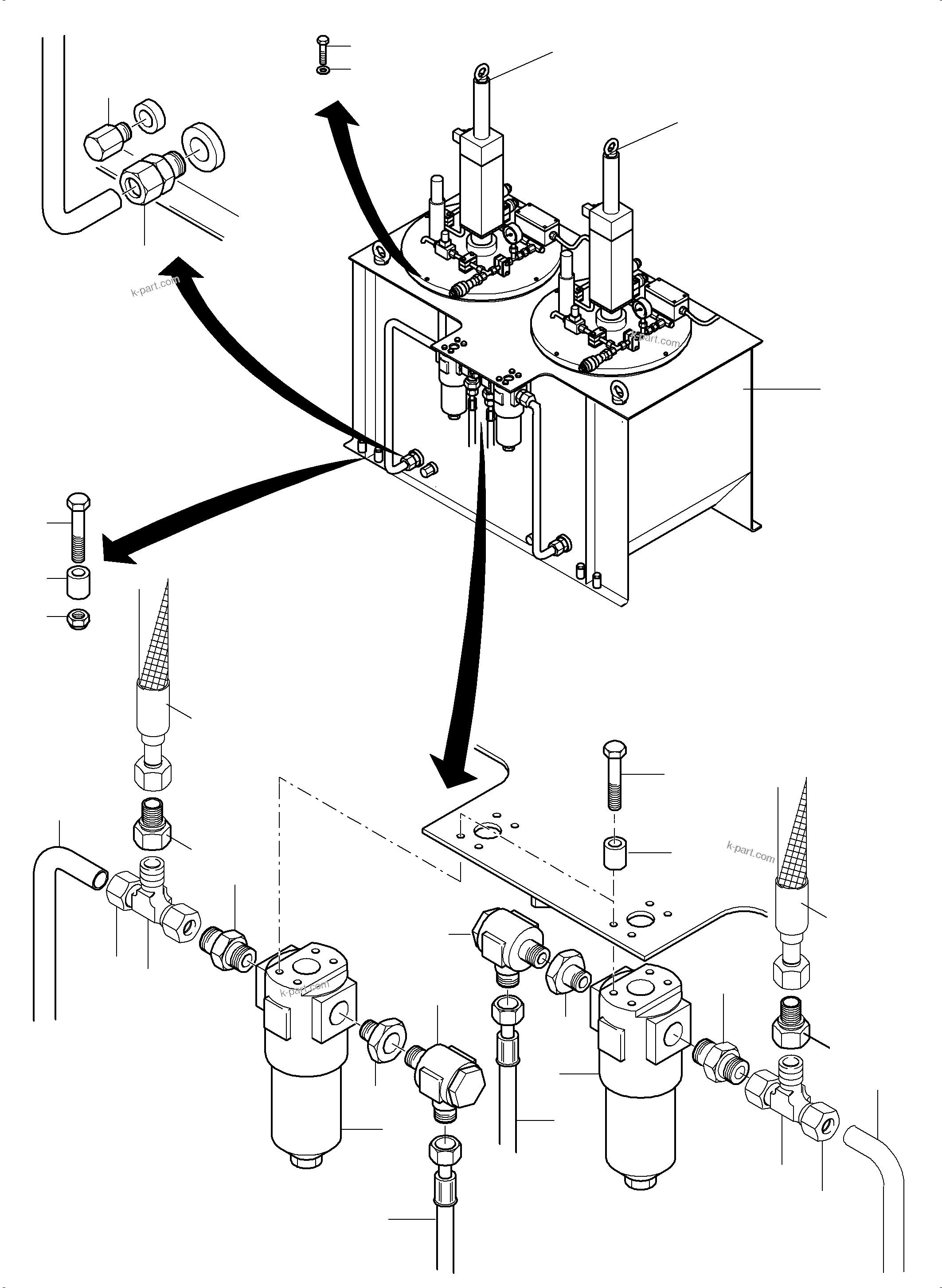

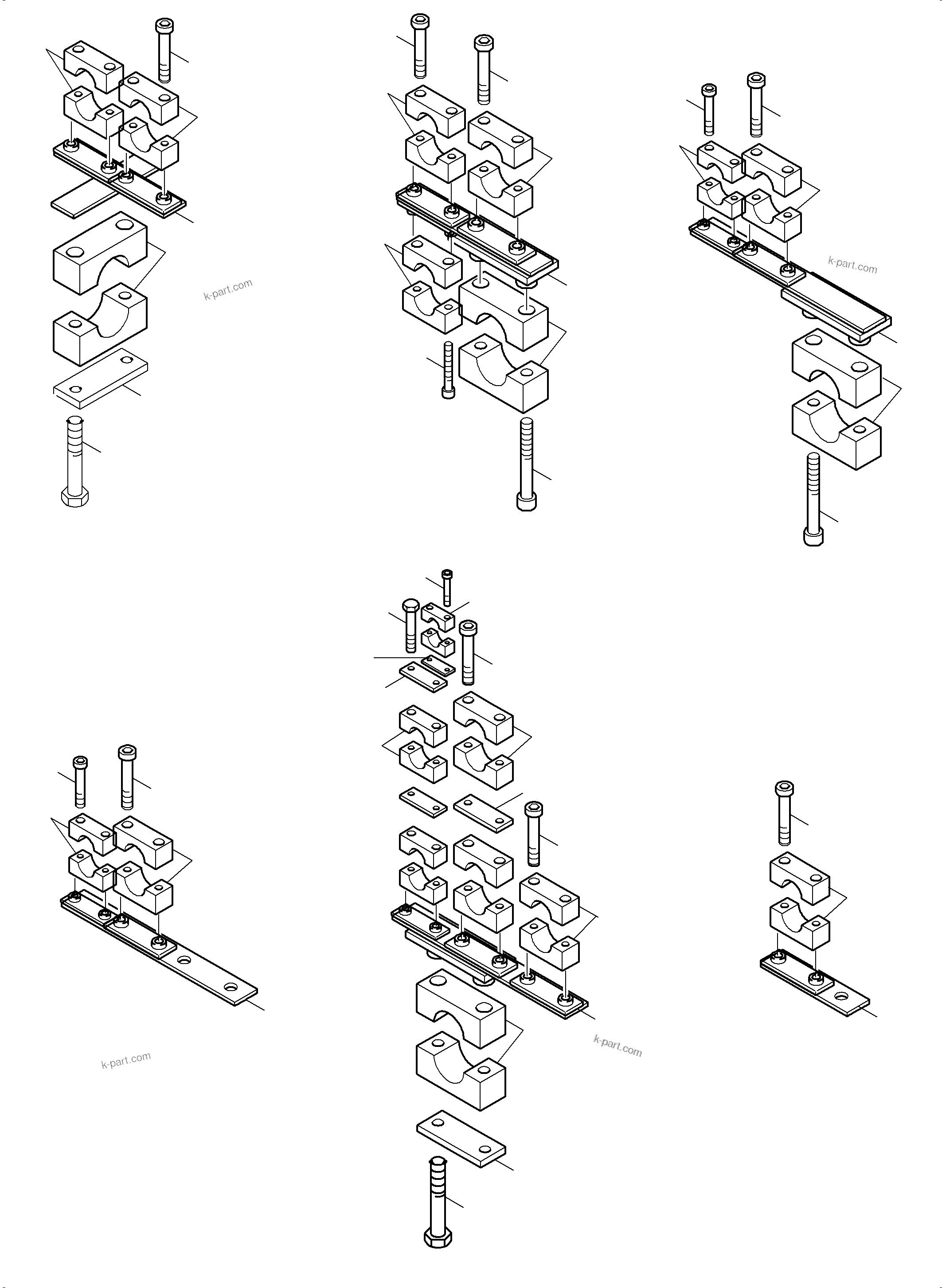

LUBE STATION ARR. (515-2310j) in PC5500-6 S/N 15056. Diagram image and parts list.
