#	Part Number	Partname	Quantity	Options
?	943 190 40	Planetary Gear assy.	1	InternBDB: Zollern ZHP 5.38-K
?	796 360 73	Drive Pos.01-60	1	InternBDB: 1052120 \| InternKon: / 40
?	796 361 73	Spur gear housing	1	InternBDB: 1042088 \| InternKon: / 1
?	796 362 73	Pinion shaft	2	InternBDB: 1042061 \| InternKon: / 2
?	796 363 73	Spur gear	1	InternBDB: 1042102 \| InternKon: / 3
?	796 364 73	Drive sleeve	2	InternBDB: 1052122 \| InternKon: / 4
?	796 365 73	Cover	2	InternBDB: 60242400669 \| InternKon: / 5
?	796 366 73	Motor flange	2	InternBDB: 1042080 \| InternKon: / 7
?	796 367 73	Ring	2	InternBDB: H7 60242400605 \| InternKon: / 8
?	796 368 73	Ring	2	InternBDB: 1042271 \| InternKon: / 10
?	796 369 73	Disc	4	InternBDB: 89x65,1x6 1042272 \| InternKon: / 14
?	796 370 73	Driver	1	InternBDB: 1042065 \| InternKon: / 15
?	796 371 73	Drive flange	2	InternBDB: 1042060 \| InternKon: / 16
?	796 372 73	Bearing flange	1	InternBDB: 1042069 \| InternKon: / 17
?	796 373 73	Cover	1	InternBDB: 1042068 \| InternKon: / 18
?	796 262 73	Cover	1	InternBDB: 60253600031 \| InternKon: / 19
?	796 374 73	Bolt	20	InternBDB: M30x280 8.8 DIN00912 verzinkt \| InternKon: / 20
?	321 596 99	Bolt	12	InternBDB: M16x60 8.8 DIN00912 verzinkt \| InternKon: / 21
?	514 195 98	Bolt	24	InternBDB: M12x160 8.8 DIN00912 verzinkt \| InternKon: / 22
?	513 855 98	Bolt	11	InternBDB: M12x50 8.8 DIN00931 verzinkt \| InternKon: / 24
?	307 487 99	Bolt	24	InternBDB: M16x30 8.8 DIN00933 verzinkt \| InternKon: / 25
?	502 196 98	Bolt	4	InternBDB: M8x25 8.8 DIN00933 verzinkt \| InternKon: / 26
?	307 639 99	Bolt	4	InternBDB: M8x16 8.8 DIN00933 verzinkt \| InternKon: / 27
?	509 283 98	Bolt	16	InternBDB: M16x60 8.8 DIN00933 verzinkt \| InternKon: / 28
?	514 233 98	Bolt	12	InternBDB: M10x25 8.8 DIN00912 verzinkt \| InternKon: / 31
?	500 253 98	Grooved ball bearing	2	InternBDB: 6040 NM200 A310 B51 DIN00625 60453000063 \| InternKon: / 38
?	361 435 99	Cylindrical roller bearing	4	InternBDB: NM65 NJ313E A140 B33 DIN05412 60453300124 \| InternKon: / 39
?	510 040 98	Shaft sealing ring	2	InternBDB: BA 90x120x12 NBR DIN03760 60441100345 \| InternKon: / 51
?	796 375 73	Shaft sealing ring	2	InternBDB: B1 130x160x8 NBR DIN03760 1042274 \| InternKon: / 52
?	796 263 73	O-ring	-2	InternBDB: 34,2x3 NBR-70 60541000079 \| InternKon: / 54
?	796 264 73	O-ring	2	InternBDB: 291,69x3,53 NBR-70 -35/120 1038850 \| InternKon: / 56
?	367 122 98	O-ring	2	InternBDB: 60x4 NBR 1038850 \| InternKon: / 57
?	796 376 73	O-ring	1	InternBDB: 335x4 NBR-70 -35/120 60541000418 \| InternKon: / 58
?	972 122 00	O-ring	2	InternBDB: 280x3 NBR-72 -35/120 60541000329 \| InternKon: / 59
?	313 395 99	Plug	2	InternBDB: M12x1,5 DIN00908 \| InternKon: / 60
?	339 985 99	Flat sealing ring	2	InternBDB: 12x15,5x1,5 A CU DIN07603 \| InternKon: / 61
?	313 397 99	Plug	2	InternBDB: M18x1,5 DIN00908 \| InternKon: / 64
?	340 285 99	Flat sealing ring	2	InternBDB: 18x22x1,5 A ST DIN07603 \| InternKon: / 65
?	796 377 73	Cover	2	InternBDB: 60240000131 \| InternKon: / 66
?	796 378 73	Connecting piece	2	InternBDB: A-M12x1,5_DI1 5 I-M18x1,5 SW22 L27 LG35 1043245 \| InternKon: / 67
?	796 379 73	Flat sealing ring	2	InternBDB: 12x16x1,5 A ST DIN07603 \| InternKon: / 68
?	796 280 73	Air Filter	2	InternBDB: 60524100003 \| InternKon: / 69
?	796 380 73	Adjusting ring	8	InternBDB: 75x160x0,5 DIN00988 \| InternKon: / 70
?	796 381 73	Pressure spring	40	InternBDB: 60402100312 \| InternKon: / 75
?	796 382 73	Pressure spring	40	InternBDB: 60402100313 \| InternKon: / 76
?	506 893 98	Disc	16	InternBDB: 30x17x3 DIN00125 \| InternKon: / 79
?	313 126 99	Plug	1	InternBDB: M48x2 DIN00910 \| InternKon: / 80
?	796 383 73	Flat sealing ring	1	InternBDB: 48x55x2 A ST DIN07603 \| InternKon: / 81
?	796 269 73	Oil Dipstick	1	InternBDB: M22x1,5 OF 0 60543400064 \| InternKon: / 92
?	340 294 99	Flat sealing ring	1	InternBDB: 22x27x1,5 A ST DIN07603 \| InternKon: / 93
?	796 384 73	Oil pressure unit	2	InternBDB: 60506701104, Dichtungen Bremse sind hier eingebaut \| InternKon: / 95
?	796 385 73	Disc housing	2	InternBDB: 1020605 \| InternKon: / 96
?	796 386 73	Outer disc	22	InternBDB: 60506700192 \| InternKon: / 97
?	796 387 73	Inner disc	20	InternBDB: 60506700193 \| InternKon: / 98
?	753 634 00	O-ring	2	InternBDB: 177,39x3,53 NBR-70 -35/120 60541000185 \| InternKon: / 910
?	313 459 99	Plug	1	InternBDB: M22x1,5 DIN00908 \| InternKon: / 920
?	340 294 99	Flat sealing ring	9	InternBDB: 22x27x1,5 A ST DIN07603 \| InternKon: / 930
?	313 267 99	Plug	8	InternBDB: M22x1,5 DIN00910 \| InternKon: / 940
?	796 388 73	Adjusting ring	18	InternBDB: 230x200x0,8 60230001978 \| InternKon: / 950
?	342 591 99	Locking ring	1	InternBDB: 200x4 A DIN00471 \| InternKon: / 960
?	796 358 73	Gear Pos.101,105,108	1	InternBDB: 1052088 \| InternKon: / 1
?	796 411 73	Planetary stage cpl., exist. of pos. 102-104	1	InternBDB: 1042117 \| InternKon: / 11
?	796 389 73	Inner wheel	1	InternBDB: 1042044 \| InternKon: / 111
?	796 390 73	Sun wheel	1	InternBDB: 1041020 \| InternKon: / 113
?	360 565 99	Grooved ball bearing	1	InternBDB: 6215 NM75 A130 B25 DIN00625 \| InternKon: / 1120
?	796 412 73	Planetary stage cpl., exist. of pos. 106-107	1	InternBDB: 1042119 \| InternKon: / 21
?	796 391 73	Inner wheel	1	InternBDB: 1006588 \| InternKon: / 211
?	796 392 73	Sun wheel	1	InternBDB: 1006650 \| InternKon: / 213
?	796 413 73	Planet carrier cpl., exist. of pos. 109-112	1	InternBDB: 1042120 \| InternKon: / 24
?	796 393 73	Planet carrier	1	InternBDB: 1041035 \| InternKon: / 241
?	342 583 99	Locking ring	1	InternBDB: 240x5 A DIN00471 \| InternKon: / 244
?	360 471 99	Grooved ball bearing	1	InternBDB: 16040 NM200 A310 B34 DIN00625 \| InternKon: / 246
?	502 401 98	O-ring	1	InternBDB: 310x5 NBR-70-35/120 60541000530 \| InternKon: / 247
?	796 359 73	Output, pos. 201-224	1	InternBDB: 1052089 \| InternKon: / 30
?	796 394 73	End housing DW	1	InternBDB: 1042045 \| InternKon: / 3
?	796 395 73	Planetary carrier	1	InternBDB: 1040902 \| InternKon: / 4
?	796 396 73	Intermediate housing	1	InternBDB: 1042111 \| InternKon: / 6
?	796 397 73	Cover	1	InternBDB: 1042047 \| InternKon: / 10
?	796 398 73	Cover	1	InternBDB: 1042046 \| InternKon: / 11
?	796 399 73	Cover	1	InternBDB: 1042049 \| InternKon: / 12
?	319 330 99	Bolt	8	InternBDB: M20x280 8.8 DIN00912 verzinkt \| InternKon: / 25
?	307 491 99	Bolt	8	InternBDB: M16x50 8.8 DIN00933 verzinkt \| InternKon: / 26
?	796 400 73	Bolt	40	InternBDB: M36x360 8.8 DIN00912 vergьtet schwarz \| InternKon: / 28
?	501 095 98	nut	40	InternBDB: M36 DIN00934 verzinkt \| InternKon: / 29
?	796 401 73	Grooved ball bearing	1	InternBDB: 60/560 NM560 A820 B115 DIN00625 \| InternKon: / 30
?	368 115 99	Grooved ball bearing	1	InternBDB: 6034 NM170 A260 B42 DIN00625 \| InternKon: / 32
?	796 402 73	Locking ring	1	InternBDB: 530x8 DIN00471 \| InternKon: / 40
?	796 403 73	Locking ring	1	InternBDB: 390x6 DIN00472 \| InternKon: / 41
?	796 404 73	Shaft sealing ring	2	InternBDB: B2 600x640x20 NBR DIN03760 \| InternKon: / 50
?	796 405 73	O-ring	1	InternBDB: 520x5 NBR-72 -35/120 60541000457 \| InternKon: / 51
?	796 406 73	O-ring	1	InternBDB: 800x4 NBR-72 -35/120 60541000481 \| InternKon: / 52
?	796 407 73	O-ring	1	InternBDB: 380,59x3,53 NBR-72 -35/120 60541000488 \| InternKon: / 53
?	796 408 73	O-ring	1	InternBDB: 266,29x3,53 NBR-70 -35/120 60541000219 \| InternKon: / 54
?	313 126 98	Plug	2	InternBDB: M48x2 DIN00910 \| InternKon: / 60
?	796 409 73	Flat sealing ring	2	InternBDB: 48x55x2 A ST DIN07603 \| InternKon: / 61
?	509 319 98	Plug	1	InternBDB: M30x1,5 DIN00910 \| InternKon: / 62
?	796 410 73	Flat sealing ring	1	InternBDB: 30x36x2 A ST DIN07603 \| InternKon: / 63
?	313 507 99	Eyebolt	1	InternBDB: M36 1042188 \| InternKon: / 80
?	796 511 73	Gasket set gear, without brake	-2	InternBDB: ZHP 5.38 - 1038452 Dichtsatz
?	796 512 73	Disc set, brake, pos. 53 + 54	-2	InternBDB: ZHP 5.38 - 1038452 Lamellensatz, fьr beide Bremsen
?	796 513 73	Bearing set cpl. (without planet carrier bearings)	-2	InternBDB: ZHP 5.38 - 1038452 Lagersatz
?	796 566 73	Disc brake, existing of pos. 51-54	-2	InternBDB: 506700567

Komatsu PC5500-6 S/N 15056 parts catalog PDF

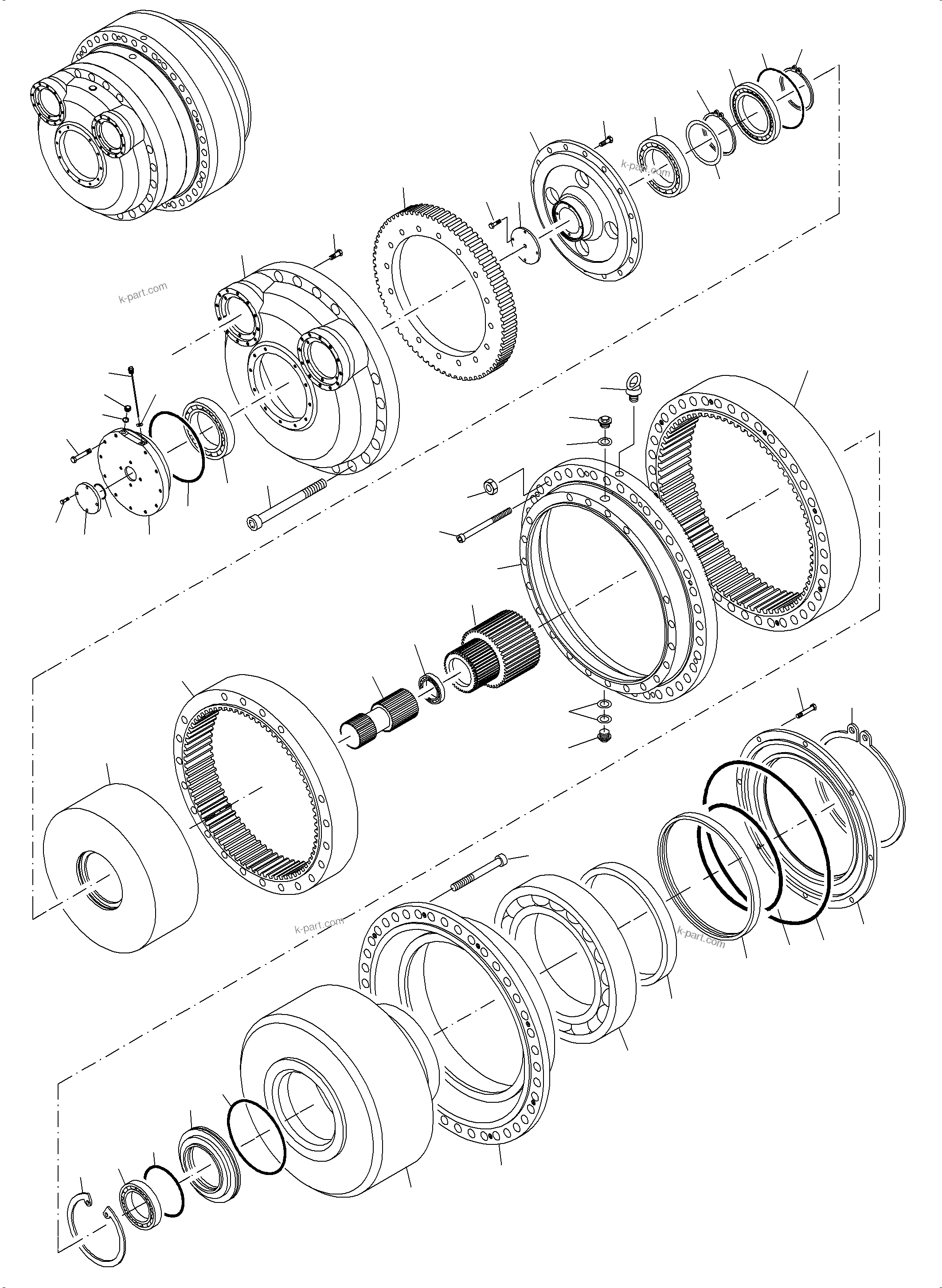

TRAVELLING GEAR (991-0770) in PC5500-6 S/N 15056. Diagram image and parts list.
