Diagram image 1 of 4

PC8000-6E S/N 12087

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC8000-6E S/N 12087

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC8000-6E S/N 12087

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC8000-6E S/N 12087

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	950 158 40	Head light assy.	12
?	797 352 73	Bulb	12
?	307 777 99	Bolt	20
?	952 080 40	Lamp bracket	1
?	952 071 40	Lamp bracket	2
?	946 033 40	Lamp bracket	4
?	507 037 97	Nut	28
?	340 465 99	Washer	28
?	517 122 98	Lock washer	16
?	940 726 40	Light switch	3
?	940 728 40	Safety switch	1
?	940 729 40	Emergency switch-off	4
?	321 010 99	Screw	32
?	0819320010	Clip	6
?	940 869 40	Socket	4
?	634 009 40	Spotlight	14
?	507 383 99	Halogen lamp	14
?	769 155 73	Seal	14
?	769 156 73	Glass, white	14
?	926 510 40	Plate	13
?	319 143 99	Screw	14
?	343 108 99	Lock washer	14
?	898 629 40	Rotaflare light yellow assy.	1
?	898 612 40	Retainer	1
?	896 497 40	Rotaflare light 24 yellow	1
?	180 322 40	Plug	1
?	323 960 40	Tab	2
?	907 476 40	Cable union DN 10	22
?	655 649 40	Cable protection hose DN 10	-2
?	517 326 98	Reducing M16/M12	2
?	517 320 98	cable nut M12	2
?	655 650 40	Cable protection hose DN 12	-2
?	655 631 40	Pipe adapter DN 12/10	6
?	515 213 40	Cable 1,0 qmm	-2
?	515 214 40	Cable 2,5 qmm	-2
?	906 420 40	T-Distributor DN 12	2
?	655 651 40	Cable protection hose DN 17	-2
?	655 629 40	T-Distributor DN 17	3
?	655 632 40	Pipe adapter DN 17/10	7
?	940 471 40	Fitting M 16 / DN 10	4
?	907 703 40	Cable union	4
?	940 463 40	Insulating tube Ш 7	-2
?	0819212920	Plug assy.	6
?	940 452 40	Fitting M25/DN17	1
?	907 709 40	Cable union	1
?	940 462 40	Insulating tube Ш 6	-2
?	655 628 40	T-Distributor DN 10	8
?	056 070 40	Cable sleeve 1,0-1,5	62
?	941 777 40	Name plate	14
?	056 292 40	Cable strap	12
?	006 301 98	Clamp 12/15	35
?	510 210 98	Thread pin	37
?	507 025 98	Nut	37
?	655 633 40	Pipe adapter DN 17/12	1
?	896 520 40	End pin	4
?	944 639 40	Harness lighting equipment - engine housing engine	1
?	944 638 40	Harness lighting equipment - engine housing	1
?	944 637 40	Harness - socket- engine housing	1
?	944 636 40	Harness lighting equipment - ladder H47	1
?	944 635 40	Harness - safety switch S58	1
?	944 631 40	Harness - emergency push buttom S33A	1
?	944 632 40	Harness - emergency push buttom S33B	1
?	944 633 40	Harness - emergency push buttom S33C	1
?	944 634 40	Harness - emergency push buttom S33D	1
?	958 619 40	Harness - lighting equipment-oil cooler	1
?	952 628 40	Harness - lighting equipment-counter weight	1
?	957 828 40	Harness - lighting equipment-cap support	1
?	952 675 40	Plug assy. with rubber grommet	8
?	174 411 40	Cable strap	18
?	950 209 40	End grommet	1
?	950 189 40	Plug	8
?	950 190 40	Rubber grommet	8
?	006 306 98	Clamp 30/25	5
?	509 875 98	Thread pin	5
?	500 486 98	Clamp 51/25	1
?	919 436 40	Retainer	30
?	307 727 99	Bolt	46
?	350 762 99	Washer	77
?	906 413 40	Cable channel	-2
?	906 802 40	Cable channel	-2
?	307 646 99	Bolt	39
?	334 506 99	Nut	39
?	946 284 40	Retainer	10
?	919 439 40	Retainer	4
?	346 499 99	Lock washer	16
?	350 763 99	Washer	8
?	946 316 40	Plate	1
?	510 363 98	Clamp 29/15	1
?	145 831 40	Clamp 20/15	1
?	919 437 40	Retainer	4
?	307 780 99	Bolt	8
?	948 874 40	Harness - additional lighting	2
?	907 692 40	Fitting PG 9	2
?	907 704 40	Cable union	2
?	896 521 40	End pin	1

Komatsu PC8000-6E S/N 12087 parts catalog PDF

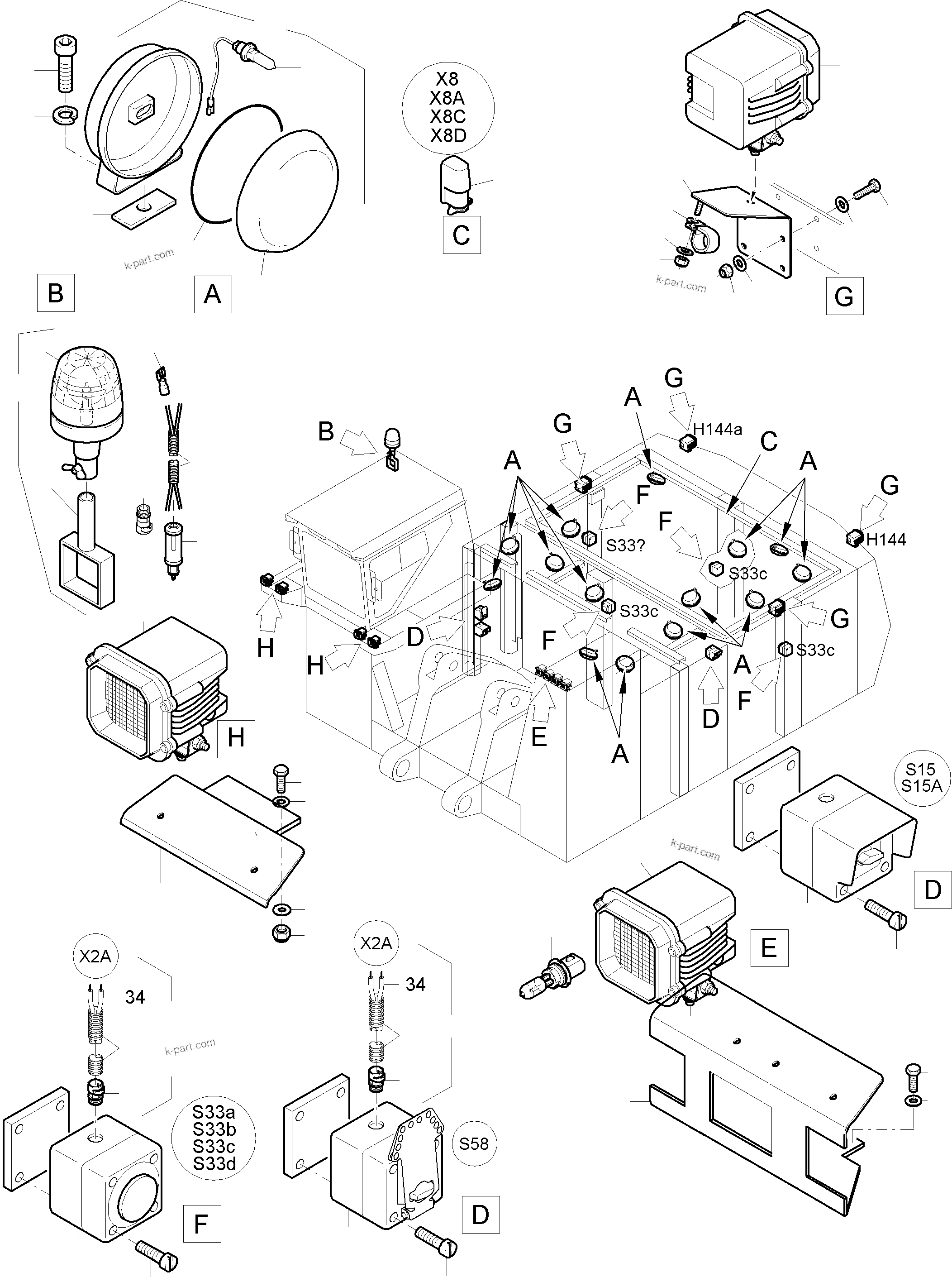

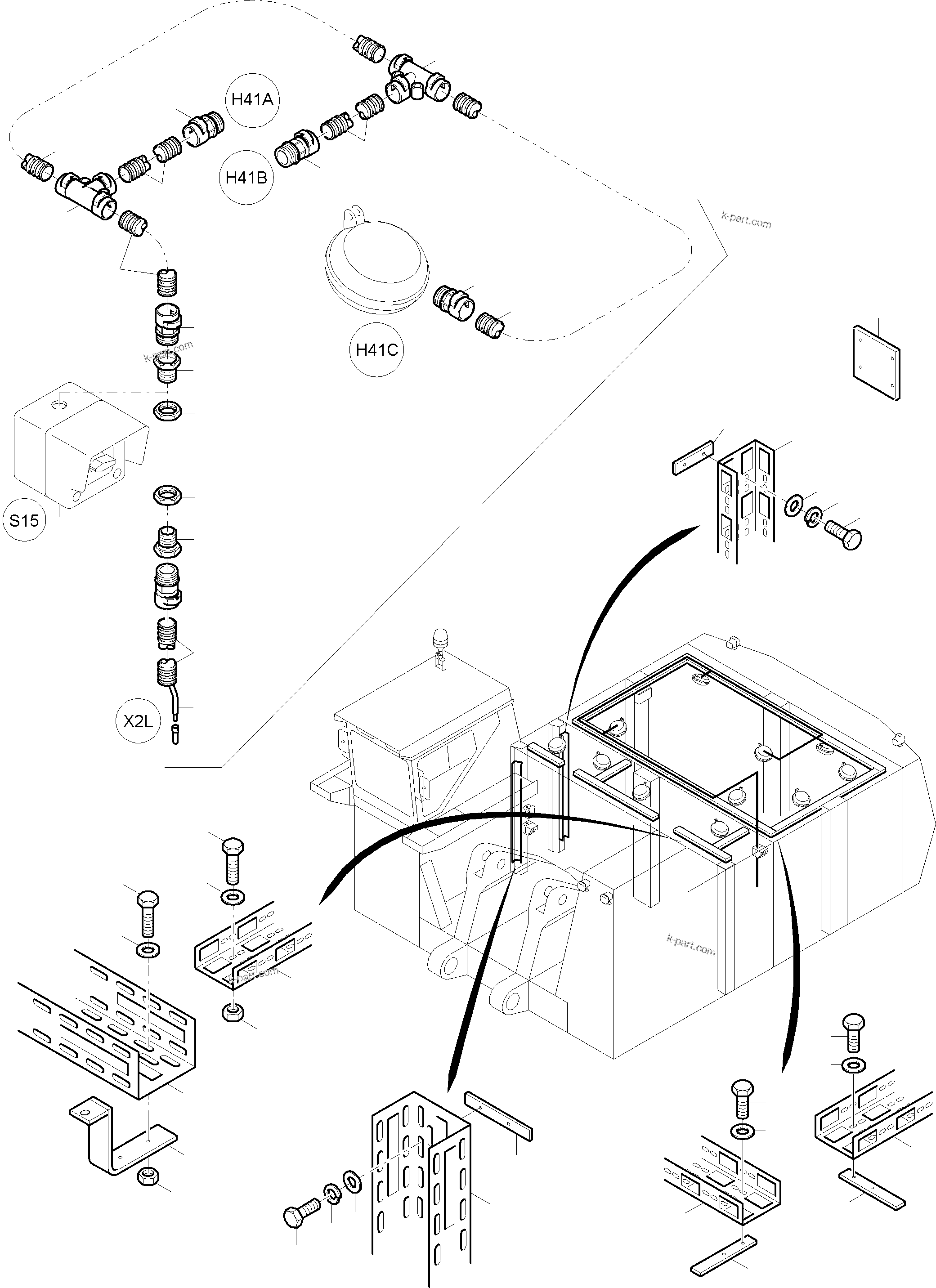

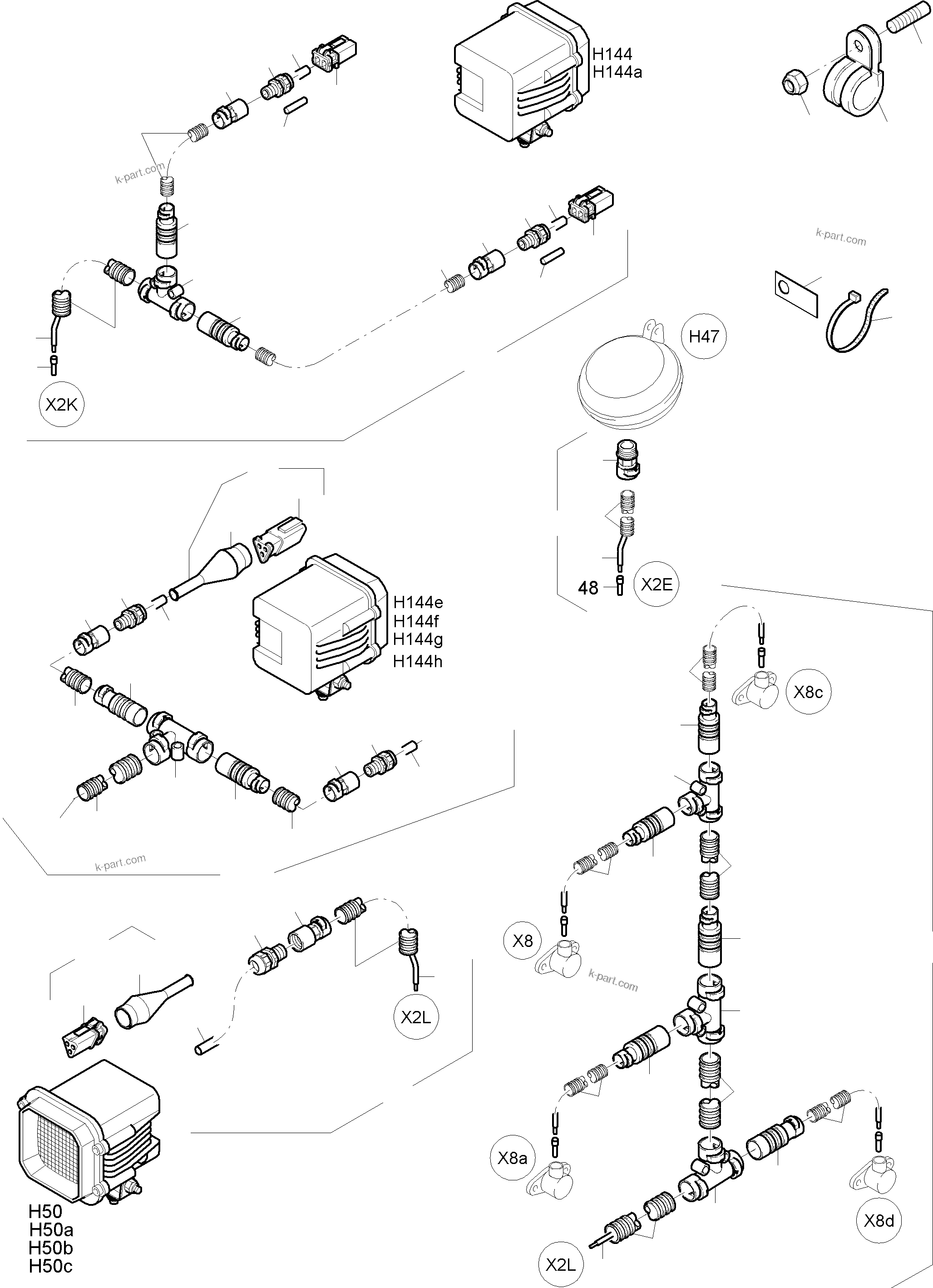

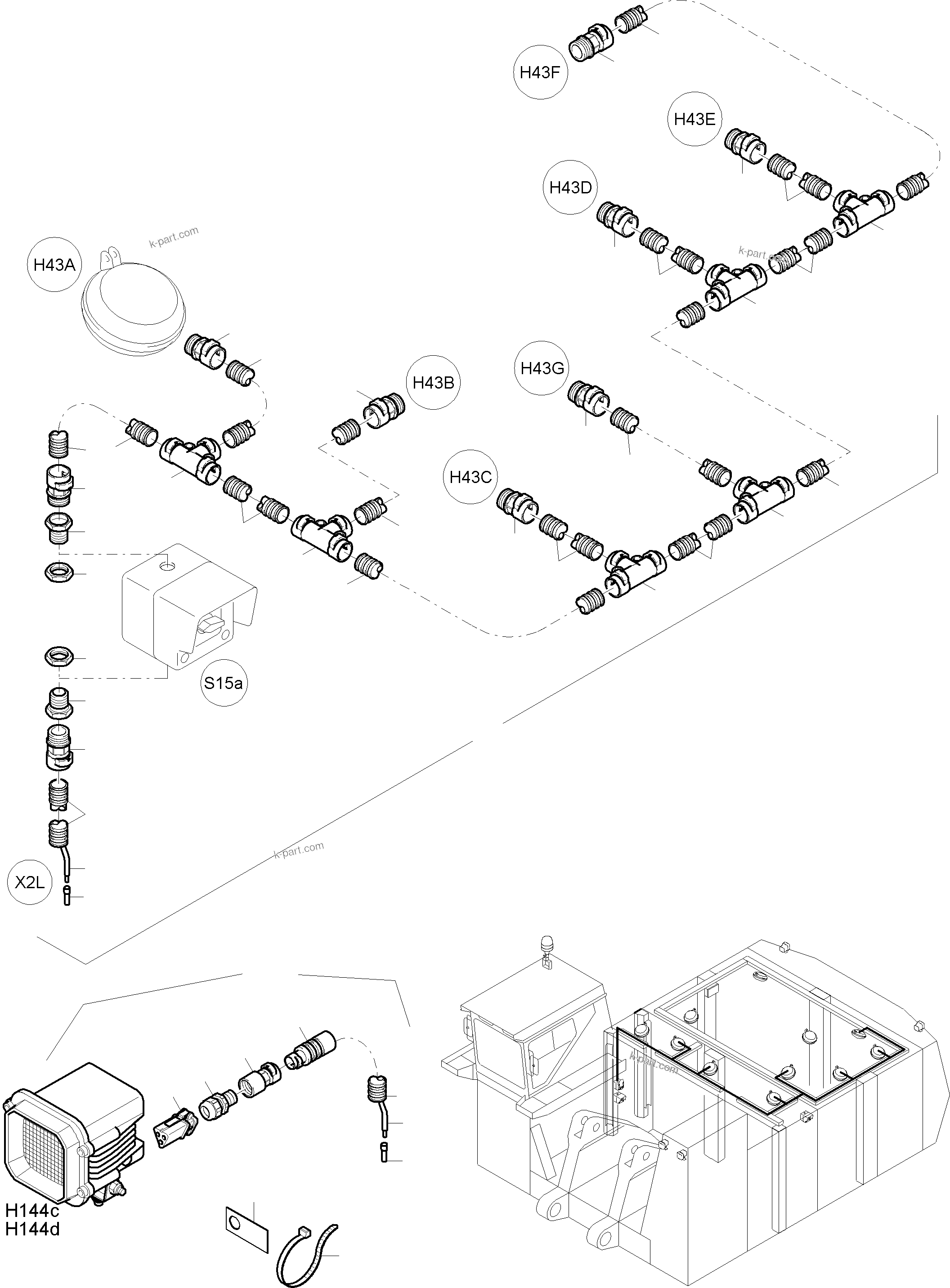

LIGHTING EQUIPMENT (612-2105o) in PC8000-6E S/N 12087. Diagram image and parts list.
