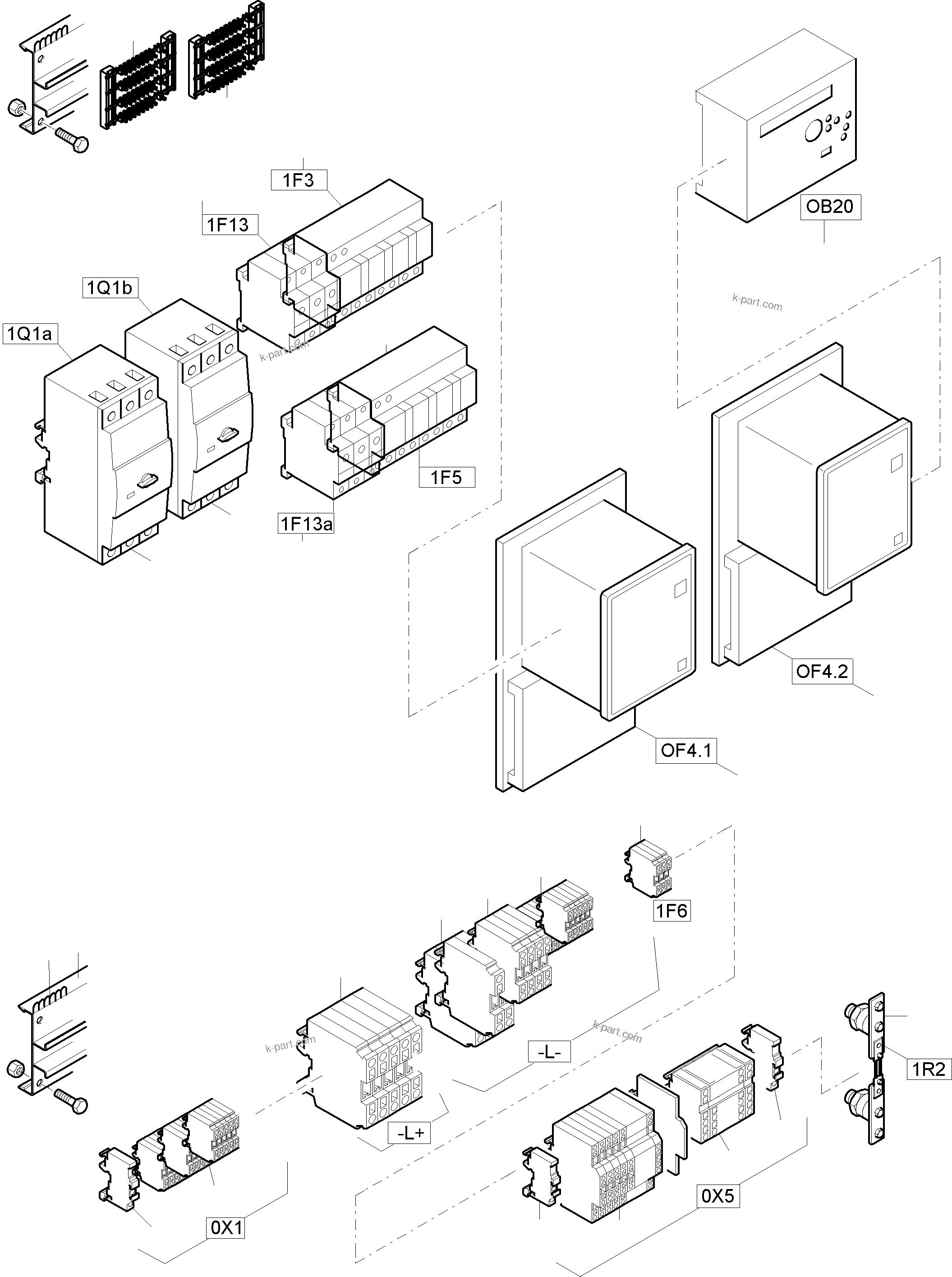

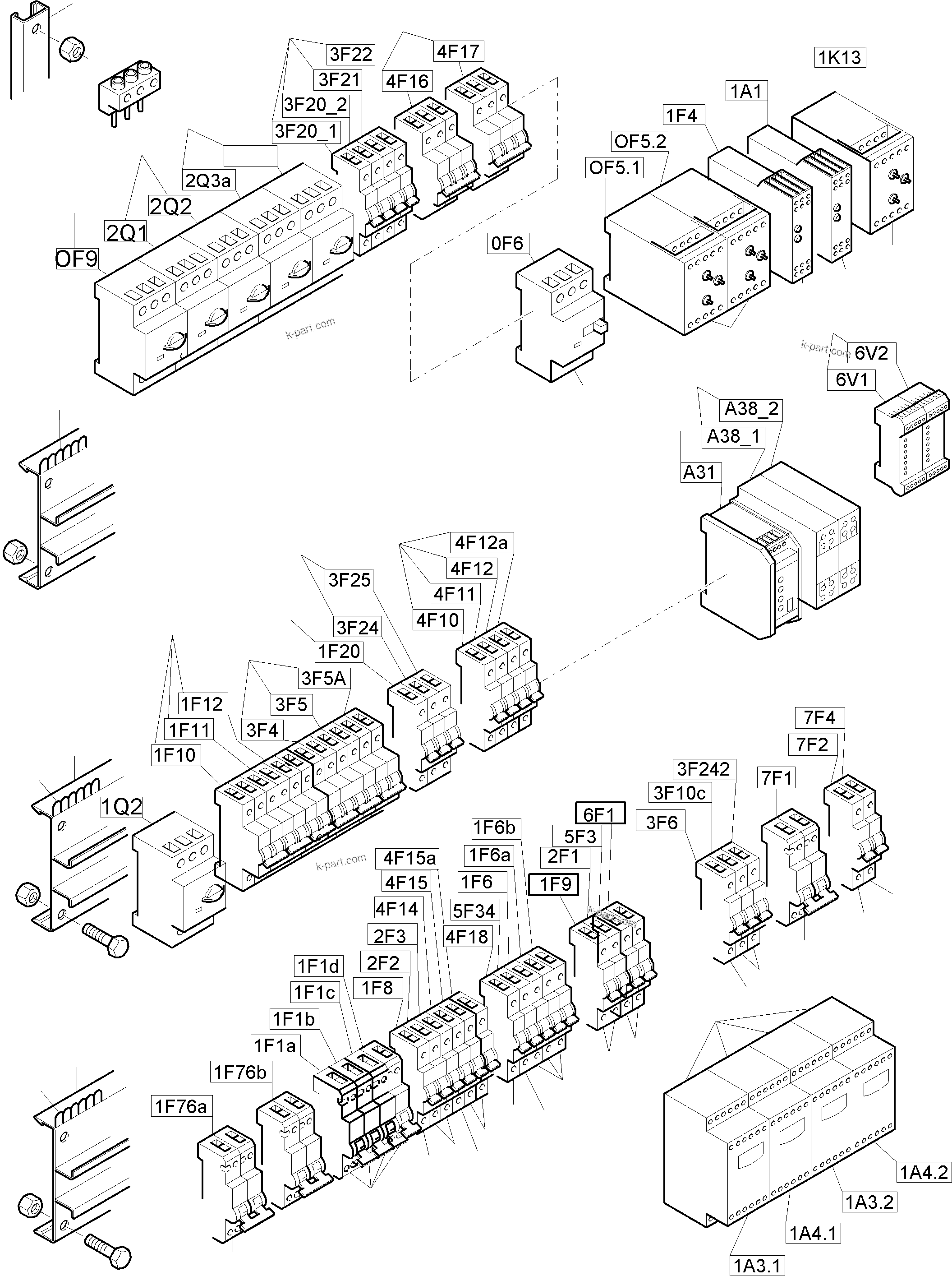

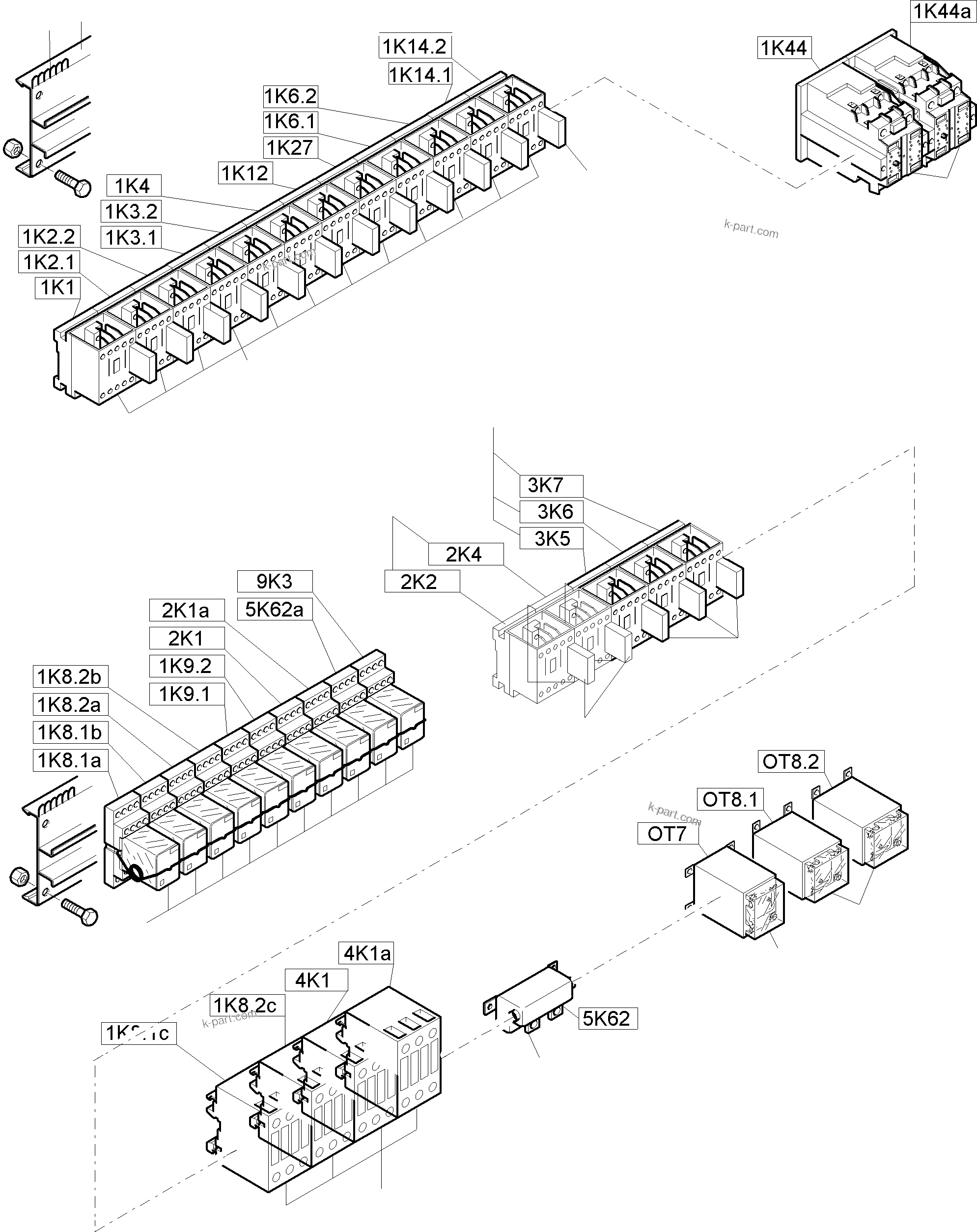

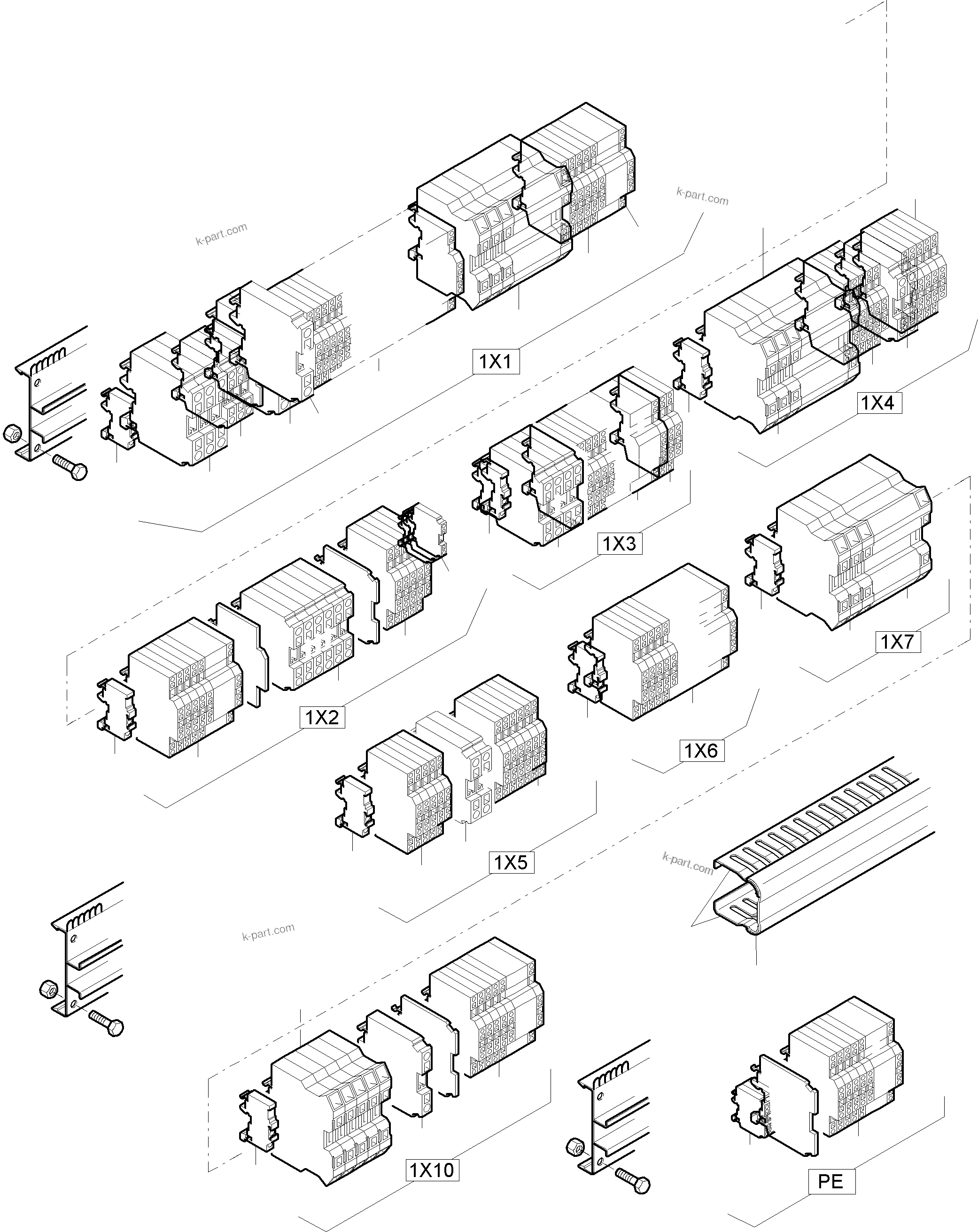

Diagram image 1 of 4

PC8000-6E S/N 12087

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC8000-6E S/N 12087

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC8000-6E S/N 12087

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC8000-6E S/N 12087

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	796 346 73	Power switch 4,5-6,3A	2
?	797 175 73	Power switch 0,55-0,8A	1
?	795 856 73	Power switch 9-12,5A	2
?	765 150 73	Breaker 63A 3-pol.	2
?	795 383 73	Breaker 6A 1-pol.	16
?	792 860 73	Voltage converter - safety breaker 2,5A	1
?	798 117 73	Current relay	2
?	797 742 73	Actuator assy.	1
?	795 910 73	Phase sequence relay	1
?	797 743 73	Low voltage relay	1
?	792 832 73	Power switch 0,14-0,2A	1
?	794 720 73	Breaker 16A 2-pol.	3
?	797 176 73	Temperature monitoring relay	4
?	795 370 73	Breaker 16A 2-pol.	3
?	794 176 73	Breaker 63A	4
?	769 177 73	Breaker 40A	1
?	795 366 73	Breaker 16A 1-pol.	8
?	795 393 73	Breaker 25A 1-pol.	4
?	796 744 73	Breaker 80A	3
?	765 906 73	Diode array	2
?	323 179 40	Power relay	1
?	792 823 73	Servo contactor	12
?	795 912 73	Overvoltage limiter	16
?	761 981 73	Contactor	3
?	795 367 73	Breaker 10A	2
?	797 744 73	Contactor	4
?	796 812 73	Overvoltage limiter	4
?	792 824 73	Contactor	2
?	940 020 40	Relay	10
?	592 338 40	Socket	10
?	414 369 40	Spring retainer	10
?	941 613 40	Signal rectifier ESR 3	1
?	894 590 40	Measuring transducer	2
?	696 221 73	Current breaker	2
?	796 742 73	Overvoltage limiter	2
?	797 177 73	Overvoltage protection 1F3, 1F5	2
?	796 743 73	Break switch	2
?	797 746 73	Fuse cartrigde	6
?		Power Quality Meter	1
?	798 206 73	Motor protection relay with mounting frame OF4	2
?	792 827 73	Power switch 57-75A	1
?	792 828 73	Power switch 36-50A	1
?	769 173 73	Voltage converter	1
?	769 174 73	Voltage transformer	2
?	761 603 73	Aux. resistor	1
?	769 185 73	Potential distributor 125 A	-2
?	769 186 73	Potential distributor 80 A	-2
?	635 728 40	Sectional plate	11
?	323 233 40	Wiring profile	-2
?	323 237 40	Wiring terminal	14
?	490 929 40	Assembly rail WP 1450	2
?	323 234 40	Cover	-2
?	940 673 40	Clamp	-2
?	906 612 40	Twin terminal 2,5	-2
?	793 773 73	Series terminal 2,5	-2
?	793 771 73	Protective wire clip 2,5	-2
?		Series terminal	-2
?		Series terminal	-2
?		Series terminal	-2
?		Series terminal	-2
?	793 776 73	Protective wire clip 35,0	-2
?	795 624 73	Protective wire clip 2,5	-2
?	765 910 73	Terminal marker	-2
?			-2
?			-2

Komatsu PC8000-6E S/N 12087 parts catalog PDF

MOUNTING PLATE - CAB SUPPORT (991-1067) in PC8000-6E S/N 12087. Diagram image and parts list.
