Diagram image 1 of 6

PC8000-6 S/N 12082

106 107 107 107 108 108 109 110 111 111 111 111 111 111 115 116 117 13 13 13 14 14 15 16 17 17 17 18 19 20 20 20 20 21 21 22 22 23 24 25 26 27 27 27 27 27 28 28 29 29 30 30 31 32 32 32 32 33 34 47 48 49 50 51 52 59 59 60 61

PC8000-6 S/N 12082

01 02 03 04 05 06 07 100 100 100 105 105 11 12 140 141 141 142 39 65 66 66 66 66 66 66 66 67 67 67 67 67 67 67 67 68 68 68 68 68 68 68 68 68 68 69 70 71 71 71 71 71 71 71 71 71 71 71 71 71 71 71 71 71 71 71 71 711 711 712 712 72 73 74 75 76 77 80 80 80 80 80 80 80 82 82 82 82 82 83 83 83 83 84 84 84 84 84 84 84 84 88 88 88 88 88 89 89 89 89

PC8000-6 S/N 12082

100 100 100 105 11 121 121 121 121 122 122 123 123 124 124 124 125 125 125 125 130 131 132 133 134 35 36 37 38 42 43 44 45 46 54 65 66 66 67 67 67 67 67 67 67 67 67 68 68 68 68 68 68 68 69 70 71 71 71 71 71 71 71 71 71 71 714 72 73 74 75 80 80 80 80 82 82 82 82 83 83 83 83 84 84 84 84 84 84 84 84 88 88 88 88 89 89 89 89

PC8000-6 S/N 12082

08 09 10 67 67 67 67 67 67 67 67 67 67 67 67 69 70 71 71 71 71 714 95 95 95 96 96 96 97 97 97 97 97 97 97 97 97 97 97 97 97 97 97 97 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 99 99 99 99 99 99

PC8000-6 S/N 12082

40 41 53 67 67 67 67 67 67 67 67 67 67 67 67 71 71 716 716 95 95 95 96 96 96 96 96 96 96 96 96 97 97 97 97 97 97 97 97 97 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 99 99 99 99 99 99

PC8000-6 S/N 12082

135 135 136 136 136 136 136 136 137 137 137 137 137 137 138 138 138 138 30 30 30 30 55 56 57 58 69 70 71 71 80 80

#	Part Number	Partname	Quantity
01	957 021 40	Cable-battery 11X_71.1 / 71X_71.1	1
02	957 022 40	Cable-generator ground 52G005-1.- GND	1
03	957 023 40	Cable-battery 71G001.- / 71X_71.8	1
04	957 024 40	Cable-battery 71G004.+ / 71X_71.7	1
05	957 025 40	Cable-battery 71G002+ / 71X_71.7	1
06	957 026 40	Cable-battery 71G003.+ / 71G004.-	1
07	957 027 40	Cable-battery 71G001.+ / 71G002.-	1
08	957 028 40	Cable-starter 71X_71.3/4	1
09	957 029 40	Cable 0Q003/4 OUT	1
10	957 030 40	Cable 50Q003/4 IN	1
11	957 032 40	Cable-battery 71G003.- / 71X_71.8	1
12	957 033 40	Cable-battery 52G005-1 / 71X_71.2	1
13	502 658 98	Half clamp	18
14	534 008 99	Cover plate	14
15	504 787 98	Locking plate	4
16	504 786 98	Screw	8
17	159 984 40	Battery switch	3
18	321 014 99	Screw	6
19	332 113 99	Nut	4
20	309 691 40	Battery	8
21	334 600 99	Nut	15
22	340 652 99	Washer	16
23	957 036 40	Shunt assy. 71X_71	1
24	507 025 98	Nut	4
25	957 037 40	Clamp rail assy. 71X_71.8-17	1
26	952 885 40	Rubber plat 3X110X580	2
27	340 465 99	Washer	26
28	343 006 99	Washer	24
29	0443452110	Clip NW17	8
30	0443452711	Clip NW23	18
31	518 080 98	Resilent sleeve	1
32	507 037 98	Nut	14
33	307 779 99	Bolt	3
34	916 641 40	Angle	2
35	957 035 40	Cable-battery 71X_71.13 / 71GND	1
36	957 031 40	Cable-battery 71G005- / 71X_71.10	1
37	957 039 40	Cable-battery 71G005.+ / 71G006.-	1
38	957 040 40	Cable-battery 71G006.+ / 71X_71.5	1
39	957 041 40	Cable 52G005-2.+ / 71X_71.2	1
40	957 042 40	Cable-starter 71X_71.5/6	1
41	957 043 40	Cable-starter 71x_71.11/15	1
42	957 044 40	Cable 52G005-2.- / GND	1
43	957 046 40	Cable-battery 1G009 / 50Q002.IN	1
44	957 047 40	Cable 71G009.+ / 71G008.-	1
45	957 048 40	Cable-battery 71G008.+ / 11X_71.4	1
46	957 049 40	Cable-battery 50Q002 / 71x_71.11	1
47	952 884 40	Rubber plat 3X80X740	1
48	952 883 40	Rubber plat 3X115X520	2
49	952 882 40	Rubber plat 3X70X1500	1
50	952 881 40	Rubber plat 3X150X1500	1
51	952 880 40	Rubber plat 3X55X580	2
52	952 879 40	Rubber plat 3X80X630	2
53	957 084 40	Cable starter 71X_71.12/16	1
54	957 085 40	Cable battery 13GND / 71X_71.12	1
55	960 192 40	Cable prelub pump 1	1
56	960 193 40	Cable starter 1 52Q030A-1.30 / 52M002-1.BAT	1
57	960 194 40	Cable prelub pump 2	1
58	960 195 40	Cable starter 2 52Q030A-2.30 / 52M002-2.BAT	1
59	308 612 99	Bolt	18
60	887 009 40	Angle	4
61	655 357 40	Moulding material 495x550	4
65	655 696 40	Cable protection hose DN 29	-2
66	906 153 40	Cable lug	8
67	056 076 40	Protection cap	41
68	906 658 40	Cable 1x120	-2
69	941 777 40	Plate	-2
70	174 411 40	Cable strap	-2
71	655 693 40	End grommet	26
72	907 691 40	Cable union DN 36	2
73	907 999 40	Pipe adapter DN 36/29	2
74	932 531 40	Fitting	2
75	906 493 40	Cable union	2
76	950 507 40	Shrinkdown tubing	-2
77	950 508 40	Resin strip	-2
80	655 652 40	Cable protection hose DN 23	-2
82	954 570 40	Battery clamp assy.	8
83	906 943 40	Pole end plate, black	8
84	600 227 99	Cable lug	18
88	954 569 40	Battery clamp assy.	8
89	906 942 40	Pole end plate, red	8
95	655 653 40	Cable protection hose DN 48	-2
96	600 212 99	Cable lug 12-95	16
97	600 209 99	Cable lug 10-95	32
98	906 651 40	Cable 95,0	-2
99	950 212 40	End grommet	12
100	600 221 99	Cable lug	6
105	518 724 98	Cable lug	3
106	957 083 40	Assembly rail	1
107	941 787 40	Terminal	17
108	955 332 40	Cross connection	1
109	955 335 40	Cross connection	1
110	654 469 40	Auxiliary resistor	1
111	940 673 40	Clamp	8
115	957 088 40	Assembly rail	1
116	955 333 40	Cross connection	2
117	955 334 40	Cross connection	1
121	654 372 40	Cable lug 16	4
122	654 419 40	Cable lug 16	2
123	655 649 40	Cable protection hose DN 10	-2
124	907 553 40	Cable 16,0	-2
125	950 207 40	End grommet	4
130	655 650 40	Cable protection hose DN 12	-2
131	940 520 40	Fitting	1
132	906 491 40	Cable union	1
133	655 810 40	Pipe adapter DN 29/12	1
134	907 479 40	Cable union DN 29	1
135	655 627 40	Distributor DN 23/17	2
136	655 651 40	Cable protection hose DN 17	-2
137	950 209 40	End grommet	8
138	950 505 40	Shrinkdown tubing	-2
140	906 941 40	Battery clamp	1
141	518 200 98	Lock washer	1
142	906 940 40	Battery clamp	1

Komatsu PC8000-6 S/N 12082 parts catalog PDF

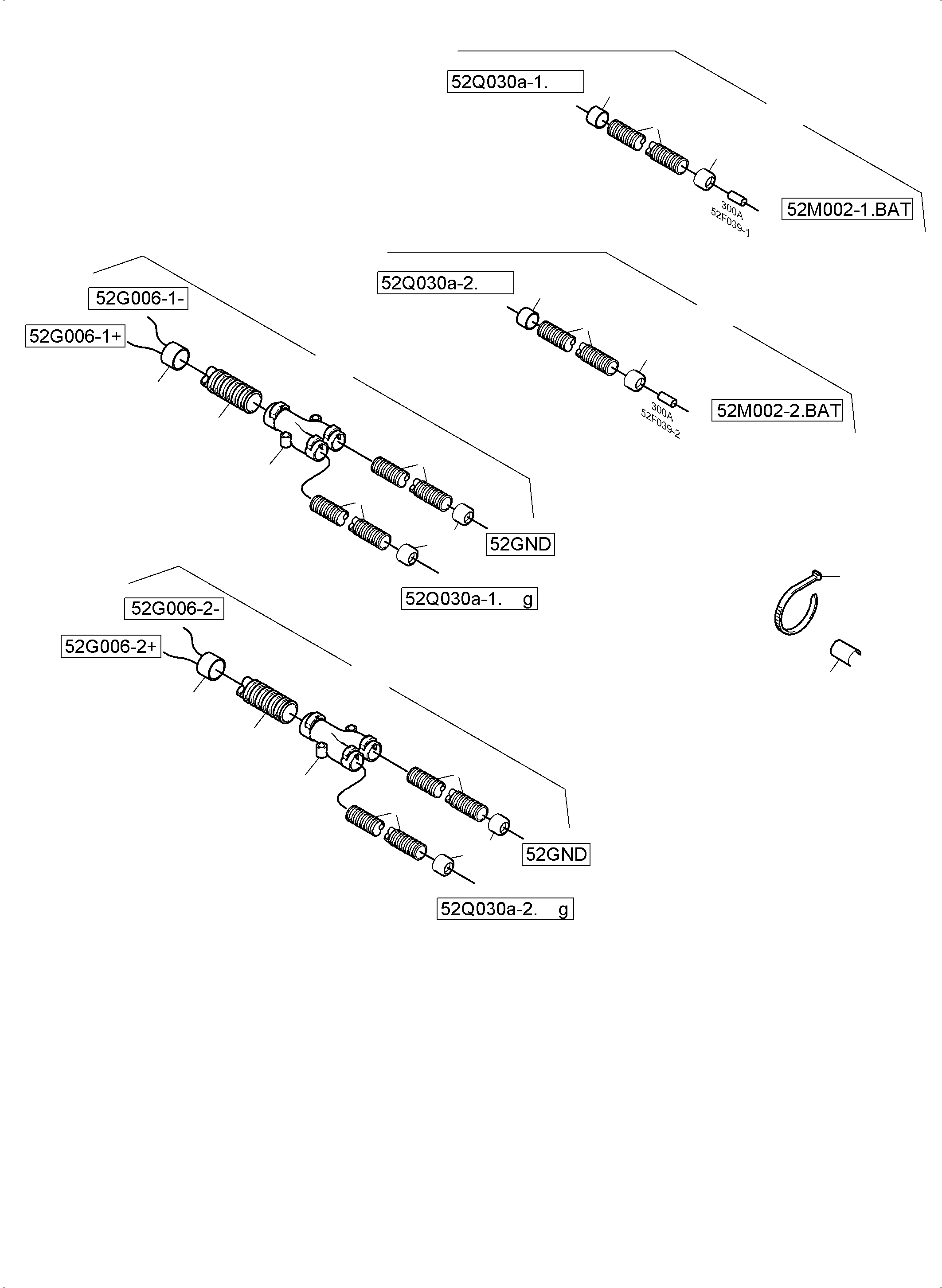

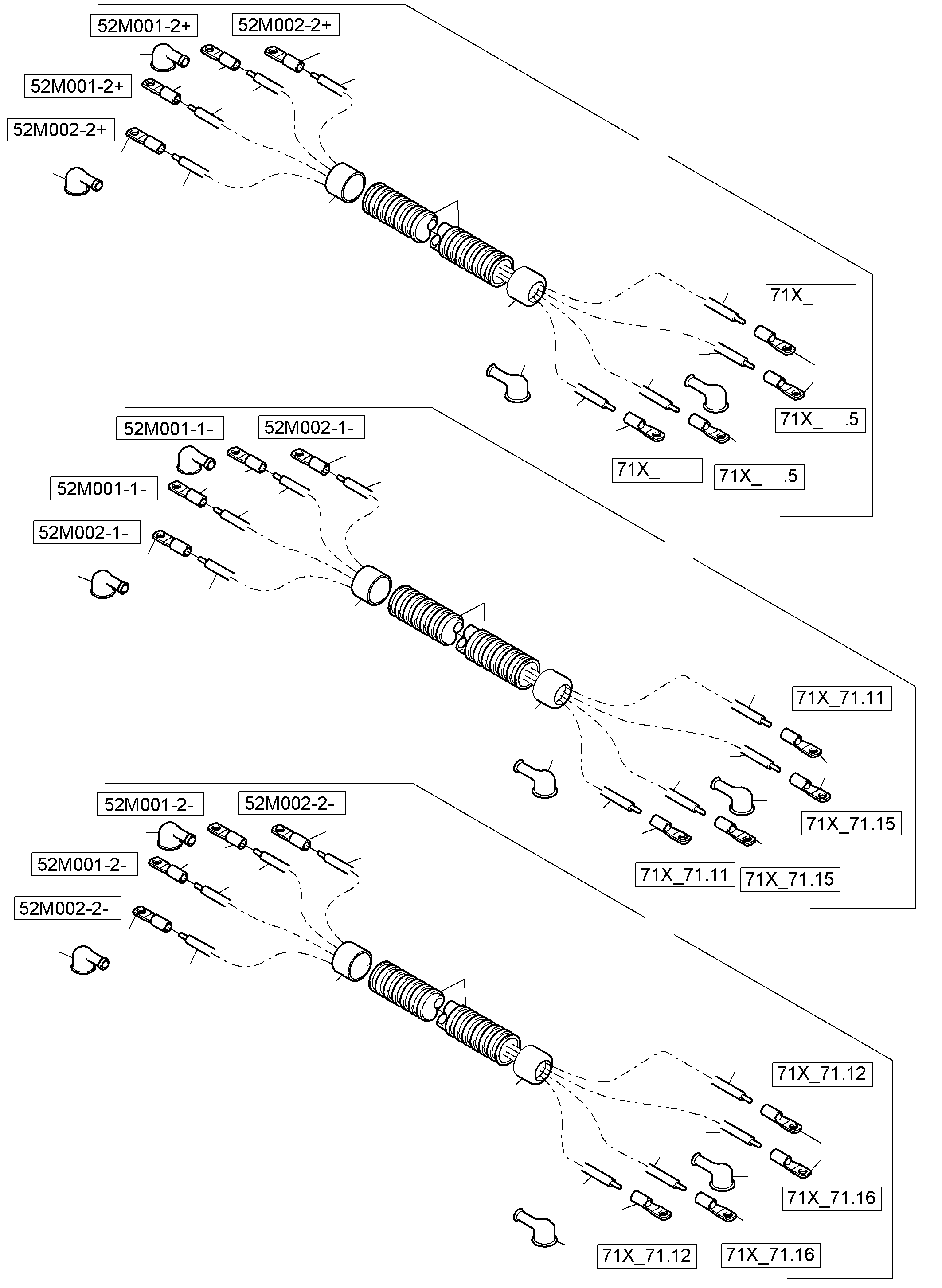

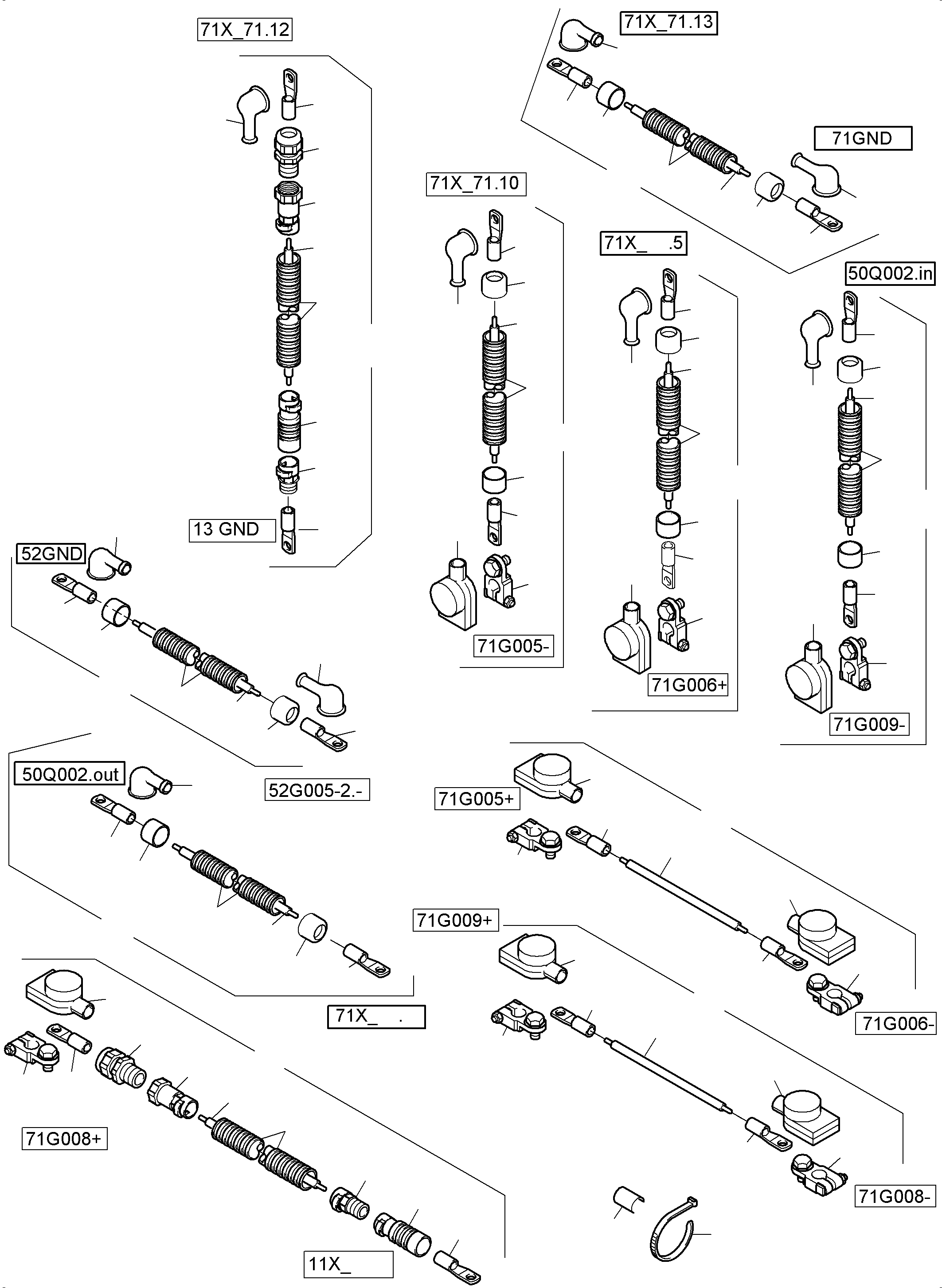

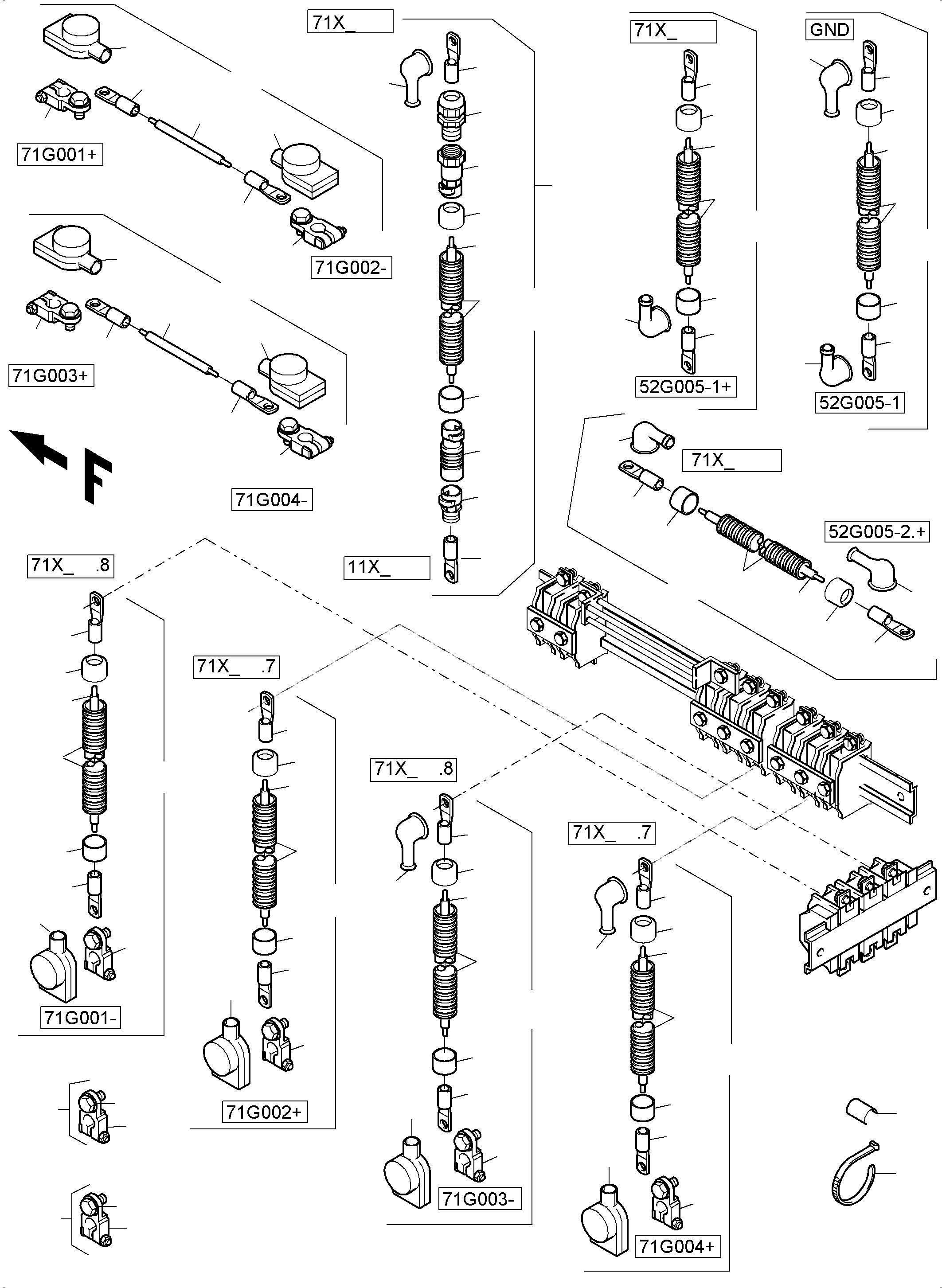

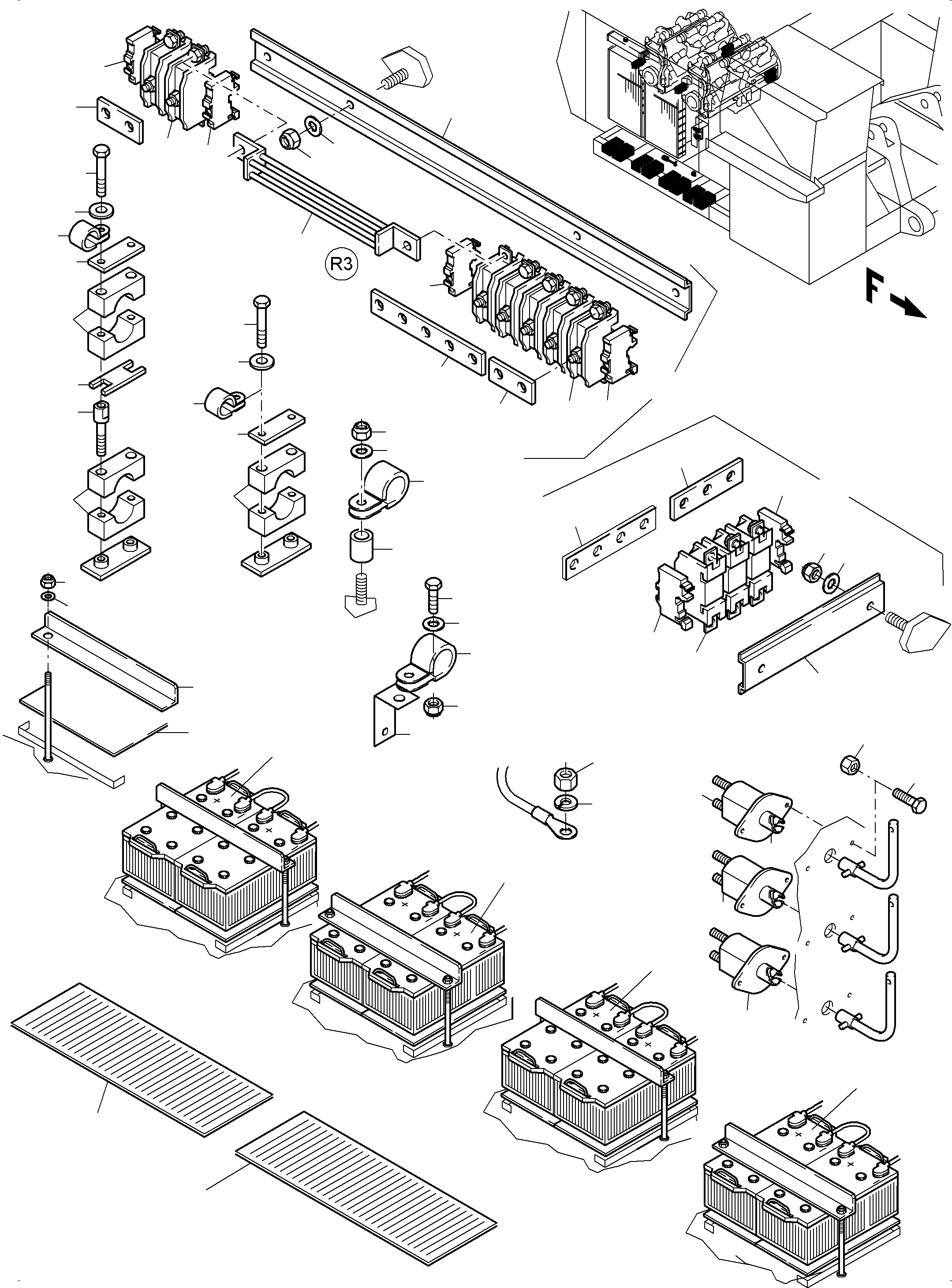

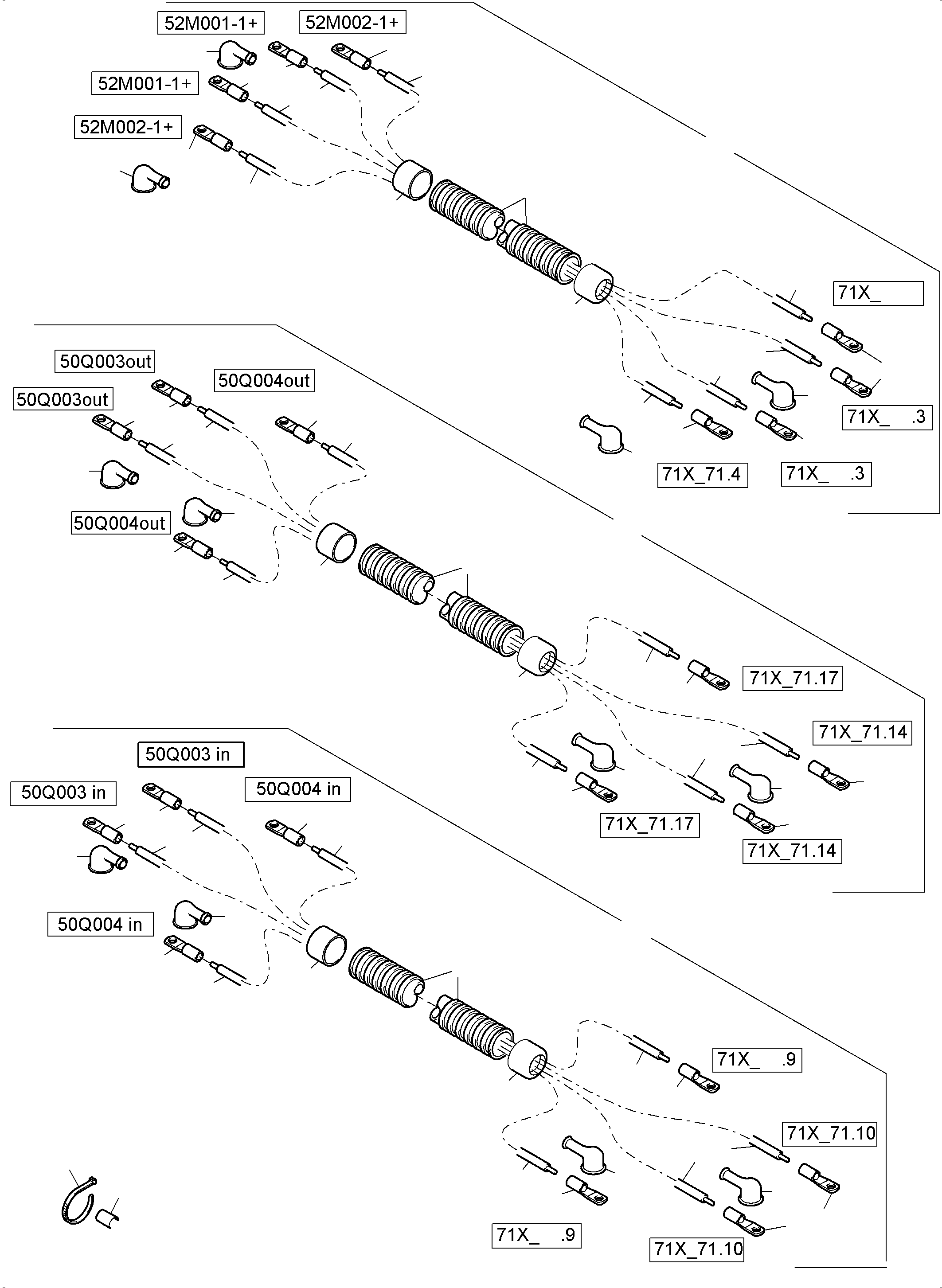

BATTERIES WITH CABLES (113-2230b) in PC8000-6 S/N 12082. Diagram image and parts list.
