Diagram image 1 of 3

PC8000-6 S/N 12082

01 02 03 100 102 103 105 105 108 12 13 15 16 21 23 25 25 25 26 26 26 26 27 27 27 27 27 27 29 29 29 30 30 30 31 32 33 33 33 34 35 36 36 37 37 38 39 40 41 42 43 48 48 48 49 50 51 52 53 54 54 54 54 55 56 58 58 63 63 64 64 64 65 65 65 74 76 80 84 85 87 89 90 91 93 94 96 97 98 99

PC8000-6 S/N 12082

04 05 10 100 101 102 103 105 105 107 108 108 11 14 22 24 25 27 27 27 27 27 27 33 35 39 40 41 42 48 48 54 54 55 55 57 58 59 60 63 63 64 64 64 65 65 65 72 73 73 74 75 76 77 78 79 80 80 81 81 83 83 84 85 86 88 90 92 93 95 96 97 98 99

PC8000-6 S/N 12082

06 07 08 09 09 104 105 106 17 17 18 18 19 20 24 24 24 24 25 25 25 25 25 27 27 27 27 27 27 27 27 28 28 28 28 28 28 28 28 28 28 44 44 44 44 45 45 46 46 47 47 47 48 48 48 55 55 61 61 61 61 62 62 62 62 66 66 66 66 67 67 67 67 68 69 70 70 71 71 76 76 76 82 91

#	Part Number	Partname	Quantity
01	943 758 40	Header	1
02	943 765 40	Header	1
03	943 755 40	Water pipe lower	2
04	943 773 40	Drain plug lower	2
05	943 764 40	Drain plug	2
06	943 785 40	Drain plug top	1
07	943 788 40	Drain plug top	1
08	943 780 40	Drain plug top	2
09	943 779 40	Drain plug top	2
10	943 795 40	Elbow top	2
11	943 796 40	Elbow lower	2
12	956 680 40	Retainer	2
13	956 681 40	Plate	2
14	956 674 40	Retainer	2
15	952 294 40	Plate	4
16	943 738 40	Clamp retainer	4
17	949 055 40	Clamp	14
18	955 001 40	Retainer	14
19	955 002 40	Retainer	12
20	949 054 40	Retainer	2
21	940 779 40	Cooling water hose 125X175	2
22	941 267 40	Cooling water hose 76X185	2
23	940 780 40	Cooling water hose 125X275	2
24	941 557 40	Cooling water hose 76X200	8
25	941 364 40	Cooling water hose 76X230	12
26	907 090 40	Hose clamp	8
27	907 310 40	Hose clamp	44
28	490 020 40	Clamp	6
29	506 701 98	Bolt	4
30	332 334 99	Nut	12
31	909 022 40	Retainer plate	2
32	307 810 99	Bolt	4
33	510 745 98	Resilient sleeve	16
34	308 782 99	Bolt	8
35	340 467 99	Washer	4
36	307 754 99	Bolt	12
37	340 507 99	Washer	12
38	334 599 99	Nut	12
39	515 792 98	Clamp set	4
40	500 398 98	Cover plate	4
41	308 645 99	Bolt	8
42	340 469 99	Washer	8
43	334 601 99	Nut	8
44	332 336 99	Nut	28
45	340 112 99	Washer	14
46	517 209 98	Resilent sleeve	14
47	308 575 99	Bolt	14
48	507 037 98	Nut	30
49	307 782 99	Bolt	6
50	308 608 99	Bolt	4
51	516 095 98	Clamp set	4
52	308 584 99	Bolt	8
53	307 779 99	Bolt	8
54	340 465 99	Washer	28
55	517 122 98	Lock washer	20
56	518 609 98	Hose assy. DN 50x2950	2
57	510 911 98	Hose assy. DN25x2850	2
58	374 415 99	Socket	6
59	374 431 99	Socket	2
60	907 037 40	Union	2
61	500 180 98	Union	16
62	517 842 98	Socket	8
63	374 444 99	Union	6
64	371 280 99	Union nut	16
65	906 480 40	Olive	16
66	374 420 99	Socket	4
67	518 159 98	Socket	4
68	518 611 98	Hose assy. DN 10x970	4
69	510 932 98	Hose assy. DN 10x820	4
70	518 797 98	Hose assy. DN 08x3450	2
71	518 798 98	Hose assy. DN 08x3600	2
72	950 160 40	Hose assy. DN 80x2785	2
73	907 550 40	Clamp	4
74	940 716 40	Rubber cord 20x3	-2
75	500 581 98	O-ring	6
76	0443453411	Clamp	8
77	907 534 40	Clamp	2
78	924 321 40	Thread plate	2
79	307 746 99	Bolt	4
80	518 042 98	Clamp set	4
81	534 004 99	Cover plate	4
82	308 586 99	Bolt	2
83	308 581 99	Bolt	8
84	518 386 98	Clamp set	4
85	534 008 99	Cover plate	4
86	518 597 98	Bolt	16
87	308 612 99	Bolt	8
88	943 752 40	Pipe	2
89	943 751 40	Pipe	2
90	943 753 40	Pipe	4
91	0443451710	Clamp	4
92	0443551710	Clamp	4
93	007 625 98	Clamp	4
94	960 021 40	Ground plate	2
95	960 020 40	Ground plate	2
96	960 019 40	Cover plate	4
97	960 017 40	Cover plate	4
98	307 752 99	Bolt	16
99	517 121 98	Lock washer	16
100	056 074 40	Cable sleeve	14
101	170 495 40	Cable sleeve	2
102	307 802 99	Bolt	16
103	517 118 98	Lock washer	16
104	907 377 40	Hose protection DN 16x1500	2
105	307 777 99	Bolt	10
106	517 853 98	Resilient sleeve	2
107	308 582 99	Bolt	4
108	0443451210	Clamp	10

Komatsu PC8000-6 S/N 12082 parts catalog PDF

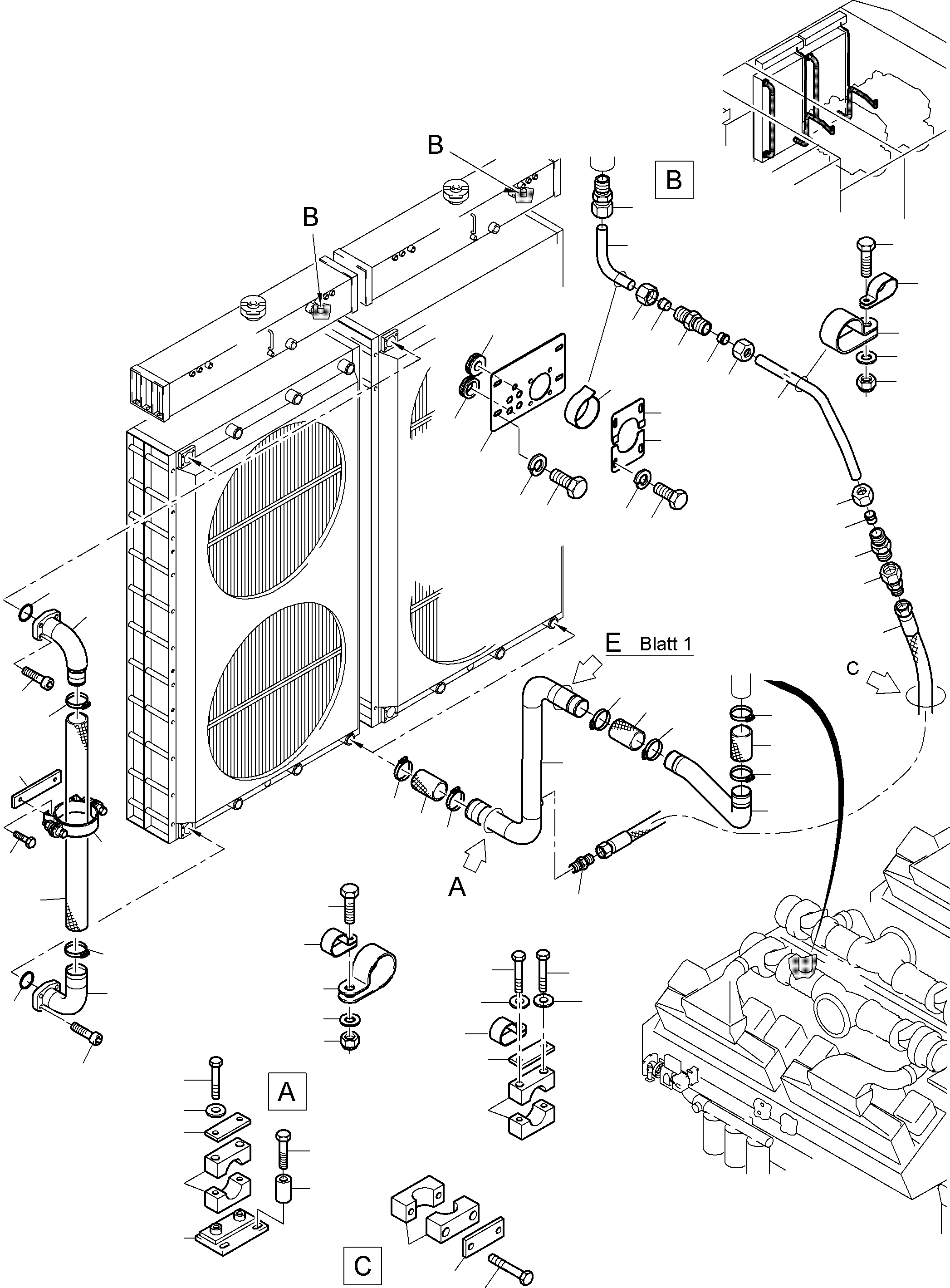

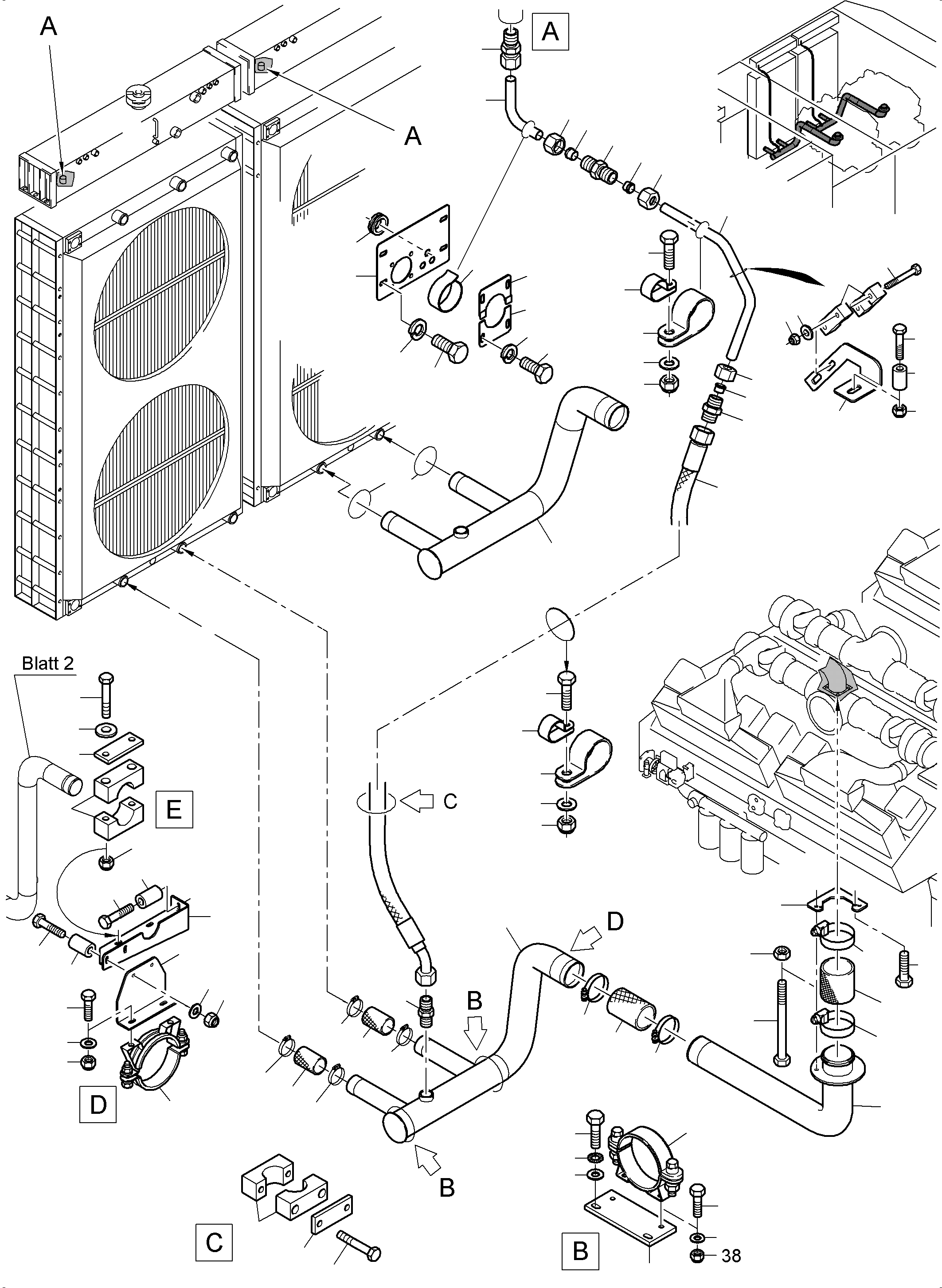

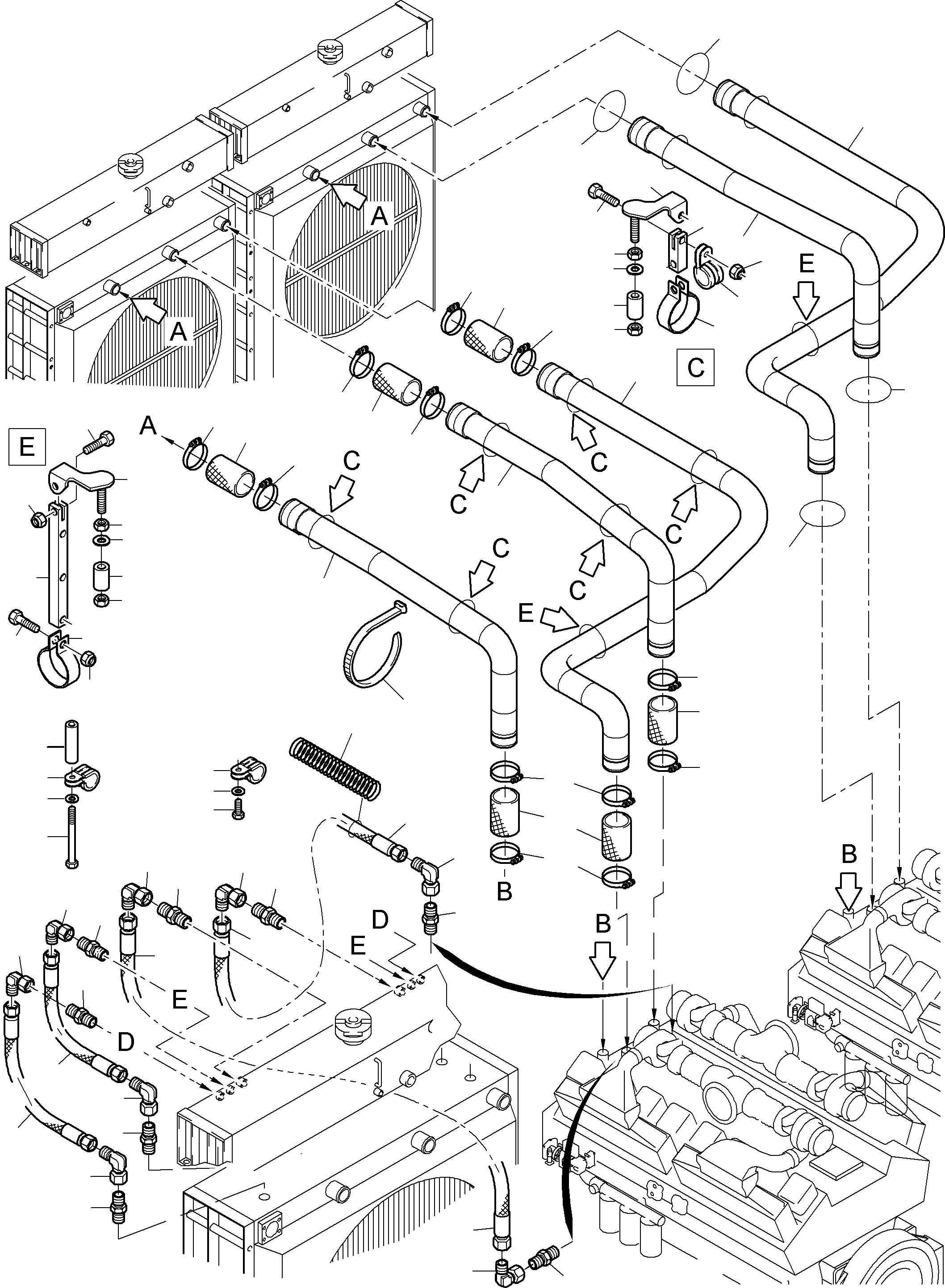

COOLANT LINES, FRONT AND REAR (113-1243c) in PC8000-6 S/N 12082. Diagram image and parts list.
