Diagram image 1 of 2

PC8000-6 S/N 12082

01 02 03 04 05 06 07 08 100 101 102 102 102 103 104 105 106 106 107 107 110 110 111 24 25 26 28 29 30 31 32 33 34 34 35 36 37 38 39 40 52 53 57 57 59 59 59 60 60 60 60 61 61 61 61 61 62 63 65 65 66 66 68 69 70 70 80 81 81 82 82 83 84 84 85 86 86 87 88 88

PC8000-6 S/N 12082

09 10 100 101 102 102 102 103 104 105 106 106 11 110 110 111 12 13 14 15 16 17 18 19 20 21 22 23 27 41 42 43 44 45 46 47 47 48 49 50 51 55 56 57 57 58 58 59 59 60 60 60 60 60 60 60 60 61 61 61 61 61 61 61 62 65 65 65 65 66 66 66 66 66 67 68 68 71 72 73 74 75 76 77 78 79 81 81 82 84 84 84 85 86 87 89 89 92 93 94 95 96 96 97 98 99

#	Part Number	Partname	Quantity
01	958 104 40	Wall	1
02	954 761 40	Wall	1
03	958 183 40	Wall	1
04	958 184 40	Wall	1
05	954 810 40	Wall	1
06	953 683 40	Door	1
07	953 691 40	Door	1
08	954 821 40	Wall	1
09	954 843 40	Wall	1
10	954 844 40	Wall	1
11	954 845 40	Wall	1
12	910 864 40	Wall	1
13	954 858 40	Wall	1
14	954 861 40	Wall	1
15	954 855 40	Wall	1
16	929 188 40	Wall	1
17	953 695 40	Door	1
18	953 699 40	Door assy.	1
19	954 863 40	Wall	1
20	929 175 40	Wall	1
21	954 805 40	Door	1
22	960 001 40	Angle	1
23	929 170 40	Angle	1
24	954 754 40	Sheet metal	1
25	954 759 40	Sheet metal	1
26	958 113 40	Plate	1
27	307 777 99	Bolt	4
28	307 752 99	Bolt	20
29	517 121 98	Lock washer	20
30	954 826 40	Angle	1
31	958 109 40	Wall	1
32	954 828 40	Sheet metal	1
33	954 829 40	Sheet metal	1
34	954 830 40	Sheet metal	7
35	954 832 40	Retainer	1
36	954 753 40	Plate	1
37	954 835 40	Plate	1
38	954 836 40	Sheet metal	1
39	954 837 40	Sheet metal	1
40	954 838 40	Plate	1
41	954 867 40	Angle	1
42	954 868 40	Plate	1
43	954 860 40	Wall	1
44	954 869 40	Plate	1
45	954 870 40	Plate	1
46	954 871 40	Angle	1
47	954 872 40	Angle	10
48	954 873 40	Angle	9
49	954 874 40	Angle	1
50	929 960 40	Cover	1
51	308 882 99	Bolt	4
52	958 111 40	Plate	1
53	952 140 40	Cover assy.	1
55	954 884 40	Sheet metal	1
56	166 575 40	Seal profile	-2
57	307 805 99	Bolt	24
58	308 610 99	Bolt	28
59	500 816 98	Bolt	45
60	334 600 99	Nut	223
61	340 467 99	Washer	205
62	953 451 40	Cotter pin	3
63	958 112 40	Plate	3
65	507 037 98	Nut	69
66	307 804 99	Bolt	89
67	954 846 40	Wall	1
68	907 854 40	Thread pin	19
69	307 802 99	Bolt	10
70	517 118 98	Lock washer	71
71	308 605 99	Bolt	2
72	510 748 98	Resilient sleeve	2
73	929 148 40	Moulding material	1
74	945 815 40	Angle	1
75	954 880 40	Door retainer	1
76	316 212 99	Washer	40
77	517 755 98	Nut	4
78	954 876 40	Hinge assy. l. h.	2
79	954 875 40	Hinge assy. r. h.	4
80	946 164 40	Hinge assy. l. h.	2
81	340 465 99	Washer	63
82	307 779 99	Bolt	52
83	946 151 40	Hinge assy. r. h.	6
84	517 122 98	Lock washer	22
85	307 780 99	Bolt	10
86	940 907 40	Fastener r. h.	2
87	953 457 40	Plate	2
88	940 906 40	Fastener l. h.	1
89	504 662 98	Nut	48
92	641 872 40	Fixing rod	1
93	641 873 40	Fixing rod	1
94	323 635 40	Edge	1
95	320 488 40	Handle	1
96	332 114 99	Nut	2
97	318 576 99	Screw	2
98	321 009 99	Screw	4
99	346 509 99	Lock washer	4
100	941 444 40	Handle	2
101	941 445 40	Handle	2
102	941 563 40	Axle	2
103	941 447 40	Collar	2
104	941 450 40	Closing cam	2
105	941 451 40	Collar	2
106	941 449 40	Accessory r. h.	1
107	941 448 40	Accessory l. h.	1
110	081 320 40	Hinge	1
111	081 480 40	Hinge pin	1
\|$$106			-2
\|$$107			-2
\|$$108			-2
\|$$109			-2
\|$$110			-2
\|$$111			-2
\|$$112			-2
\|$$113			-2
\|$$114			-2
\|$$115			-2
\|$$116			-2
\|$$117			-2
\|$$118			-2
\|$$119			-2
\|$$120			-2
\|$$121			-2
\|$$122			-2
\|$$123			-2
\|$$124			-2
\|$$125			-2

Komatsu PC8000-6 S/N 12082 parts catalog PDF

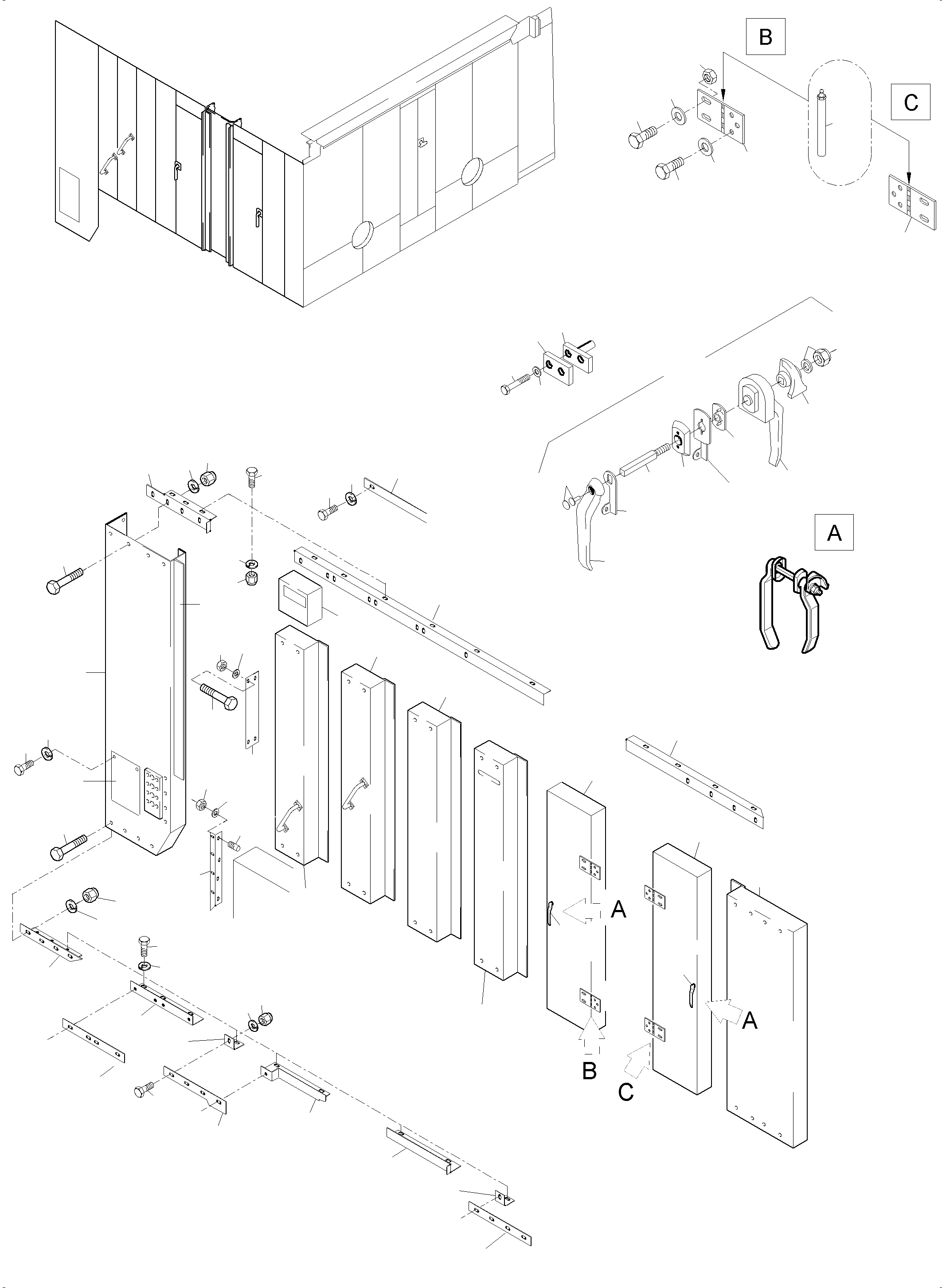

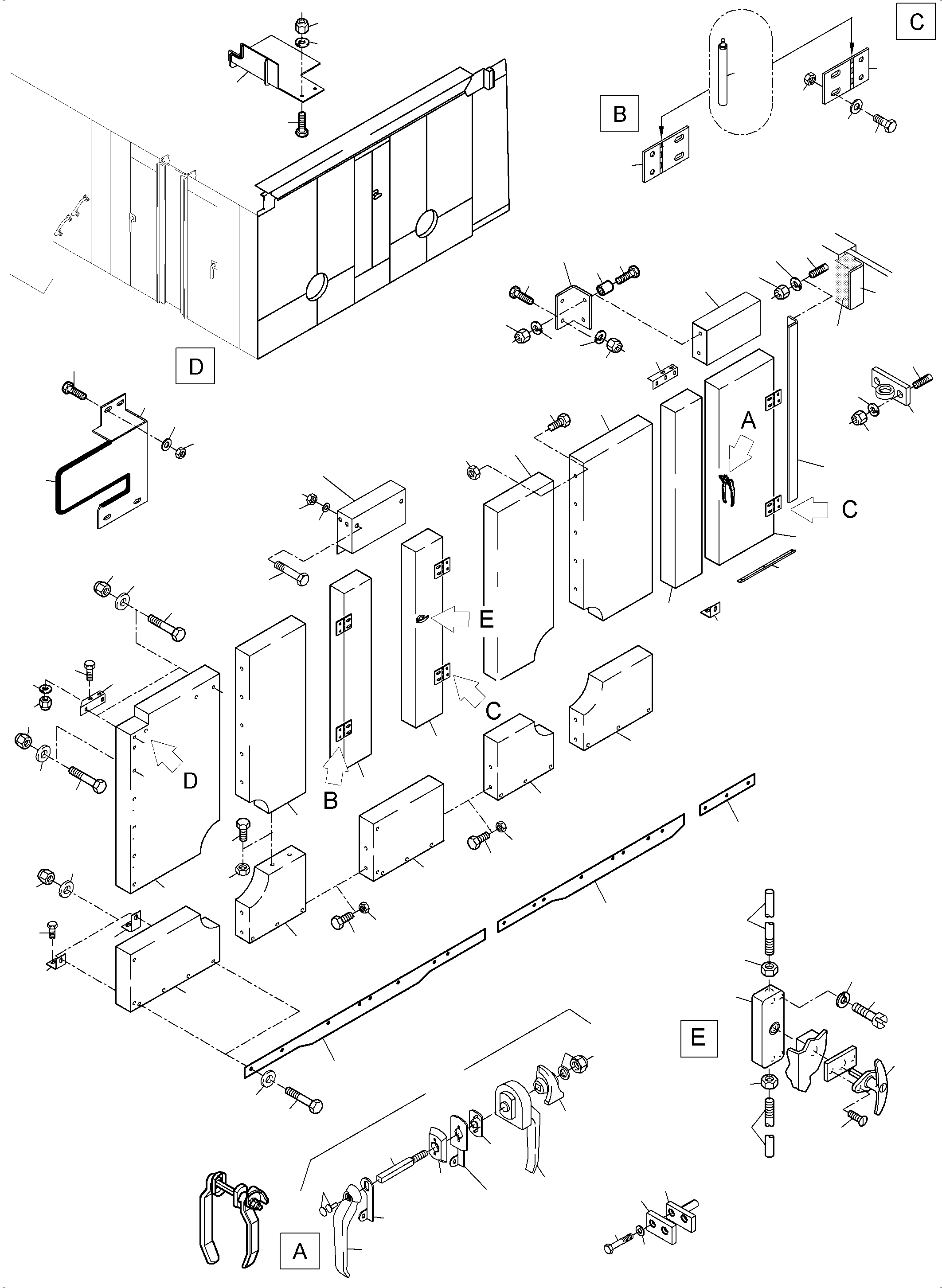

FIRE WALL (113-1283a) in PC8000-6 S/N 12082. Diagram image and parts list.
