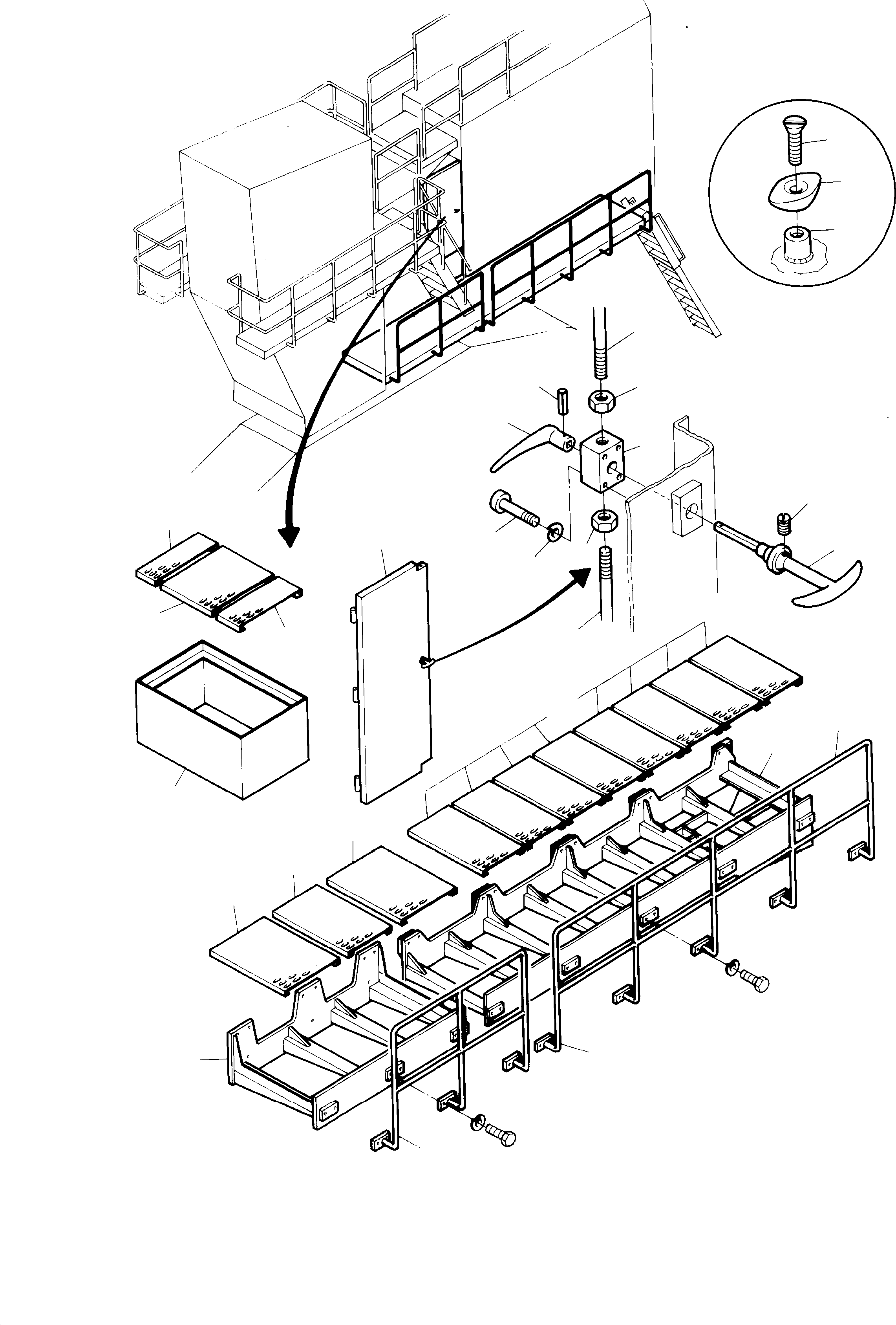

Diagram image 1 of 2

H285 S/N 78099

01 01 02 02 03 04 05 05 06 07 08 08 09 10 11 12 13 14 15 15 16 17 18 19 20 21 22 23

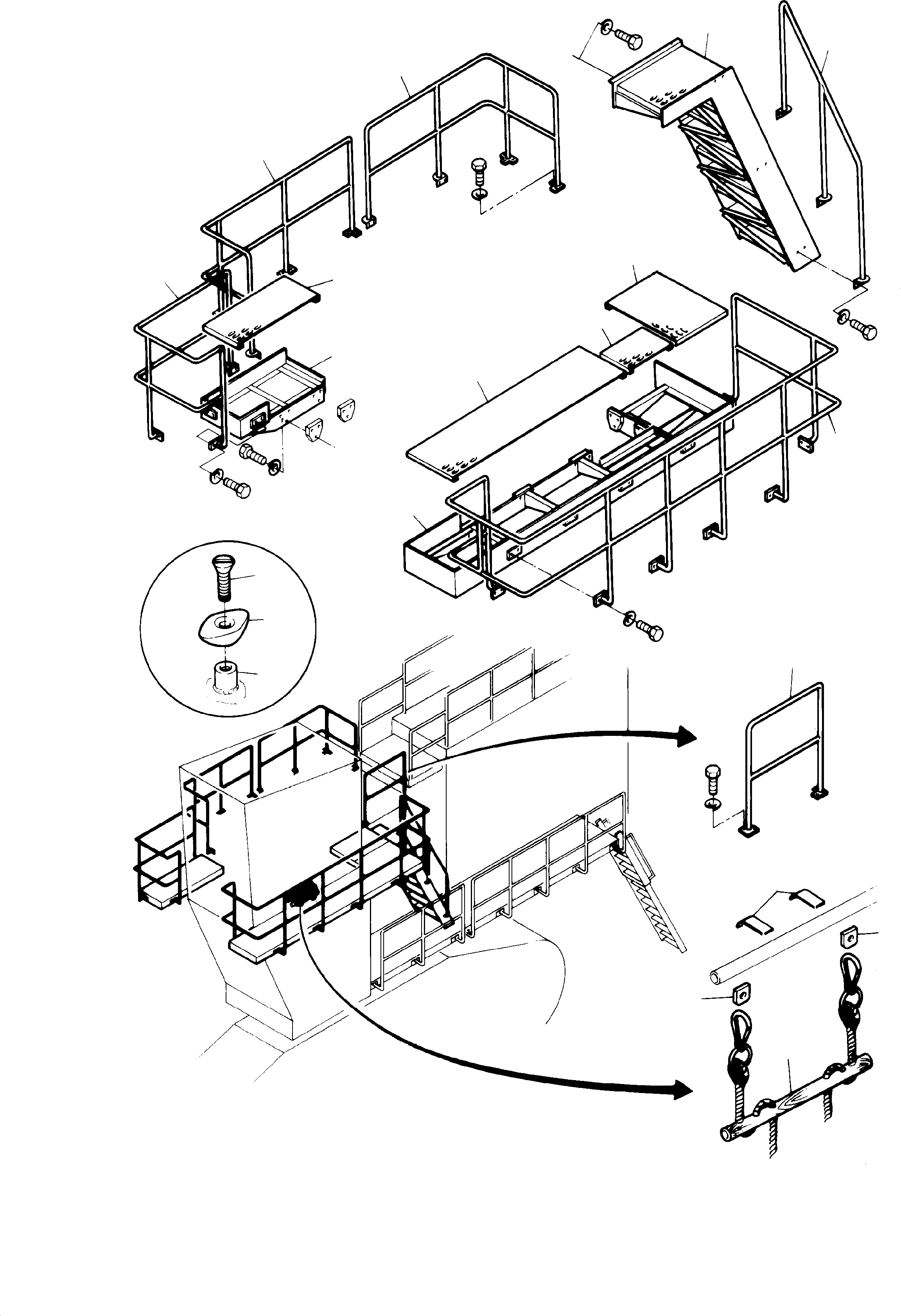

H285 S/N 78099

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 50 51

#	Part Number	Partname	Quantity	Options
\|$$1		Graphic 1	-1
01	324 378 40	Grating 420x780	9	InternBDB: Grдpel 40x2 \| InternKon: 371 590 40 / 39
02	323 073 40	Grating 480x780	2	InternKon: 371 590 40 / 40
03	371 553 40	Platform	1	InternKon: 371 590 40 / 2
04	371 536 40	Platform	1	InternKon: 371 590 40 / 1
05	390 499 40	Rail	1	InternKon: 371 590 40 / 5
06	390 452 40	Rail	1	InternKon: 371 590 40 / 6
07	390 485 40	Platform	1	InternKon: 371 590 40 / 9
08	317 312 40	Grating 300x660	2	InternKon: 371 590 40 / 49
09	323 455 40	Grating 180x660	1	InternKon: 371 590 40 / 50
10	399 873 40	Door	1	InternKon: 371 590 40 / 10
11	081 285 40	Edge	1	InternKon: 399 873 40 / 3
12	346 509 99	Lock washer	4	InternBDB: 5 /128 \| InternKon: 399 873 40 / 10
13	321 010 99	Screw	4	InternBDB: AM5x25 /84 \| InternKon: 399 873 40 / 9
14	390 468 40	Catch	1	InternKon: 399 873 40 / 4
15	332 113 99	Nut	2	InternBDB: M 10 /934 \| InternKon: 399 873 40 / 8
16	390 467 40	Catch	1	InternKon: 399 873 40 / 5
17	324 576 40	Handle	1	InternBDB: GHE 580 0176 \| InternKon: 399 873 40 / 7
18	344 996 99	Pin	1	InternBDB: 2x24 /1481 \| InternKon: 399 873 40 / 12
19	324 577 40	Handle	1	InternBDB: GHE 580 0176 \| InternKon: 399 873 40 / 6
20	318 576 99	Screw	1	InternBDB: M5x10 /964 \| InternKon: 399 873 40 / 11
21	502 354 98	Bolt	40	InternBDB: M8x40 /963 \| InternKon: 371 590 40 / 60
22	317 318 40	Wing nut	40	InternBDB: Grдpel 366.001 \| InternKon: 371 590 40 / 59
23	317 319 40	Threaded block	40	InternKon: 371 590 40 / 58
\|$$25		Graphic 2	-1
33	334 042 40	Rail	1	InternKon: 371 590 40 / 19
34	334 033 40	Rail	1	InternKon: 371 590 40 / 20
35	334 034 40	Rail	1	InternKon: 371 590 40 / 21
36	334 041 40	Catwalk	1	InternKon: 371 590 40 / 17
37	324 541 40	Grating 360x840	1	InternBDB: Grдpel 40x2 \| InternKon: 371 590 40 / 48
38	371 531 40	Stairway	1	InternKon: 371 590 40 / 4
39	390 495 40	Rail	1	InternKon: 371 590 40 / 8
40	371 581 40	Catwalk	1	InternKon: 371 590 40 / 3
41	324 379 40	Grating 480x1950	1	InternKon: 371 590 40 / 42
42	323 267 40	Grating 300x540	1	InternKon: 371 590 40 / 43
43	270 195 40	Grating 480x750	1	InternKon: 371 590 40 / 44
44	390 492 40	Rail	1	InternKon: 371 590 40 / 7
45	334 037 40	Rail	1	InternKon: 371 590 40 / 27
46	502 354 98	Bolt	40	InternBDB: M8x40 /963 \| InternKon: 371 590 40 / 60
47	317 318 40	Wing nut	40	InternBDB: Grдpel 366.001 \| InternKon: 371 590 40 / 59
48	317 319 40	Threaded block	40	InternKon: 371 590 40 / 58
49	429 793 40	Shackle	2
50	429 792 40	Eye	2
51	440 026 40	Emergency jack	1	InternBDB: Kersting E-ST \| InternKon: 322 668 40 / 26

Komatsu H285 S/N 78099 parts catalog PDF

STEPS (114-1952) in H285 S/N 78099. Diagram image and parts list.
