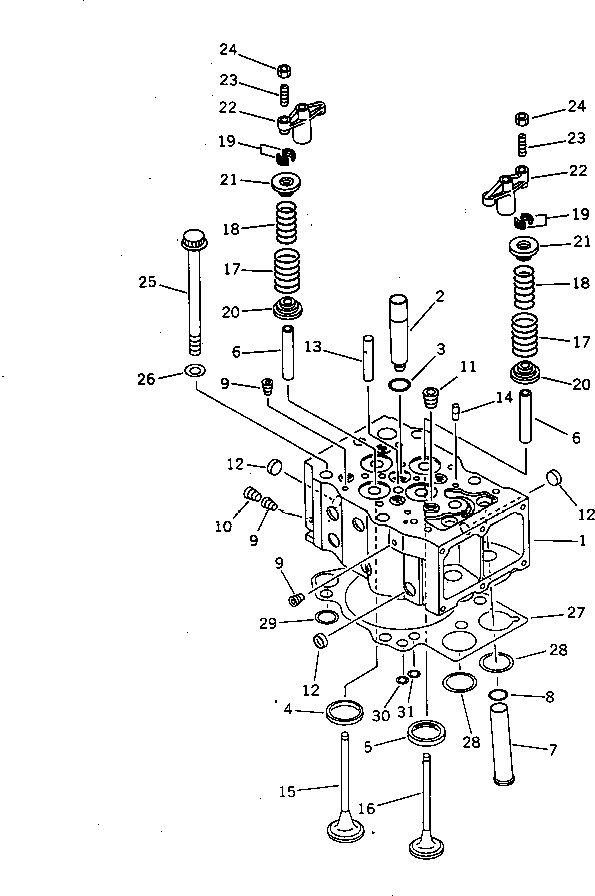

CYLINDER HEAD | S6D170-1D-R S/N 10490-UP (-50cent. Spec.)

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
\|$0	6162-13-1102	CYLINDER HEAD ASS'Y,VALVE LESS	6	SN: 14987-UP
\|$1	6162-13-1100	CYLINDER HEAD ASS'Y,VALVE LESS	6	SN: 10490-14986
1		HEAD,CYLINDER	1	SN: 10490-UP
2	6162-13-1130	SLEEVE	1	SN: 10490-UP
3	6162-12-1152	O-RING (K1)	1	SN: 10490-UP
4	6162-13-1330	INSERT,INTAKE VALVE (STD)	2	SN: 10490-UP
\|$6	6162-19-1330	INSERT ? 0.25MM,INTAKE VALVE (OS)	2	SN: 10490-UP
\|$7	6162-18-1330	INSERT ? 0.50MM,INTAKE VALVE (OS)	2	SN: 10490-UP
\|$8	6162-17-1330	INSERT ? 0.75MM,INTAKE VALVE (OS)	2	SN: 10490-UP
\|$9	6162-16-1330	INSERT ? 1.00MM,INTAKE VALVE (OS)	2	SN: 10490-UP
5	6162-13-1322	INSERT,EXHAUST VALVE (STD)	2	SN: 10490-UP
\|$11	6162-13-1321	INSERT,EXHAUST VALVE (STD)	2	SN: (10490-14986)
\|$12	6162-19-1322	INSERT ? 0.25MM,EXHAUST VALVE (OS)	2	SN: 10490-UP
\|$13	6162-19-1321	INSERT ? 0.25MM,EXHAUST VALVE (OS)	2	SN: (10490-14986)
\|$14	6162-18-1322	INSERT ? 0.50MM,EXHAUST VALVE (OS)	2	SN: 10490-UP
\|$15	6162-18-1321	INSERT ? 0.50MM,EXHAUST VALVE (OS)	2	SN: (10490-14986)
\|$16	6162-17-1322	INSERT ? 0.75MM,EXHAUST VALVE (OS)	2	SN: 10490-UP
\|$17	6162-17-1321	INSERT ? 0.75MM,EXHAUST VALVE (OS)	2	SN: (10490-14986)
\|$18	6162-16-1322	INSERT ? 1.00MM,EXHAUST VALVE (OS)	2	SN: 10490-UP
\|$19	6162-16-1321	INSERT ? 1.00MM,EXHAUST VALVE (OS)	2	SN: (10490-14986)
6	6162-16-1341	GUIDE,VALVE	4	SN: 10490-UP
7	6162-13-1160	TUBE,PUSH ROD	2	SN: 10490-UP
8	07000-63028	O-RING (K1)	2	SN: 10490-UP
9	07043-50108	PLUG	4	SN: 10490-UP
10	07043-50211	PLUG	1	SN: 10490-UP
11	07043-50617	PLUG	5	SN: 10490-UP
12	6162-13-1150	PLUG,EXPANSION	12	SN: 10490-UP
13	6162-13-1140	GUIDE,CROSSHEAD	2	SN: 10490-UP
14	6162-13-1410	PIN	2	SN: 10490-UP
15	6162-43-4110	VALVE,INTAKE VALVE	12	SN: 10490-UP
16	6164-41-4211	VALVE,EXHAUST VALVE	12	SN: 14041-UP
\|$31	6164-41-4210	VALVE,EXHAUST VALVE	12	SN: 11356-14040
\|$32	6162-43-4210	VALVE,EXHAUST VALVE	12	SN: 10490-11355
17	6162-43-4410	SPRING,OUTER	24	SN: 10490-UP
18	6162-43-4420	SPRING,INNER	24	SN: 10490-UP
19	6240-41-4520	COTTER,VALVE	48	SN: 22195-UP
\|$36	6162-42-4520	COTTER,VALVE	48	SN: 10490-22194
20	6162-43-4430	SEAT,SPRING	24	SN: 10490-UP
21	6162-43-4510	SEAT,SPRING	24	SN: 10490-UP
22	6162-43-5610	CROSSHEAD	12	SN: 10490-UP
23	6162-43-5640	SCREW,ADJUST	12	SN: 10490-UP
24	6127-41-5630	NUT	12	SN: 10490-UP
25	6162-13-1611	BOLT	36	SN: 10785-UP
\|$43	6162-13-1610	BOLT	36	SN: 10490-10784
26	6162-13-1620	WASHER	36	SN: 10490-UP
\|$$46		STANDARD	-1
27	6162-13-1812	GASKET,HEAD (K1)	6	SN: 10490-UP
\|$47	6162-17-1811	GASKET,HEAD	6	SN: (12660-14031)
\|$48	6162-17-1811	GASKET,HEAD (K1)	6	SN: 12374-12659
\|$49	6162-17-1811	GASKET,HEAD	6	SN: 10490-12373
\|$50	6162-13-1811	GASKET,HEAD (K1)	6	SN: (10490-12257)
\|$51	6162-13-1810	GASKET,HEAD	6	SN: (11344-12080)
\|$52	6162-13-1810	GASKET,HEAD (K1)	6	SN: 10490-11343
28	6162-13-1820	GROMMET,OIL	2	SN: 10490-UP
29	6162-13-1832	GROMMET,WATER	1	SN: 10490-UP
\|$55	6162-13-1831	GROMMET,WATER	1	SN: (10490-14031)
\|$56	6162-13-1830	GROMMET,WATER	1	SN: (10490-12151)
30	6162-13-1840	GROMMET,OIL	1	SN: 10490-UP
31	6162-13-1851	GROMMET,WATER	1	SN: 10490-UP
\|$59	6162-13-1850	GROMMET,WATER	1	SN: (10490-14031)
\|$60	6162-13-1840	GROMMET,WATER	1	SN: (10490-12257)
\|$$62		OVERSIZE 0.40MM	-1
27	6162-19-1812	GASKET,HEAD	6	SN: 10490-UP
\|$63	6162-19-1811	GASKET,HEAD	6	SN: (10490-14031)
\|$64	6162-19-1810	GASKET,HEAD	1	SN: (10490-12257)
28	6162-19-1820	GROMMET,OIL	2	SN: 10490-UP
29	6162-19-1832	GROMMET,WATER	1	SN: 10490-UP
\|$67	6162-19-1831	GROMMET,WATER	1	SN: (10490-14031)
\|$68	6162-19-1830	GROMMET,WATER	1	SN: (10490-12257)
30	6162-19-1840	GROMMET,OIL	1	SN: 10490-UP
31	6162-19-1851	GROMMET,WATER	1	SN: 10490-UP
\|$71	6162-19-1850	GROMMET,WATER	1	SN: (10490-14031)
\|$72	6162-19-1840	GROMMET,WATER	1	SN: (10490-12257)
