KT-1150-1A S/N 101153-UP

#	Part Number	Partname	Quantity	Options
?	CU3201513	PT FUEL PUMP ASS'Y,(CODE NO.E705A)	1	SN: 128174-UP
?	CU3021966	PT FUEL PUMP ASS'Y,(CODE NO.E705)	1	SN: 127993-128173
?	CU3021966	PT FUEL PUMP ASS'Y,(CODE NO.E637)	1	SN: 127972-127972
?	CU3021966	PT FUEL PUMP ASS'Y,(CODE NO.E705)	1	SN: 127971-127971
?	CU3021966	PT FUEL PUMP ASS'Y,(CODE NO.E637)	1	SN: 124063-127970
?	CU3021966	PT FUEL PUMP ASS'Y,(CODE NO.E587)	1	SN: .-118594
?	CU3201005	PT FUEL PUMP ASS'Y,(CODE NO.E587)	1	SN: 116112-.
?	CUAR-41049	PT FUEL PUMP ASS'Y,(CODE NO.E592)	1	SN: 115833-115855
?	CUAR-41049	PT FUEL PUMP ASS'Y,(CODE NO.E572)	1	SN: 115616-115620
?	CUAR-41048	PT FUEL PUMP ASS'Y,(CODE NO.E522) (PTG-VS AFC)	1	SN: 115546-115546
?	CUAR-41049	PT FUEL PUMP ASS'Y,(CODE NO.E592)	1	SN: 115545-115545
?	CUAR-41048	PT FUEL PUMP ASS'Y,(CODE NO.E522) (PTG-VS AFC)	1	SN: 115543-115544
?	CUAR-41048	PT FUEL PUMP ASS'Y,(CODE NO.E522) (PTG-VS AFC)	1	SN: 105543-114741
?	CUAR-41049	PT FUEL PUMP ASS'Y,(CODE NO.E592)	1	SN: 105542-105542
?	CUAR-41048	PT FUEL PUMP ASS'Y,(CODE NO.E522) (PTG-VS AFC)	1	SN: 105541-105541
?	CUAR-41049	PT FUEL PUMP ASS'Y,(CODE NO.E592)	1	SN: 105538-105540
?	CUAR-41048	PT FUEL PUMP ASS'Y,(CODE NO.E522) (PTG-VS AFC)	1	SN: 101153-105537
?	CU3021966	PT FUEL PUMP ASS'Y,(CODE NO.E637)(USA LARGE TIRE)	1	SN: 130921-UP
?	CU3030274	COVER ASS'Y	1	SN: .-UP
?	CU3010119	COVER ASS'Y	1	SN: 101153-.
?	CU3023451	COVER	1	SN: .-UP
?	CU3007445	COVER	1	SN: 101153-.
?	CU3019962	SEAL	2	SN: 101153-UP
?	CU3004724	SPACER	1	SN: 101153-UP
?	CU212603	SEAL	1	SN: 101153-UP
?	CU3015665	DRIVE	1	SN: 101153-UP
?	CU212607	SHAFT	1	SN: 101153-UP
?	CU212609	BUSHING	1	SN: 101153-UP
?	CU212610	GEAR	1	SN: 101153-UP
?	CUS-110	BOLT	1	SN: 101153-UP
?	CUS-605	WASHER	1	SN: 101153-UP
?	CU146160	WASHER	1	SN: 101153-UP
?	CUS-16052	BEARING	1	SN: 101153-UP
?	CU212601	SHAFT	1	SN: 101153-UP
?	CU212604	RING	1	SN: 101153-UP
?	CU212605	GEAR	1	SN: 101153-UP
?	CU3002110	CONNECTOR	1	SN: 101153-UP
?	CU212613	COUPLING	1	SN: 101153-UP
?	CU212639	ADAPTER	1	SN: 101153-UP
?	CU212668	KEY	1	SN: 101153-UP
?	CU212602	GEAR	1	SN: 101153-UP
?	CUAR-40147	SHAFT ASS'Y	1	SN: 101153-UP
?	CU135169	RING	1	SN: 101153-UP
?	CU201010	BUSHING	1	SN: 101153-UP
?	CU201745	WASHER	1	SN: 101153-UP
?	CUAR-74273	GEAR	1	SN: 101153-UP
?	CU113244	GEAR	1	SN: 101153-UP
?	CU201008	SHAFT	1	SN: 101153-UP
?	CU143855	SPRING	1	SN: 101153-UP
?	CU144178	PLUNGER	1	SN: 101153-UP
?	CU144179	SHIM	7	SN: 101153-UP
?	CU163944	BUSHING	2	SN: .-UP
?	CU163944	BUSHING	1	SN: 101153-.
?	CU3024991	WEIGHT ASS'Y	1	SN: 101153-UP
?	CU146437	WEIGHT	2	SN: 101153-UP
?	CU3006550	CARRIER	1	SN: 101153-UP
?	CU211633	SHAFT	1	SN: 101153-UP
?	CU211635	PIN	2	SN: 101153-UP
?	CU211636	GEAR	1	SN: 101153-.
?	CU3005740	CARRIER	1	SN: 101153-.
?	CU203630	BEARING	1	SN: 101153-.
?	CU203631	NUT	1	SN: 101153-.
?	CU3024989	WEIGHT ASS'Y	1	SN: .-UP
?	CU3005739	WEIGHT ASS'Y	1	SN: 101153-.
?	CU211636	GEAR	1	SN: 101153-UP
?	CU163826	WEIGHT	2	SN: 101153-UP
?	CU211635	PIN	2	SN: 101153-UP
?	CU211633	SHAFT	1	SN: .-UP
?	CU217179	SHAFT	1	SN: 101153-.
?	CU3006550	CARRIER	1	SN: 101153-UP
?	CU200998	GASKET	1	SN: 101153-UP
?	CU3017051	BOLT	8	SN: .-UP
?	CUS-105-C	BOLT	8	SN: 101153-.
?	CU70704	WASHER	8	SN: 101153-UP
?	CU118226	BOLT	2	SN: 101153-UP
?	CUS-606	WASHER	2	SN: 101153-UP
?	CU103089	WASHER	2	SN: 101153-UP
?	CU3029087	GASKET	1	SN: .-UP
?	CU200817	GASKET	1	SN: 101153-.

Komatsu KT-1150-1A S/N 101153-UP parts catalog PDF

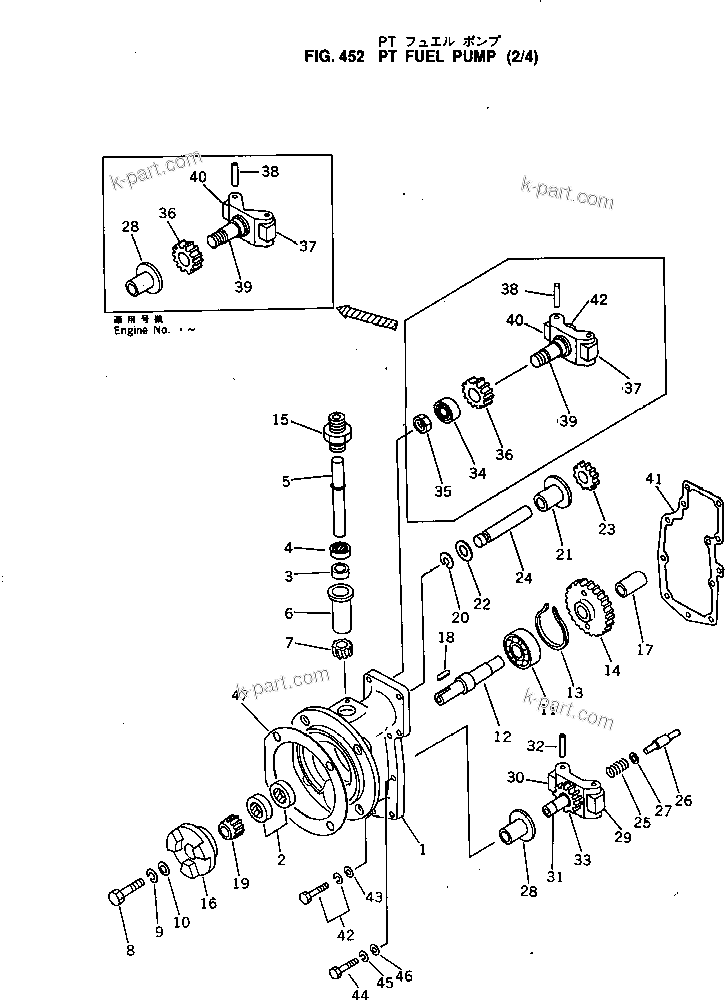

PT FUEL PUMP (2/4) (INNER PARTS) (452) in KT-1150-1A S/N 101153-UP. Diagram image and parts list.
