NTO-6-CI-1B S/N 25762-UP

#	Part Number	Partname	Quantity	Options
\|1	6657-72-1004	PT FUEL PUMP ASS'Y,(GR-J077)	1	SN: 139523-UP
\|1	6657-72-1003	PT FUEL PUMP ASS'Y,(GR-J077)	1	SN: 101692-139522
\|1	6657-72-1002	PT FUEL PUMP ASS'Y,(GR-J077)	1	SN: 101674-101691
\|1	6657-72-1001	PT FUEL PUMP ASS'Y,(GR-J063)	1	SN: 25762-101673
\|1	6610-71-1011	HOUSING ASS'Y	1	SN: 25762-UP
\|1	6610-71-1020	HOUSING ASS'Y	1	SN: 25762-UP
1		HOUSING	1	SN: 107687-UP
\|1		HOUSING	1	SN: 25762-107686
\|1		PLUG	1	SN: 25762-UP
\|1		PLUG	1	SN: 144160-UP
\|1		PLUG	1	SN: 25762-144159
\|1		SLEEVE,THROTTLE SHAFT	1	SN: 25762-UP
\|1		SLEEVE,THROTTLE SHAFT	1	SN: 25762-UP
2		HOUSING,SPRING PACK	1	SN: 107687-UP
\|2		HOUSING,SPRING PACK	1	SN: 25762-107686
\|3		BARREL ASS'Y (STD)	1	SN: 25762-UP
\|3		BARREL ASS'Y,0.25MM (OS)	1	SN: 25762-UP
\|3		BARREL ASS'Y,0.50MM (OS)	1	SN: 25762-UP
3		BARREL (STD)	1	SN: 25762-UP
\|3		BARREL,0.25MM (OS)	1	SN: 25762-UP
\|3		BARREL,0.50MM (OS)	1	SN: 25762-UP
\|3		SLEEVE (STD)	1	SN: 25762-UP
\|3		SLEEVE,0.25MM (OS)	1	SN: 25762-UP
\|3		SLEEVE,0.50MM (OS)	1	SN: 25762-UP
4	6610-71-1180	CLIP	1	SN: 25762-UP
5		BUSHING	1	SN: 25762-UP
6	6610-71-1151	RING,DOWEL	1	SN: 139523-UP
\|6	6610-71-1160	PIN,DOWEL	1	SN: 25762-139522
7	6610-71-1151	RING,DOWEL	1	SN: 139523-UP
\|7	6610-71-1150	PIN,DOWEL	1	SN: 25762-139522
\|8	6610-71-1041	PLUNGER ASS'Y,GOVERNOR ? RED ? CLASS 0	1	SN: 25762-UP
\|8	6610-79-1041	PLUNGER ASS'Y,GOVERNOR ? BLUE ? CLASS 1	1	SN: 25762-UP
\|8	6610-78-1041	PLUNGER ASS'Y,GOVERNOR ? GREEN ? CLASS 2	1	SN: 25762-UP
\|8	6610-77-1041	PLUNGER ASS'Y,GOVERNOR ? YELLOW ? CLASS 3	1	SN: 25762-UP
\|8	6610-76-1041	PLUNGER ASS'Y,GOVERNOR ? BROWN ? CLASS 4	1	SN: 25762-UP
\|8	6610-75-1041	PLUNGER ASS'Y,GOVERNOR ? BLACK ? CLASS 5	1	SN: 25762-UP
\|8	6610-74-1041	PLUNGER ASS'Y,GOVERNOR ? GREY ? CLASS 6	1	SN: 25762-UP
\|8	6610-73-1041	PLUNGER ASS'Y,GOVERNOR ? PURPLE ? CLASS 7	1	SN: 25762-UP
8	6610-71-1411	PLUNGER,GOVERNOR ? RED ? CLASS 0	1	SN: 25762-UP
\|8	6610-79-1411	PLUNGER,GOVERNOR ? BLUE ? CLASS 1	1	SN: 25762-UP
\|8	6610-78-1411	PLUNGER,GOVERNOR ? GREEN ? CLASS 2	1	SN: 25762-UP
\|8	6610-77-1411	PLUNGER,GOVERNOR ? YELLOW ? CLASS 3	1	SN: 25762-UP
\|8	6610-76-1411	PLUNGER,GOVERNOR ? BROWN ? CLASS 4	1	SN: 25762-UP
\|8	6610-75-1411	PLUNGER,GOVERNOR ? BLACK ? CLASS 5	1	SN: 25762-UP
\|8	6610-74-1411	PLUNGER,GOVERNOR ? GREY ? CLASS 6	1	SN: 25762-UP
\|8	6610-73-1411	PLUNGER,GOVERNOR ? PURPLE ? CLASS 7	1	SN: 25762-UP
9	6610-71-1452	SPACER,PLUNGER	1	SN: .-UP
\|9	6610-71-1451	SPACER,PLUNGER	1	SN: 25762-.
10	6610-71-1420	WASHER,THRUST	1	SN: 25762-UP
11	6610-71-1430	DRIVE,GOVERNOR PLUNGER	1	SN: 25762-UP
12	6610-71-1440	PIN,GOVERNOR PLUNGER	1	SN: 25762-UP
13	6610-71-1460	SHIM ? 0.13MM	-2	SN: 25762-UP
\|13	6610-71-1470	SHIM ? 0.25MM	-2	SN: 25762-UP
\|13	6610-71-1480	SHIM ? 0.51MM	-2	SN: 25762-UP
\|14	6610-71-1090	SHAFT ASS'Y,THROTTLE ? RED ? CLASS 0	1	SN: 25762-UP
\|14	6610-79-1090	SHAFT ASS'Y,THROTTLE ? BLUE ? CLASS 1	1	SN: 25762-UP
\|14	6610-78-1090	SHAFT ASS'Y,THROTTLE ? GREEN ? CLASS 2	1	SN: 25762-UP
\|14	6610-77-1090	SHAFT ASS'Y,THROTTLE ? YELLOW ? CLASS 3	1	SN: 25762-UP
\|14	6610-76-1090	SHAFT ASS'Y,THROTTLE ? BROWN ? CLASS 4	1	SN: 25762-UP
\|14	6610-75-1090	SHAFT ASS'Y,THROTTLE ? BLACK ? CLASS 5	1	SN: 25762-UP
14	6610-71-1340	SHAFT,RED ? CLASS 0	1	SN: 25762-UP
\|14	6610-79-1340	SHAFT,BLUE ? CLASS 1	1	SN: 25762-UP
\|14	6610-78-1340	SHAFT,GREEN ? CLASS 2	1	SN: 25762-UP
\|14	6610-77-1340	SHAFT,YELLOW ? CLASS 3	1	SN: 25762-UP
\|14	6610-76-1340	SHAFT,BROWN ? CLASS 4	1	SN: 25762-UP
\|14	6610-75-1340	SHAFT,BLACK ? CLASS 5	1	SN: 25762-UP
15	6610-71-1320	O-RING (K6)	1	SN: 25762-UP
16	6610-71-1360	PIN,SPRING	1	SN: 25762-UP
17	6610-71-1370	WASHER	2	SN: 25762-UP
21	6610-71-1250	SHIM ? 0.25MM	5	SN: 25762-UP
\|21	6610-71-1260	SHIM ? 0.13MM	5	SN: 25762-UP
\|21	6610-71-1270	SHIM ? 0.05MM	5	SN: 25762-UP
22	6610-71-1730	COVER,THROTTLE SHAFT	1	SN: 25762-UP
23	6600-01-3110	RING,SNAP	1	SN: 25762-UP
24	6610-71-1760	SEAL,LEAD	1	SN: 25762-UP
25	6610-71-1771	WIRE,SEAL	1	SN: 25762-UP
26	02720-40204	PLUG,PRIMING PUMP	1	SN: 144160-UP
\|26	02720-20204	PLUG	1	SN: 35772-144159
\|26	6610-01-3290	CONNECTOR,PRIMING PUMP	1	SN: 25762-35771
27	6610-71-5120	SPRING,TORQUE CONTROL	1	SN: 113392-UP
\|27	6610-71-5170	SPRING,TORQUE CONTROL	1	SN: 25762-113391
28	6610-71-1790	SCREW,SET	2	SN: 25762-UP
29	02215-10406	NUT	2	SN: .-UP
\|29	6600-01-3580	NUT	2	SN: 25762-.
30	6610-71-3180	NUT	2	SN: 25762-UP
31	6610-71-1760	SEAL,LEAD	1	SN: 25762-UP
32	6610-71-1771	WIRE,SEAL	1	SN: 25762-UP
33	6610-71-1870	PLUG	1	SN: 25762-UP
34	02891-02018	O-RING (K6)	1	SN: 25762-UP

Komatsu NTO-6-CI-1B S/N 25762-UP parts catalog PDF

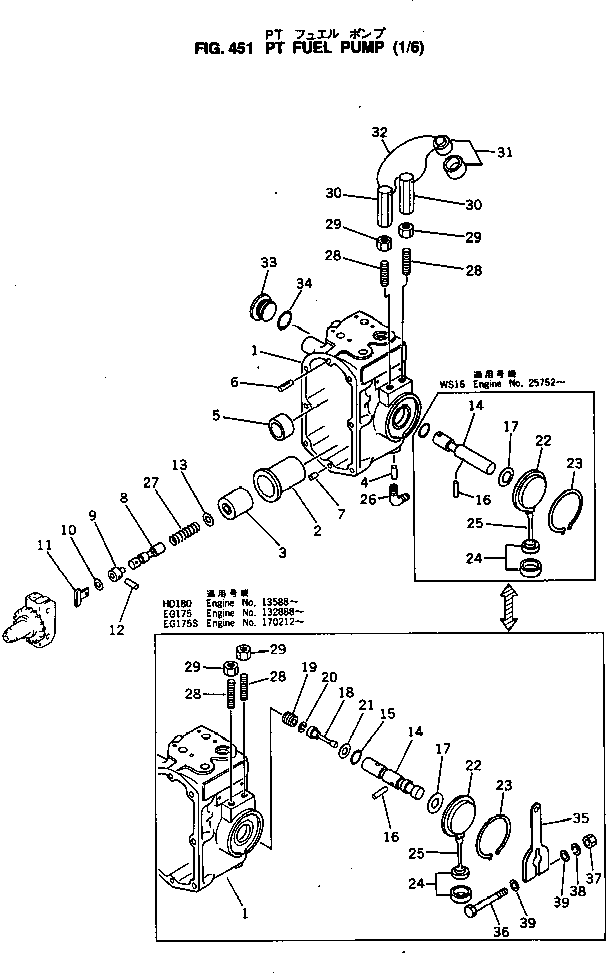

PT FUEL PUMP (1/6) (451) in NTO-6-CI-1B S/N 25762-UP. Diagram image and parts list.
