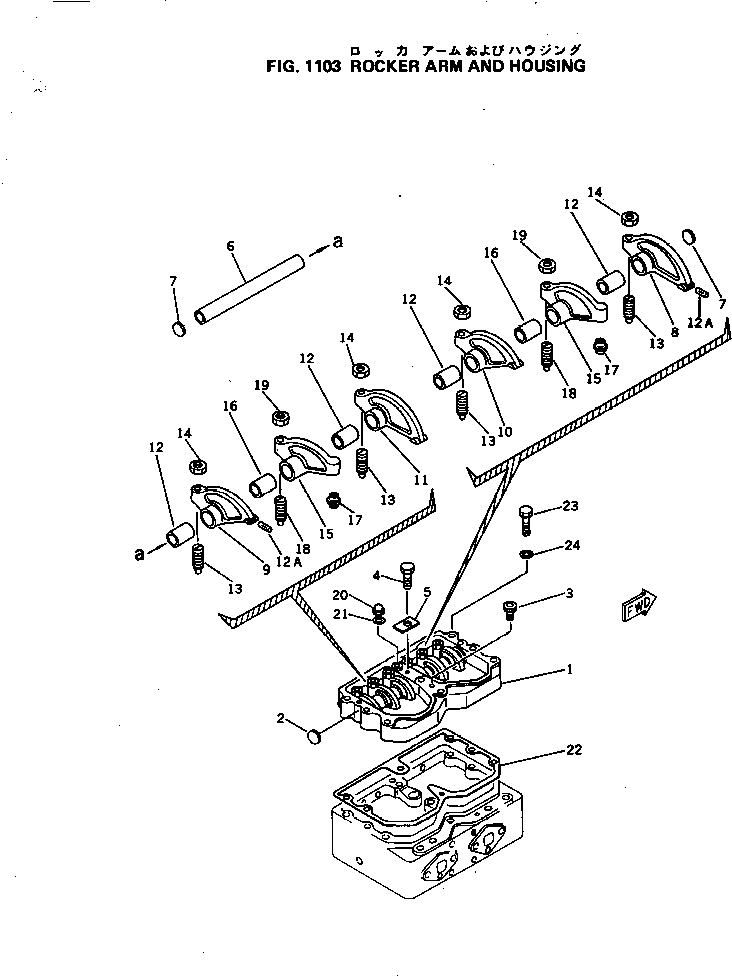

ROCKER ARM AND HOUSING | NH-220-CI-2V S/N 141402-UP

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
\|$0	6620-11-7010	HOUSING ASS'Y,ROCKER ARM	3	SN: 141402-UP
\|$1	6610-11-7020	HOUSING ASS'Y,ROCKER ARM	1	SN: 141402-UP
1	6610-11-7110	HOUSING	1	SN: 141402-UP
2	6710-11-7150	PLUG,EXPANSION	2	SN: 141402-UP
3	6610-11-7140	PLUG,VENTILATOR	1	SN: 141402-UP
4	6710-11-7330	SCREW	1	SN: 141402-UP
\|$6	6610-41-5020	SHAFT ASS'Y,ROCKER ARM	1	SN: 141402-UP
6		SHAFT	1	SN: 141402-UP
7	6610-41-5220	PLUG	2	SN: 141402-UP
\|$9	6610-41-5030	ARM ASS'Y,EXHAUST VALVE, NO.1,3,5	1	SN: 141402-UP
\|$10	6610-41-5050	ARM ASS'Y,EXHAUST VALVE, NO.2,4,6	1	SN: 141402-UP
\|$11	6620-41-5030	ARM ASS'Y,INTAKE VALVE, NO.1,3,5	1	SN: 141402-UP
\|$12	6620-41-5050	ARM ASS'Y,INTAKE VALVE, NO.2,4,6	1	SN: 141402-UP
\|$13	6610-41-5040	ARM ASS'Y,EXHAUST VALVE, NO.1,3,5	1	SN: 141402-UP
\|$14	6610-41-5060	ARM ASS'Y,EXHAUST VALVE, NO.2,4,6	1	SN: 141402-UP
\|$15	6620-41-5040	ARM ASS'Y,INTAKE VALVE, NO.1,3,5	1	SN: 141402-UP
\|$16	6620-41-5060	ARM ASS'Y,INTAKE VALVE, NO.2,4,6	1	SN: 141402-UP
8		ARM,EXHAUST VALVE, NO.1,3,5	1	SN: 141402-UP
9		ARM,EXHAUST VALVE, NO.2,4,6	1	SN: 141402-UP
10		ARM,INTAKE VALVE, NO.1,3,5	1	SN: 141402-UP
11		ARM,INTAKE VALVE, NO.2,4,6	1	SN: 141402-UP
12	6610-41-5330	BUSHING	1	SN: 141402-UP
12A	6610-41-5340	PIN	1	SN: 141402-UP
13	6610-41-5350	SCREW,ADJUSTING	1	SN: 141402-UP
14	6610-41-5360	NUT	1	SN: 141402-UP
\|$25	6610-41-5070	ARM ASS'Y,INJECTOR	2	SN: 141402-UP
\|$26	6610-41-5080	ARM ASS'Y,INJECTOR	1	SN: 141402-UP
15		ARM	1	SN: 141402-UP
16	6710-41-5531	BUSHING	1	SN: .-UP
16	6710-41-5530	BUSHING	1	SN: 141402-.
17	6610-41-5540	SOCKET,INJECTOR	1	SN: 141402-UP
18	6610-41-5550	SCREW,ADJUSTING	1	SN: 141402-UP
19	6600-01-2510	NUT	1	SN: 141402-UP
20	6610-11-7310	CAP,LUBRICATING OIL PIPE	3	SN: 141402-UP
21	6610-11-7320	GASKET (K1)	3	SN: 141402-UP
22	6610-11-7811	GASKET (K1)	3	SN: 141402-UP
23	02010-30889	BOLT	17	SN: 141402-UP
