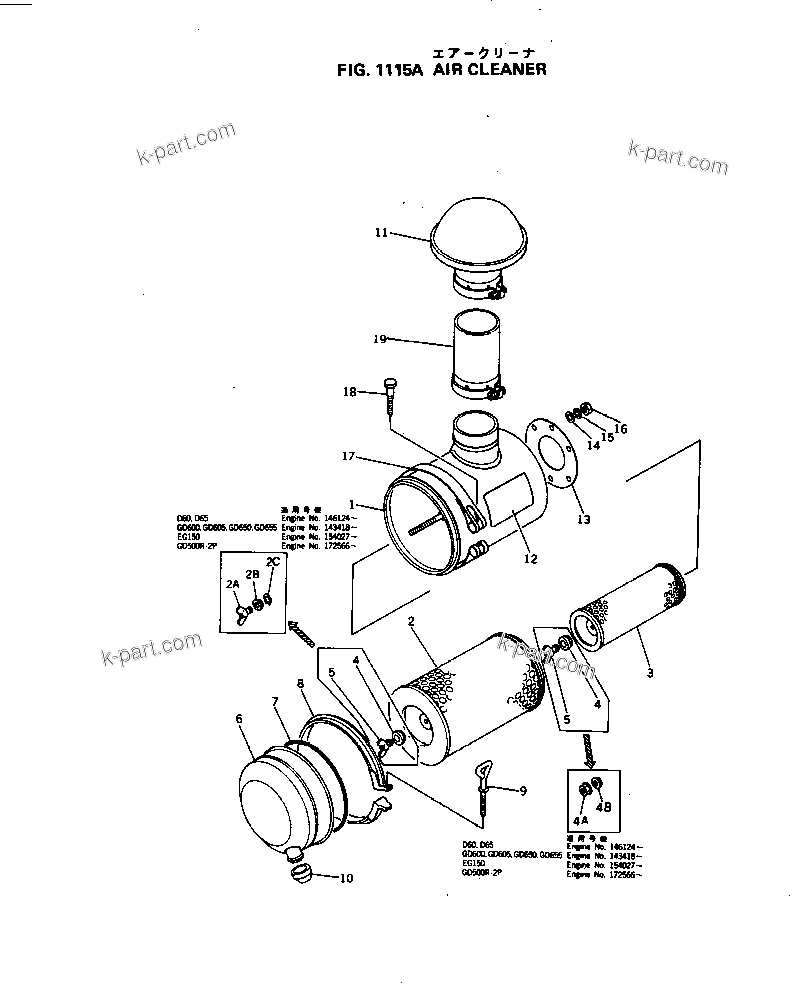

AIR CLEANER | NH-220-CI-2V S/N 141402-UP | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	6679-82-7101	AIR CLEANER ASS'Y	1	SN: 143418-UP
?	6679-82-7100	AIR CLEANER ASS'Y	1	SN: 141402-143417
?	6631-81-7603	AIR CLEANER ASS'Y,(SANDAY AND DUSTY SPEC.)	1	SN: 141402-UP
?	6679-82-7110	BODY	1	SN: 141402-UP
?	6631-81-7610	BODY,(SANDY AND DUSTY SPEC.)	1	SN: 141402-UP
?	6115-81-7602	ELEMENT ASS'Y	1	SN: 143418-UP
?	6115-81-7601	ELEMENT ASS'Y	1	SN: 141402-143417
?	600-181-2300	ELEMENT ASS'Y,OUTER	1	SN: 143418-UP
?		ELEMENT,OUTER	1	SN: 143418-UP
?	600-181-2310	ELEMENT,OUTER	1	SN: 141402-143417
?	600-181-2990	NUT,WING	1	SN: 143418-UP
?	600-181-4591	WASHER,SEAL	1	SN: 143418-UP
?	04064-01510	RING,SNAP	1	SN: 143418-UP
?		ELEMENT,INNER	1	SN: 143418-UP
?	6112-83-7620	ELEMENT,INNER	1	SN: 141402-143417
?	600-181-3270	WASHER,SEAL	2	SN: 141402-143417
?	600-181-7910	NUT	1	SN: 143418-UP
?	600-181-7511	WASHER,SEAL	1	SN: 143418-UP
?	600-181-2360	NUT,WING	2	SN: 141402-143417
?	600-181-3280	PAN	1	SN: 141402-UP
?	6692-81-7130	O-RING	1	SN: 141402-UP
?	6692-81-7170	BAND	1	SN: 141402-UP
?	6692-81-7180	BOLT	1	SN: 141402-UP
?	600-181-2550	VALVE	1	SN: 141402-UP
?	600-181-2690	CAP,(SANDY AND DUSTY SPEC.)	1	SN: 141402-UP
?	09637-00161	PLATE, INSTRUCTION,(JAPANESE-ENGLISH)	1	SN: .-UP
?	09637-00160	PLATE, INSTRUCTION,(JAPANESE-ENGLISH)	1	SN: 141402-.
?	09637-02161	PLATE, INSTRUCTION,(ARABIC-ENGLISH)	1	SN: 141402-UP
?	09637-30161	PLATE, INSTRUCTION,(ENGLISH)	1	SN: 141402-UP
?	6631-11-4381	GASKET (K1)	1	SN: 141402-UP
?	01641-21016	WASHER	6	SN: 141402-UP
?	01602-01030	WASHER,SPRING	6	SN: 141402-UP
?	01582-01008	NUT	6	SN: 141402-UP
?	6691-11-4610	BAND ASS'Y	1	SN: 141402-UP
?	6643-11-4641	BOLT	1	SN: .-UP
?	6643-11-4640	BOLT	1	SN: 141402-.
