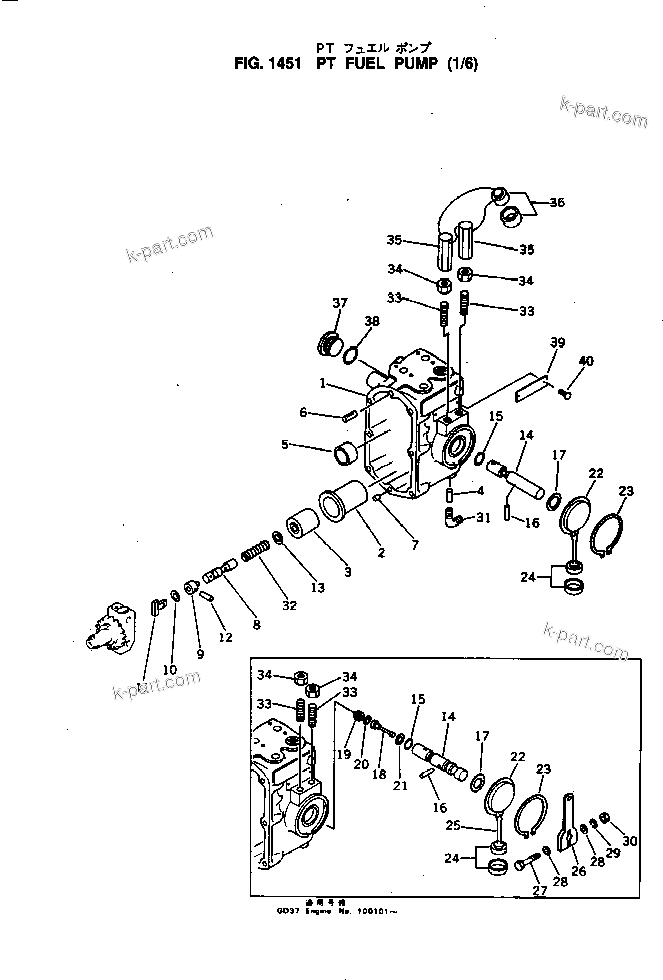

PT FUEL PUMP (1/6) | NH-220-CI-2H S/N 100101-UP

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	6632-73-1002	PT FUEL PUMP ASS'Y,(GR-J055)	1	SN: ..-UP
?	6632-73-1001	PT FUEL PUMP ASS'Y,(GR-J055)	1	SN: 101990-..
?	6632-73-1000	PT FUEL PUMP ASS'Y,(GR-J055)	1	SN: 100101-101989
?	6610-71-1011	HOUSING ASS'Y,FUEL PUMP	1	SN: 100101-UP
?	6610-71-1020	HOUSING ASS'Y	1	SN: 100101-UP
?		HOUSING	1	SN: 107687-UP
?		HOUSING	1	SN: 100101-107686
?		PLUG	1	SN: 107687-UP
?		PLUG	1	SN: 100101-107686
?		SLEEVE,THROTTLE SHAFT	1	SN: 100101-UP
?		SLEEVE,THROTTLE SHAFT	1	SN: 100101-UP
?		HOUSING,SPRING PACK	1	SN: 100101-UP
?	6610-71-1030	BARREL ASS'Y (STD)	1	SN: 100101-UP
?	6610-79-1030	BARREL ASS'Y,0.25MM (OS)	1	SN: 100101-UP
?	6610-78-1030	BARREL ASS'Y,0.50MM (OS)	1	SN: 100101-UP
?		BARREL (STD)	1	SN: 100101-UP
?		BARREL,0.25MM (OS)	1	SN: 100101-UP
?		BARREL,0.50MM (OS)	1	SN: 100101-UP
?		SLEEVE (STD)	1	SN: 100101-UP
?		SLEEVE,0.25MM (OS)	1	SN: 100101-UP
?		SLEEVE,0.50MM (OS)	1	SN: 100101-UP
?	6610-71-1180	CLIP	1	SN: 100101-UP
?		BUSHING	1	SN: 100101-UP
?	6610-71-1160	PIN,DOWEL	1	SN: 100101-UP
?	6610-71-1150	PIN,DOWEL	1	SN: 100101-UP
?	6631-71-1040	PLUNGER ASS'Y,RED, CLASS 0	1	SN: 101692-UP
?	6610-71-1041	PLUNGER ASS'Y,RED, CLASS 0	1	SN: 100101-101691
?	6631-79-1040	PLUNGER ASS'Y,BLUE, CLASS 1	1	SN: 101692-UP
?	6610-79-1041	PLUNGER ASS'Y,BLUE, CLASS 1	1	SN: 100101-101691
?	6631-78-1040	PLUNGER ASS'Y,GREEN, CLASS 2	1	SN: 101692-UP
?	6610-78-1041	PLUNGER ASS'Y,GREEN, CLASS 2	1	SN: 100101-101691
?	6631-77-1040	PLUNGER ASS'Y,YELLOW, CLASS 3	1	SN: 101692-UP
?	6610-77-1041	PLUNGER ASS'Y,YELLOW, CLASS 3	1	SN: 100101-101691
?	6631-76-1040	PLUNGER ASS'Y,BROWN, CLASS 4	1	SN: 101692-UP
?	6610-76-1041	PLUNGER ASS'Y,BROWN, CLASS 4	1	SN: 100101-101691
?	6631-75-1040	PLUNGER ASS'Y,BLACK, CLASS 5	1	SN: 101692-UP
?	6610-75-1041	PLUNGER ASS'Y,BLACK, CLASS 5	1	SN: 100101-101691
?	6631-74-1040	PLUNGER ASS'Y,GREY, CLASS 6	1	SN: 101692-UP
?	6610-74-1041	PLUNGER ASS'Y,GREY, CLASS 6	1	SN: 100101-101691
?	6631-73-1040	PLUNGER ASS'Y,PURPLE, CLASS 7	1	SN: 101692-UP
?	6610-73-1041	PLUNGER ASS'Y,PURPLE, CLASS 7	1	SN: 100101-101691
?	6631-71-1410	PLUNGER,RED, CLASS 0	1	SN: 101692-UP
?	6610-71-1411	PLUNGER,RED, CLASS 0	1	SN: 100101-101691
?	6631-79-1410	PLUNGER,BLUE, CLASS 1	1	SN: 101692-UP
?	6610-79-1411	PLUNGER,BLUE, CLASS 1	1	SN: 100101-101691
?	6631-78-1410	PLUNGER,GREEN, CLASS 2	1	SN: 101692-UP
?	6610-78-1411	PLUNGER,GREEN, CLASS 2	1	SN: 100101-101691
?	6631-77-1410	PLUNGER,YELLOW, CLASS 3	1	SN: 101692-UP
?	6610-77-1411	PLUNGER,YELLOW, CLASS 3	1	SN: 100101-101691
?	6631-76-1410	PLUNGER,BROWN, CLASS 4	1	SN: 101692-UP
?	6610-76-1411	PLUNGER,BROWN, CLASS 4	1	SN: 100101-101691
?	6631-75-1410	PLUNGER,BLACK, CLASS 5	1	SN: 101692-UP
?	6610-75-1411	PLUNGER,BLACK, CLASS 5	1	SN: 100101-101691
?	6631-74-1410	PLUNGER,GREY, CLASS 6	1	SN: 101692-UP
?	6610-74-1411	PLUNGER,GREY, CLASS 6	1	SN: 100101-101691
?	6631-73-1410	PLUNGER,PURPLE, CLASS 7	1	SN: 101692-UP
?	6610-73-1411	PLUNGER,PURPLE, CLASS 7	1	SN: 100101-101691
?	6610-71-1452	SPACER	1	SN: .-UP
?	6610-71-1451	SPACER	1	SN: 100101-.
?	6610-71-1420	WASHER,THRUST	1	SN: 100101-UP
?	6610-71-1430	DRIVE,GOVERNOR PLUNGER	1	SN: 100101-UP
?	6610-71-1440	PIN,GOVERNOR PLUNGER	1	SN: 100101-UP
?	6610-71-1460	SHIM, 0.13MM,PLUNGER	-2	SN: 100101-UP
?	6610-71-1470	SHIM, 0.25MM,PLUNGER	-2	SN: 100101-UP
?	6610-71-1480	SHIM, 0.51MM,PLUNGER	-2	SN: 100101-UP
?	6610-71-1090	SHAFT ASS'Y,THROTTLE, RED, CLASS 0	1	SN: 100101-UP
?	6610-79-1090	SHAFT ASS'Y,THROTTLE, BLUE, CLASS 1	1	SN: 100101-UP
?	6610-78-1090	SHAFT ASS'Y,THROTTLE, GREEN, CLASS 2	1	SN: 100101-UP
?	6610-77-1090	SHAFT ASS'Y,THROTTLE, YELLOW, CLASS 3	1	SN: 100101-UP
?	6610-76-1090	SHAFT ASS'Y,THROTTLE, BROWN, CLASS 4	1	SN: 100101-UP
?	6610-75-1090	SHAFT ASS'Y,THROTTLE, BLACK, CLASS 5	1	SN: 100101-UP
?	6610-71-1340	SHAFT,RED, CLASS 0	1	SN: 100101-UP
?	6610-79-1340	SHAFT,BLUE, CLASS 1	1	SN: 100101-UP
?	6610-78-1340	SHAFT,GREEN, CLASS 2	1	SN: 100101-UP
?	6610-77-1340	SHAFT,YELLOW, CLASS 3	1	SN: 100101-UP
?	6610-76-1340	SHAFT,BROWN, CLASS 4	1	SN: 100101-UP
?	6610-75-1340	SHAFT,BLACK, CLASS 5	1	SN: 100101-UP
?	6610-71-1320	O-RING (K6)	1	SN: 100101-UP
?	6610-71-1360	PIN,SPRING	1	SN: 100101-UP
?	6610-71-1370	WASHER	2	SN: 100101-UP
?	6610-71-1730	COVER,THROTTLE SHAFT	1	SN: 100101-UP
?	6600-01-3110	RING,SNAP	1	SN: 100101-UP
?	6610-71-1760	SEAL,LEAD	1	SN: 100101-UP
?	6610-81-8820	ELBOW,PRIMING PUMP	1	SN: 100101-UP
?	6610-71-5160	SPRING,TORQUE CONTROL	1	SN: 100101-UP
?	6610-71-1790	SCREW,SET	2	SN: 100101-UP
?	02215-10406	NUT	2	SN: ..-UP
?	02216-10404	NUT	2	SN: .-..
?	6600-01-3580	NUT	2	SN: 100101-.
?	6610-71-3180	NUT,ADJUSTING SCREW	2	SN: 100101-UP
?	6610-71-1760	SEAL,LEAD	1	SN: 100101-UP
?	6610-71-1870	PLUG	1	SN: 100101-UP
?	02891-02018	O-RING (K6)	1	SN: 100101-UP
?	6610-71-1712	PLATE, NAME,(LIMITED SUPPLY)	1	SN: 172867-UP
?	04418-02550	SCREW	2	SN: 172867-UP
