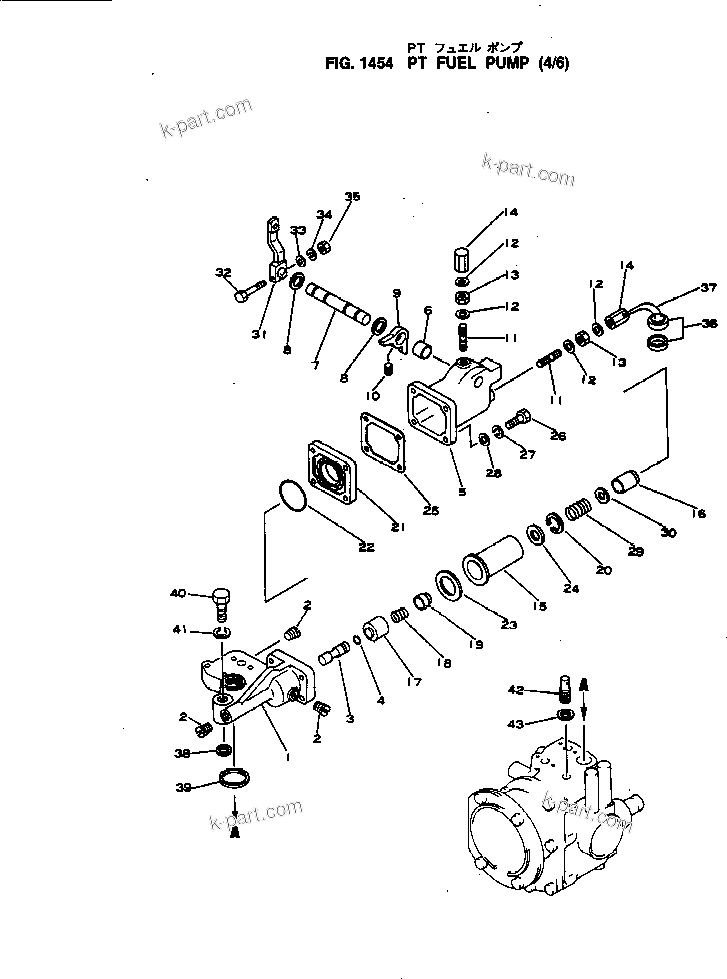

PT FUEL PUMP (4/6) | NH-220-CI-2H S/N 100101-UP

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	6632-73-1002	PT FUEL PUMP ASS'Y,(GR-J055)	1	SN: ..-UP
?	6632-73-1001	PT FUEL PUMP ASS'Y,(GR-J055)	1	SN: 101990-..
?	6632-73-1000	PT FUEL PUMP ASS'Y,(GR-J055)	1	SN: 100101-101989
?	6610-71-3010	GOVERNOR ASS'Y	1	SN: 100101-UP
?	6610-71-3020	HOUSING ASS'Y,GOVERNOR	1	SN: 100101-UP
?	6610-71-3030	HOUSING ASS'Y	1	SN: 100101-UP
?		HOUSING	1	SN: 100101-UP
?		BARREL,MVS GOVERNOR	1	SN: 100101-UP
?	02720-40204	PLUG	1	SN: 172867-UP
?	02720-40104	PLUG	2	SN: 172867-UP
?	02720-40204	PLUG	3	SN: 144160-172866
?	02720-20204	PLUG	3	SN: 100101-144159
?	6610-71-3350	PLUNGER,GOVERNOR, RED, CLASS 0	1	SN: 100101-UP
?	6610-79-3350	PLUNGER,GOVERNOR, BLUE, CLASS 1	1	SN: 100101-UP
?	6610-78-3350	PLUNGER,GOVERNOR, GREEN, CLASS 2	1	SN: 100101-UP
?	6610-77-3350	PLUNGER,GOVERNOR, YELLOW, CLASS 3	1	SN: 100101-UP
?	6610-71-3370	RING,SNAP	1	SN: 100101-UP
?	6610-71-3040	SPRING ASS'Y	1	SN: 100101-UP
?	6610-71-3051	SPRING ASS'Y	1	SN: .-UP
?	6610-71-3050	SPRING ASS'Y	1	SN: 100101-.
?	6610-71-3060	COVER ASS'Y	1	SN: 100101-UP
?		COVER	1	SN: 100101-UP
?		BUSHING	2	SN: .-UP
?		RING	2	SN: 100101-.
?	6610-71-3130	SHAFT,THROTTLE	1	SN: 100101-UP
?	6610-71-3150	O-RING (K6)	1	SN: 100101-UP
?	6610-71-3140	STOP	1	SN: 100101-UP
?	6610-71-3160	SCREW,SET	1	SN: 100101-UP
?	6710-71-3170	SCREW,SET	2	SN: .-UP
?	6610-71-3170	SCREW,SET	2	SN: 100101-.
?	6610-71-3190	WASHER	4	SN: 100101-UP
?	02216-10404	NUT	2	SN: 100101-UP
?	6610-71-3180	NUT	2	SN: 100101-UP
?	6610-71-3210	HOUSING,SPRING PACK	1	SN: 100101-UP
?	6610-71-3230	PLUNGER,THROTTLE	1	SN: 100101-UP
?	6610-71-3070	SPRING ASS'Y,IDLE	1	SN: 100101-UP
?	6610-71-3240	PLUNGER,GOVERNOR SPRING	1	SN: 100101-UP
?	6710-71-3260	SPRING	1	SN: .-UP
?	6610-71-3260	SPRING	1	SN: 100101-.
?	6610-71-3250	RETAINER,SPRING	1	SN: 100101-UP
?	6610-71-3220	RING,SNAP	1	SN: 100101-UP
?	6610-71-3450	PLATE,ADAPTER	1	SN: 100101-UP
?	02891-02047	O-RING (K6)	1	SN: 100101-UP
?	6610-71-3440	SHIM,HOUSING	4	SN: 100101-UP
?	6610-71-3410	SHIM, 0.51MM	1	SN: 100101-UP
?	6610-71-3420	SHIM, 0.25MM	1	SN: 100101-UP
?	6610-71-3430	SHIM, 0.13MM	1	SN: 100101-UP
?	6610-71-3470	SHIM, 0.19MM	2	SN: 100101-UP
?	6610-71-1821	GASKET (K6)	1	SN: 100101-UP
?	02100-00438	BOLT	4	SN: 100101-UP
?	6610-71-1230	WASHER,SPRING	4	SN: 100101-UP
?	6610-71-1840	WASHER	4	SN: 100101-UP
?	6631-70-6040	SPRING ASS'Y,MVS GOVERNOR	1	SN: 100101-UP
?	6610-71-6120	SPRING,GOVERNOR HIGH SPEED	1	SN: 100101-UP
?	6610-71-6310	SHIM, 0.51MM	-2	SN: 100101-UP
?	6610-71-6320	SHIM, 0.25MM	-2	SN: 100101-UP
?	6610-71-6330	SHIM, 0.13MM	-2	SN: 100101-UP
?	02030-20438	BOLT	1	SN: 100101-UP
?	6610-71-1840	WASHER	1	SN: 100101-UP
?	01602-00720	WASHER,SPRING	1	SN: 172867-UP
?	02310-10916	WASHER,SPRING	1	SN: 100101-172866
?	02216-10404	NUT	1	SN: 100101-UP
?	6610-71-1760	SEAL,LEAD	1	SN: 100101-UP
?	6610-71-1771	WIRE,LOCK	1	SN: 100101-UP
?	6610-71-3510	RING,SEAL (K6)	1	SN: 100101-UP
?	6610-71-3530	RING,SEAL (K6)	1	SN: 100101-UP
?	6610-71-3560	BOLT	1	SN: 100101-UP
?	6610-71-3550	SEAL (K6)	1	SN: 100101-UP
?	6610-71-3540	ADAPTER	1	SN: 100101-UP
?	6610-71-3520	O-RING,SEAL (K6)	1	SN: 100101-UP
