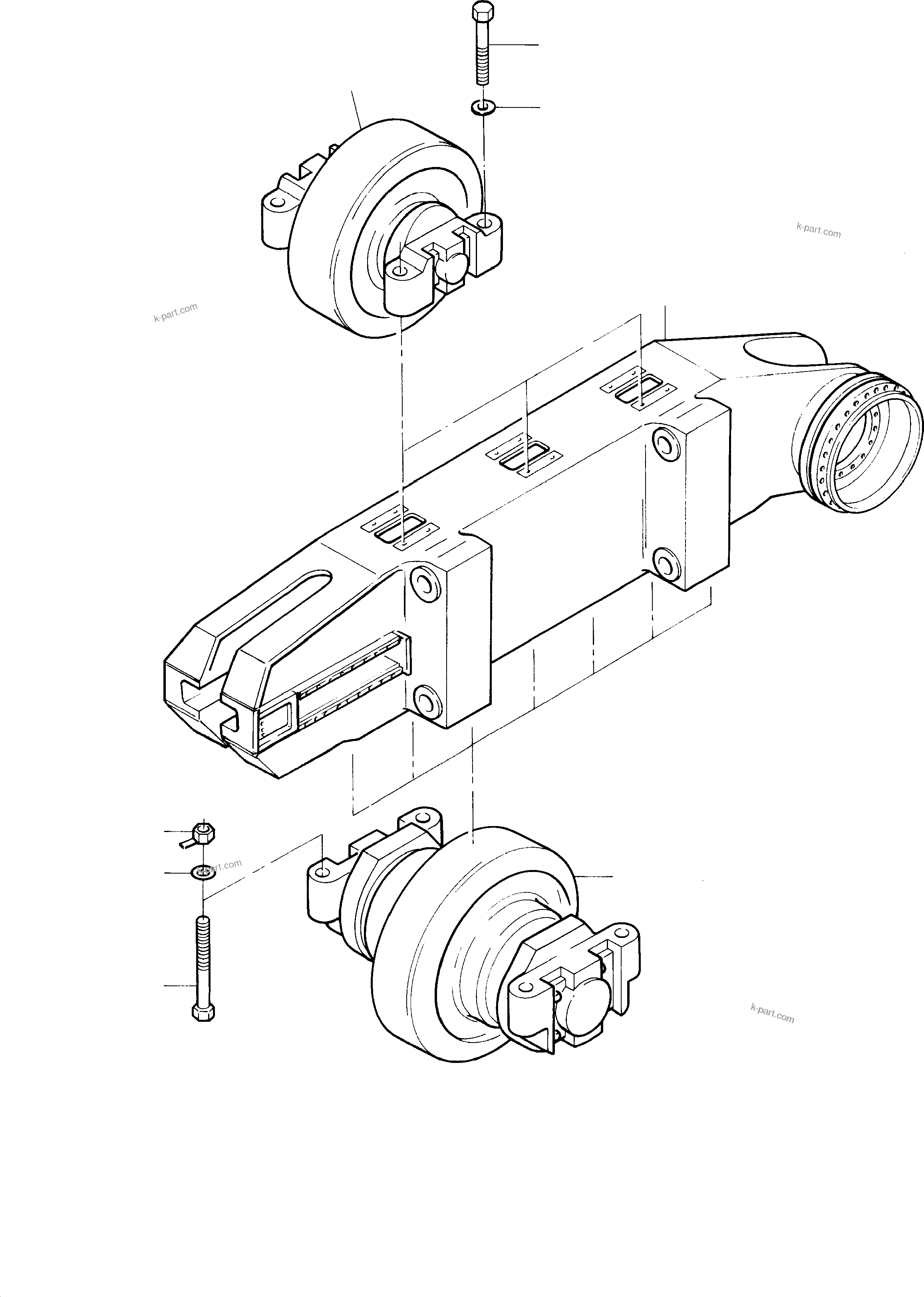

Komatsu parts book diagram for H285S S/N 78129: TRACK FRAME R.H. AND L.H., BOTTOM- AND ROLLER

? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	482 863 40	Track frame, r.h.	1	InternBDB: MB SK 575 400 40 \| InternKon: 448 850 40 / 10
	?	482 865 40	Track frame, l.h.	1	InternBDB: MB SK 575 499 40 \| InternKon: 448 860 40 / 10
	?		Top roller	6	InternBDB: 352 432 40 \| InternKon: 674 013 40 / 1	114-3140
	?	502 213 98	Bolt	24	InternBDB: M 30 x 140 / 931 10.9 \| InternKon: 674 013 40 / 2
	?	255 057 40	Washer	104	InternBDB: 31 / 6916 \| InternKon: 674 013 40 / 3
	?		Bottom roller	14	InternBDB: 352 431 40 \| InternKon: 448 860 40 / 2	114-3135
	?	308 341 99	Bolt Standard 230 lg. Normaltemperatur	48	InternBDB: M30 x 230 / 931 10.9 \| InternKon: 448 860 40 / 31
	?	501 139 98	Bolt Cold weather design 230 lg.	48	InternBDB: M30 x 230 / 931 10.9 kaltz
	?	368 715 40	Nut	48	InternBDB: M 30 \| InternKon: 448 860 40 / 14
	?	304 306 99	Bolt Standard 160 lg. Normaltemperatur	8	InternBDB: M30 x 160 \| InternKon: 448 860 40 / 70
	?	511 747 98	Bolt Cold weather design 160 lg.	8	InternBDB: M30 x 160 10.9 kaltz

Komatsu H285S S/N 78129 parts catalog PDF

TRACK FRAME R.H. AND L.H., BOTTOM- AND ROLLER (114-3130e) in H285S S/N 78129. Diagram image and parts list.
