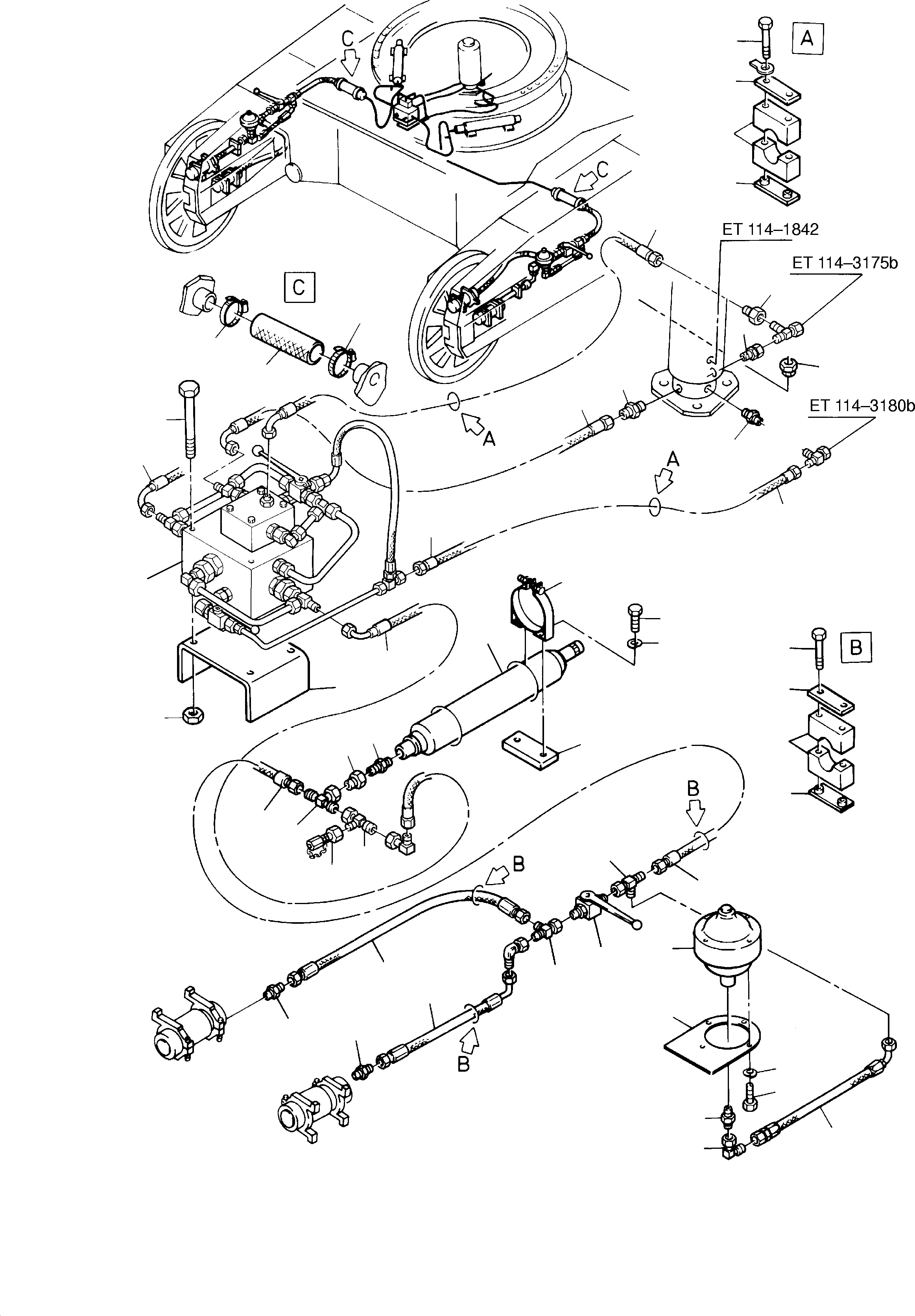

HYDRAULIC TRACK ADJUSTER | H285S S/N 78129 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options	Reference
01		Valve block	1	InternKon: 489 250 40 / 1	114-3190a
02	462 811 40	Retainer	1	InternKon: 489 250 40 / 15
03	308 433 99	Bolt	4	InternBDB: M12x150 /931 10.9 \| InternKon: 489 250 40 / 16
04	332 200 99	Nut	8	InternBDB: M 12 /934 \| InternKon: 489 250 40 / 17
07	511 140 98	Hose assy.DN 12x1845	-2	InternKon: 489 250 40 / 21
09	372 915 99	Union	1	InternBDB: KOR 28/15-L \| InternKon: 489 250 40 / 46
12	370 506 99	Union	5	InternBDB: CS 20 /2353 \| InternKon: 489 250 40 / 35
14	511 141 98	Hose assy.DN 16x1100	-2	InternKon: 489 250 40 / 25
15	372 185 99	Union	1	InternBDB: DDS 20 /2353
16	511 139 98	Hose assy.DN 12x975	1	InternKon: 489 250 40 / 23
19	490 487 40	Hose assy. DN 16x1000	2	InternKon: 489 250 40 / 6
20	004 132 98	Test socket	2	InternBDB: B 20 S 010 972 99 \| InternKon: 489 250 40 / 7
21	374 419 99	Socket	2	InternBDB: S 25 A /1" \| InternKon: 489 250 40 / 4
22	372 981 99	Union	2	InternBDB: KOR 25/20-S \| InternKon: 489 250 40 / 2
23	372 133 99	Union	2	InternBDB: EES 20 /2353 \| InternKon: 489 250 40 / 8
24	371 977 99	Union	6	InternBDB: FFS 20 /2353 \| InternKon: 489 250 40 / 44
25	462 807 40	Hose assy. DN 16x3840	2	InternKon: 489 250 40 / 5
26	506 372 98	Clamp	4	InternBDB: 1S 73x25 \| InternKon: 489 250 40 / 10
27	256 179 40	Hose DN 60 Bulk ware, state length required	-2	InternBDB: Aeroquip 2651-40 \| InternKon: 489 250 40 / 9
28	534 002 99	Weld on plate	4	InternBDB: ES 4 \| InternKon: 489 250 40 / 12
29	502 655 98	Half clamp	4	InternBDB: H-CS 4/23 \| InternKon: 489 250 40 / 29
30	534 001 99	Cover plate	4	InternBDB: DS 4 \| InternKon: 489 250 40 / 13
31	308 579 99	Bolt	8	InternBDB: M10x60 /931 \| InternKon: 489 250 40 / 14
32	502 682 98	Half clamp	4	InternBDB: H-CS 4/28 \| InternKon: 489 250 40 / 11
33	489 251 40	Thread plate	4	InternKon: 489 250 40 / 43
34	323 992 40	Clamp	4	InternBDB: Hydac HS 114 \| InternKon: 489 250 40 / 3
35	307 750 99	Bolt	8	InternBDB: M8x15 /933 \| InternKon: 489 250 40 / 19
36	343 094 99	Lock washer	16	InternBDB: 8 /127 \| InternKon: 489 250 40 / 20
45	566 513 40	Retainer	2	InternKon: 575 400 40 / 87
50	307 752 99	Bolt	8	InternBDB: M8x20 /933 \| InternKon: 448 870 40 / 68
51	374 418 99	Socket	2	InternBDB: S 20 A /3/4" \| InternKon: 448 870 40 / 66
52	551 715 40	Hose assy. DN 16x390	2	InternKon: 448 870 40 / 65
53	461 133 40	Ball cock	2	InternBDB: Argus BK 3021-0016 -594 250 \| InternKon: 448 870 40 / 52
54	462 806 40	Hose assy. DN 16x1540	2	InternKon: 448 870 40 / 54
55	462 805 40	Hose assy. DN 16x1260	2	InternKon: 448 870 40 / 55
60		Accumulator	2	InternBDB: Hydac TL 551 734 40
\|$37	767 412 73	Bolt	-2	InternBDB: Hydac 236 042
\|$38	767 413 73	Seal	-2	InternBDB: Hydac 601 225
65		Diaphragm-type accumulator	2	InternBDB: Hydac TL 551 746 40
