S4D102E-1E-23 S/N 26200163-UP

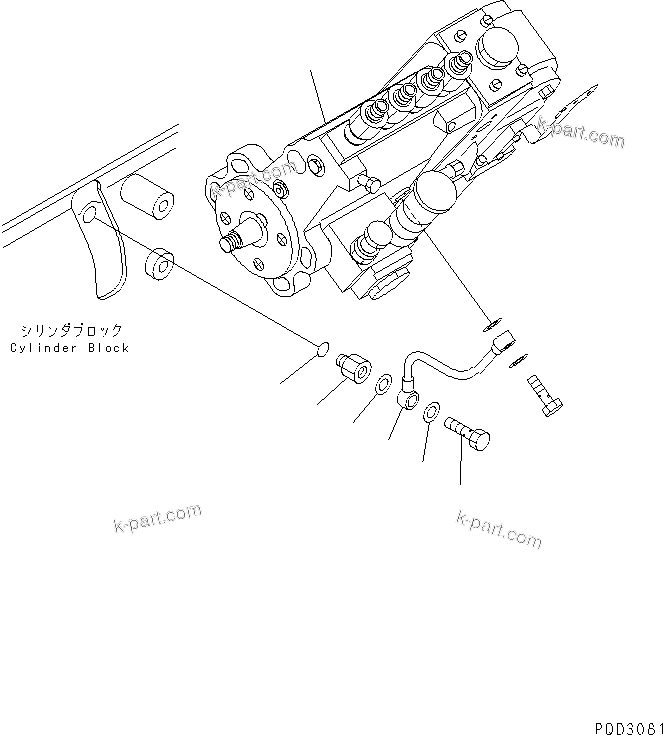

Komatsu parts book diagram for S4D102E-1E-23 S/N 26200163-UP: FUEL INJECTION PUMP AND OIL PIPING(#26201324-)

? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	6732-71-1191	INJECTION PUMP ASS'Y,(SEE FIG.A401P-02D2)	1	SN: 26201324-UP
	?	6732-71-5450	NIPPLE	1	SN: 26221956-UP
	?	6162-53-9340	NIPPLE	1	SN: 26200163-26221955
	?	07206-30710	BOLT,JOINT	1	SN: 26200163-UP
	?	07005-01012	SEAL, WASHER (K2)	2	SN: 26201324-UP \| KIT-FLAG: S
	?	6735-71-5411	TUBE	1	SN: 26200163-UP
	?	6215-81-9710	O-RING	2	SN: 26221956-UP \| KIT-FLAG: S

Komatsu S4D102E-1E-23 S/N 26200163-UP parts catalog PDF

FUEL INJECTION PUMP AND OIL PIPING(#26201324-) (A401P-01D2A) in S4D102E-1E-23 S/N 26200163-UP. Diagram image and parts list.
