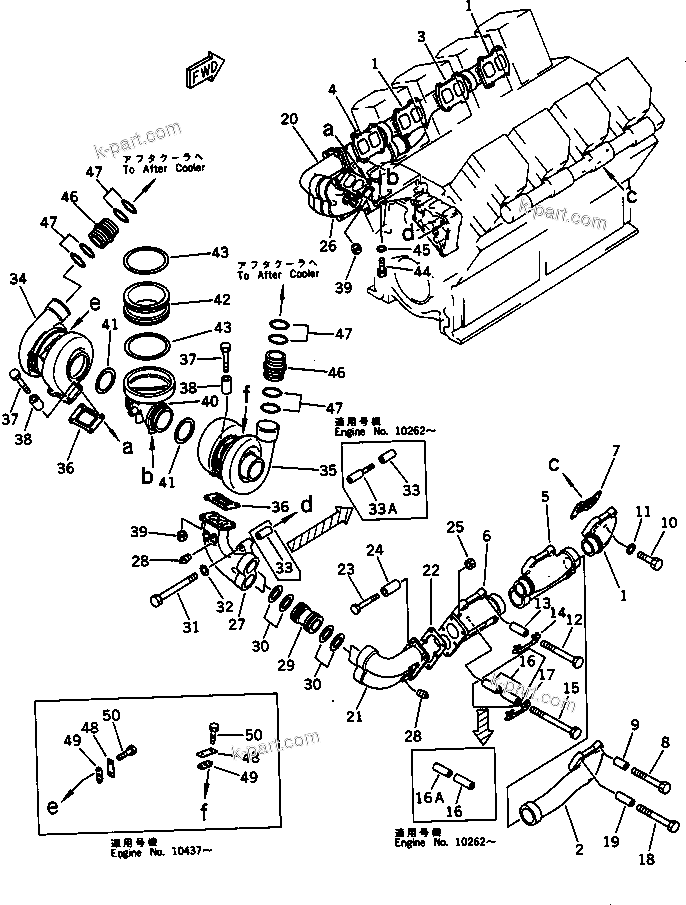

EXHAUST MANIFOLD AND TURBOCHARGER | SA8V170-1C S/N 10040-UP

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	6165-11-5111	MANIFOLD,EXHAUST	3	SN: 10437-UP
?	6165-11-5110	MANIFOLD,EXHAUST	3	SN: 10040-10436
?	6164-11-5111	MANIFOLD,EXHAUST	1	SN: 10437-UP
?	6164-11-5110	MANIFOLD,EXHAUST	1	SN: 10040-10436
?	6164-11-5141	MANIFOLD,EXHAUST	1	SN: 10437-UP
?	6164-11-5140	MANIFOLD,EXHAUST	1	SN: 10040-10436
?	6164-11-5151	MANIFOLD,EXHAUST	1	SN: 10437-UP
?	6164-11-5150	MANIFOLD,EXHAUST	1	SN: 10040-10436
?	6164-11-5120	MANIFOLD,EXHAUST	1	SN: 10040-UP
?	6164-11-5131	MANIFOLD,EXHAUST	1	SN: 10437-UP
?	6164-11-5130	MANIFOLD,EXHAUST	1	SN: 10040-10436
?	6162-13-5810	GASKET (K1)	8	SN: 10040-UP
?	01020-11280	BOLT	2	SN: 10262-UP
?	01010-61285	BOLT	2	SN: 10040-10261
?		(01020-11280{6164-11-9420)}	-1
?	6164-11-9420	SPACER	2	SN: 10262-UP
?	205-03-71330	COLLAR	2	SN: 10040-10261
?	01020-11245	BOLT	4	SN: 10262-UP
?	01010-61245	BOLT	4	SN: 10040-10261
?	01643-31232	WASHER	4	SN: 10040-UP
?	01020-11280	BOLT	6	SN: 10262-UP
?	01010-61295	BOLT	6	SN: 10040-10261
?		(01020-11280{6164-11-9420)}	-1
?	6164-11-9420	SPACER	6	SN: 10262-UP
?	6110-25-6290	SPACER	6	SN: 10040-10261
?	6164-11-5680	PLATE,LOCK	3	SN: 10040-10040
?	6164-11-9810	BOLT	6	SN: 10262-UP
?	01011-61245	BOLT	6	SN: 10040-10261
?	6164-11-9420	SPACER	6	SN: 10262-UP
?	6110-25-6290	SPACER	12	SN: 10040-10261
?	6164-11-9430	SPACER	6	SN: 10262-UP
?	6164-11-5690	PLATE,LOCK	3	SN: 10040-10040
?	01020-11280	BOLT	14	SN: 10262-UP
?	01010-61295	BOLT	14	SN: 10040-10261
?		(01020-11280{6164-11-9420)}	-1
?	6164-11-9420	SPACER	14	SN: 10262-UP
?	6110-25-6290	SPACER	14	SN: 10040-10261
?	6164-11-5321	MANIFOLD	1	SN: 10040-UP
?	6164-11-5320	MANIFOLD	1	SN: (10040-10376)
?	6164-11-5331	MANIFOLD	1	SN: 10040-UP
?	6164-11-5330	MANIFOLD	1	SN: (10040-10376)
?	6164-11-5290	GASKET (K1)	2	SN: 10040-UP
?	6164-11-4450	BOLT	12	SN: 10274-UP
?	01050-61275	BOLT	12	SN: 10131-10273
?		(6164-11-4450{6685-11-5550)}	-1
?	01050-61045	BOLT	12	SN: 10040-10130
?		(6164-11-4450{6685-11-5550)}	-1
?	6128-21-6730	SPACER	12	SN: 10131-10273
?	6685-11-5550	NUT	12	SN: 10131-UP
?	6114-11-5590	NUT	12	SN: 10040-10130
?	6164-11-5340	MANIFOLD	1	SN: 10040-UP
?	6164-11-5350	MANIFOLD	1	SN: 10040-UP
?	07042-00108	PLUG	16	SN: 10040-UP
?	6165-11-5272	PIPE,EXHAUST	4	SN: 10430-UP
?	6165-11-5271	PIPE,EXHAUST	4	SN: 10040-10429
?	6165-11-5290	RING,SEAL	16	SN: 10040-UP
?	01020-11275	BOLT	6	SN: 10262-UP
?	01011-61220	BOLT	6	SN: 10040-10261
?		(01020-11275{6164-11-9190¤}	-1
?		6164-11-9110)	-1
?	01643-31232	WASHER	6	SN: 10040-UP
?	6164-11-9190	SPACER	6	SN: 10262-UP
?	175-49-21582	SPACER	6	SN: 10040-10261
?	6164-11-9110	BOLT	6	SN: 10262-UP
?	6505-51-5111	TURBOCHARGER ASS'Y,L.H. (SEE FIG.0155B)	1	SN: 10437-UP
?	6505-11-8533	TURBOCHARGER ASS'Y,L.H. (SEE FIG.0155A)	1	SN: 10433-10436
?		(6505-51-5111{6164-62-8230(4)¤}	-1
?		6164-62-8240(4){01010-31025(8))}	-1
?	6505-11-8532	TURBOCHARGER ASS'Y,L.H. (SEE FIG.0155A)	1	SN: 10293-10432
?	6505-11-8530	TURBOCHARGER ASS'Y,L.H. (SEE FIG.0155)	1	SN: 10263-10292
?	6505-11-8527	TURBOCHARGER ASS'Y,L.H. (SEE FIG.0155)	1	SN: 10261-10262
?	6505-11-8525	TURBOCHARGER ASS'Y,L.H. (SEE FIG.0155)	1	SN: 10253-10260
?	6505-11-8521	TURBOCHARGER ASS'Y,L.H. (SEE FIG.0155)	1	SN: 10246-10252
?	6505-11-6521	TURBOCHARGER ASS'Y,L.H. (SEE FIG.0155)	1	SN: 10040-10245
?	6505-11-5121	TURBOCHARGER ASS'Y,R.H. (SEE FIG.0155B)	1	SN: 10437-UP
?	6505-11-8543	TURBOCHARGER ASS'Y,R.H. (SEE FIG.0155A)	1	SN: 10433-10436
?		(6505-51-5121{6164-62-8230(4)¤}	-1
?		6164-62-8240(4){01010-31025(8))}	-1
?	6505-11-8542	TURBOCHARGER ASS'Y,R.H. (SEE FIG.0155A)	1	SN: 10293-10432
?	6505-11-8540	TURBOCHARGER ASS'Y,R.H. (SEE FIG.0155)	1	SN: 10263-10292
?	6505-11-8528	TURBOCHARGER ASS'Y,R.H. (SEE FIG.0155)	1	SN: 10261-10262
?	6505-11-8526	TURBOCHARGER ASS'Y,R.H. (SEE FIG.0155)	1	SN: 10253-10260
?	6505-11-8522	TURBOCHARGER ASS'Y,R.H. (SEE FIG.0155)	1	SN: 10246-10252
?	6505-11-6522	TURBOCHARGER ASS'Y,R.H. (SEE FIG.0155)	1	SN: 10040-10245
?	6151-11-5710	GASKET (K1)	2	SN: 10040-UP
?	6138-13-4510	BOLT	8	SN: 10263-UP
?	01050-61070	BOLT	8	SN: 10261-10262
?	01050-61050	BOLT	8	SN: 10040-10260
?	144-874-7470	BOSS	8	SN: 10261-10262
?	6114-11-5590	NUT	8	SN: 10040-UP
?	6164-11-5380	ELBOW	1	SN: 10040-UP
?	6164-11-5480	SEAL,SEAL	2	SN: 10040-UP
?	6164-11-5550	JOINT	1	SN: 10040-UP
?	6164-11-5560	RING,SEAL	2	SN: 10040-UP
?	01010-61035	BOLT	4	SN: 10040-UP
?	01643-31032	WASHER	4	SN: 10040-UP
?	6211-11-4410	CONNECTOR	2	SN: 10040-UP
?	6161-11-4720	O-RING (K1)	8	SN: 10520-UP
?	02895-67075	O-RING (K1)	8	SN: 10040-10519
?	6164-62-8230	PLATE	8	SN: 10437-UP
?	6164-62-8240	GASKET (K1)	8	SN: 10437-UP
?	01010-31025	BOLT	16	SN: 10437-UP
