SA8V170-1C S/N 10040-UP

#	Part Number	Partname	Quantity	Options
1	6165-11-5111	MANIFOLD,EXHAUST	3	SN: 10437-UP
\|1	6165-11-5110	MANIFOLD,EXHAUST	3	SN: 10040-10436
2	6164-11-5111	MANIFOLD,EXHAUST	1	SN: 10437-UP
\|2	6164-11-5110	MANIFOLD,EXHAUST	1	SN: 10040-10436
3	6164-11-5141	MANIFOLD,EXHAUST	1	SN: 10437-UP
\|3	6164-11-5140	MANIFOLD,EXHAUST	1	SN: 10040-10436
4	6164-11-5151	MANIFOLD,EXHAUST	1	SN: 10437-UP
\|4	6164-11-5150	MANIFOLD,EXHAUST	1	SN: 10040-10436
5	6164-11-5120	MANIFOLD,EXHAUST	1	SN: 10040-UP
6	6164-11-5131	MANIFOLD,EXHAUST	1	SN: 10437-UP
\|6	6164-11-5130	MANIFOLD,EXHAUST	1	SN: 10040-10436
7	6162-13-5810	GASKET (K1)	8	SN: 10040-UP
8	01020-11280	BOLT	2	SN: 10262-UP
\|8	01010-61285	BOLT	2	SN: 10040-10261
\|$$15		(01020-11280{6164-11-9420)}	-1
9	6164-11-9420	SPACER	2	SN: 10262-UP
\|9	205-03-71330	COLLAR	2	SN: 10040-10261
10	01020-11245	BOLT	4	SN: 10262-UP
\|10	01010-61245	BOLT	4	SN: 10040-10261
11	01643-31232	WASHER	4	SN: 10040-UP
12	01020-11280	BOLT	6	SN: 10262-UP
\|12	01010-61295	BOLT	6	SN: 10040-10261
\|$$23		(01020-11280{6164-11-9420)}	-1
13	6164-11-9420	SPACER	6	SN: 10262-UP
\|13	6110-25-6290	SPACER	6	SN: 10040-10261
14	6164-11-5680	PLATE,LOCK	3	SN: 10040-10040
15	6164-11-9810	BOLT	6	SN: 10262-UP
\|15	01011-61245	BOLT	6	SN: 10040-10261
16	6164-11-9420	SPACER	6	SN: 10262-UP
\|16	6110-25-6290	SPACER	12	SN: 10040-10261
16A	6164-11-9430	SPACER	6	SN: 10262-UP
17	6164-11-5690	PLATE,LOCK	3	SN: 10040-10040
18	01020-11280	BOLT	14	SN: 10262-UP
\|18	01010-61295	BOLT	14	SN: 10040-10261
\|$$35		(01020-11280{6164-11-9420)}	-1
19	6164-11-9420	SPACER	14	SN: 10262-UP
\|19	6110-25-6290	SPACER	14	SN: 10040-10261
20	6164-11-5321	MANIFOLD	1	SN: 10040-UP
\|20	6164-11-5320	MANIFOLD	1	SN: (10040-10376)
21	6164-11-5331	MANIFOLD	1	SN: 10040-UP
\|21	6164-11-5330	MANIFOLD	1	SN: (10040-10376)
22	6164-11-5290	GASKET (K1)	2	SN: 10040-UP
23	6164-11-4450	BOLT	12	SN: 10274-UP
\|23	01050-61275	BOLT	12	SN: 10131-10273
\|$$45		(6164-11-4450{6685-11-5550)}	-1
\|23	01050-61045	BOLT	12	SN: 10040-10130
\|$$47		(6164-11-4450{6685-11-5550)}	-1
24	6128-21-6730	SPACER	12	SN: 10131-10273
25	6685-11-5550	NUT	12	SN: 10131-UP
\|25	6114-11-5590	NUT	12	SN: 10040-10130
26	6164-11-5340	MANIFOLD	1	SN: 10040-UP
27	6164-11-5350	MANIFOLD	1	SN: 10040-UP
28	07042-00108	PLUG	16	SN: 10040-UP
29	6165-11-5272	PIPE,EXHAUST	4	SN: 10430-UP
\|29	6165-11-5271	PIPE,EXHAUST	4	SN: 10040-10429
30	6165-11-5290	RING,SEAL	16	SN: 10040-UP
31	01020-11275	BOLT	6	SN: 10262-UP
\|31	01011-61220	BOLT	6	SN: 10040-10261
\|$$59		(01020-11275{6164-11-9190¤}	-1
\|$$60		6164-11-9110)	-1
32	01643-31232	WASHER	6	SN: 10040-UP
33	6164-11-9190	SPACER	6	SN: 10262-UP
\|33	175-49-21582	SPACER	6	SN: 10040-10261
33A	6164-11-9110	BOLT	6	SN: 10262-UP
34	6505-51-5111	TURBOCHARGER ASS'Y,L.H. (SEE FIG.0155B)	1	SN: 10437-UP
\|34	6505-11-8533	TURBOCHARGER ASS'Y,L.H. (SEE FIG.0155A)	1	SN: 10433-10436
\|$$67		(6505-51-5111{6164-62-8230(4)¤}	-1
\|$$68		6164-62-8240(4){01010-31025(8))}	-1
\|34	6505-11-8532	TURBOCHARGER ASS'Y,L.H. (SEE FIG.0155A)	1	SN: 10293-10432
\|34	6505-11-8530	TURBOCHARGER ASS'Y,L.H. (SEE FIG.0155)	1	SN: 10263-10292
\|34	6505-11-8527	TURBOCHARGER ASS'Y,L.H. (SEE FIG.0155)	1	SN: 10261-10262
\|34	6505-11-8525	TURBOCHARGER ASS'Y,L.H. (SEE FIG.0155)	1	SN: 10253-10260
\|34	6505-11-8521	TURBOCHARGER ASS'Y,L.H. (SEE FIG.0155)	1	SN: 10246-10252
\|34	6505-11-6521	TURBOCHARGER ASS'Y,L.H. (SEE FIG.0155)	1	SN: 10040-10245
35	6505-11-5121	TURBOCHARGER ASS'Y,R.H. (SEE FIG.0155B)	1	SN: 10437-UP
\|35	6505-11-8543	TURBOCHARGER ASS'Y,R.H. (SEE FIG.0155A)	1	SN: 10433-10436
\|$$77		(6505-51-5121{6164-62-8230(4)¤}	-1
\|$$78		6164-62-8240(4){01010-31025(8))}	-1
\|35	6505-11-8542	TURBOCHARGER ASS'Y,R.H. (SEE FIG.0155A)	1	SN: 10293-10432
\|35	6505-11-8540	TURBOCHARGER ASS'Y,R.H. (SEE FIG.0155)	1	SN: 10263-10292
\|35	6505-11-8528	TURBOCHARGER ASS'Y,R.H. (SEE FIG.0155)	1	SN: 10261-10262
\|35	6505-11-8526	TURBOCHARGER ASS'Y,R.H. (SEE FIG.0155)	1	SN: 10253-10260
\|35	6505-11-8522	TURBOCHARGER ASS'Y,R.H. (SEE FIG.0155)	1	SN: 10246-10252
\|35	6505-11-6522	TURBOCHARGER ASS'Y,R.H. (SEE FIG.0155)	1	SN: 10040-10245
36	6151-11-5710	GASKET (K1)	2	SN: 10040-UP
37	6138-13-4510	BOLT	8	SN: 10263-UP
\|37	01050-61070	BOLT	8	SN: 10261-10262
\|37	01050-61050	BOLT	8	SN: 10040-10260
38	144-874-7470	BOSS	8	SN: 10261-10262
39	6114-11-5590	NUT	8	SN: 10040-UP
40	6164-11-5380	ELBOW	1	SN: 10040-UP
41	6164-11-5480	SEAL,SEAL	2	SN: 10040-UP
42	6164-11-5550	JOINT	1	SN: 10040-UP
43	6164-11-5560	RING,SEAL	2	SN: 10040-UP
44	01010-61035	BOLT	4	SN: 10040-UP
45	01643-31032	WASHER	4	SN: 10040-UP
46	6211-11-4410	CONNECTOR	2	SN: 10040-UP
47	6161-11-4720	O-RING (K1)	8	SN: 10520-UP
\|47	02895-67075	O-RING (K1)	8	SN: 10040-10519
48	6164-62-8230	PLATE	8	SN: 10437-UP
49	6164-62-8240	GASKET (K1)	8	SN: 10437-UP
50	01010-31025	BOLT	16	SN: 10437-UP

Komatsu SA8V170-1C S/N 10040-UP parts catalog PDF

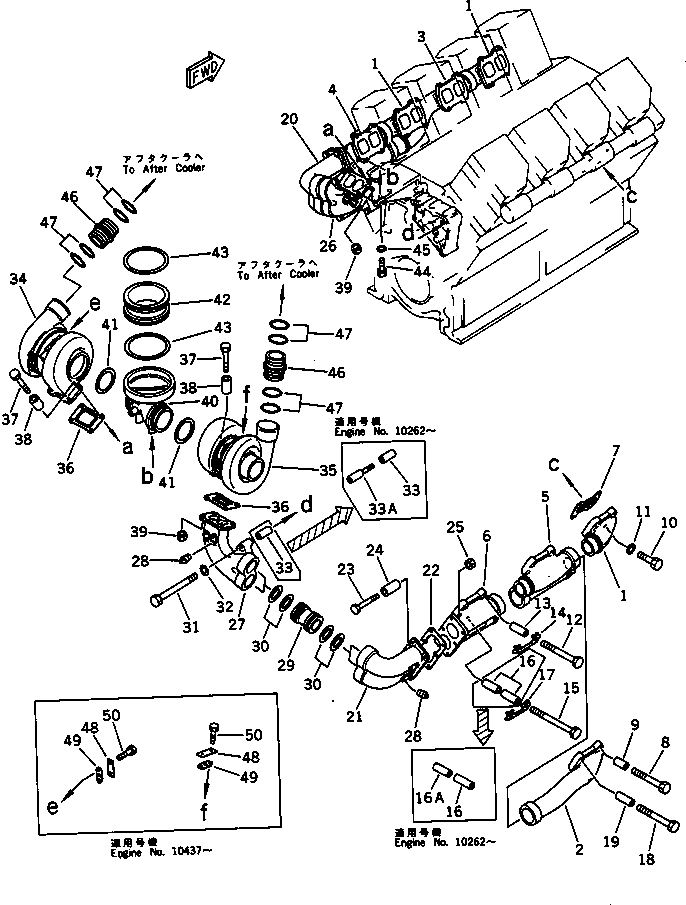

EXHAUST MANIFOLD AND TURBOCHARGER (0151) in SA8V170-1C S/N 10040-UP. Diagram image and parts list.
