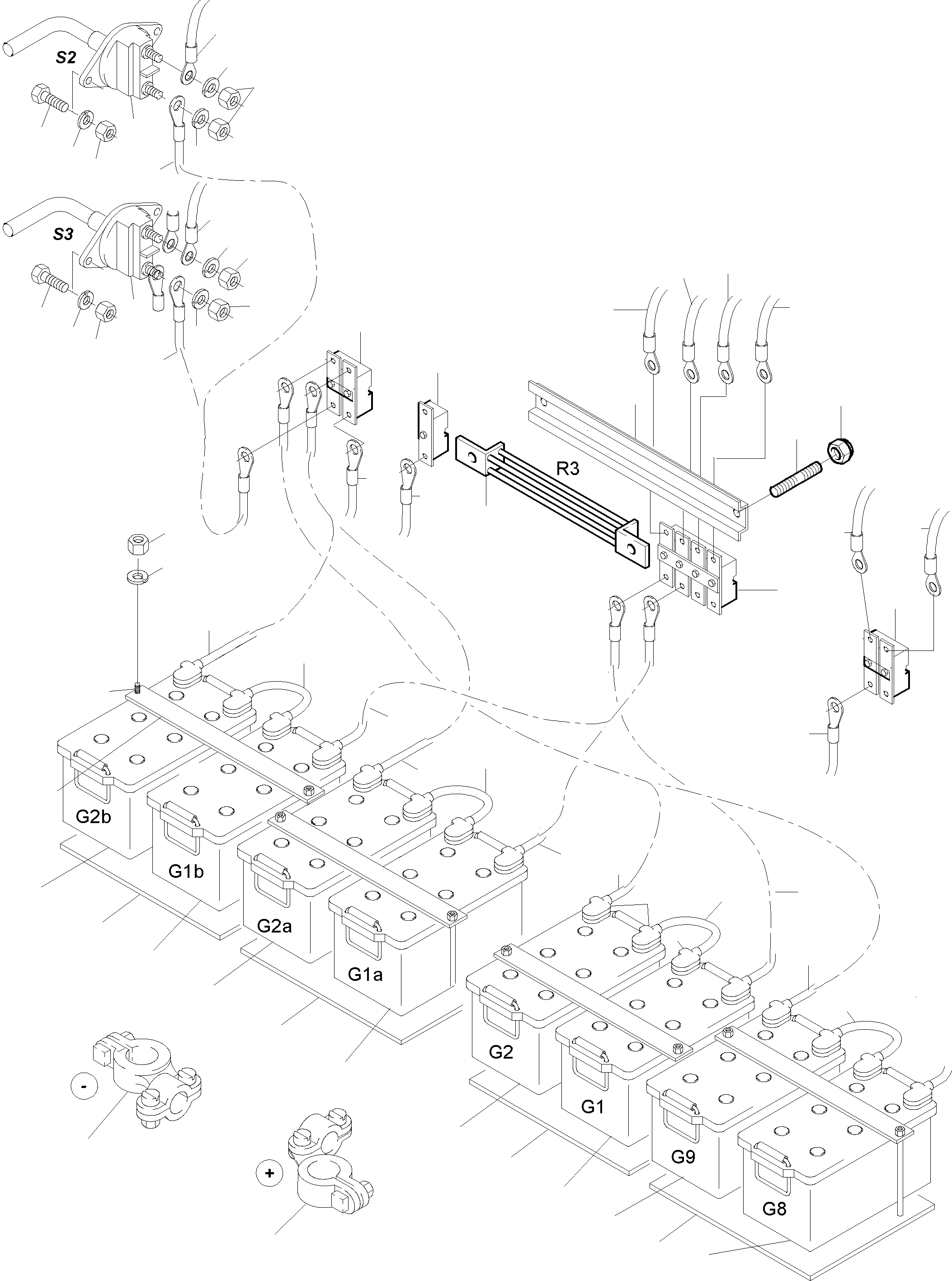

BATTERIES WITH CABLES | PC5500-6 S/N 15019 | Komatsu parts book catalogue

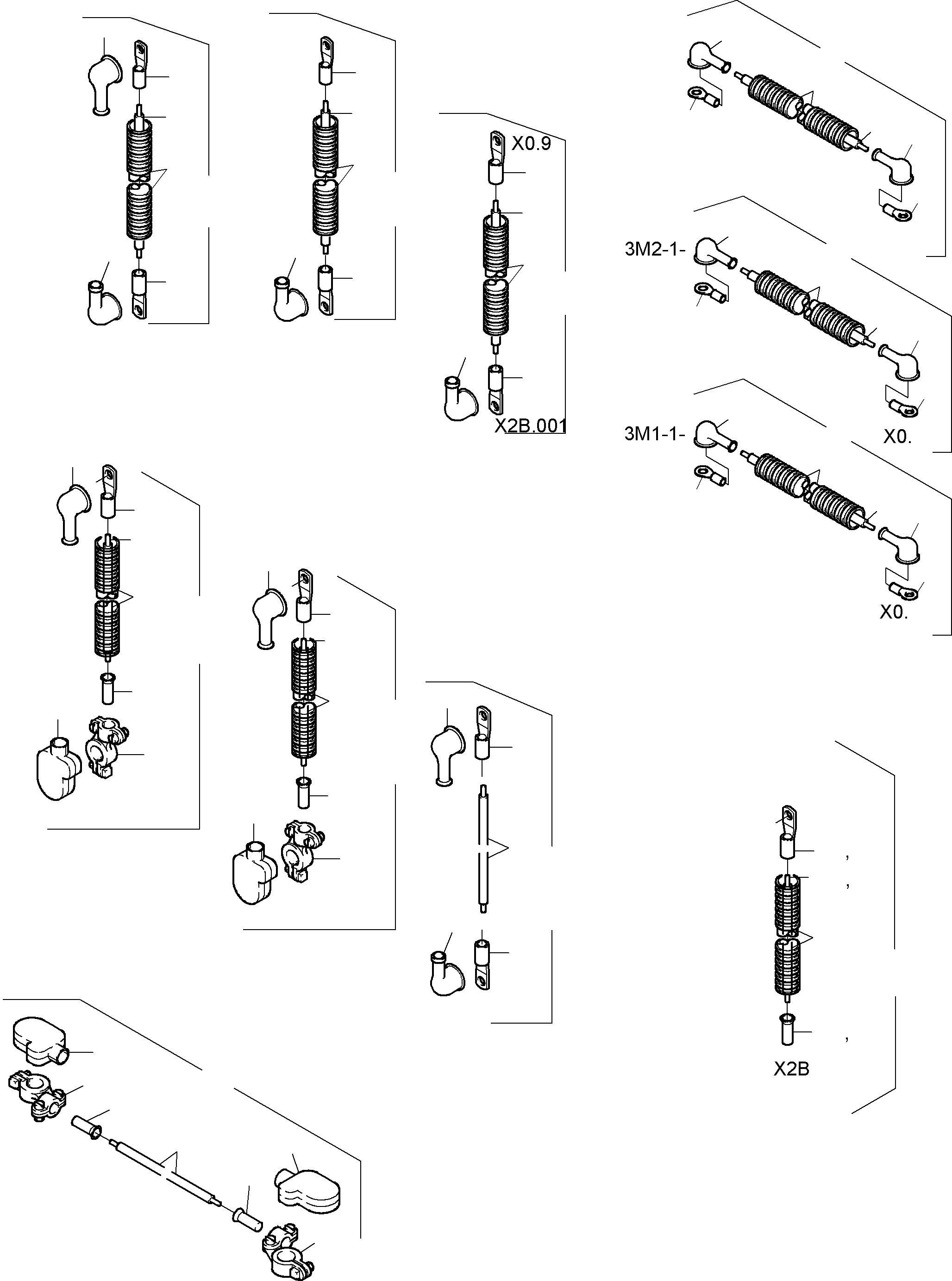

Diagram image 1 of 2

PC5500-6 S/N 15019

01 01 01 01 01 01 01 01 02 02 03 03 04 04 05 05 05 06 07 08 09 10 11 13 13 13 14 14 14 14 15 16 17 18 18 18 18 19 20 21 21 21 21 22 22 23 24 25 26 27 30 31 32 33 34 35 36 37 38 39 39 40 40 41 42 43 44 45 45 46 47

PC5500-6 S/N 15019

003 004 06 07 09 09 10 10 11 15 23 23 24 24 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 48 48 48 48 48 48 49 49 49 50 50 50 51 51 51 51 51 51 51 51 51 51 51 51 51 51 52 52 52 53 54 54 54 54 54 54 54 54 55 55 55 55 55 55 56 56 56 56 57 57 58 59 60 61 62 63 64 65 66

#	Part Number	Partname	Quantity
01	309 691 40	Battery 12 V 200 Ah	8
02	159 984 40	Battery switch	2
03	321 014 99	Screw	4
04	346 499 99	Lock washer	4
05	507 025 98	Nut	11
06	917 309 40	Cable - battery G8-G9	1
07	917 306 40	Cable - battery G1-G2	1
08	505 955 99	Assembly rail Bulk ware, state length required	-2
09	906 940 40	Pole, plus	7
10	906 941 40	Pole, minus	8
11	917 307 40	Cable - battery G1A-G2A	1
13	333 132 99	Nut	-2
14	346 500 99	Lock washer	-2
15	917 308 40	Cable - battery G1B-G2B	-2
16	654 469 40	Aux. resistor 250 A	1
17	887 009 40	Angle	4
18	396 566 40	Moulding material 20x40x490	8
19	510 210 98	Thread pin	7
20	919 417 40	Cross connection	1
21	461 703 40	Terminal	9
22	919 418 40	Cross connection	2
23	906 943 40	Pole end plate, black	7
24	906 942 40	Pole end plate, red	7
25	505 891 98	Bolt	8
26	340 652 99	Washer	8
27	334 600 99	Nut	8
30	923 197 40	Cable - battery X0.5 - G1+	1
31	923 188 40	Cable - battery X0.6 - G1A+	1
32	923 189 40	Cable - battery X0.6 - G1B+	1
33	923 190 40	Cable - battery X0.1 - G9-	1
34	923 191 40	Cable - battery X0.1 - G2-	1
35	923 192 40	Cable - battery X0.2 - G2A-	1
36	923 193 40	Cable - battery X0.2 - G2B-	1
37	923 183 40	Cable - starter X0-3M1-1	1
38	923 184 40	Cable - starter X0-3M1-2	1
39	923 185 40	Harness - starter engine 1	1
40	923 186 40	Harness - starter engine 2	1
41	923 500 40	Cable X2B -X0-9	1
42	917 317 40	Cable -S3 - X0.1	1
43	917 318 40	Cable -S2 - X0.1	1
44	917 319 40	Cable - S3-ground	1
45	917 326 40	Cable - S2-off-X0	1
46	923 195 40	Cable - generator 3G5-1/X0-9	1
47	923 196 40	Cable - generator 3G5-2/X0-9	1
48	655 652 40	Cable protection hose DN 23 Bulk ware, state length required	-2
49	600 212 99	Cable lug 12-95	10
50	600 209 99	Cable lug 10-95	10
51	056 076 40	Protection cap	32
52	471 733 99	Cable 1x95 Bulk ware, state length required	-2
53	655 653 40	Cable protection hose DN 48 Bulk ware, state length required	-2
54	906 153 40	Cable lug 120 /M10	15
55	515 967 98	Cable 1x120 Bulk ware, state length required	-2
56	906 154 40	Cable lug 120 /M12	15
57	655 690 40	Cable lug 35	4
58	655 651 40	Cable protection hose DN 17 Bulk ware, state length required	-2
59	515 100 98	Cable 1x35 Bulk ware, state length required	-2
60	923 540 40	Harness X2B	1
61	055 109 40	Cable lug	4
62	055 104 40	Cable lug 1,5	2
63	056 070 40	Cable sleeve 1,0-1,5	2
64	056 071 40	Cable sleeve 2,5	8
65	592 600 40	Cable 2x0,75 Bulk ware, state length required	-2
66	515 194 40	Cable 2,5	-2
