Diagram image 1 of 8

PC5500-6 S/N 15019

01 05 05 06 06 09 10 10 10 11 11 12 12 12

PC5500-6 S/N 15019

01 05 05 06 06 09 10 10 10 11 11 12 12 12

PC5500-6 S/N 15019

03 07 08 19 19 19 20 20 20 21 21 21 58

PC5500-6 S/N 15019

02 06 07 19 20 21 22 23 24 25 25 26 33 37 55 58 58 58 60 61

PC5500-6 S/N 15019

03 07 08 43 44 44 44 44 45 45 45 45 45 45 45 45 45 45 45 45 45 46 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 87 87 87 87 87 87 87 87 87

PC5500-6 S/N 15019

03 03 07 07 08 08 14 31 31 32 34 35 38 39 40 40 41 41 411 42 42 47 47 48 48 48 49 49 49 50 50 51 53 54 57 57 57 58 65 66 67 67 68 68 71 88 92 93 95

PC5500-6 S/N 15019

03 03 03 05 06 07 07 07 08 08 08 12 29 57 57 58 58 58 58 58 58 58 58 58 58 58 58 58 58 58 59 59 62 63 63 63 63 63 64 64 64 64 64 67 67 67 67 67 67 67 67 67 68 68 68 68 68 68 68 68 68 69 69 69 69 69 70 70 70 72 73 74 75 76 77 78 79 80 81 82 83 84 85 89

PC5500-6 S/N 15019

03 03 05 06 07 07 08 08 10 11 12 30 57 58 58 58 59 59 63 64 67 67 67 68 68 68 69 69 69 86 90 91

#	Part Number	Partname	Quantity
01	923 531 40	Switch framing	1
02	490 929 40	Assembly rail	2
03	490 708 40	Sectional plate	10
04	323 237 40	Wiring terminal	16
05	323 233 40	Wiring profile Bulk ware, state length required	-2
06	323 234 40	Cover 25 BN Bulk ware, state length required	-2
07	500 106 98	Bolt	44
08	334 599 99	Nut	44
09	270 288 40	Wiring channel 40x25 Bulk ware, state length required	-2
10	655 517 40	Cover 40 BN Bulk ware, state length required	-2
11	655 518 40	Wiring channel 40x60 Bulk ware, state length required	-2
12	896 747 40	Verdrahtungskanal 100 Bulk ware, state length required	-2
13	654 856 40	Breaker 25 A	7
14	654 298 40	Breaker 16 A	17
15	655 184 40	Breaker 50 A	2
16	654 012 40	Breaker 63 A	1
17	654 855 40	Breaker 10 A	9
18	654 254 40	Breaker 6 A	1
19	399 773 40	Relay	48
20	592 338 40	Socket	48
21	414 369 40	Spring retainer	48
22	356 184 40	Relay	16
23	323 910 40	Socket	16
24	323 911 40	Spring retainer	16
25	896 580 40	Power breaker	2
26	896 581 40	Power breaker	2
27	901 392 40	Resistor array assy.	5
28	654 854 40	Breaker 6 A	5
29	906 775 40	Bridge	-2
30	906 770 40	Through clamp M10	-2
31	896 546 40	Time lag relay	2
32	907 481 40	Time lag relay	1
33	461 177 40	Relay 100 A	1
34	655 898 40	Cycle relay	1
35	654 439 40	Time-lag relay	1
37	414 867 40	Measuring transducer	2
38	896 578 40	Revolution controller	1
39	896 584 40	Director	1
40	323 590 40	Switch modul	3
41	906 482 40	Booster	1
42	896 488 40	Camswitch	2
43	621 506 40	Sensor	1
44	621 735 40	Capacitor	4
45	634 575 40	Amplifier	13
46	461 039 40	Amplifier	1
47	322 378 40	Diode array	2
48	655 748 40	Diode array	3
49	894 587 40	Voltage transformer	2
50	490 889 40	Series terminal with diode, red	3
51	490 890 40	Series terminal with diode, green	1
52	655 500 40	Rail collector Bulk ware, state length required	-2
53	603 346 40	Voltage measuring clamp	4
54	906 412 40	Series terminal with diode, red	2
55	604 733 40	Resistor 2 W	75
56	906 611 40	Mounting part	5
57	461 321 40	Terminal	-2
58	356 265 40	Clamp	-2
59	461 322 40	Cover plate	-2
60	505 940 99	Assembly rail Bulk ware, state length required	-2
61	269 573 40	Retainer	4
62	461 703 40	Terminal	4
63	906 768 40	Through clamp M6	-2
64	906 772 40	Cover plate	-2
65	906 769 40	Through clamp M16	-2
66	908 773 40	Cover plate	-2
67	906 612 40	Through clamp 2.5	-2
68	906 613 40	Cover plate	-2
69	906 630 40	Protective wire clip	-2
70	906 792 40	Protective wire clip	-2
71	906 794 40	Protective wire clip	-2
72	906 624 40	Marker	-2
73	906 625 40	Marker	-2
74	906 626 40	Marker	-2
75	906 627 40	Marker	-2
76	906 628 40	Marker	-2
77	906 629 40	Marker	-2
78	906 687 40	Marker	-2
79	906 688 40	Marker	-2
80	515 189 40	Cable 1.0 Bulk ware, state length required	-2
81	515 194 40	Cable 2.5 Bulk ware, state length required	-2
82	471 731 99	Cable 6.0 Bulk ware, state length required	-2
83	906 614 40	Bridge 2-fold	-2
84	906 615 40	Bridge 3-fold	-2
85	906 616 40	Bridge 4-fold	-2
86	906 623 40	Marking strip	1
87	906 671 40	Modul	9
88	440 307 40	Socket	1
89	906 618 40	Bridge 10-fold	-2
90	906 774 40	Cover plate	-2
91	906 777 40	Bridge	-2
92	907 176 40	Mesuring Booster	6
93	906 771 40	Through clamp M35	5
94	655 183 40	Breaker 40 A	1
95	896 754 40	Switch modul	2

Komatsu PC5500-6 S/N 15019 parts catalog PDF

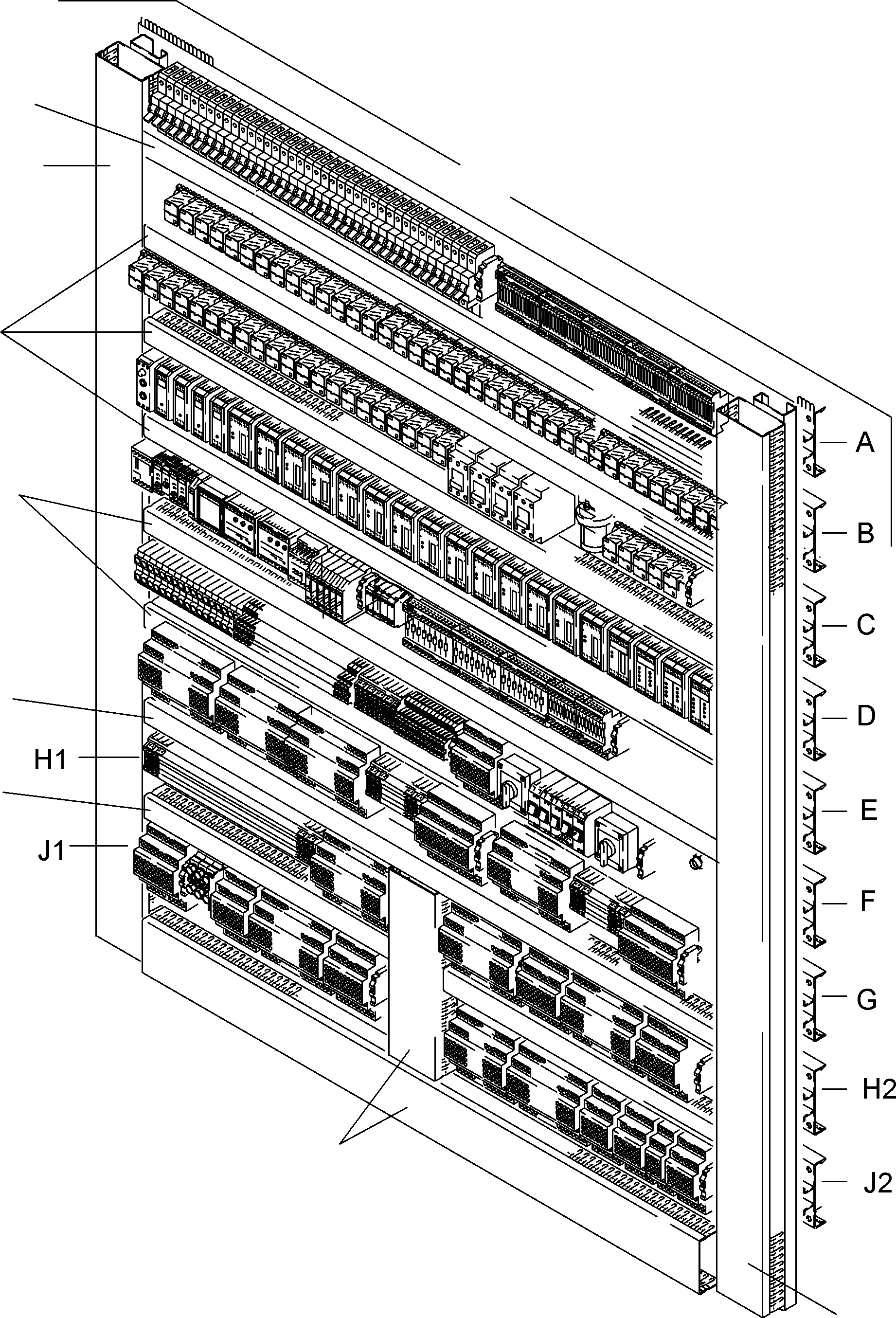

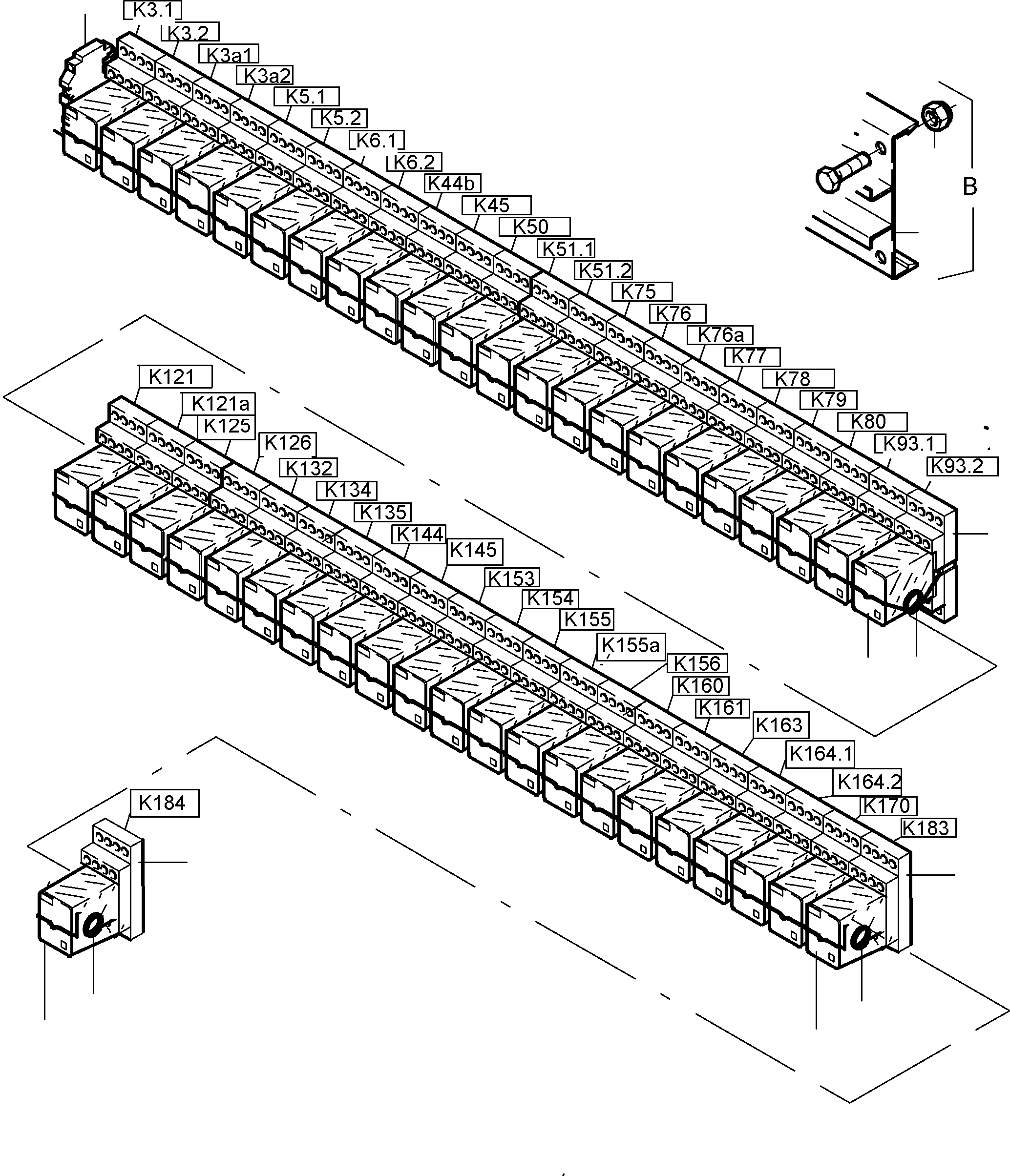

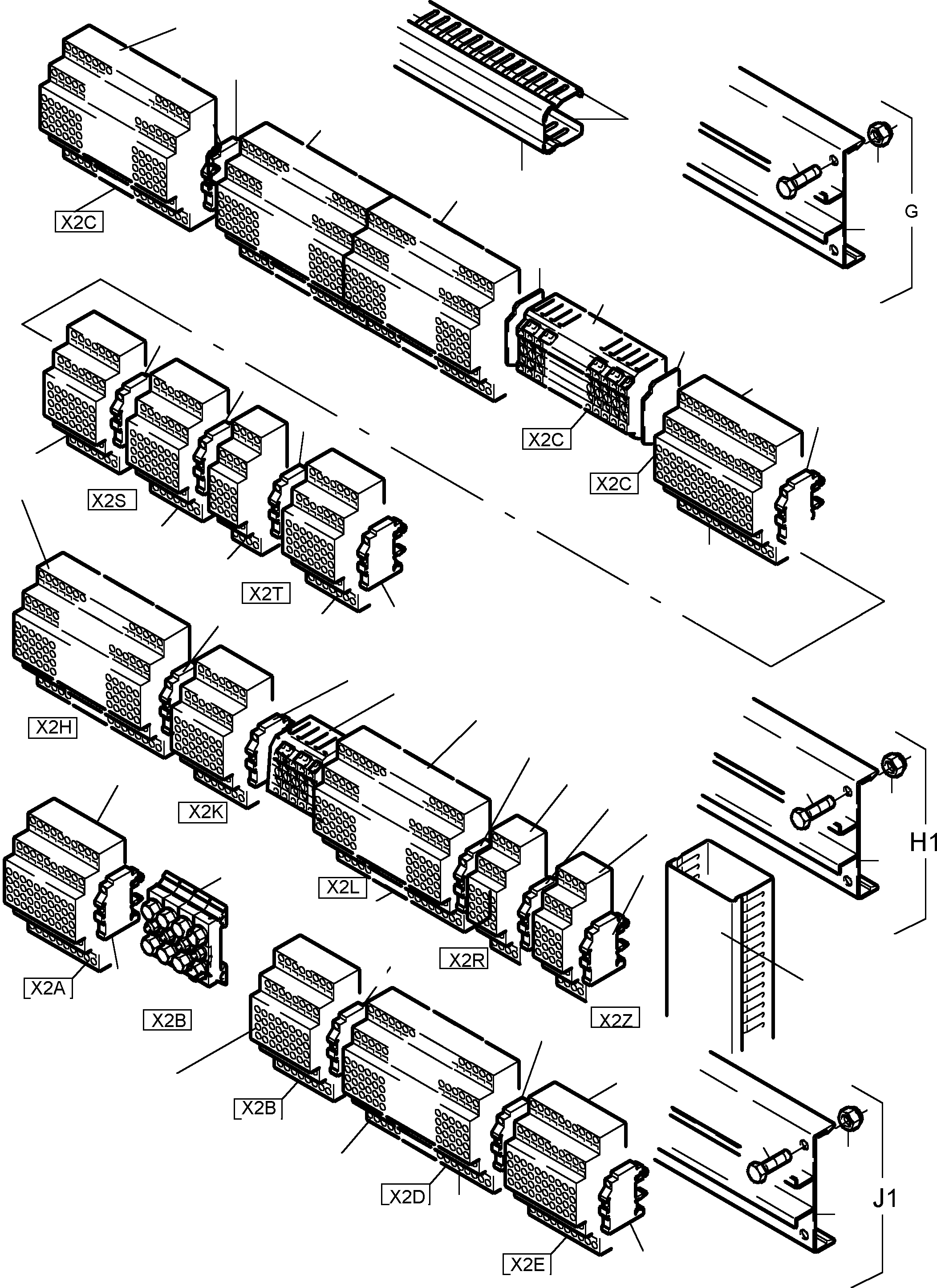

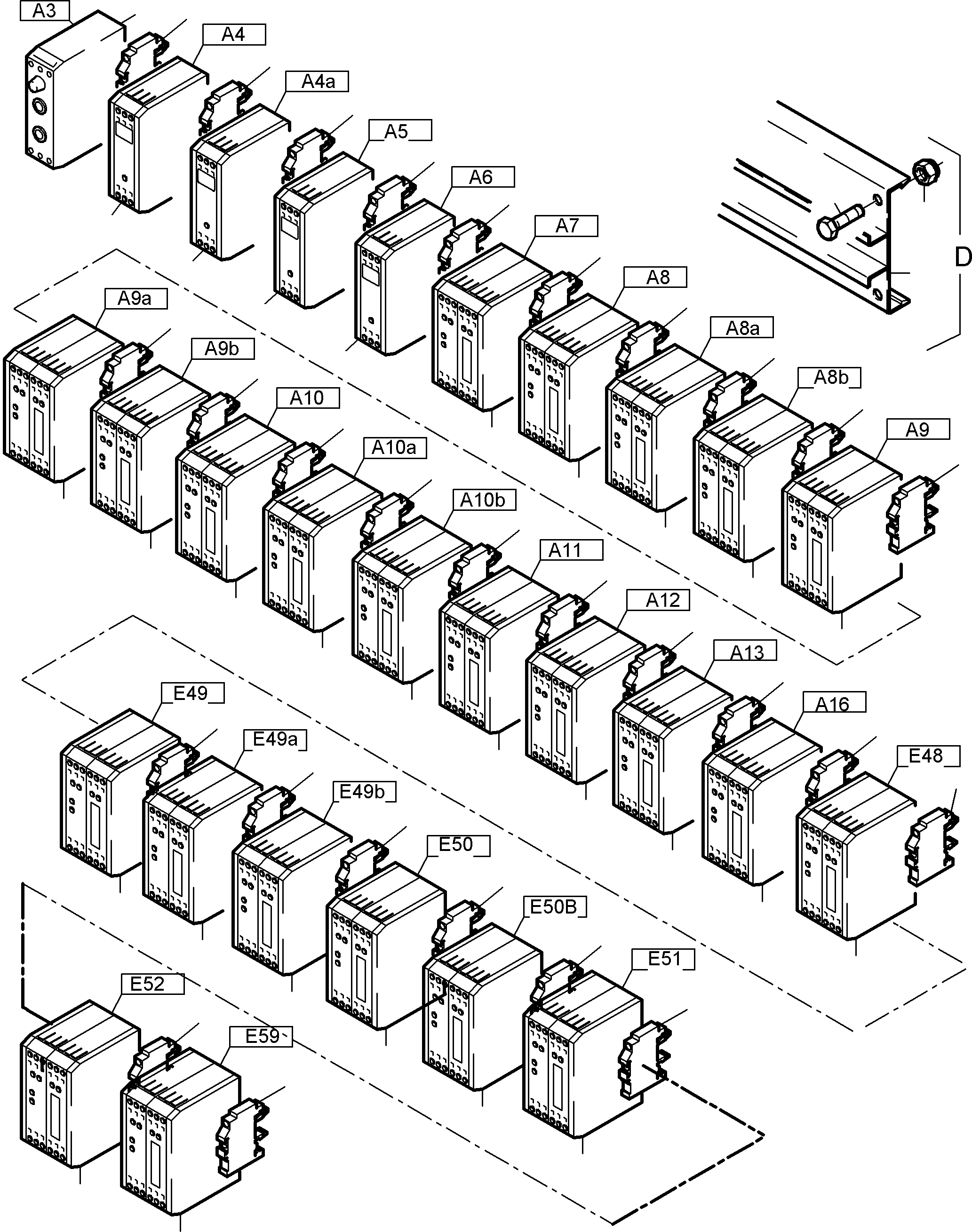

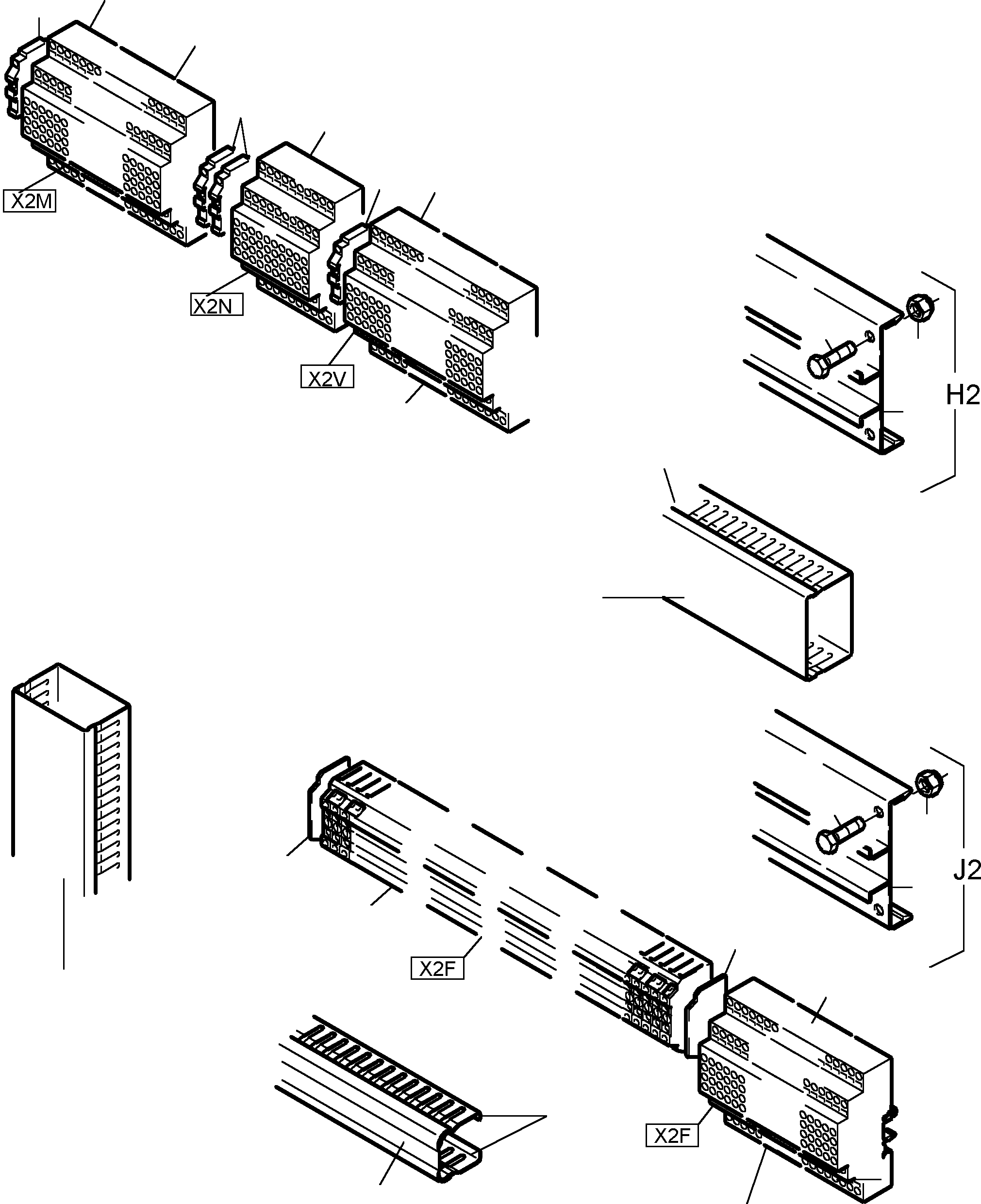

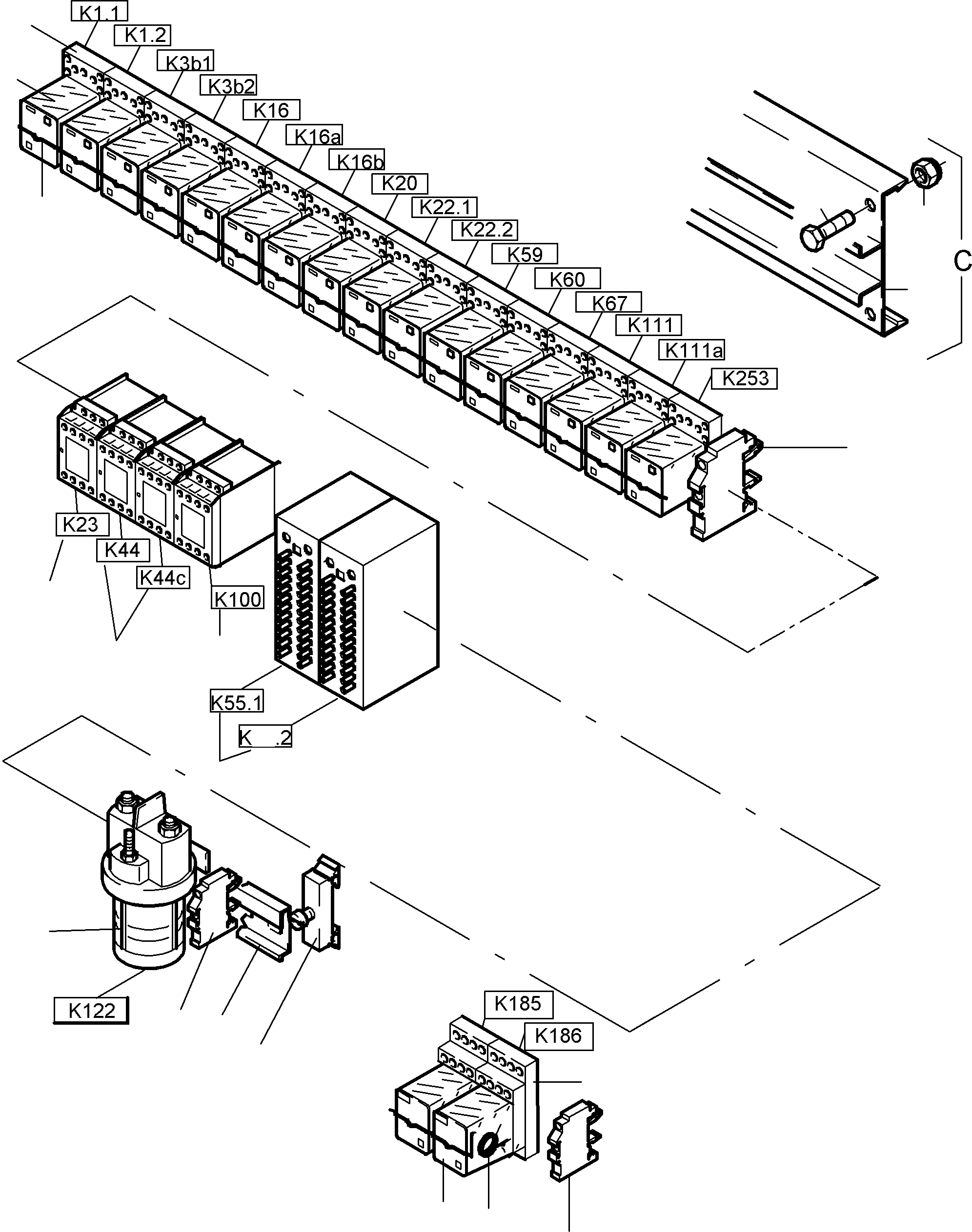

SWITCH FRAMING X2 (515-2165j) in PC5500-6 S/N 15019. Diagram image and parts list.
