Diagram image 1 of 2

PC5500-6 S/N 15019

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15019

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	896 579 40	Sensor	2
?	906 754 40	Pressure switch - engine-oil pressure	2
?	907 462 40	Pressure switch - engine-oil pressure	2
?	906 078 40	Pressure transmitter	2
?	414 899 40	Rpm-sensor	2
?	655 427 40	Pressure switch - crankcase pressure	2
?	659 892 40	Starter relay assy.	4
?	792 585 73	Time lag relay	2
?	906 756 40	Pressure switch (cooling water)	2
?	317 319 40	Threaded block	4
?	461 350 40	Revolution sensor	-2
?	431 169 40	Temperature transmitter	-2
?	923 153 40	Harness - engine 2, front	1
?	923 147 40	Harness - engine 1, front	1
?	635 965 40	Relay	2
?	655 642 40	Circular bearing	12
?	507 025 98	Nut	12
?	655 649 40	Protecting hose DN 10 Bulk ware, state length required	-2
?	655 650 40	Protecting hose DN 12 Bulk ware, state length required	-2
?	655 628 40	T-distributor	2
?	891 051 40	Plug assy. 2-pole	2
?	891 084 40	Plug assy.	4
?	655 805 40	Fitting PG 9	8
?	377 750 99	Bolt	4
?	655 798 40	Cable union PG 9	6
?	655 799 40	Cable union PG 9	2
?	655 627 40	Connector distributor DN 23/17	2
?	655 652 40	Protecting hose DN 23 Bulk ware, state length required	-2
?	515 213 40	Cable 1,0 qmm Bulk ware, state length required	-2
?	515 214 40	Cable 2,5 qmm Bulk ware, state length required	-2
?	592 600 40	Cable 2x0,75 qmm Bulk ware, state length required	-2
?	655 651 40	Protecting hose DN 17 Bulk ware, state length required	-2
?	916 640 40	Angle	10
?	655 629 40	T-distributor	6
?	916 641 40	Angle	10
?	655 632 40	Pipe adapter DN 17/10	4
?	621 547 40	Plug	2
?	621 548 40	Socket	2
?	621 698 40	Contact plug 1-2 qmm	18
?	621 699 40	Female contact 1-2 qmm	18
?	634 404 40	Strain relief	4
?	006 339 98	Clamp	4
?	145 831 40	Clamp	4
?	006 302 98	Clamp	10
?	551 474 40	Rail Bulk ware, state length required	-2
?	358 273 40	Series clamping	-2
?	358 274 40	Series clamping	-2
?	655 633 40	Pipe adapter DN 17/12	6
?	655 806 40	Fitting PG 11	4
?	655 807 40	Fitting PG 13,5	4
?	534 092 99	Clamp	6
?	655 800 40	Cable union PG 11	4
?	655 803 40	Cable union PG 13,5	4
?	891 031 40	Plug with bushings assy.	10
?	896 489 40	Cable union DN 16	2
?	655 808 40	Fitting DN 16	2
?	896 520 40	End pin	26
?	635 677 40	Cable 4x1 Bulk ware, state length required	-2
?	923 145 40	Harness engine 1, rear 1	1
?	923 148 40	Harness engine 2, rear 1	1
?	923 146 40	Harness engine 1, rear 2	1
?	923 149 40	Harness engine 2, rear 2	1
?	917 320 40	Cable - starter 3M2-1-GND	1
?	917 321 40	Cable - starter 3M2-2-GND	1
?	056 076 40	Protection cap	4
?	906 154 40	Cable lug 120/12	4
?	515 967 98	Cable 1x120 Bulk ware, state length required	-2
?	910 057 40	Rubber capsule assy. 1-pole	4
?	910 055 40	Protection cap assy. 2-pole	6
?	323 961 40	Sleeve 6,3x0,8	-2
?	455 756 99	Insulating tube B 6x0,6 Bulk ware, state length required	-2
?	906 922 40	Protection cap	-2
?	056 070 40	Cable sleeve 1,0-1,5	52
?	055 130 40	Tab	16
?	055 100 40	Cable lug, red	-2
?	455 890 99	Insulating tube B 3x0,4 Bulk ware, state length required	-2
?	255 745 40	Rubber capsule	-2
?	055 104 40	Cable lug 1,5	-2
?	896 521 40	End pin	4
?	056 071 40	Cable sleeve 2,5	-2
?	891 140 40	Plate	1
?	256 514 40	Name plate	-2
?	056 292 40	Cable strap	-2
?	923 550 40	Cable generator G5-1 ground	1
?	923 552 40	Cable generator G5-2 ground	1
?	654 421 40	Cable lug 35	2
?	655 690 40	Cable lug 35	2
?	515 100 98	Cable 35 qmm Bulk ware, state length required	-2
?	913 266 40	Installation - crankcase switch	2
?	906 810 40	Seal	1
?	913 267 40	Cover	1
?	516 668 98	Elbow union	1
?	517 217 98	Plug	1
?	923 548 40	Harness - starter - relay 1	1
?	923 549 40	Harness - starter - relay 2	1
?	055 108 40	Cable lug blue 2,5	18
?	055 109 40	Cable lug yellow 4-6	12
?	455 754 99	Insulating tube B4x0,5 Bulk ware, state length required	-2
?	891 050 40	Plug with pins assy.	2
?	923 557 40	Harness - oil management system engine 1	1
?	923 558 40	Harness - oil management system engine 2	1
?	455 755 99	Insulating tube B5x0,6 Bulk ware, state length required	-2
?	891 032 40	Plug with pins assy.	2
?	891 039 40	Plug with bushings assy.	10
?	006 303 98	Clamp	8
?	916 642 40	Angle	2
?	916 643 40	Plate	2
?	916 644 40	Plate	4
?	916 645 40	Plate	2
?	307 671 99	Bolt	8
?	332 442 99	Nut	8
?	307 736 99	Bolt	32
?	332 331 99	Nut	32
?	923 554 40	Plate	2

Komatsu PC5500-6 S/N 15019 parts catalog PDF

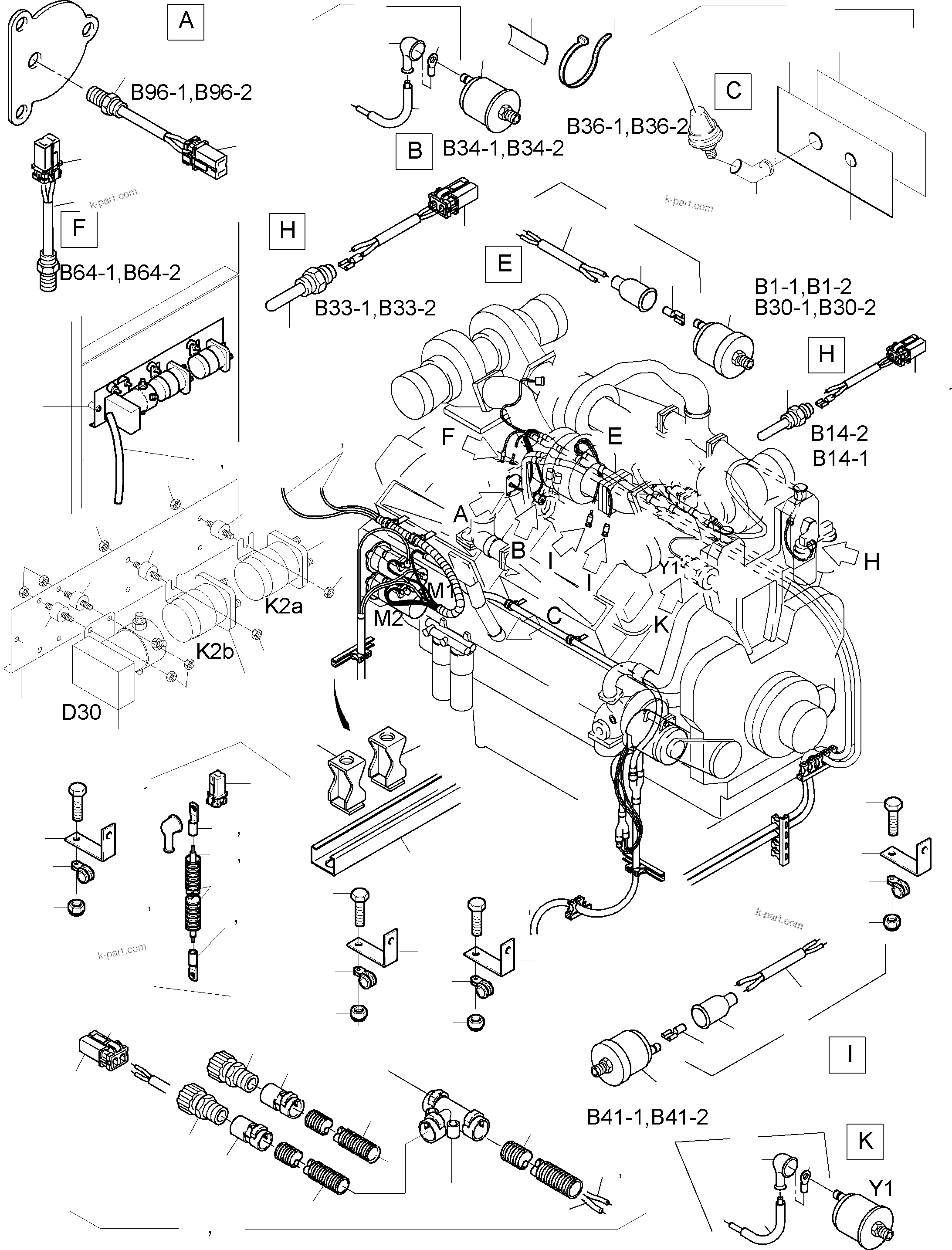

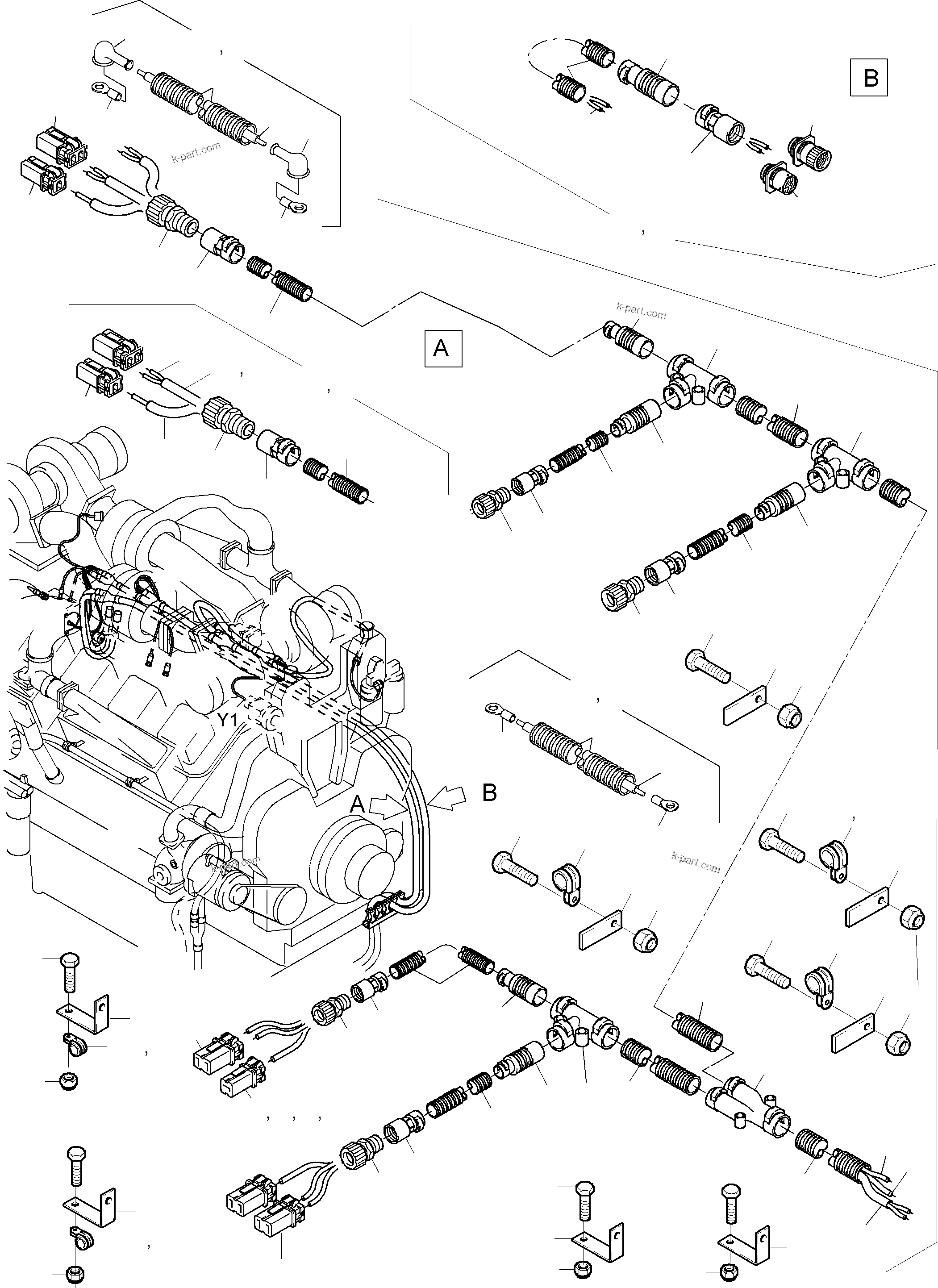

CABLES - ENGINE AND TRANSMITTER (515-2148g) in PC5500-6 S/N 15019. Diagram image and parts list.
